Stock No. AXDSPL-HK4

Axxess DSP “Lite” Package with Amp Bypass Harness Fits Selec


Upgrade the sound system with this cost-effective, easy-to-install DSP “Lite” package that includes a vehicle-specific T-harness along with an amplifier bypass harness. It works with OEM or aftermarket radios to take fixed level/digitally controlled analog audio and convert it to 6 channels of analog signal for use with an aftermarket amplifier or DSP.

Retain Features with a Built-in Interface
While this may be a “Lite” version, it still provides retention of many important vehicle functions utilizing Axxess’s cutting-edge technology. It features chime control, retains OEM voice prompts and sonar sensors, and has clipping detection and limiting circuits, going beyond what a traditional DSP can do.

Complete Tuning Control
There are 4 inputs and 6 outputs, including front, rear and subwoofer, and the front and rear outputs can be delayed independently up to 10ms. Full tuning control settings are adjusted via a smart device application for tablets or mobile phones and can be password-protected once set up. Once tuning has been completed, installers can password-protect their settings to prevent anyone else from adjusting, and the information is stored for future recall.

  • Designed for S/PDIF amplified models

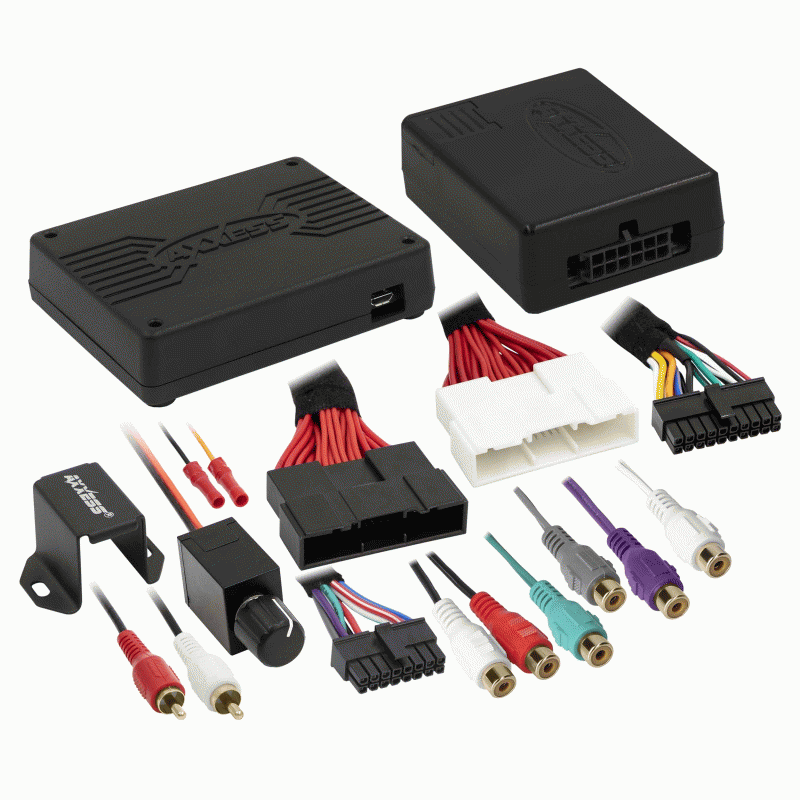

  • Package includes the AXDSP-L and vehicle-specific T-harness
  • 15-band graphic EQ or 5-band Parametric EQ
  • Selectable high pass, low pass, or bandpass filters on each channel
  • 4 inputs and 6 individually assignable outputs
  • Independent equalization on each of the 6 outputs
  • Selectable slope (12, 24, 36, or 48db per octave)
  • Each channel can be delayed independently for up to 10 ms
  • Easy behind the radio installation in most applications
  • Can be used with OE and aftermarket radios
  • Clipping detection and limiting circuits
  • Internal header port for adding interface modules
  • Bass knob included
  • Retains OE voice prompts (Blue Link®/UVO) with adjustable level
  • Retains factory chimes, including parking sensor and cross path detection alerts with adjustable chime level
  • Retains the ability to work with S/PDIF digitally controlled amplified systems
  • Factory amplifier does NOT need to be retained
  • Wiring to be completed at the amplifier location
  • Settings adjusted wirelessly in a smart device application (tablet or mobile phone)
  • Read, write, and store configurations for future recall
  • Password-protect feature is available in the mobile app
  • Micro “B” USB updatable
  • 1-year limited warranty

U.S. Patent 9,875,078



  • Elantra 2017-2020
  • Elantra GT 2018-Up
  • Santa Fe 2017-Up


  • Cadenza 2017-2020
  • Forte 2019-Up
  • Niro (Hybrid Electrical) 2020-Up
  • Niro (Plug-in Hybrid) 2018-2020
  • Niro ( EV) 2019-2020
  • Optima 2019-Up
  • Sorento 2017-Up
  • Soul 2017-Up
  • Soul EV 2020-Up
  • Sportage 2017-Up

  • Visit for more detailed information about the product and up-to-date vehicle specific applications.
