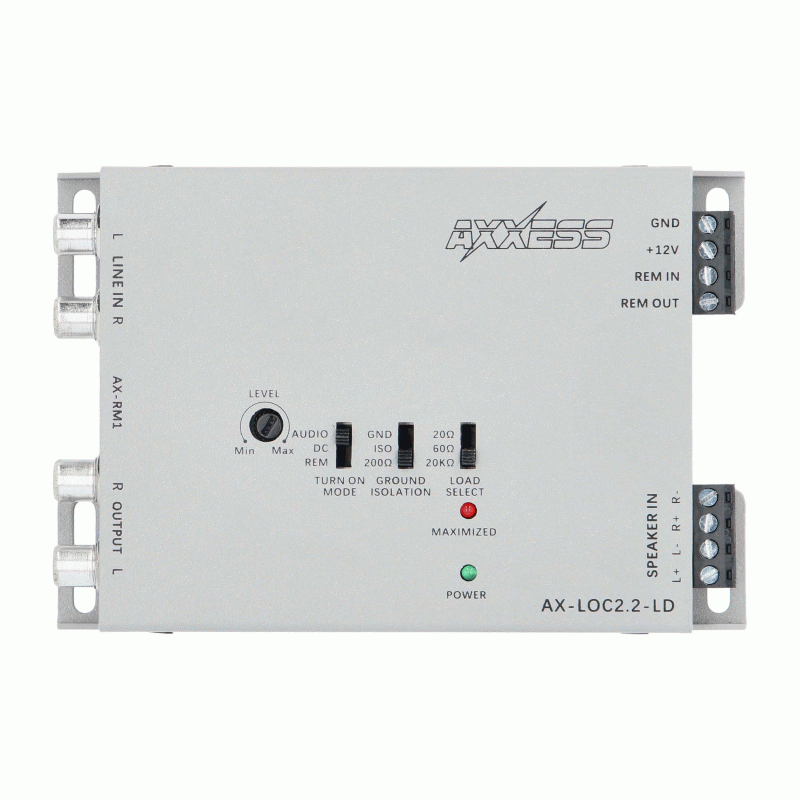

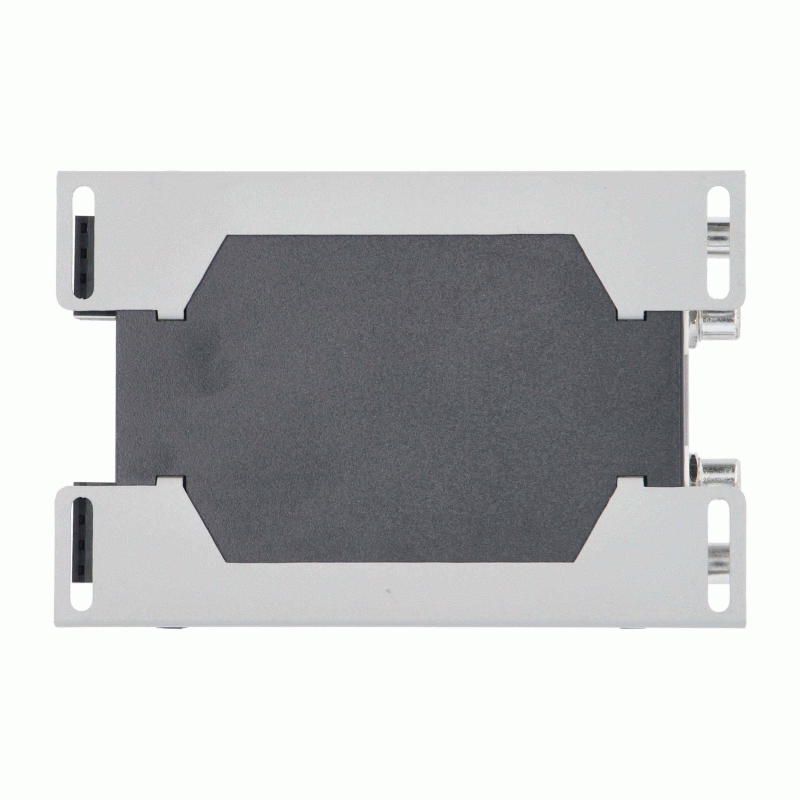

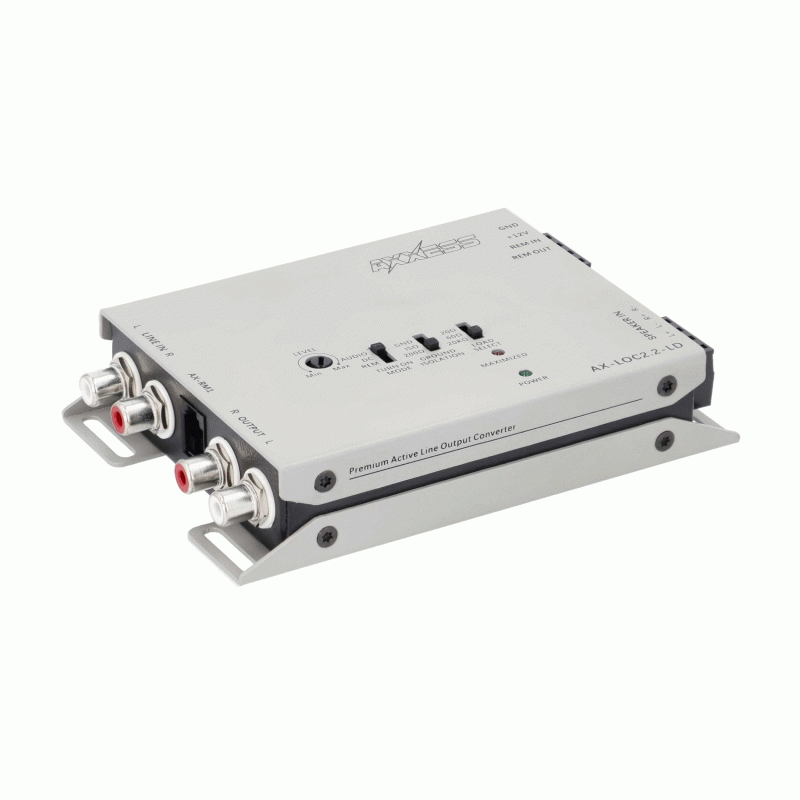

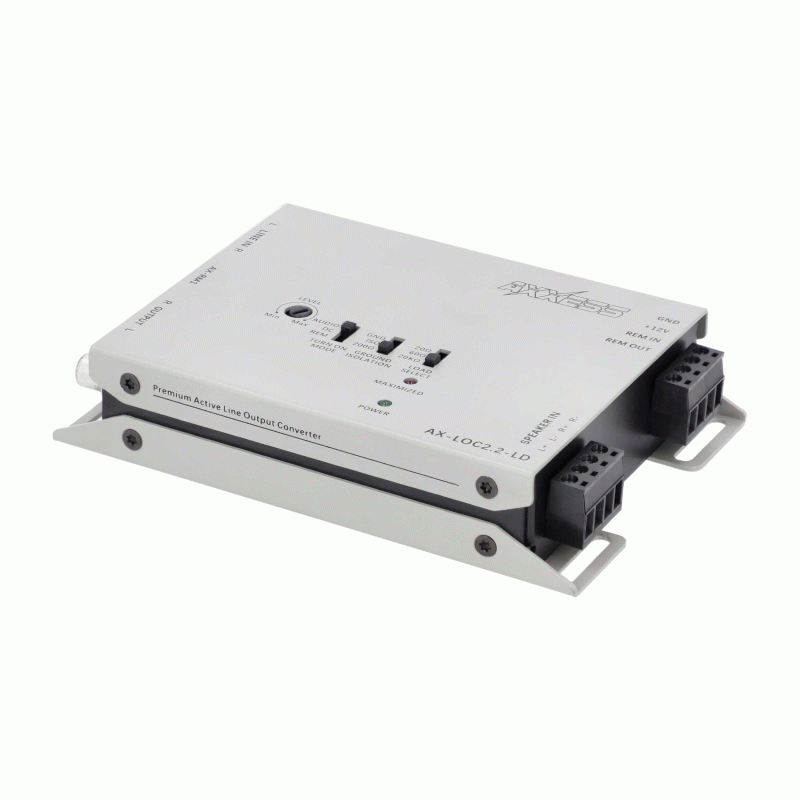

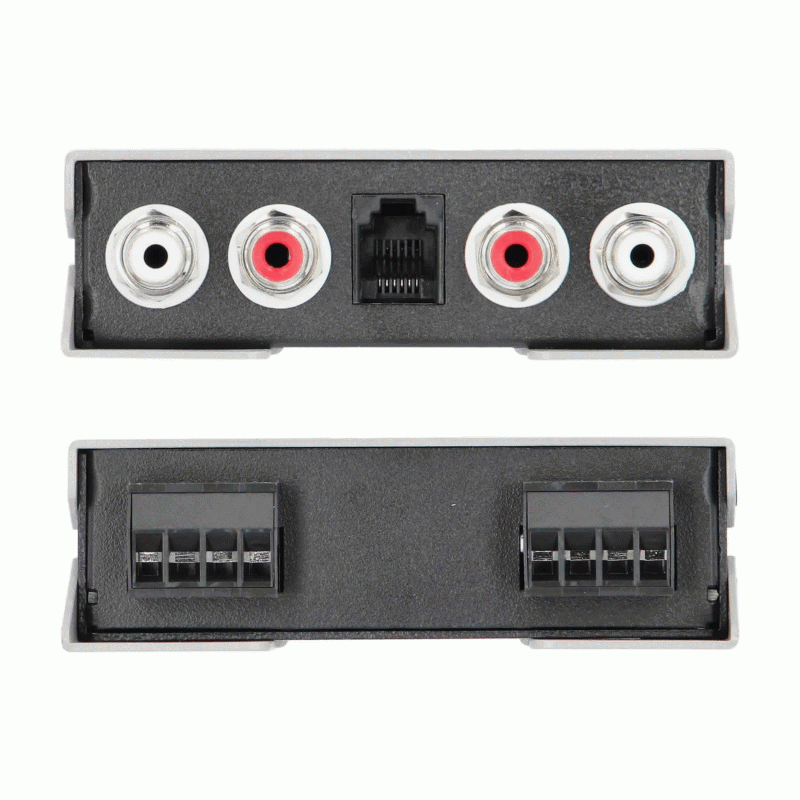

Stock No. AX-LOC2.2-LD

Active Line Output Converter with Line Driver

Description

The AX-LOC2.2-LD is a line output converter and line driver all-in-one package. This unit has universal applications and enables installers to add aftermarket amplifiers to OEM source units easily and flawlessly. The LOC features incredible input power capabilities, a load selector, variable gain controls with clipping indicators, enhanced output controls, selectable ground isolation, and noise isolation countermeasures. High-level inputs mean you can tap right into your factory speaker wire for a signal, and the built-in signal sensing turns the unit on without the need to find a factory accessory lead. It also has the option of a remote turn-on output to control your amplifier. The AX-LOC2.2-LD comes with a convenient feature – it has two RCA LOW LEVEL inputs built into its design. These come in handy when the sound quality from a source unit is not up to par due to a weak low-level signal.

Features

  • 2-channel: 2 in, 2 out
  • Line driver with low level input
  • Max input level: 40V / 400W @ 20K Ohm
  • Operating voltage: 9V-16V
  • Trigger selection: REM / DC / AUDIO
  • Remote Output Rating 500mA
  • Turn on trigger (DC): 3V-7V
  • Output max @13.8V: 9.5V RMS
  • Input impedance selection: 20 / 60 / 20k Ohm
  • Ground selection: GND / ISO / 200 Ohm
  • Gain adjustment: – 28dB to +1dB
  • Input sensitivity: 0.5V-20V
  • Signal to noise: >110dB @ 6.4V output
  • THD+N (Total Harmonic Distortion): <0.01%
  • Frequency response: 20Hz-20kHz
  • Remote control: optional AX-RM1

Coming Soon, Pre-Ordering is available.
