This vehicle-specific 6-channel amplifier integration interface from Axxess enables the installation of aftermarket amplifiers for enhanced sound quality while retaining the vehicle's original radio and features. This interface includes an external bass knob for additional audio output level adjustments.

Features:

• Designed for amplified and non-amplified systems

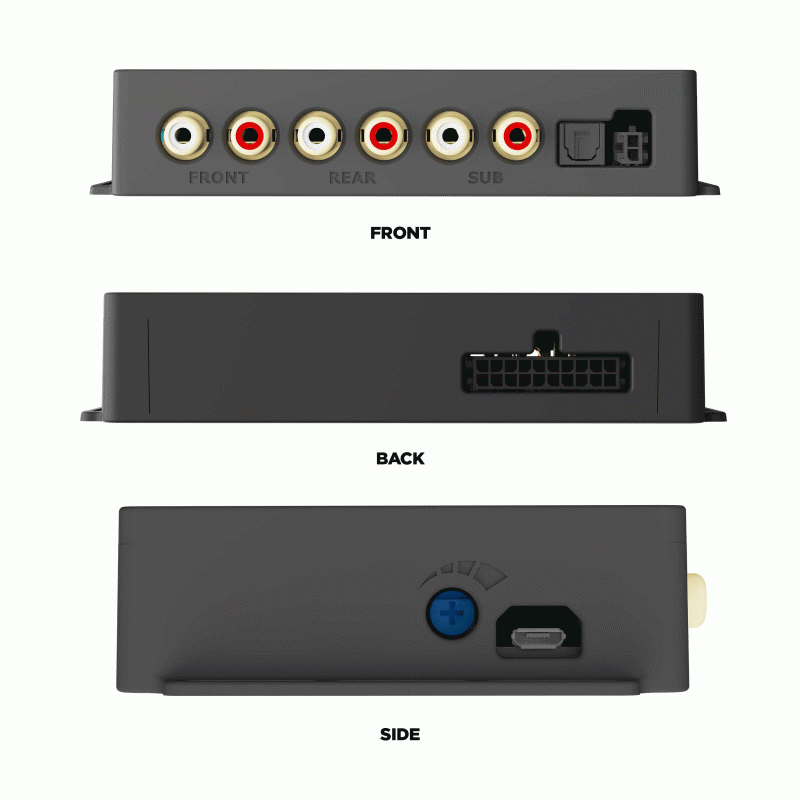

• Provides 6 channels of 5-volt RMS audio
• Non-fading full-range output (channels 5 and 6)
• Simple plug-n-play installation behind the radio
• No programming required
• Dual-colored LED feedback light
• Input: 50W per channel
• Amp turn-on trigger (DC): 250mA
• 2-channel S/PDIF out (front)
• 1-year warranty

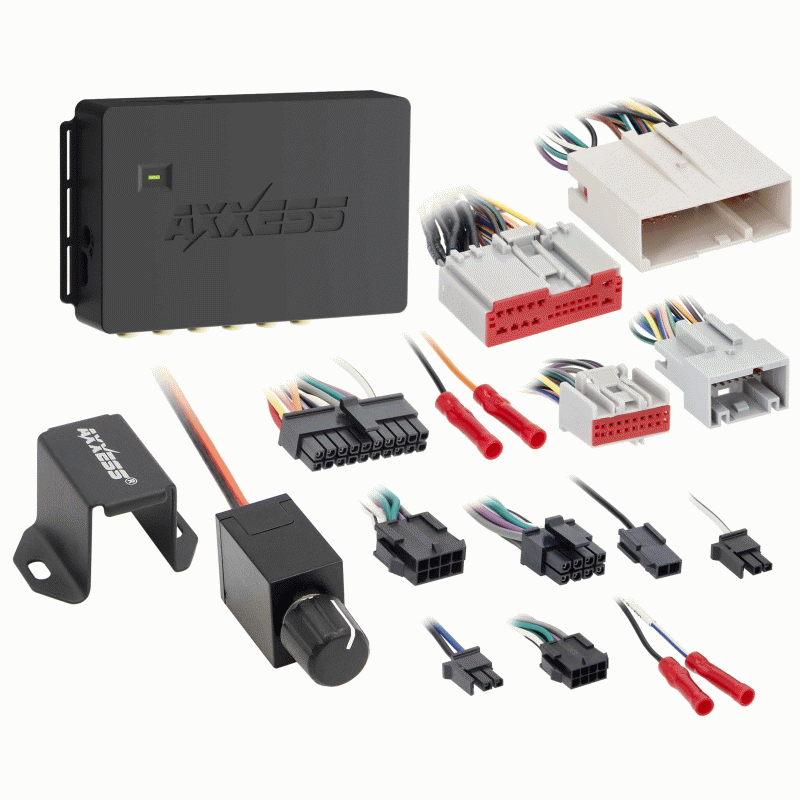

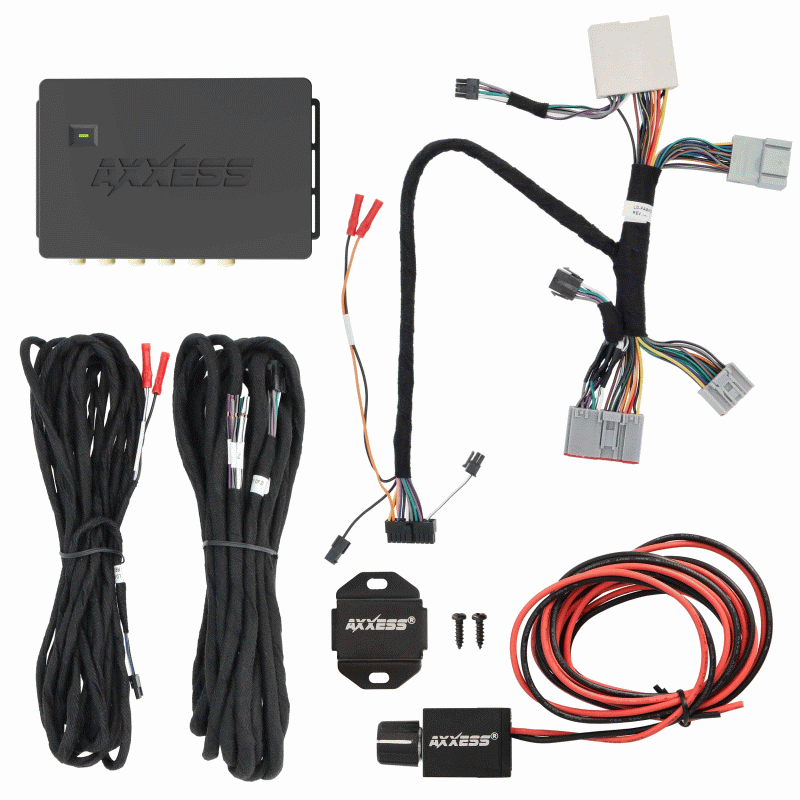

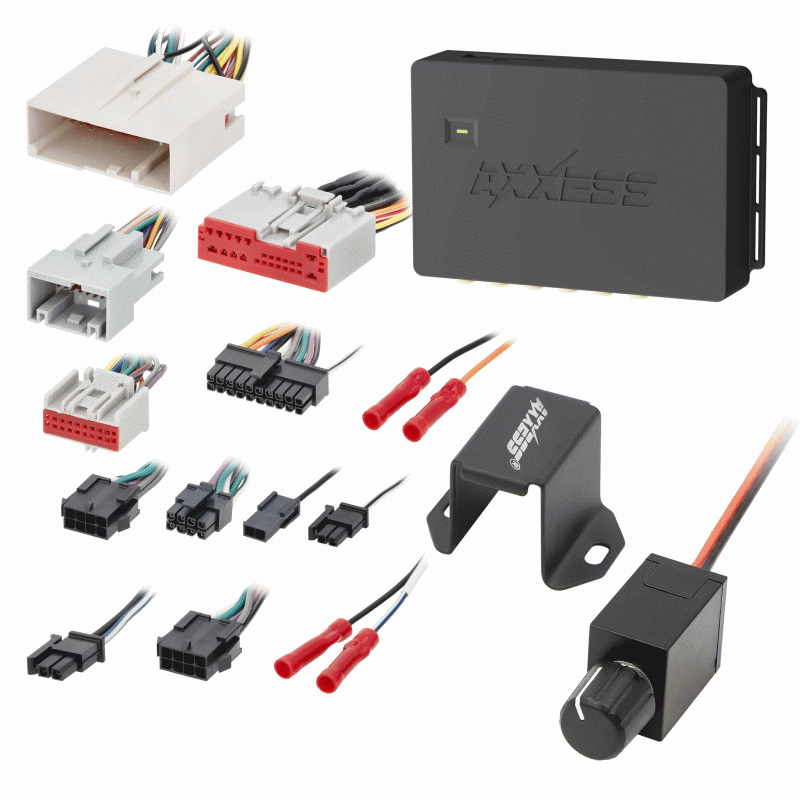

Includes:

• Amplifier integration interface
• Bass knob

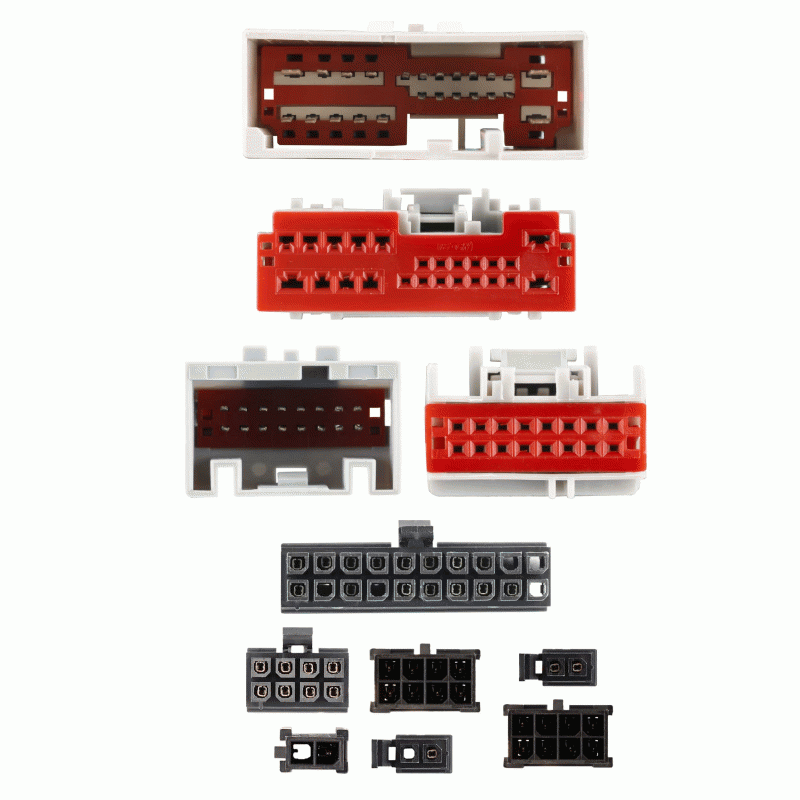

• Extension harnesses
• Instruction sheet

Visit AxxessInterfaces.com for more detailed information about the product and enter your vehicle year, make and model into the vehicle fit guide to find other vehicle specific products.

FORD (Amplifier locations listed)

• Edge 2007-2010 , Passenger Side Rear, Above Wheel Well.
• Escape 2008-2012 , Below Passenger’s Seat.
• Expedition 2007-2014 , Non-Sony , Center Console.
• F-150 2006-2013 , Driver Side Rear Floor, Behind Rear Seat.
• Flex 2009-2012 , Passenger Side of Trunk Above Rear Wheel-Well.
• Focus 2008-2011 , Driver’s Side of Trunk.
• Fusion 2006-2012 , Passenger Side of Trunk Above Rear Wheel-Well.
• Mustang 2006-2014 , Luggage Compartment.
• Taurus 2008-2011 , Luggage Compartment.
