Stock No. LOC-NIH1

Active LOC T-Harness - 2002-2020 Infinity, Nissan, Subaru

Description

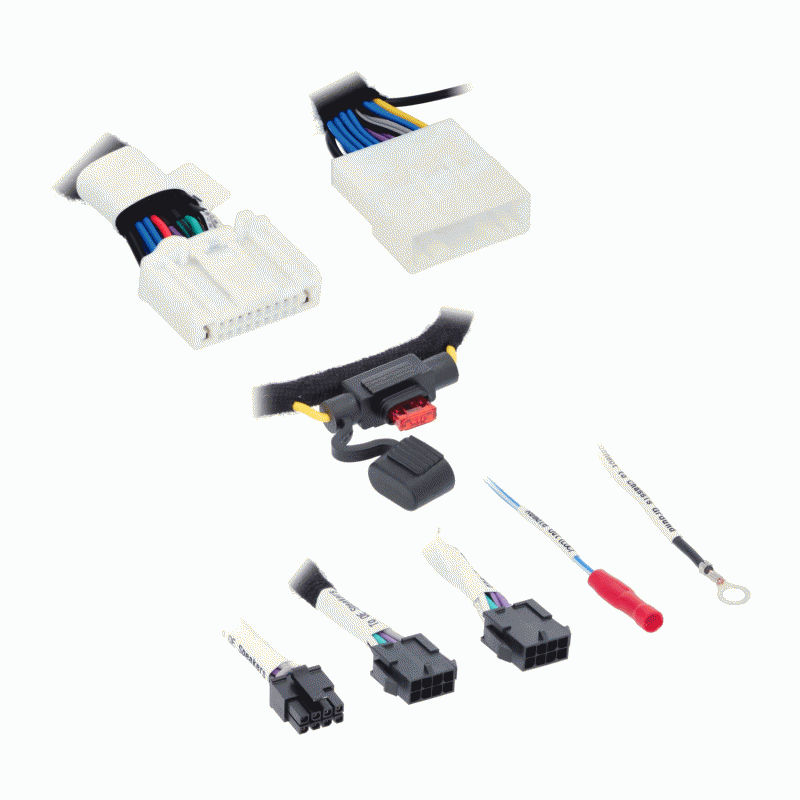

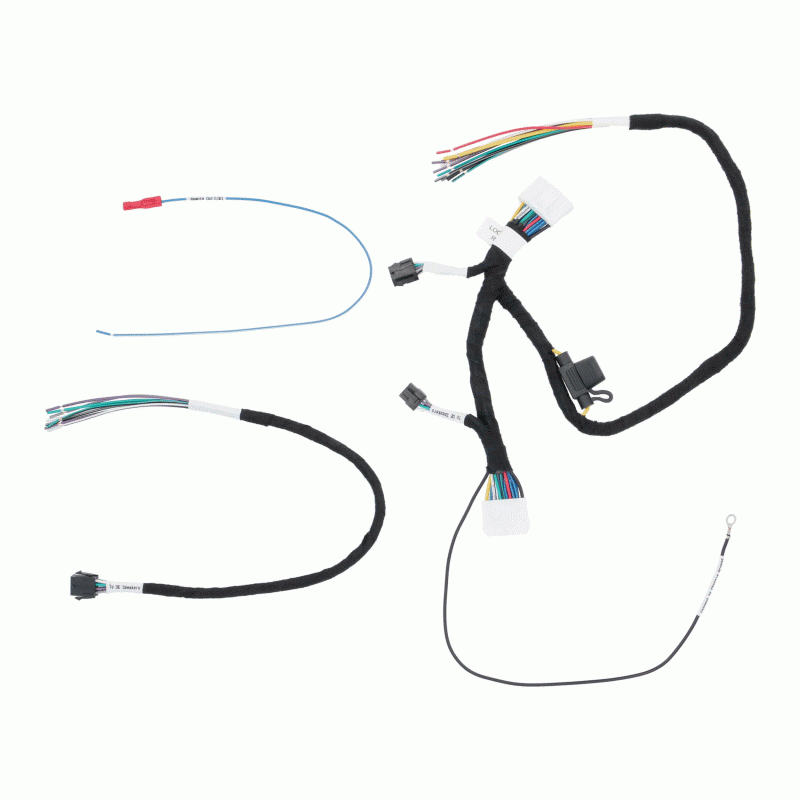

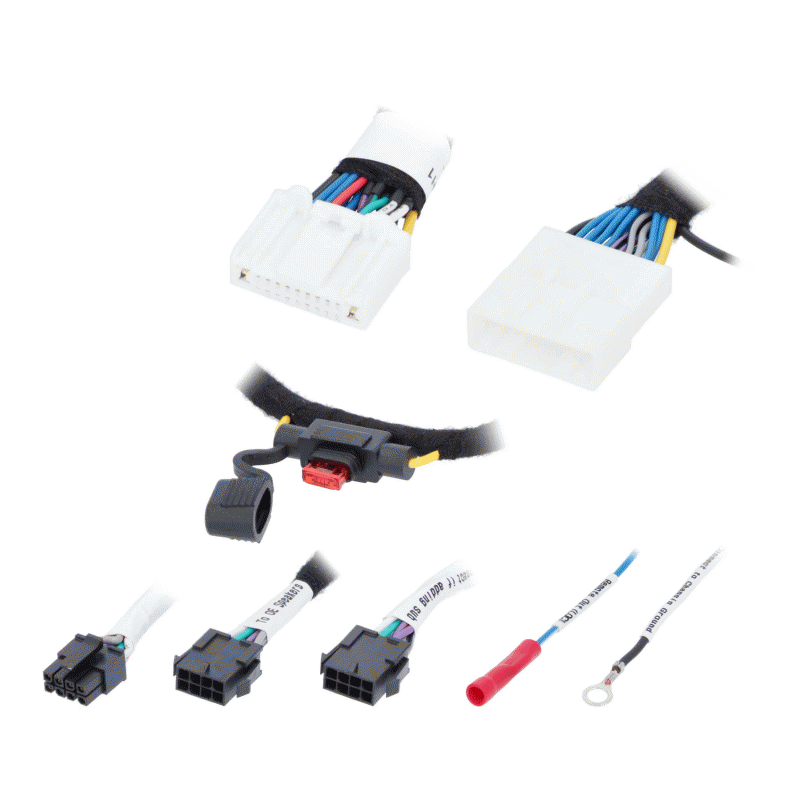

Easily add a subwoofer or a complete audio system to your vehicle by connecting this vehicle-specific Active LOC T-harness by Axxess. It is designed to work with Axxess LOCs, and is versatile enough to be compatible with most sound processors, line output converters, and amplifiers with high-level inputs. This T-harness provides convenient access to the speaker-level output signals from your factory radio, making installation easier. It provides signal connections for your system, including constant 12-volt (10-amp fuse), ground, and remote turn-on leads. It simplifies the connection process for devices like active signal processors. This T-harness is easily installed by disconnecting the factory radio and connecting the two T-harness plugs. One plug connects to the radio, while the other snaps into the previously removed plug. This setup allows the radio to remain fully connected to your vehicle while providing additional wires for adding an amplifier.

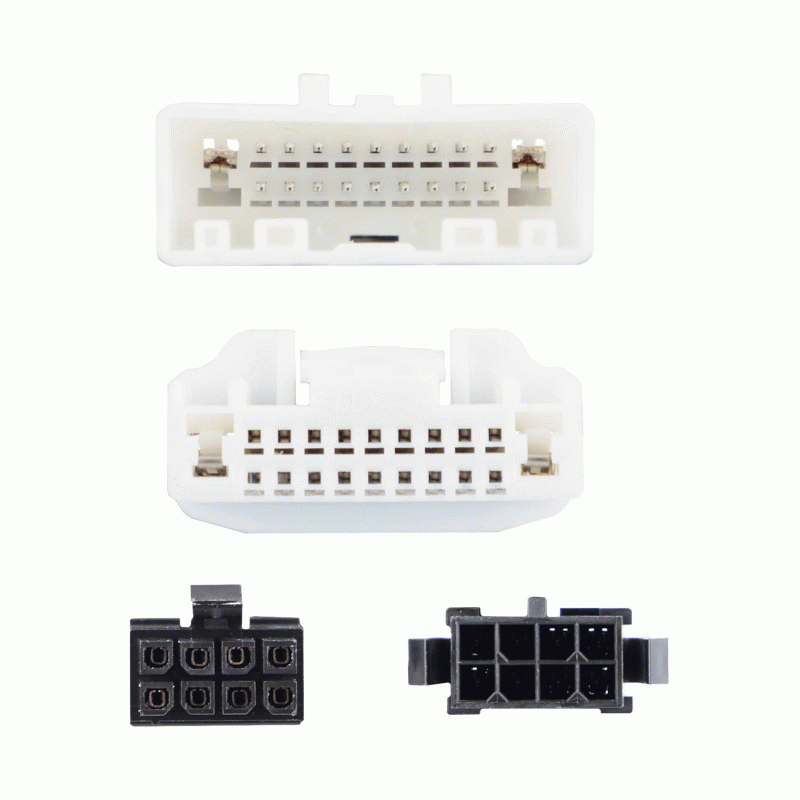

The T-harness is equipped with mating 8-pin plugs that remain connected when installers are adding a subwoofer amplifier, ensuring that the factory speakers continue to receive power from the radio. On the radio side of the T-harness, there is a pre-wired speaker-level output audio signal for a dedicated subwoofer amplifier or powered subwoofer, making the installation process highly versatile and compatible with various setups. To power your aftermarket system, the wiring can be adjusted by utilizing the 8-pin connectors and harnesses for integration of a 4-channel amplifier. This Axxess T-harness includes the materials needed for routing the outputs of your aftermarket amplifier back through the factory wiring to reach the speakers. Clearly marked labels on the wire bundle indicate which wires to disconnect and where to do so, as well as which wires should be connected to the outputs of your aftermarket amplifier.

Features:

  • Fits 2002-2020 Infinity, Nissan, Subaru vehicles
  • LOC T-harness for non-amplified systems
  • Add a standalone subwoofer or a complete audio system
  • Harness connections:
    • 12V (with in-line 10A fuse)
    • Ground
    • Remote turn-on wire with butt connector
  • 4-channel speaker-level outputs
  • Input and output quick-connect harness for easy installation
  • Works with Axxess line output converters
  • Step-by-step instruction manual included

Visit AxxessInterfaces.com for more detailed information about the product and up-to-date vehicle specific applications.

Applications

Chevrolet

  • City Express 2014-2016

Infiniti

  • M35 2006-2010
  • M45 2006-2010
  • Q45 2002-2006

Nissan

  • 370Z 2009-2020
  • Altima 2007-2018
  • Armada 2008-2017
  • Cube 2009-2014
  • Frontier 2008-2018
  • Juke 2011-2017
  • Leaf 2011-2018
  • Maxima 2007-2016
  • Murano 2003-2017
  • Nv 2012-2018
  • Nv200 2013-2016
  • Pathfinder 2010-2017
  • Quest 2011-2016
  • Rogue 2008-2018
  • Sentra 2007-2019
  • Titan 2008-2019
  • Versa 2007-2018
  • Versa Note 2014-2018
  • Xterra 2008-2014

Subaru

  • Forester 2009-2015
  • Impreza 2008-2014
  • Impreza WRX 2008-2014
  • Legacy 2010-2014
  • Outback 2010-2014
  • WRX 2015-2021
  • XT Coupe 1985-1990
  • XV Crosstrek 2013-2015

Note: All Vehicles Non-Amplified

Visit AxxessInterfaces.com for more detailed information about the product and up-to-date vehicle specific applications.
