Stock No. LOC-TYH1

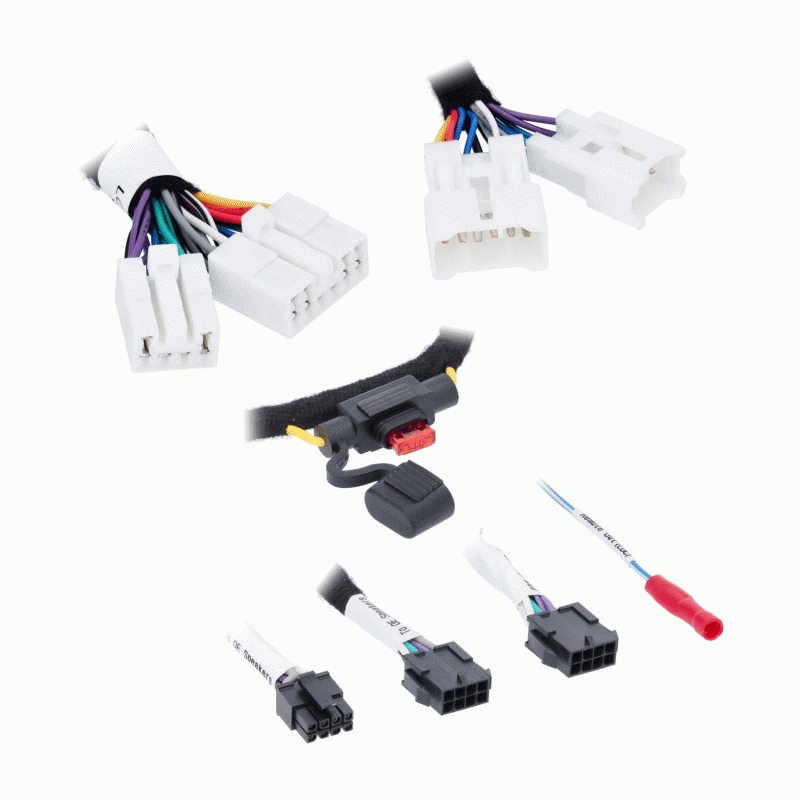

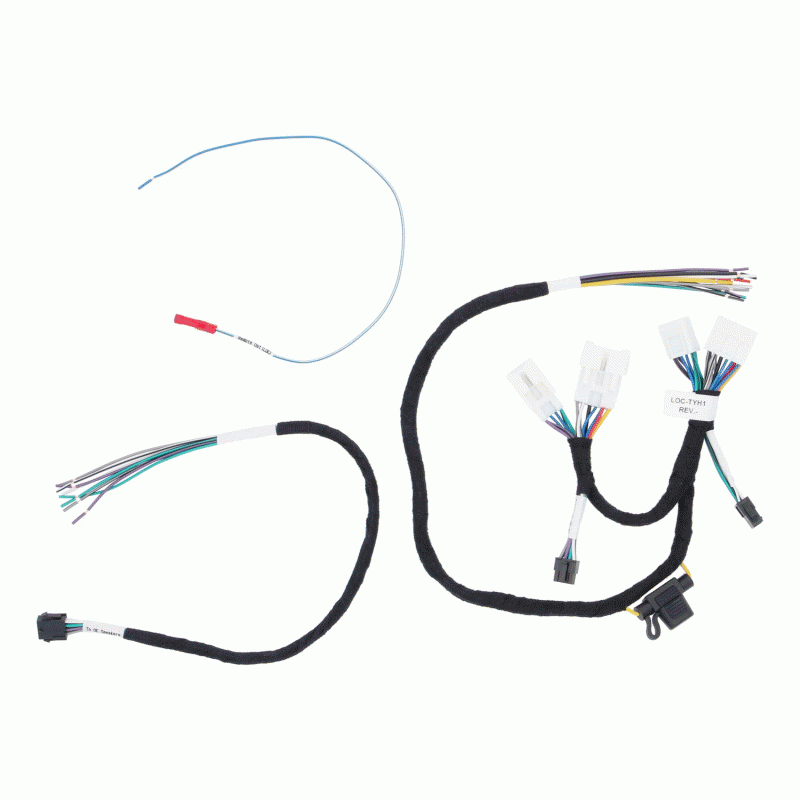

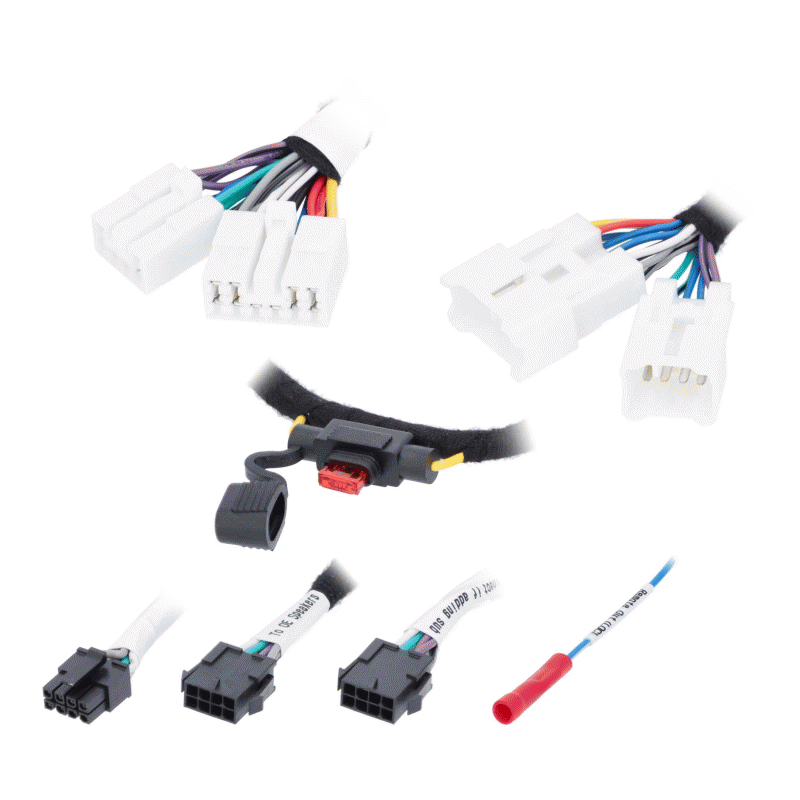

Vehicle-Specific Active LOC T-Harness - 1985-2020 Toyota

Description

Easily add a subwoofer or a complete audio system to your vehicle by connecting this vehicle-specific Active LOC T-harness by Axxess. It is designed to work with Axxess LOCs, and is versatile enough to be compatible with most sound processors, line output converters, and amplifiers with high-level inputs. This T-harness provides convenient access to the speaker-level output signals from your factory radio, making installation easier. It provides signal connections for your system, including constant 12-volt (10-amp fuse), ground, and remote turn-on leads. It simplifies the connection process for devices like active signal processors. This T-harness is easily installed by disconnecting the factory radio and connecting the two T-harness plugs. One plug connects to the radio, while the other snaps into the previously removed plug. This setup allows the radio to remain fully connected to your vehicle while providing additional wires for adding an amplifier.

The T-harness is equipped with mating 8-pin plugs that remain connected when installers are adding a subwoofer amplifier, ensuring that the factory speakers continue to receive power from the radio. On the radio side of the T-harness, there is a pre-wired speaker-level output audio signal for a dedicated subwoofer amplifier or powered subwoofer, making the installation process highly versatile and compatible with various setups. To power your aftermarket system, the wiring can be adjusted by utilizing the 8-pin connectors and harnesses for integration of a 4-channel amplifier. This Axxess T-harness includes the materials needed for routing the outputs of your aftermarket amplifier back through the factory wiring to reach the speakers. Clearly marked labels on the wire bundle indicate which wires to disconnect and where to do so, as well as which wires should be connected to the outputs of your aftermarket amplifier.

Features:

  • Fits 1985-2020 Toyota vehicles

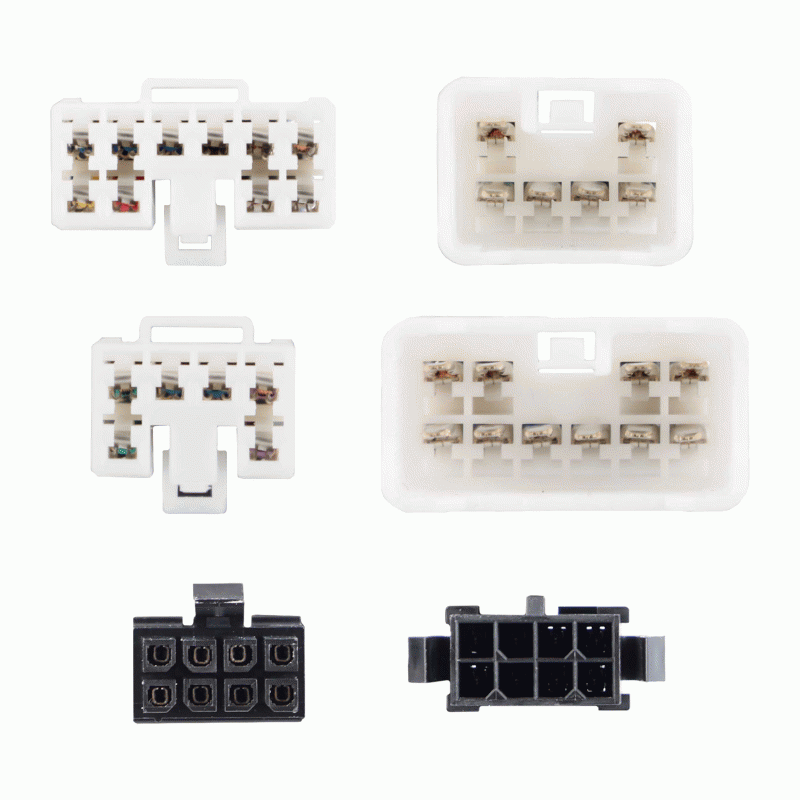

  • 10-pin and 6-pin T-harness for non-amplified systems
  • Add a standalone subwoofer or a complete audio system
  • Harness connections:
    • 12V (with in-line 10A fuse)
    • Ground
    • Remote turn-on wire with butt connector
  • 4-channel speaker-level outputs
  • Input and output quick-connect harness for easy installation
  • Works with Axxess line output converters
  • Step-by-step instruction manual included

Visit AxxessInterfaces.com for more detailed information about the product and up-to-date vehicle specific applications.

Applications

Scion

  • Frs 2013-2016
  • Iq 2012-2015
  • Tc 2005-2016
  • Xa 2004-2006
  • Xb 2004-2015
  • Xd 2008-2014

Subaru

  • BRZ 2013-2020
  • Crosstrek 2016-2020
  • Forester 2016-2020
  • Impreza 2015-2018
  • Legacy 2015-2017
  • Outback 2015-2017
  • WRX 2016-2021

Toyota

  • 4Runner 1987-2019
  • 86 2017-2020
  • Avalon 1995-2018
  • C-HR 2018-2019
  • Camry 1987-2017
  • Celica 1986-2006
  • Corolla 1987-2019
  • Echo 2000-2006
  • FJ Cruiser 2007-2014
  • Highlander 2001-2019
  • Land Cruiser 1987-2002
  • Matrix 2005-2013
  • MR2 1985-2006
  • Paseo 1992-1997
  • Pickup 1987-1995
  • Previa 1991-1997
  • Prius 2001-2021
  • RAV4 1996-2018
  • Sequoia 2001-2019
  • Sienna 1998-2017
  • Solara 1999-2009
  • Supra 1986-1998
  • T-100 1993-1998
  • Tacoma 1995-2019
  • Tundra 2000-2019
  • Venza 2009-2015
  • Yaris 2007-2017

Note: All Vehicles Non-Amplified

Visit AxxessInterfaces.com for more detailed information about the product and up-to-date vehicle specific applications.
