Aküstik™ Floating-Screen Smart Multimedia Receiver | 10.1"

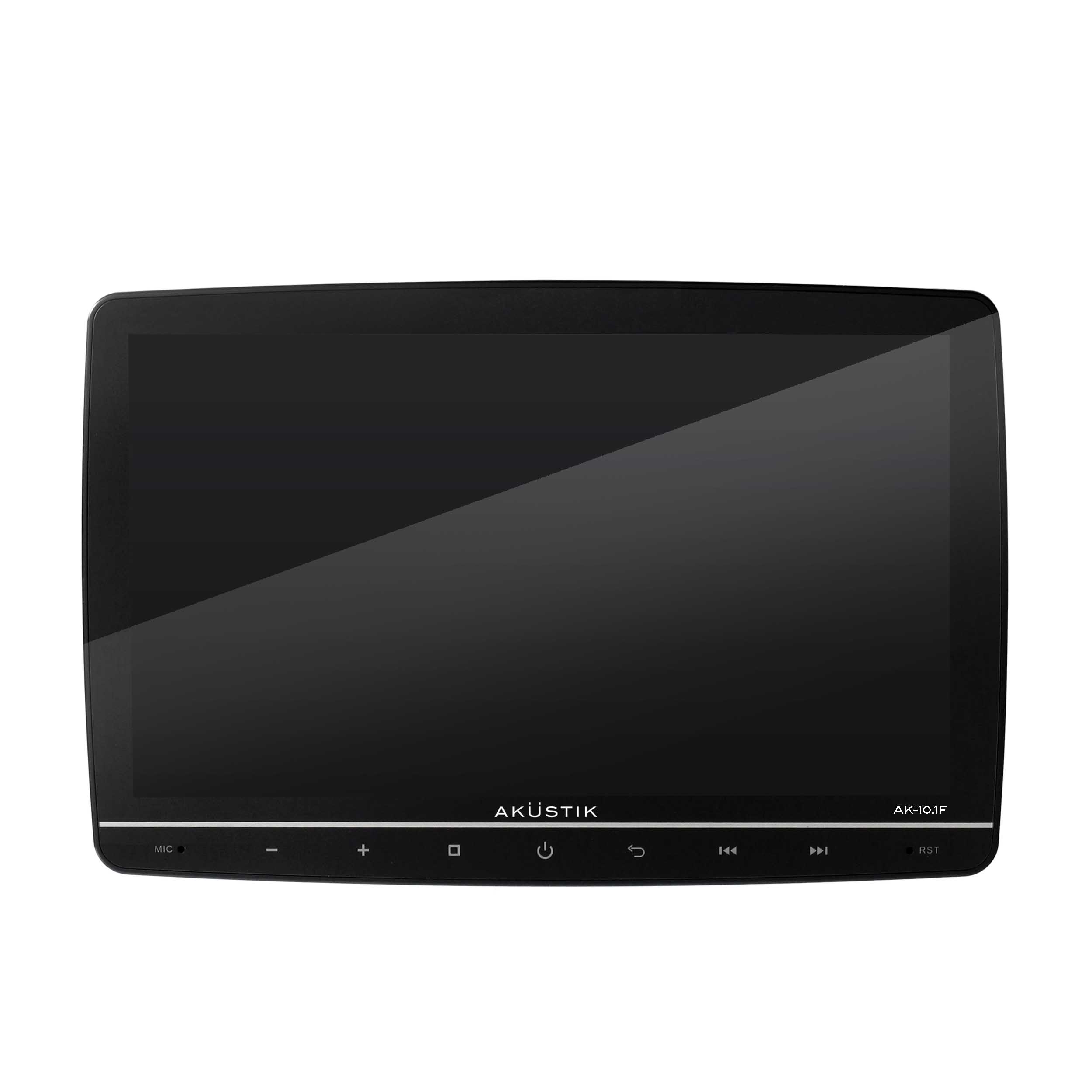

Upgrade your dashboard with modern smartphone connectivity and a large floating touchscreen. The Akustik™ AK-10.1F Smart Multimedia Receiver features a 10.1-inch touchscreen that puts entertainment, calls, messages, and compatible apps within easy reach.

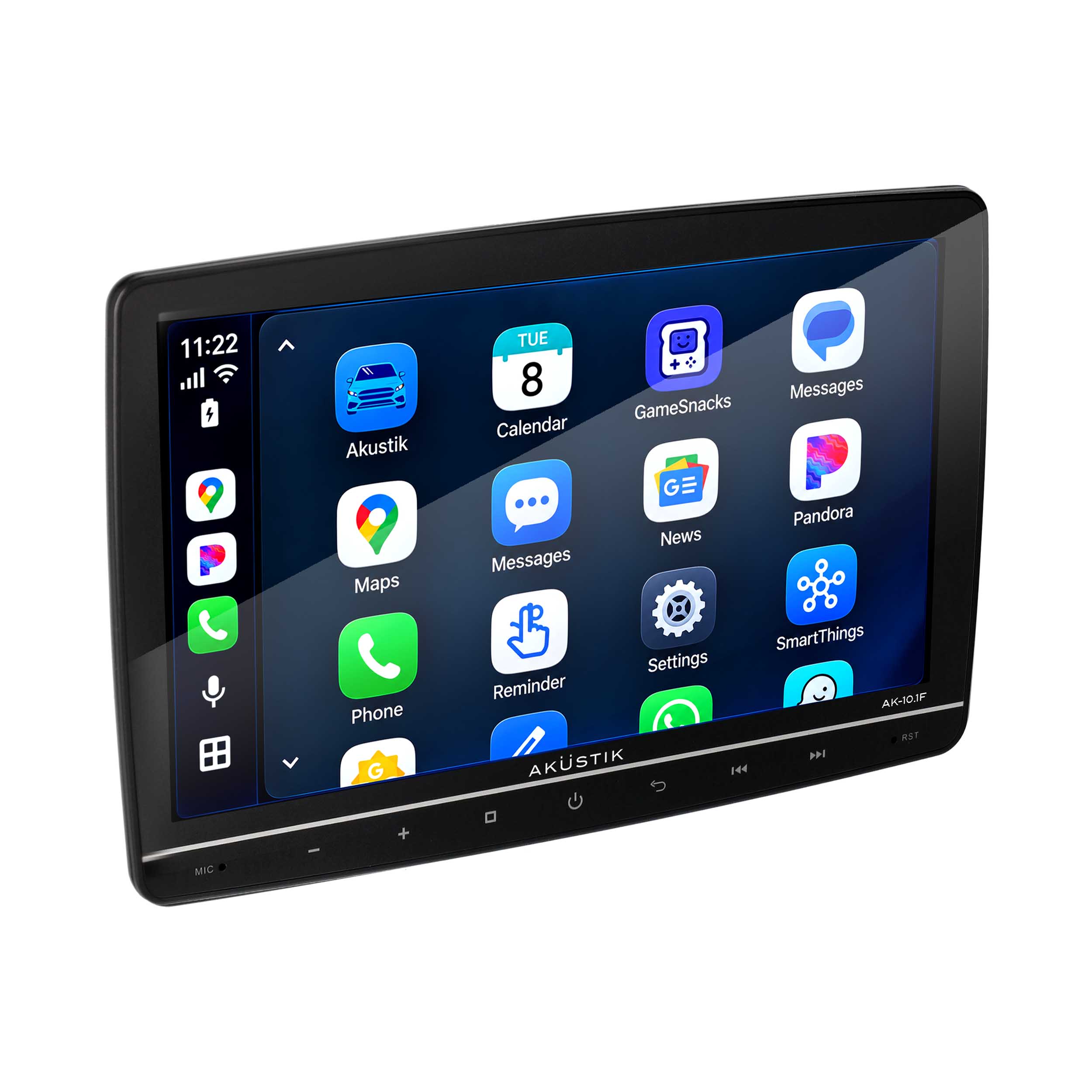

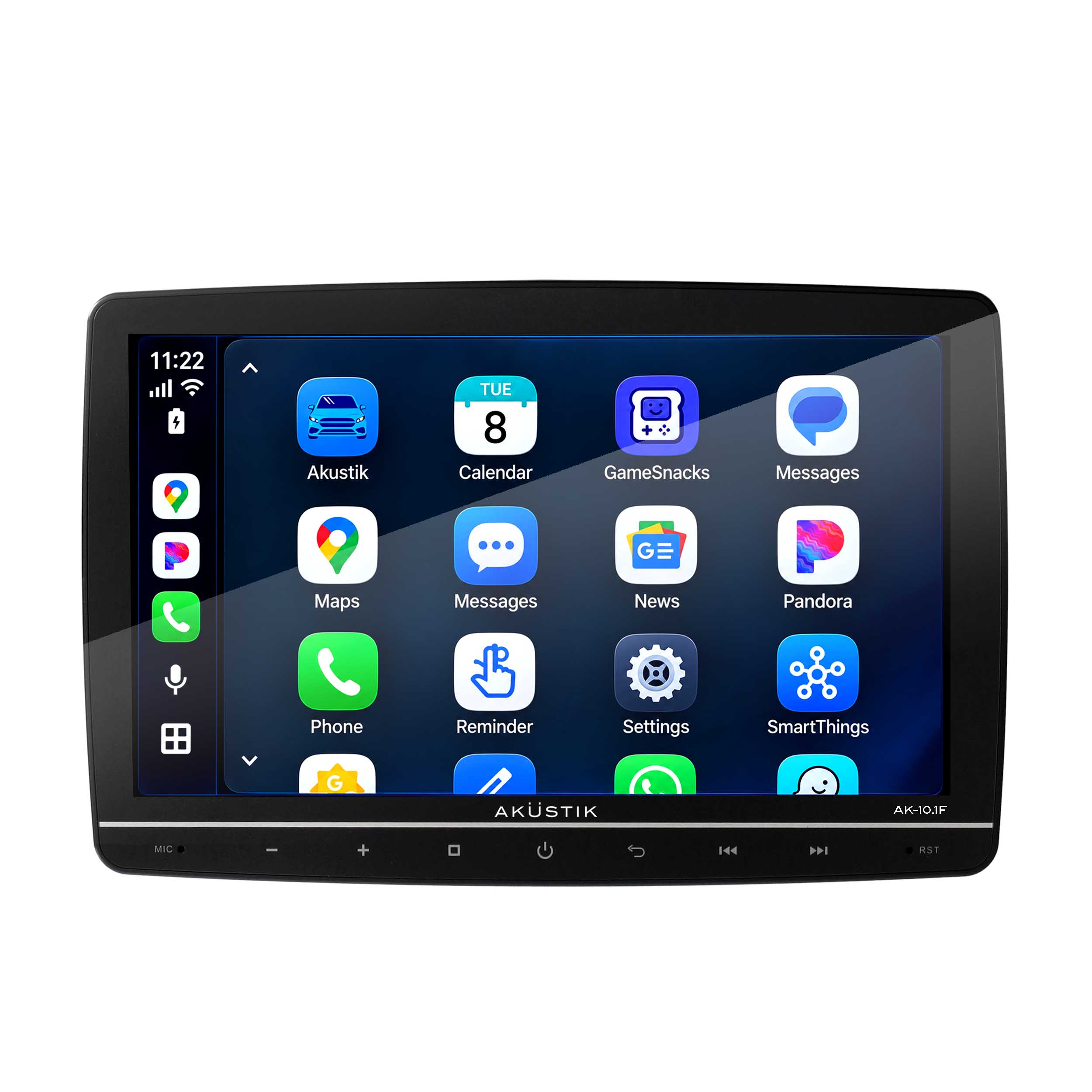

The receiver works with Apple CarPlay® through a wired or wireless connection and with Android Auto™ through a wired or wireless connection. Hands-free calling via Bluetooth® wireless technology, dual USB connections, AM/FM radio, and support for popular digital media formats provide even more ways to listen and stay connected.

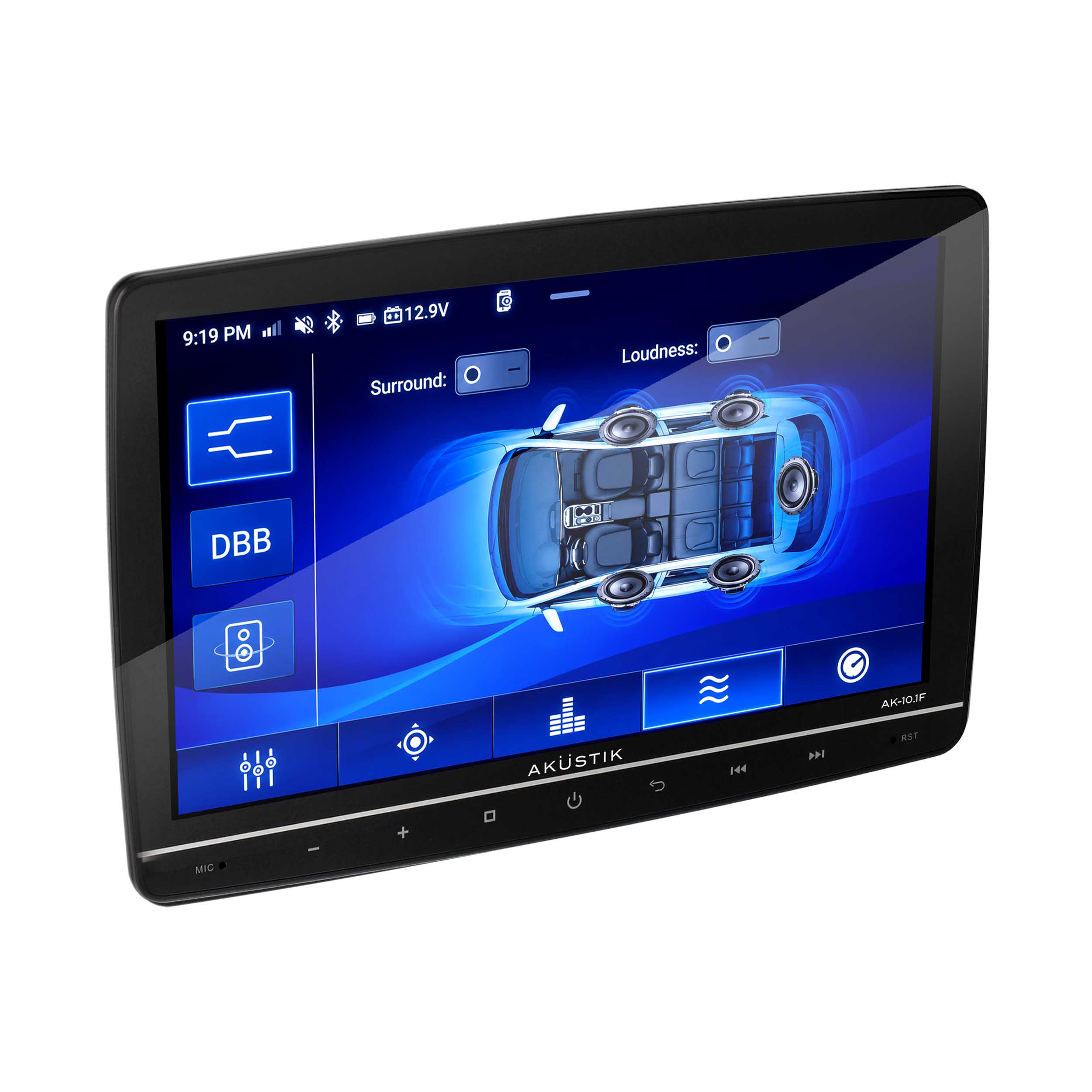

For enhanced sound, the AK-10.1F includes a 14-band graphic equalizer, six preset EQ curves, time alignment, built-in crossover support, independent subwoofer level control, and six channels of 4-volt RCA preamp outputs. A built-in amplifier delivers up to 40 watts through four channels, while dual camera inputs support compatible front, rear, or other vehicle cameras.

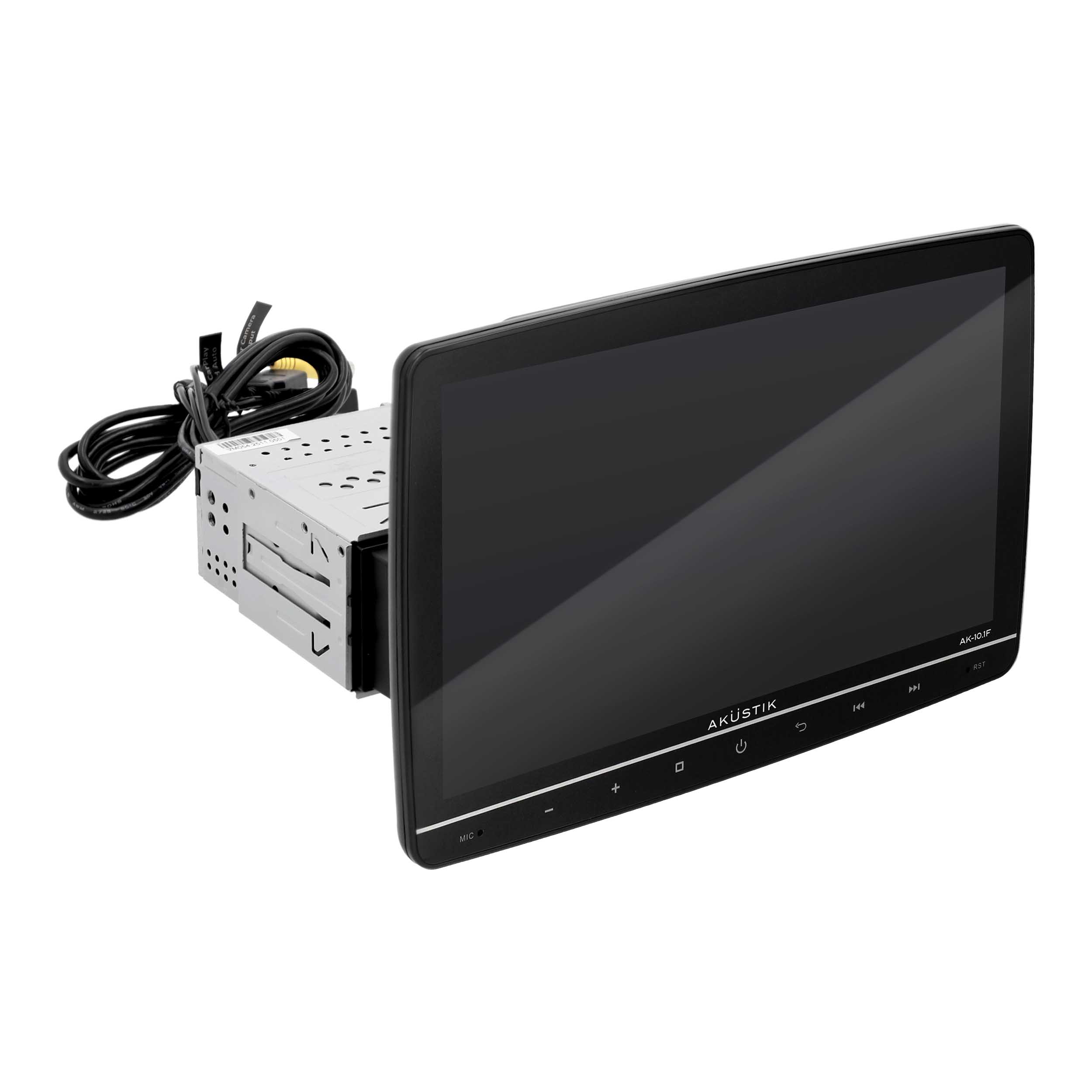

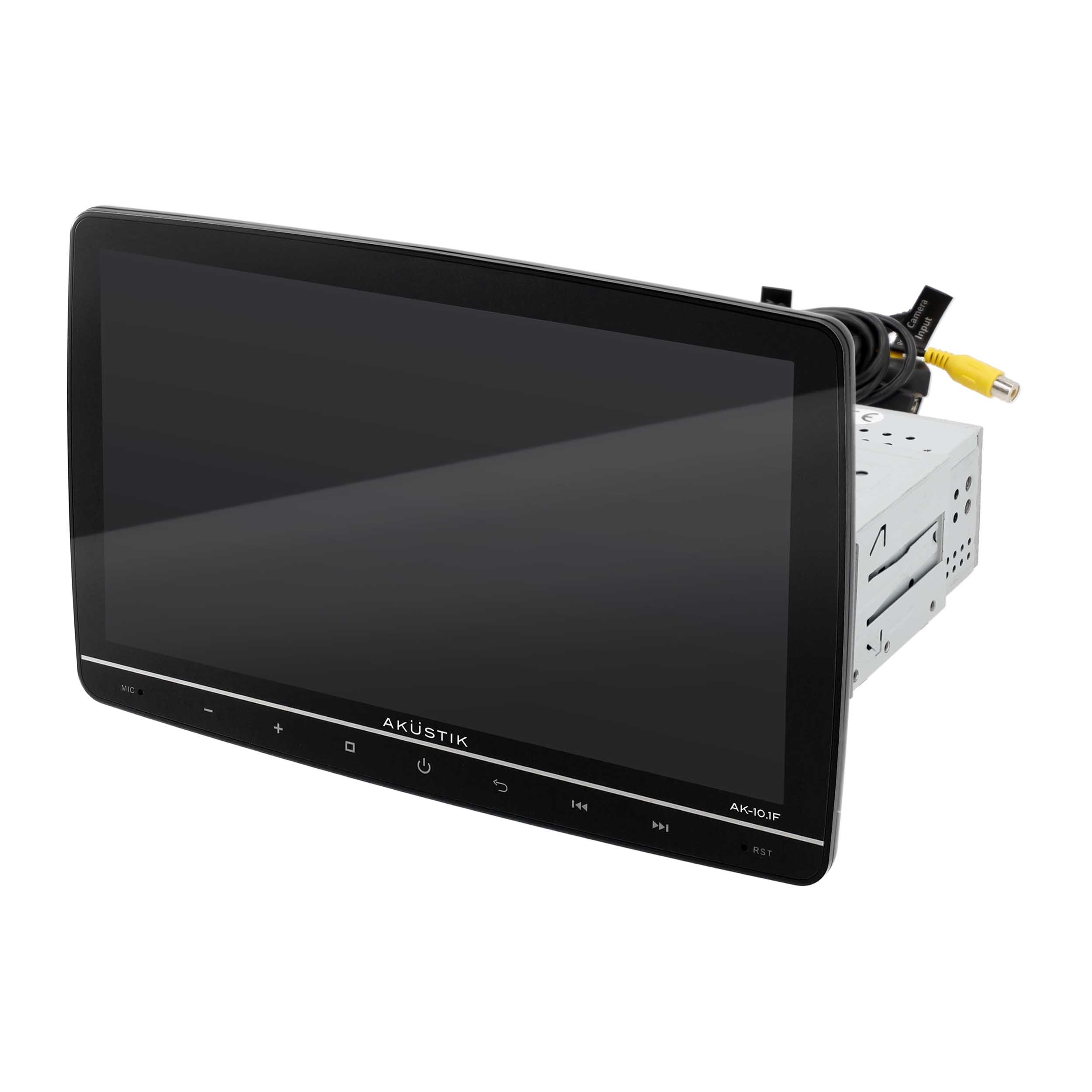

The floating display provides up/down and left/right tilt adjustment for optimal viewing. The shallow single-DIN chassis installs with a compatible Metra 95- or 99-Series dash kit. When installed with a Double-DIN kit, a compatible pocket or Metra universal blank plate is required to fill the remaining space. Dash kits, pockets, blank plates, and vehicle integration components are sold separately.

Features:

• Large 10.1-inch touchscreen LCD with 1280 x 720 resolution

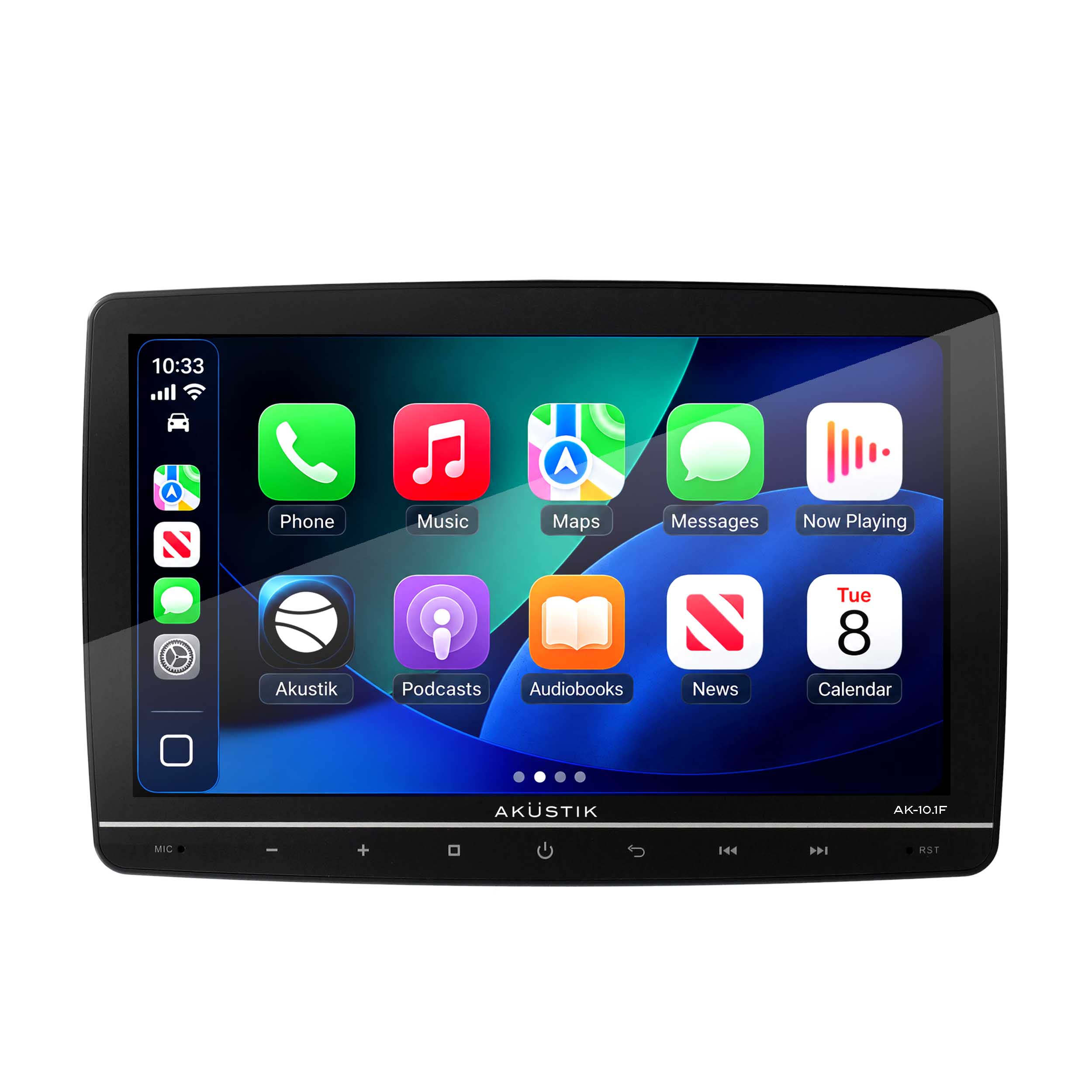

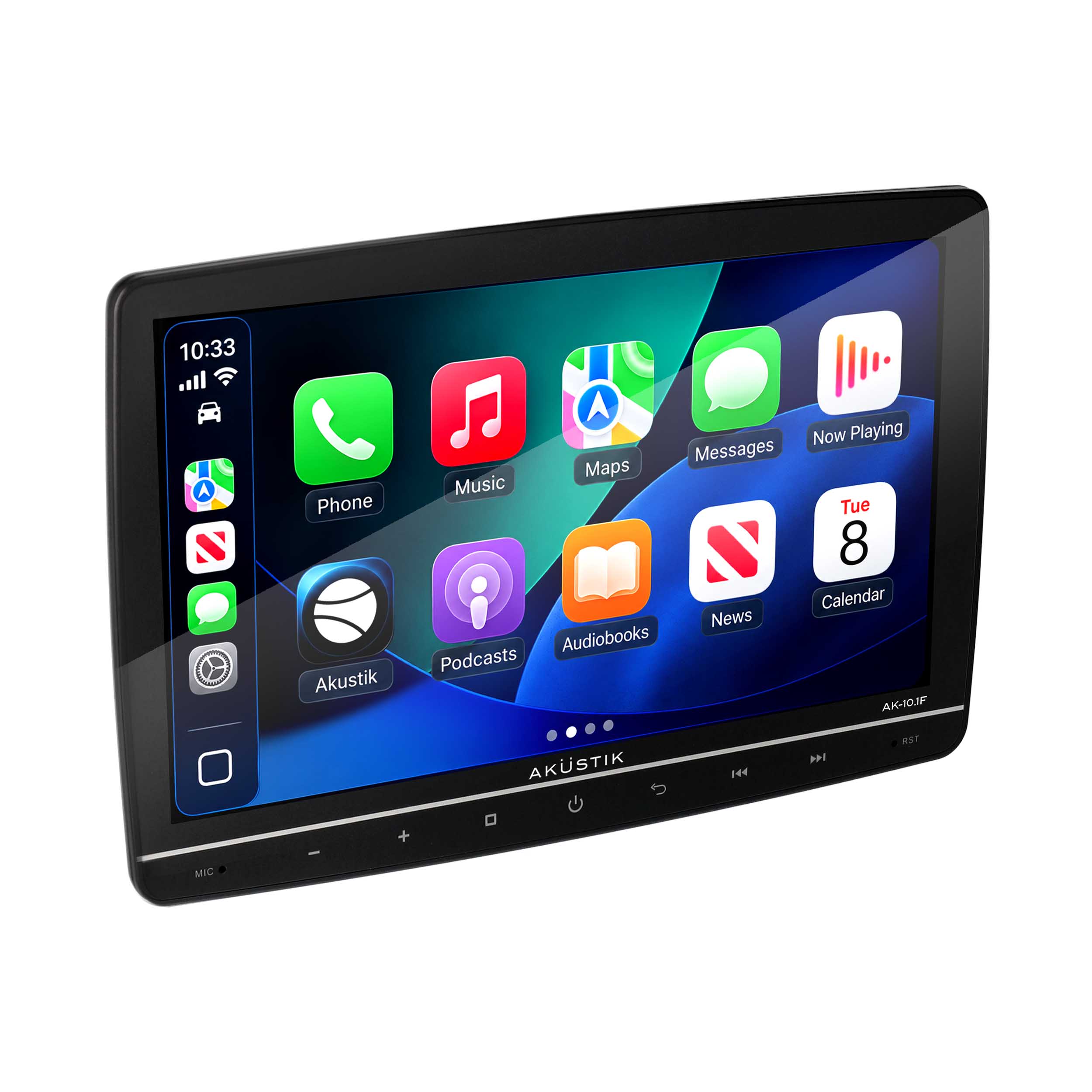

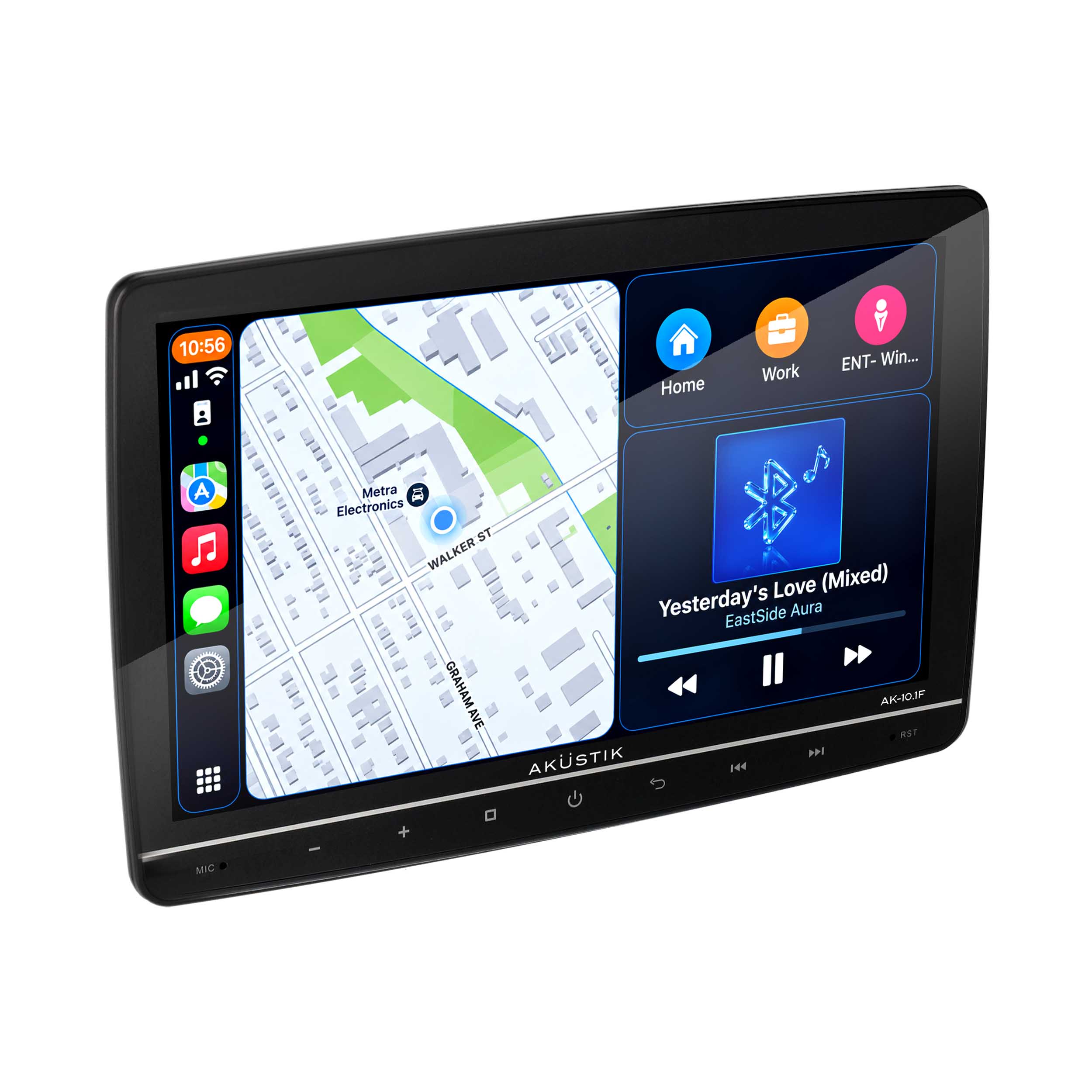

• Works with Apple CarPlay through a wired or wireless connection
• Works with Android Auto through a wired or wireless connection
• Hands-free calling via Bluetooth® wireless technology
• Built-in microphone and included external microphone for hands-free calling
• AM/FM tuner
• Dual camera inputs compatible with PAL, NTSC, and AHD 720p/1080p signals
• RCA auxiliary inputs for left/right audio and video
• Six-channel, 4-volt RCA preamp outputs
• Dual USB connections with 5-volt, 1.5-amp charging per connection
• Supports MP3, AAC, FLAC, and MPEG-1/2/4 media formats

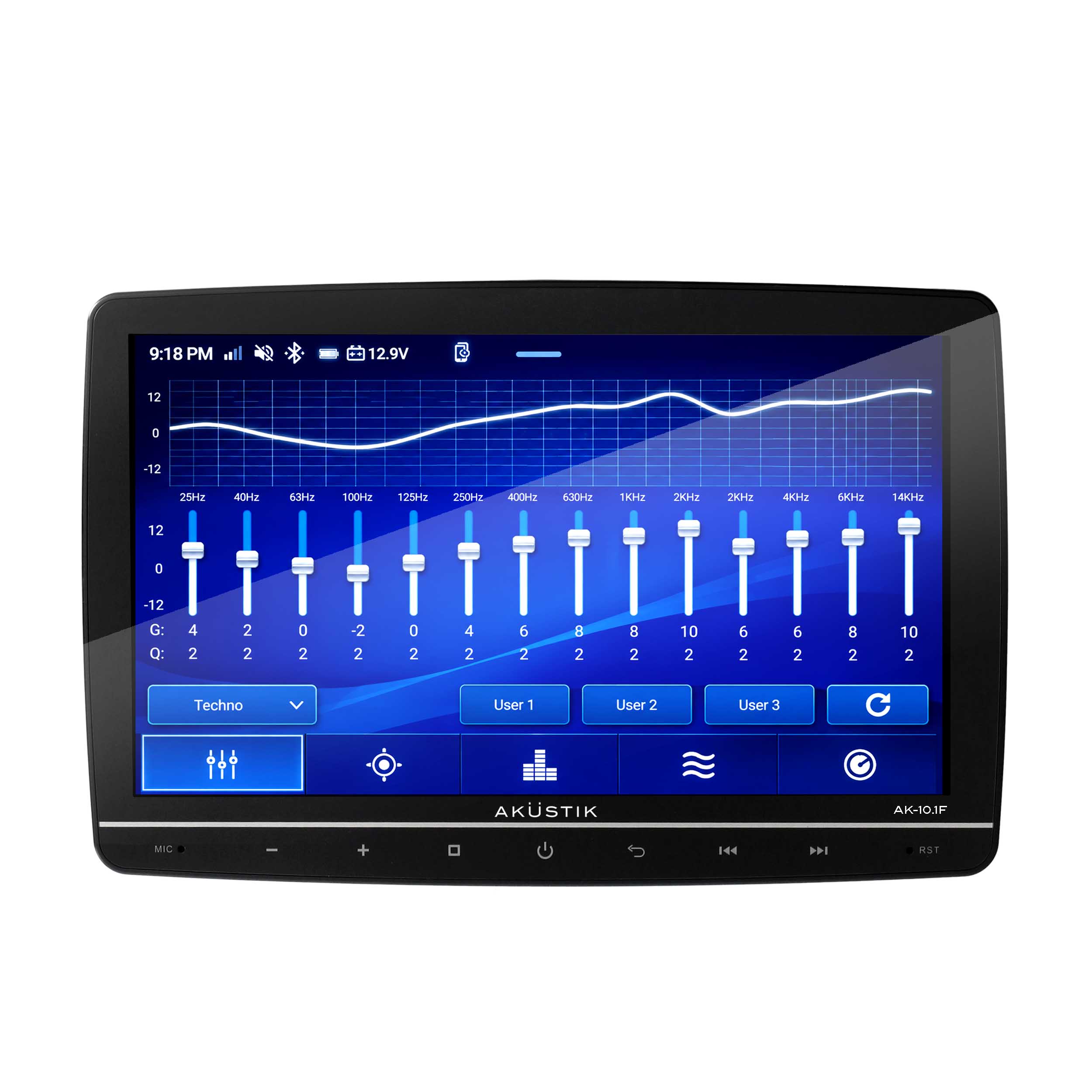

• 14-band graphic equalizer with six presets
• Time alignment capabilities
• Built-in crossover support
• Independent subwoofer level control
• Built-in amplifier delivers up to 40 watts through four channels
• Steering wheel audio control ready with compatible interface, sold separately
• Shallow single-DIN chassis for flexible installation

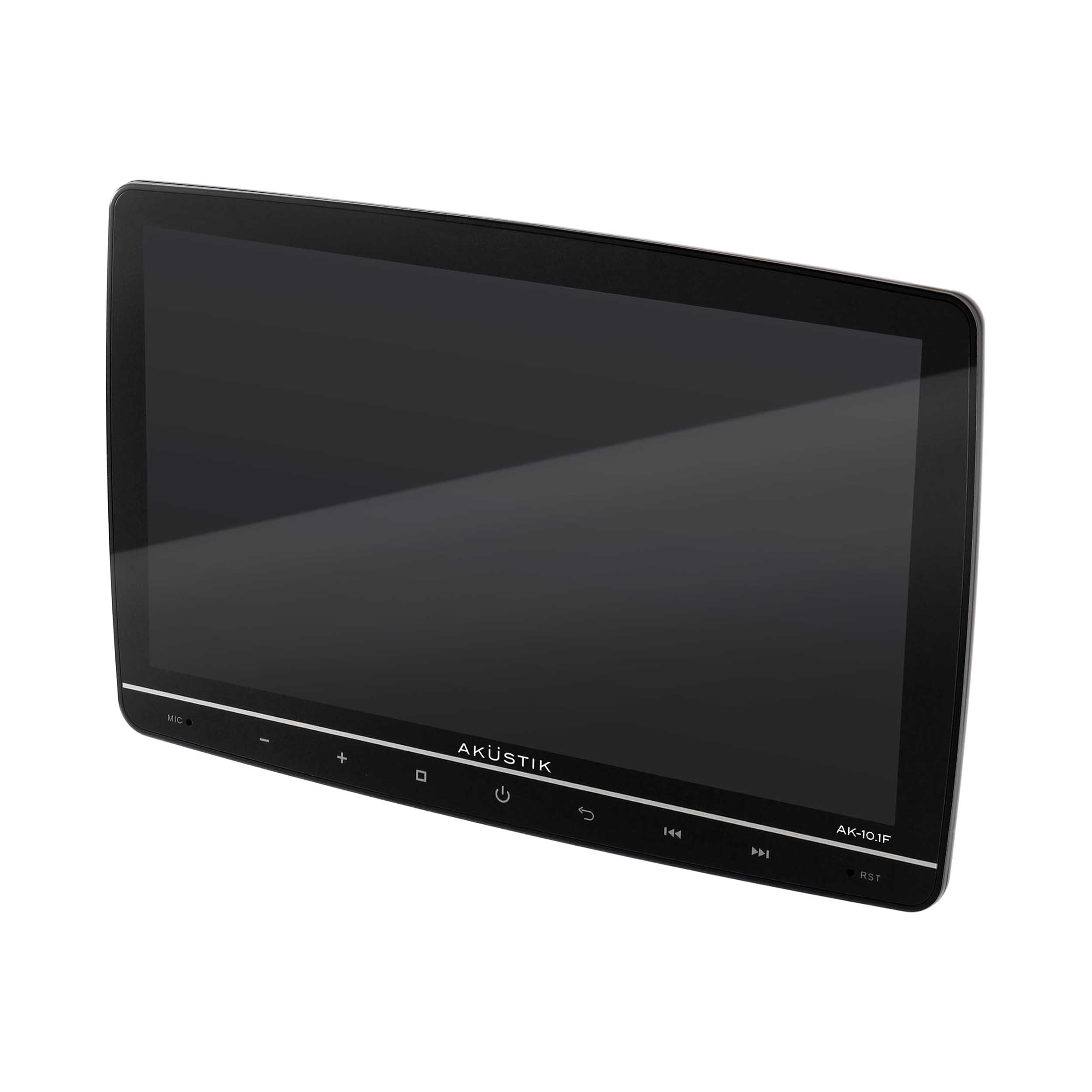

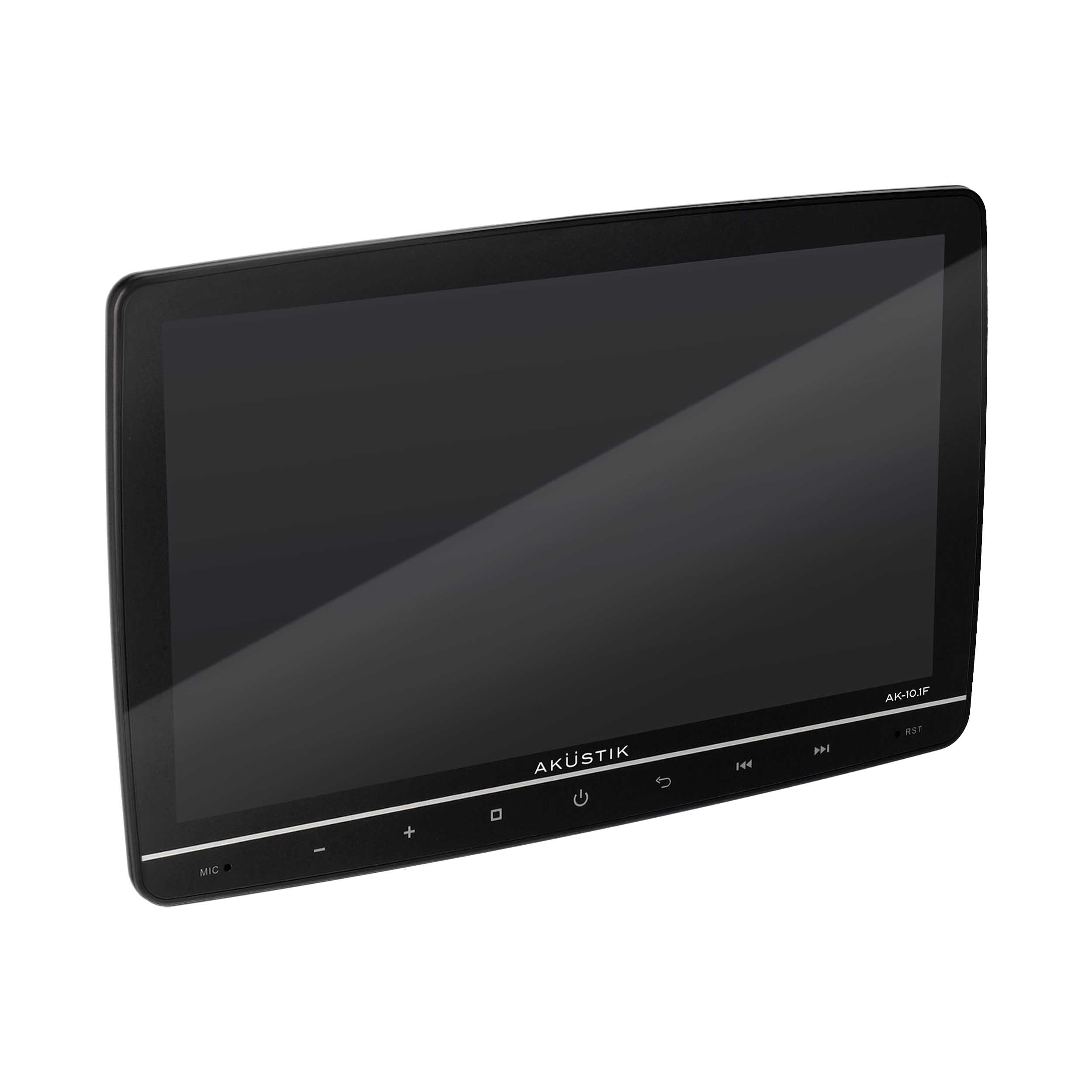

• Floating screen offers up/down and left/right tilt adjustment
• 1-year standard warranty when purchased from an authorized reseller
• 3-year extended warranty when purchased and installed by an authorized dealer partner

What’s in the Box:

• AK-10.1F Smart Multimedia Receiver
• Power harness
• GPS antenna
• External Bluetooth® microphones included

Complete Your Installation:

• Additional components are required and sold separately. Requirements vary by vehicle application.
• Compatible Metra 95- or 99-Series dash kit
• Compatible pocket or Metra universal blank plate when using a Double-DIN dash kit
• Compatible MET-AK vehicle-specific radio interface or Axxess Radio Status Control interface with the appropriate harness

For complete warranty terms, visit https://support.akustikaudio.com/warranty-policy.

Compatible iPhone required for Apple CarPlay. Compatible Android phone and compatible active data plan required for Android Auto. Some features may not be available in all countries and may vary by vehicle and/or device manufacturer. Internet connection may be required. Use features when safe to do so.

Apple CarPlay is a registered trademark of Apple Inc. Android Auto is a trademark of Google LLC. The Bluetooth^® word mark and logos are registered trademarks owned by Bluetooth SIG, Inc., and any use of such marks by Metra Electronics is under license. Other trademarks and trade names are those of their respective owners.
