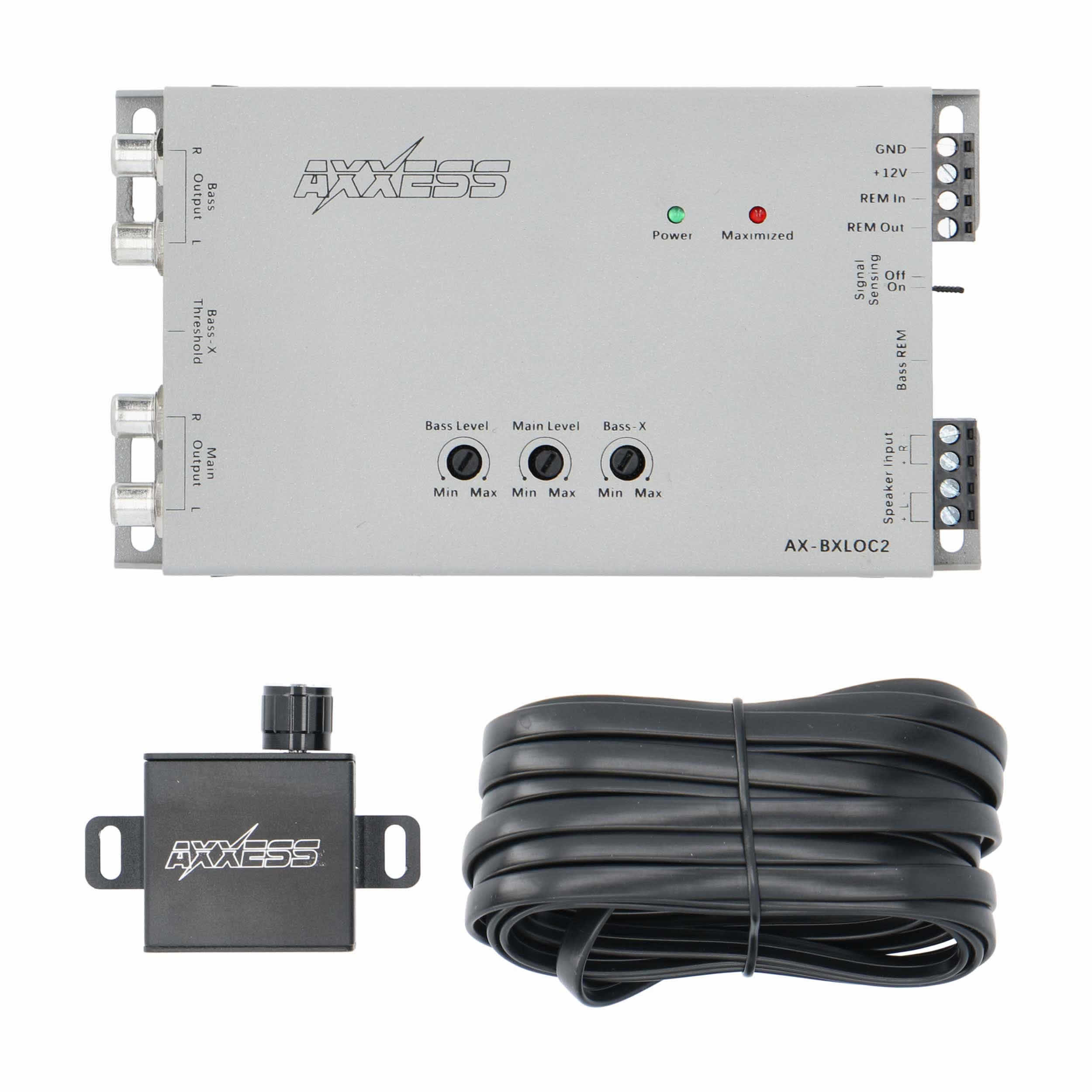

4CH ACTIVE LOC WITH BASS RESTORATION

SKU: AX-BXLOC2
MSRP $166.99
WARNING

This product can expose you to 1,3-butadiene, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov .

Show full chemical list
1,3-butadiene, Acrylonitrile, Styrene, Vinyl chloride
Product Documents

More Product Info

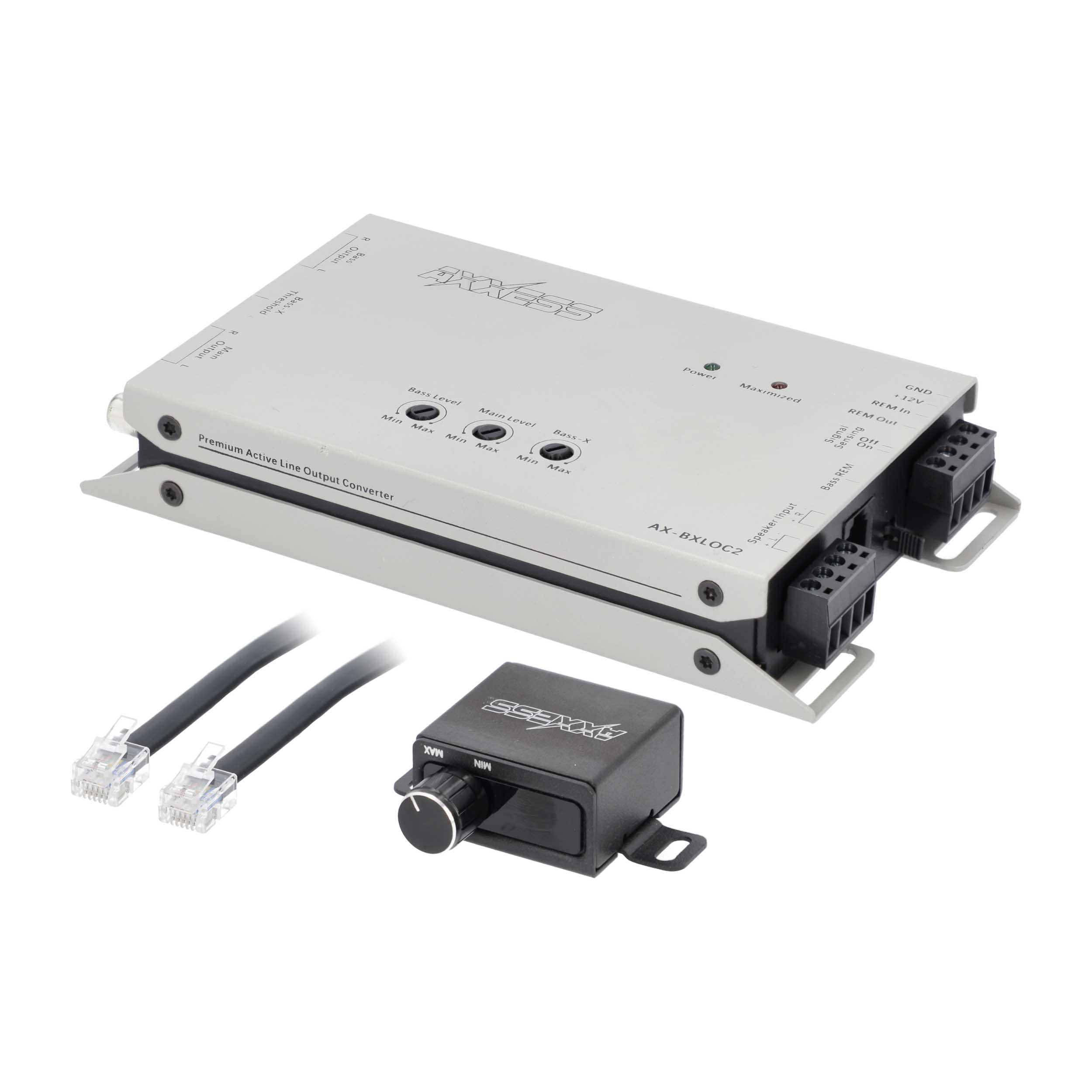

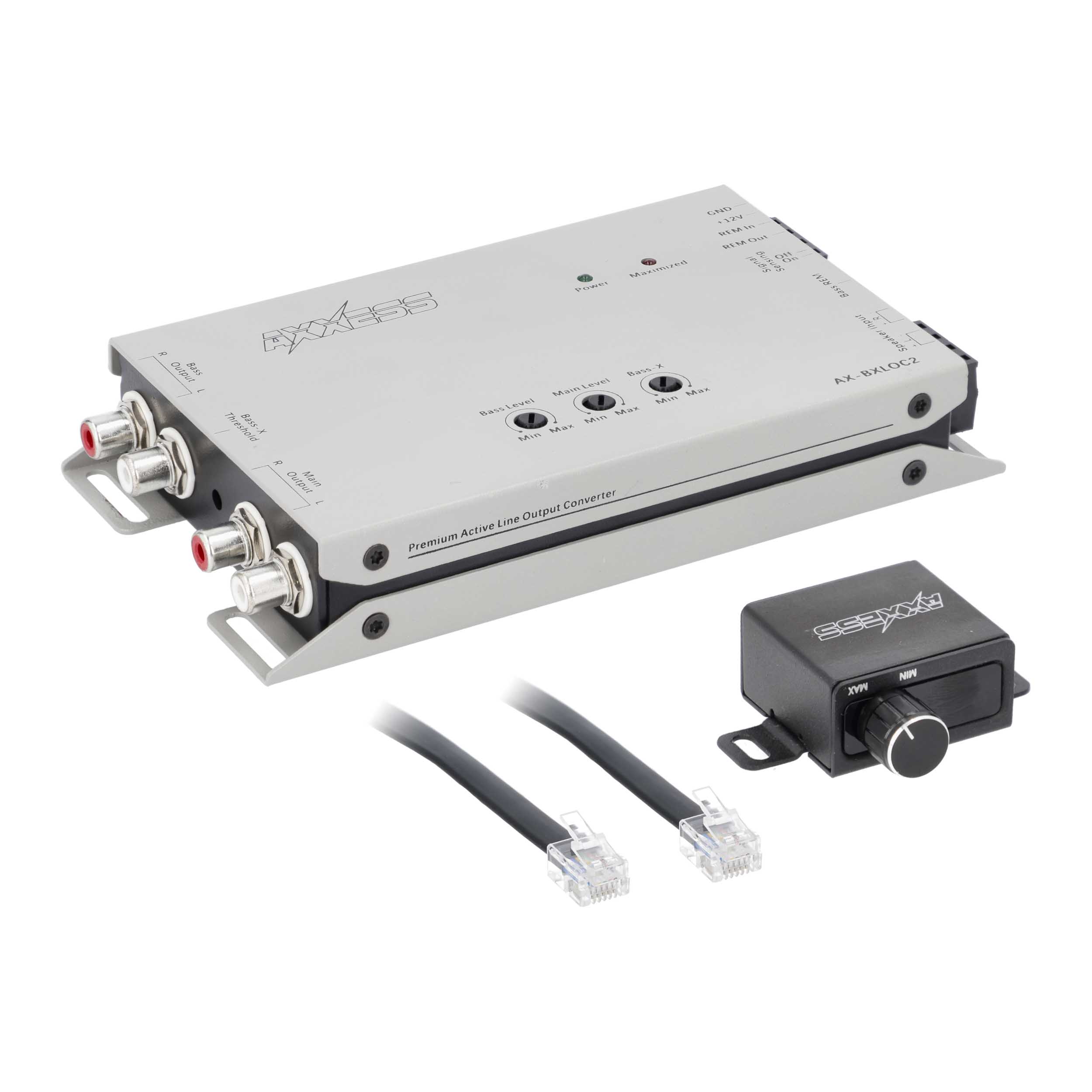

The AX-BXLOC2 from the Axxess BX Series prevents factory audio systems from attenuating low frequencies and reducing bass output as volume increases. A Bass-X restoration circuit in the LOC allows users to enjoy their music as it was recorded while maintaining factory volume and steering wheel controls. This compact line output converter with active input circuitry accepts speaker-level signals of up to 400 watts per channel from factory-installed source units or amplifiers. They convert them to high-quality preamp signals that can be directed to aftermarket amplifiers. A bass remote control with a digital voltmeter is also included to help prevent equipment damage. As some factory radios or amplifiers stop passing audio when OE speakers are disconnected, Axxess load resistors may be required when installing the AX-BXLOC2.

Features
  • 4-channel: 2 in, 4 out
  • Max input level: 40V / 400W @20K Ohm
  • Operating voltage: 9V-16V
  • Trigger selection: REM
  • Remote Output Rating 500mA
  • Turn on trigger (DC): 3V-7V
  • Output max @13.8V: 9.5V RMS
  • Input impedance selection: recommended: AX-LR20 / AX-LR39 / AX-LR60
  • Gain adjustment: – 28dB to +1dB
  • Input sensitivity: 0.5V-20V
  • Signal to noise: >110dB @6.4V output
  • THD+N (Total Harmonic Distortion): <0.01%
  • Frequency response: 20Hz-20kHz
  • Bass boost: 0dB + 12dB
  • Plug-n-play remote bass knob with voltmeter included
  • 1-year limited warranty

Vehicle compatibility information is not currently listed. This may be a universal part or details are being updated.

Have questions about fitment? Contact our tech support.
