Backup Camera Interface - Dodge | Jeep 2018-Up

When replacing the factory radio with an aftermarket radio, the AXBUC-CH1LVDS interface allows users to retain their factory-installed LVDS camera. Designed for vehicles equipped with a factory HD camera, this interface converts the original camera signal so it can be used with compatible aftermarket radios. The interface offers selectable AHD and CVBS video outputs to support a wide range of radio inputs, ensuring continued use of the factory camera without replacing it.

Features:

• Retains the factory-installed LVDS HD camera when installing an aftermarket radio
• Designed for vehicles equipped with a factory HD camera
• Selectable video output formats: AHD or CVBS for compatibility with different radios
• AHD output supports 720p (25fps) or 1080p (30fps) resolution
• CVBS output supports 480p (NTSC) resolution

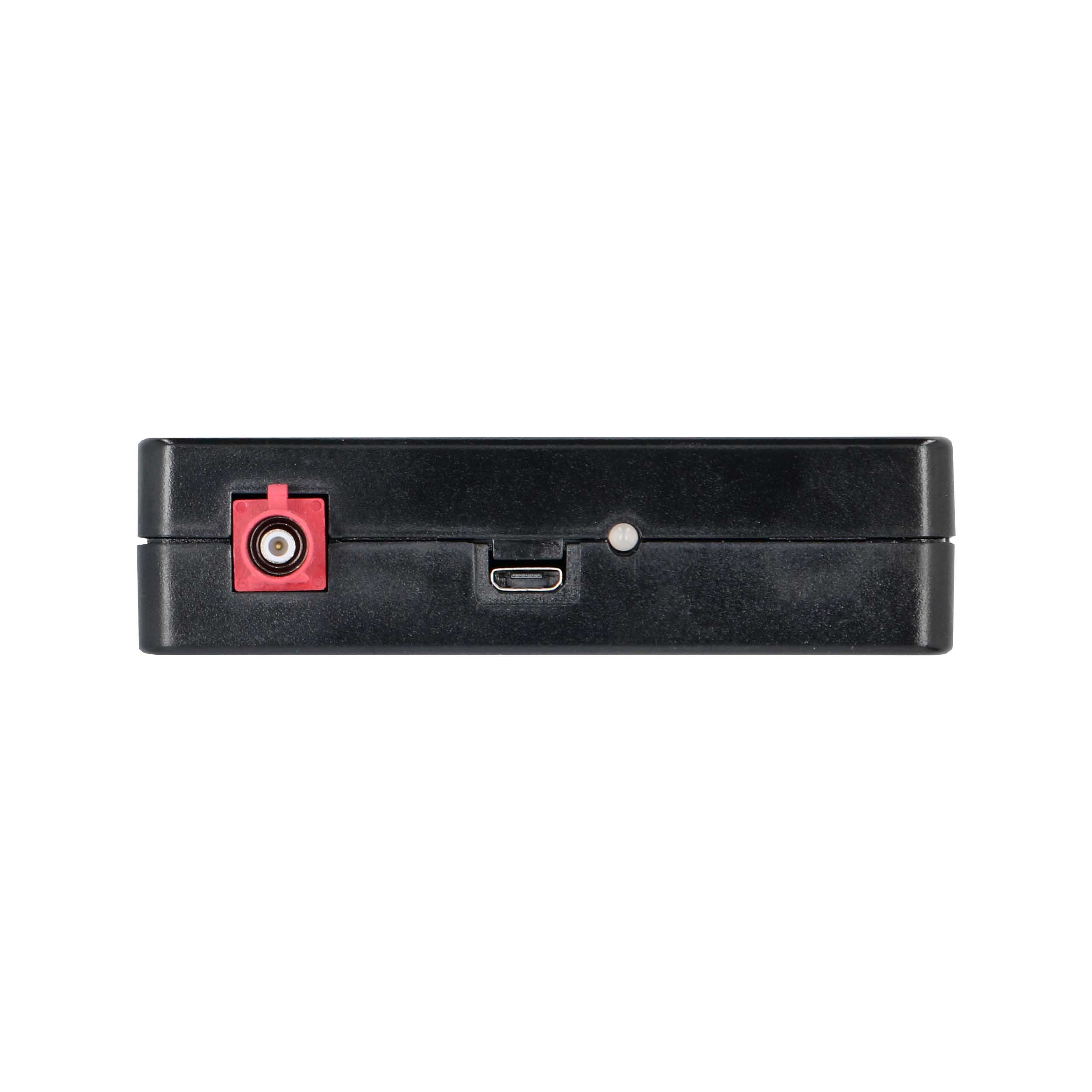

• Factory camera input via Fakra connector
• 12V DC power supply
• Compact design installs behind the radio
• Operating temperature range: -20°C to +70°C
• Storage temperature range: -25°C to +80°C
• 1-year limited warranty

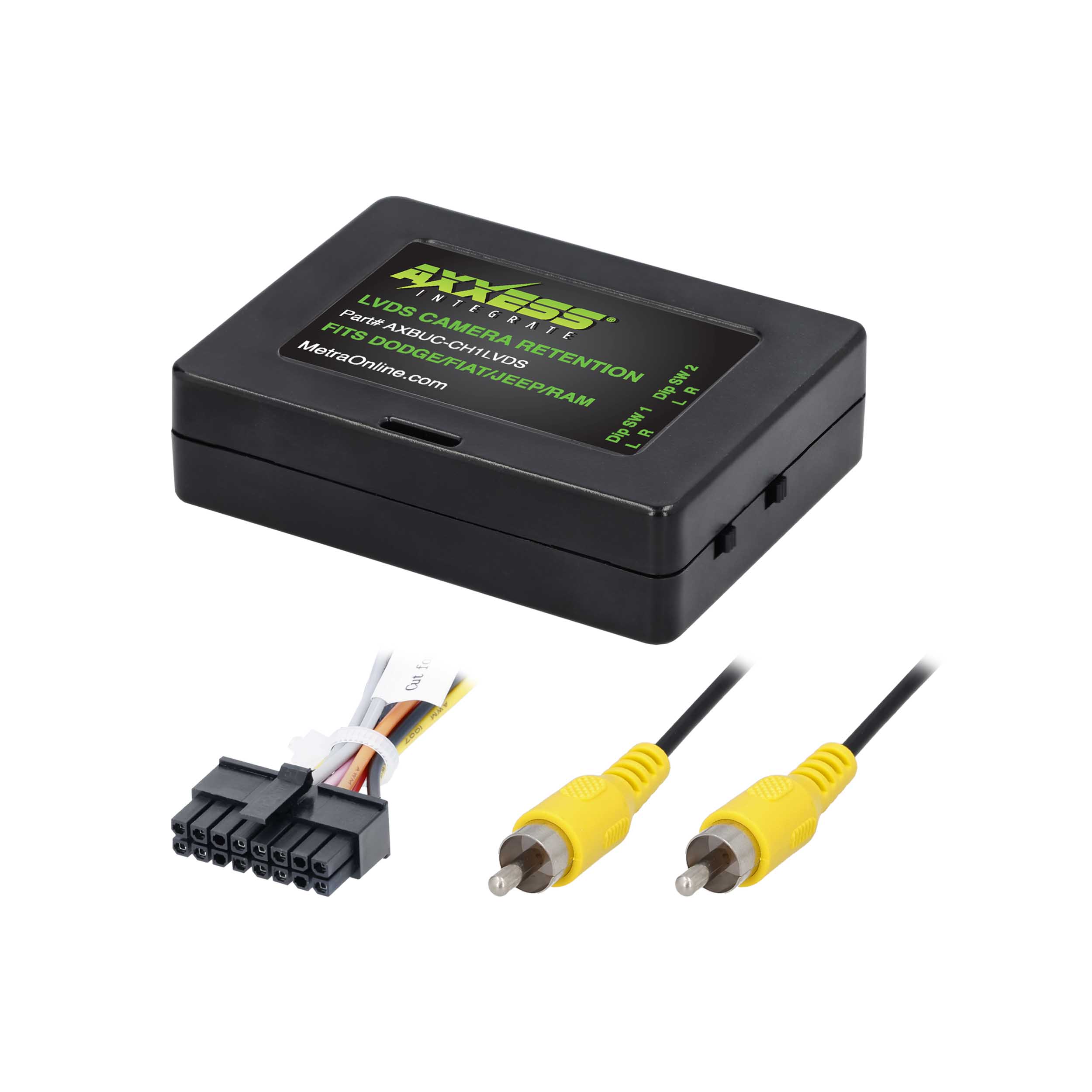

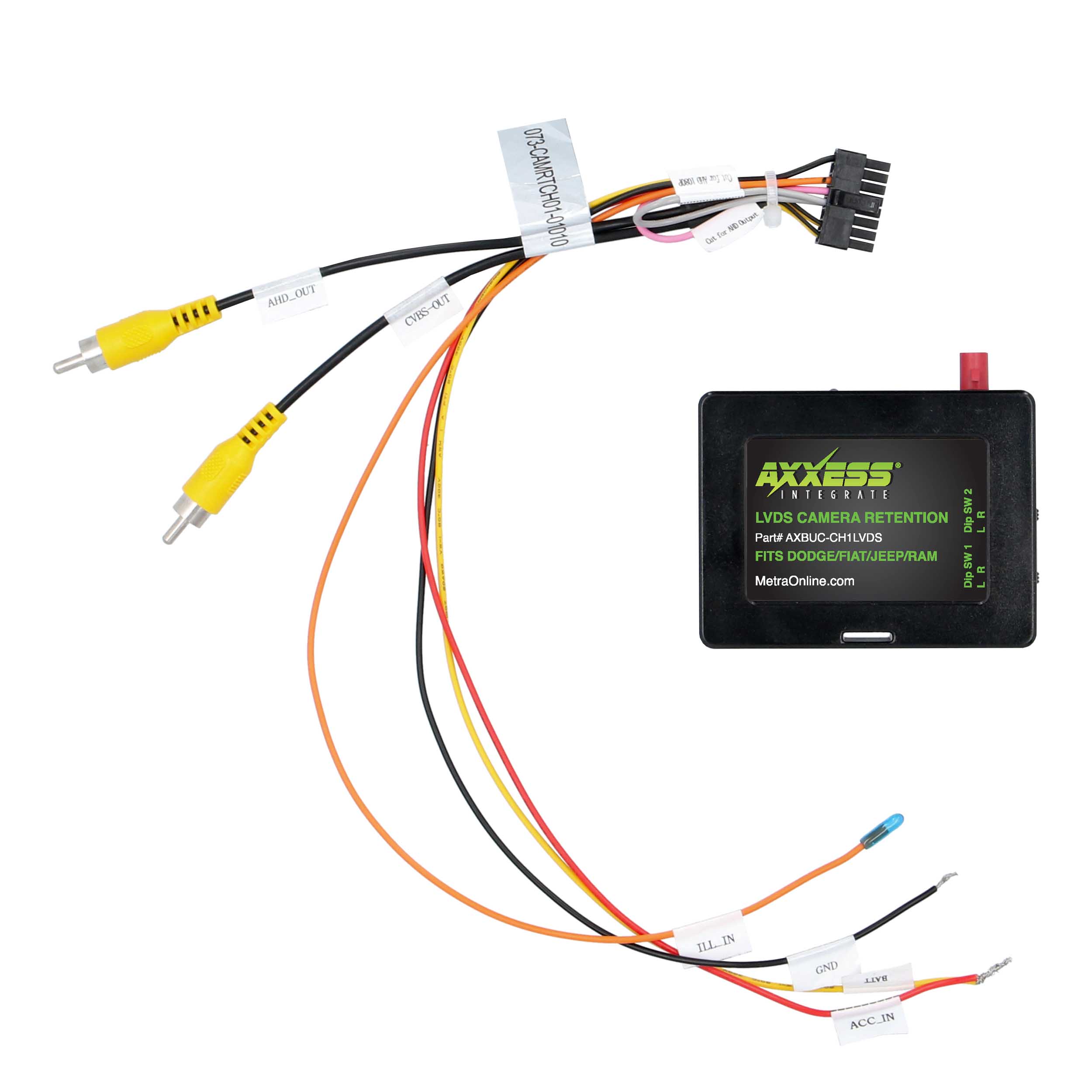

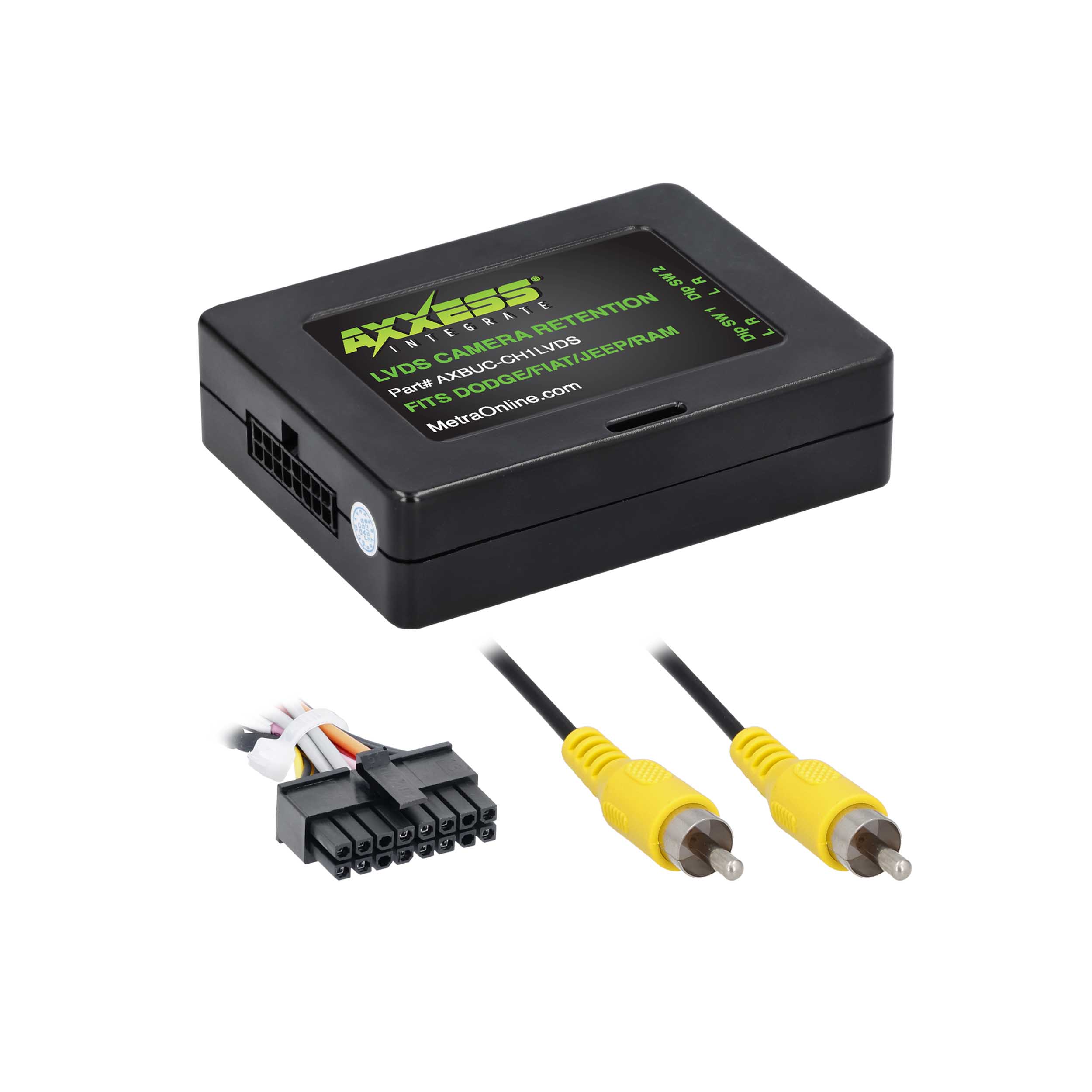

Includes:

• Interface

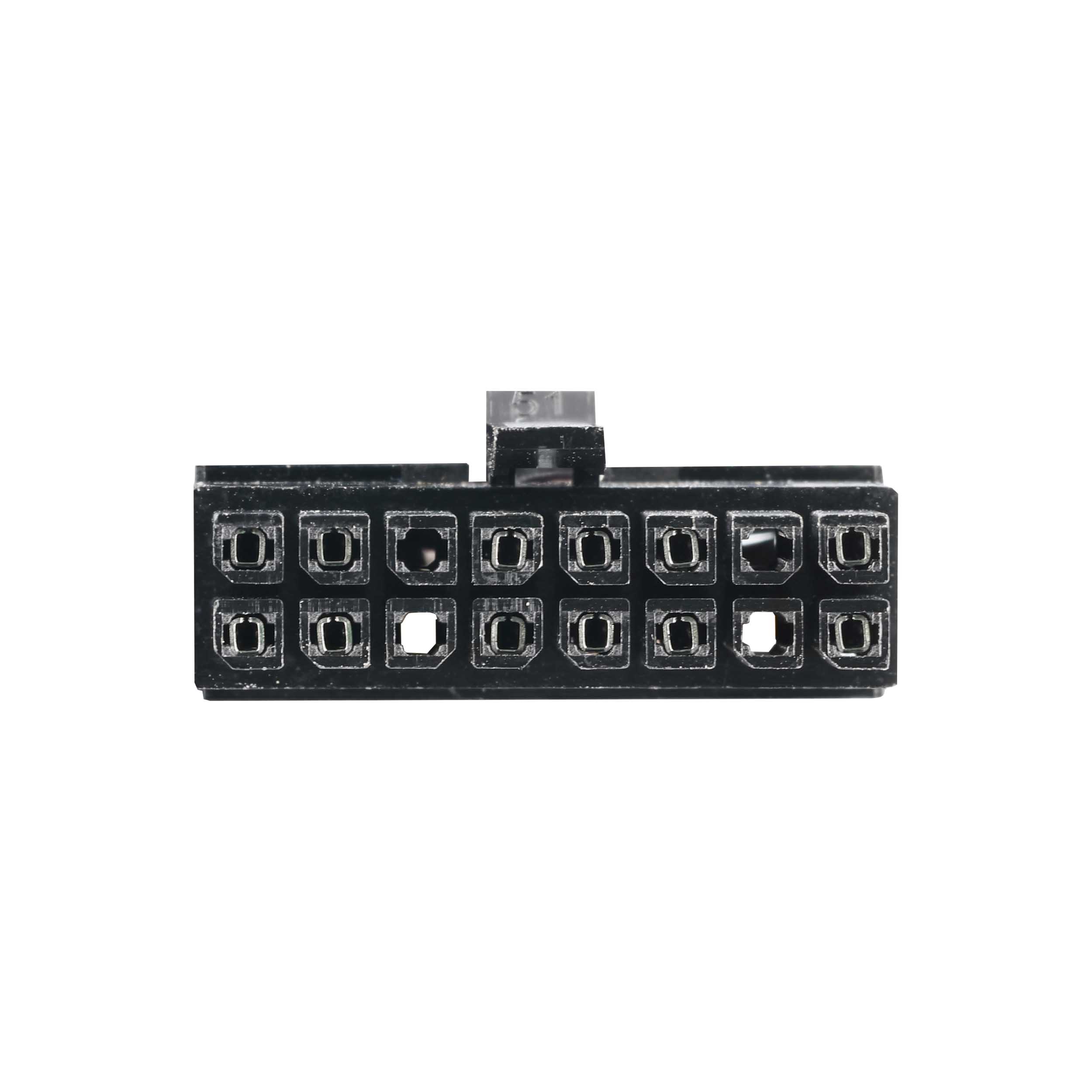

• Vehicle-specific harness
• Instructions

See our Vehicle Fit Guide for up-to-date vehicle-specific applications
