2-Channel line Output Converter - Fits Toyota 1987-2020

This vehicle-specific line output converter features a T-harness that installs quickly and makes it easy for installers to add an amplifier for subwoofers or speakers to a factory radio. It is designed to provide (2) channels of low-level audio output from the factory system, with 55 watts per channel. A Gain Controller is included to adjust overall output, and it is 12v-500mA remote-wire activated with signal sense.

• Designed to provide (2) channels of low-level audio output from the factory system
• Allows for the installation of an amplifier for speakers or subwoofers
• Gain Controller included to adjust the overall output
• 12v-500mA remote wire activated with signal sense
• 55 watts per channel
• Designed for non-amplified vehicles.

Note: A single pole double throw (SPDT) relay is recommended when installing multiple amplifiers.

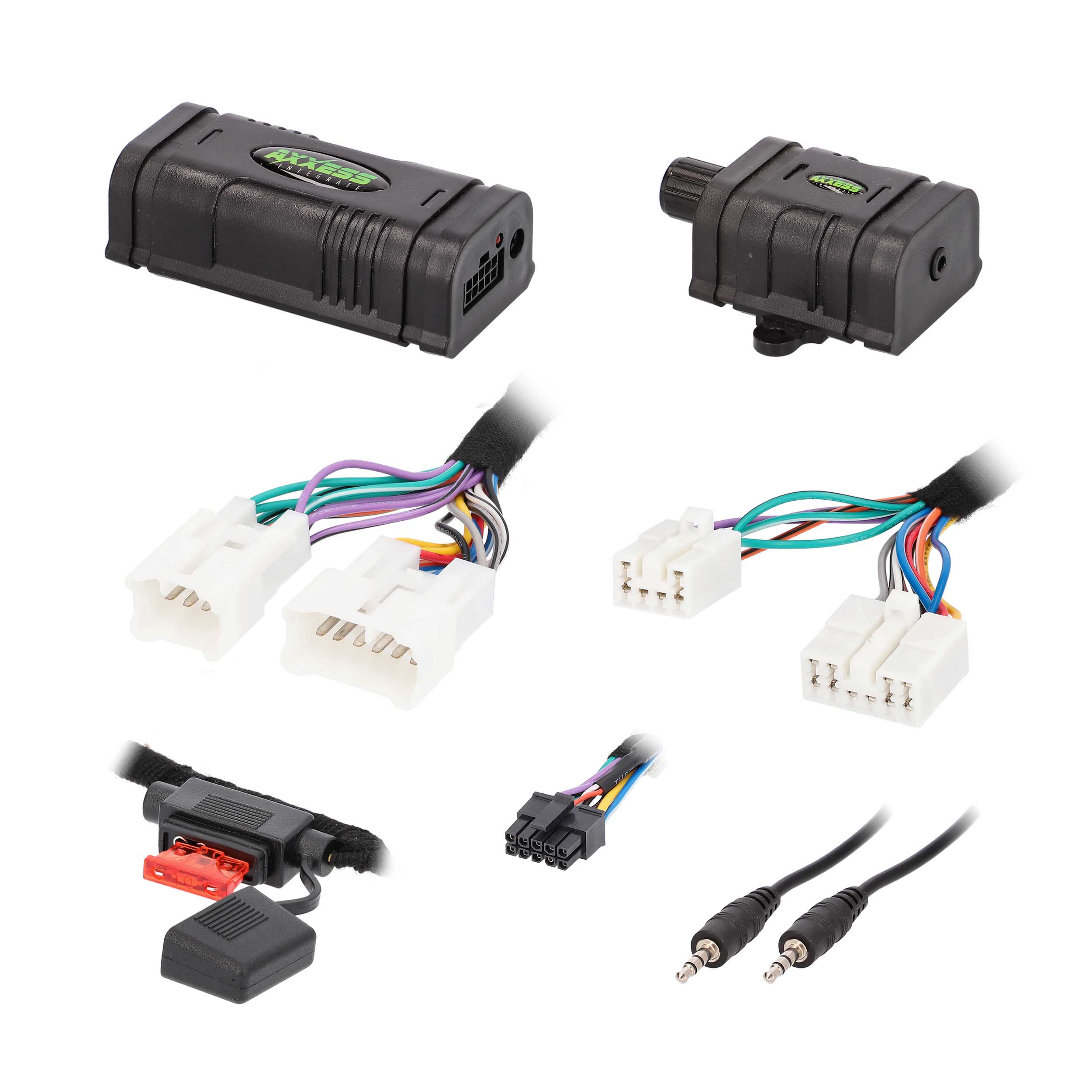

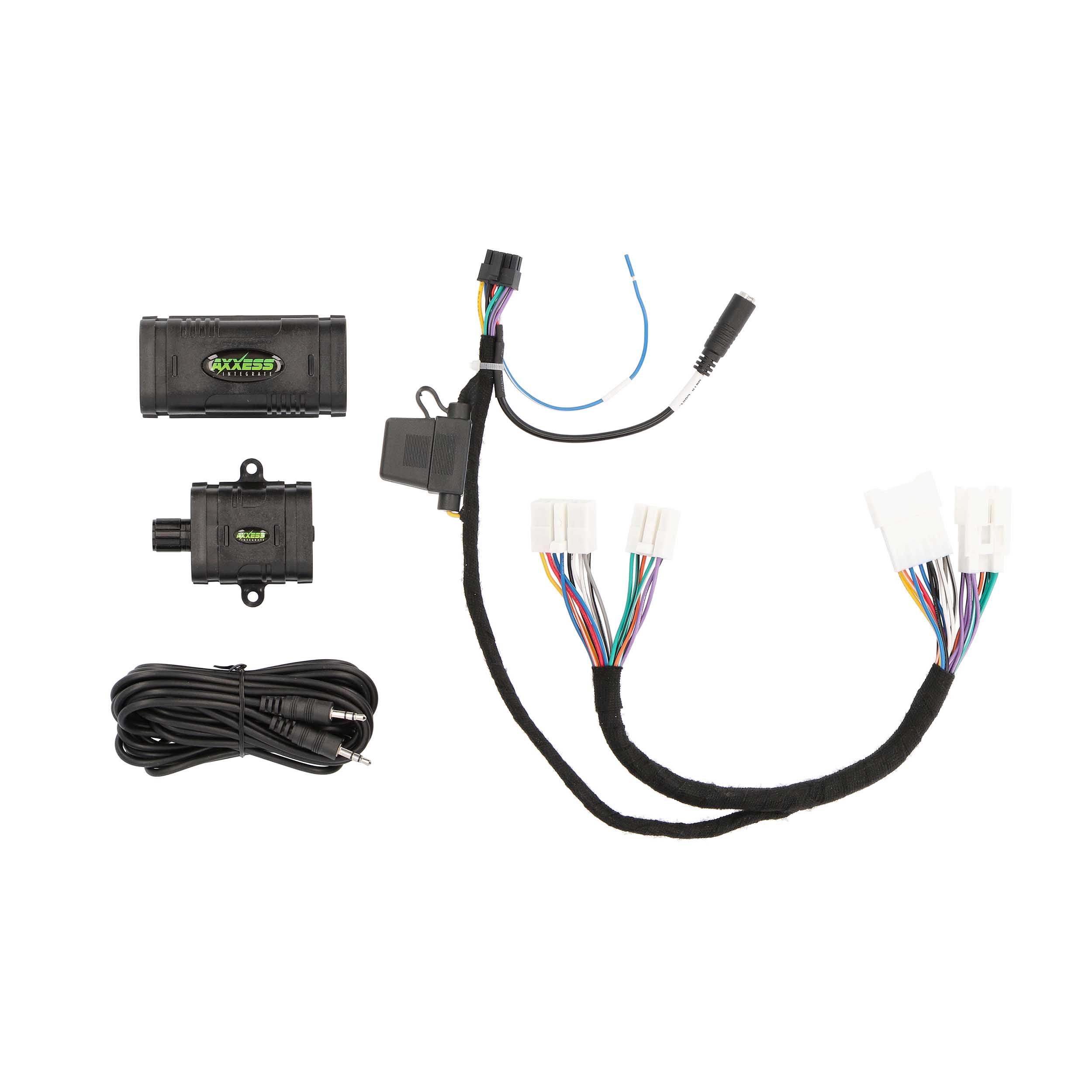

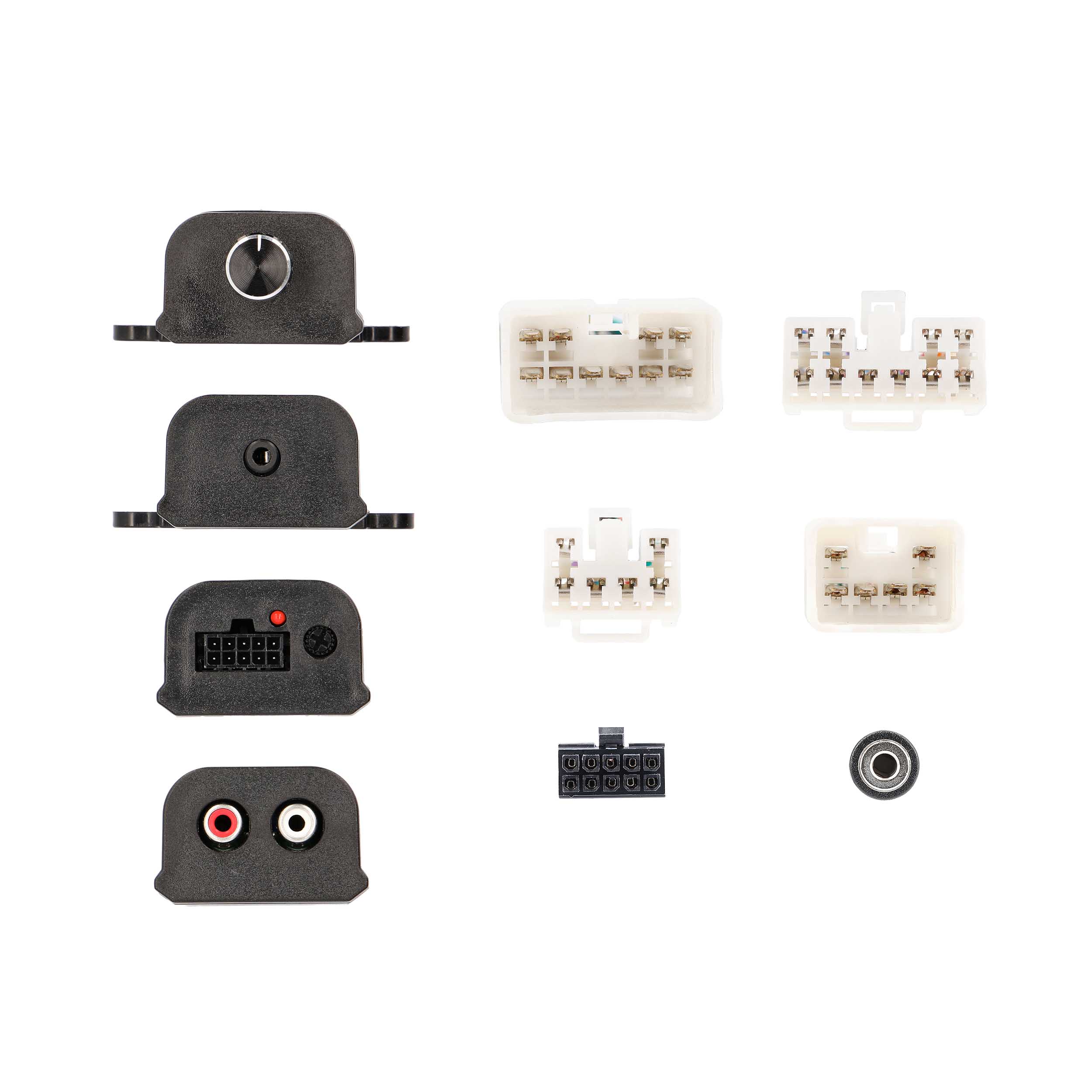

INTERFACE COMPONENTS

• AXLOC-TY1 Wiring Harness
• Gain Controller
• 12v-500mA Remote Wire
• Auxiliary Cable
