Radio Status Control Harness - Chrysler 2013-2023

This vehicle-specific radio status control harness is designed for broad compatibility with a wide range of radio brands and models, making it ideal for integrating radios purchased from online retailers. Vehicle information and settings controlled on the factory screen are retained, displayed, and controlled on the aftermarket screen. These functions are typically lost when the head unit is replaced. Built-in integration technology also retains safety chimes through an off-board speaker, retains audio controls on the steering wheel, retains R.A.P. (Retained Accessory Power), and provides accessory power (12-volt 10-amp) and NAV outputs for parking brake, reverse, and speed sense. This harness must be used with the AXRSC radio status control interface (sold separately). Radio-specific accessory harnesses are also available for purchase for a complete plug-n-play installation.

Features:

• AXRSC radio status control interface required
• Designed for select aftermarket radios
• Designed for amplified or non-amplified vehicles
• Provides accessory power (12-volt 10-amp)
• Retains R.A.P. (Retained Accessory Power)
• Provides NAV outputs (parking brake, reverse, and speed sense)
• Retains factory backup camera
• Allows a visual of HVAC and gauges on the aftermarket radio screen
• Allows adjustment of HVAC functions through the aftermarket radio screen
• Retains audio controls on the steering wheel
• Allows for auto stop/start override
• Works in both single and dual-zone vehicles
• Retains safety chimes through an included off-board speaker
• Allows the retention and adjustment of the OE personalization settings
• Plug-n-play installation
• 1-year warranty

Note: Backup camera not retained on Jeep JL/JT

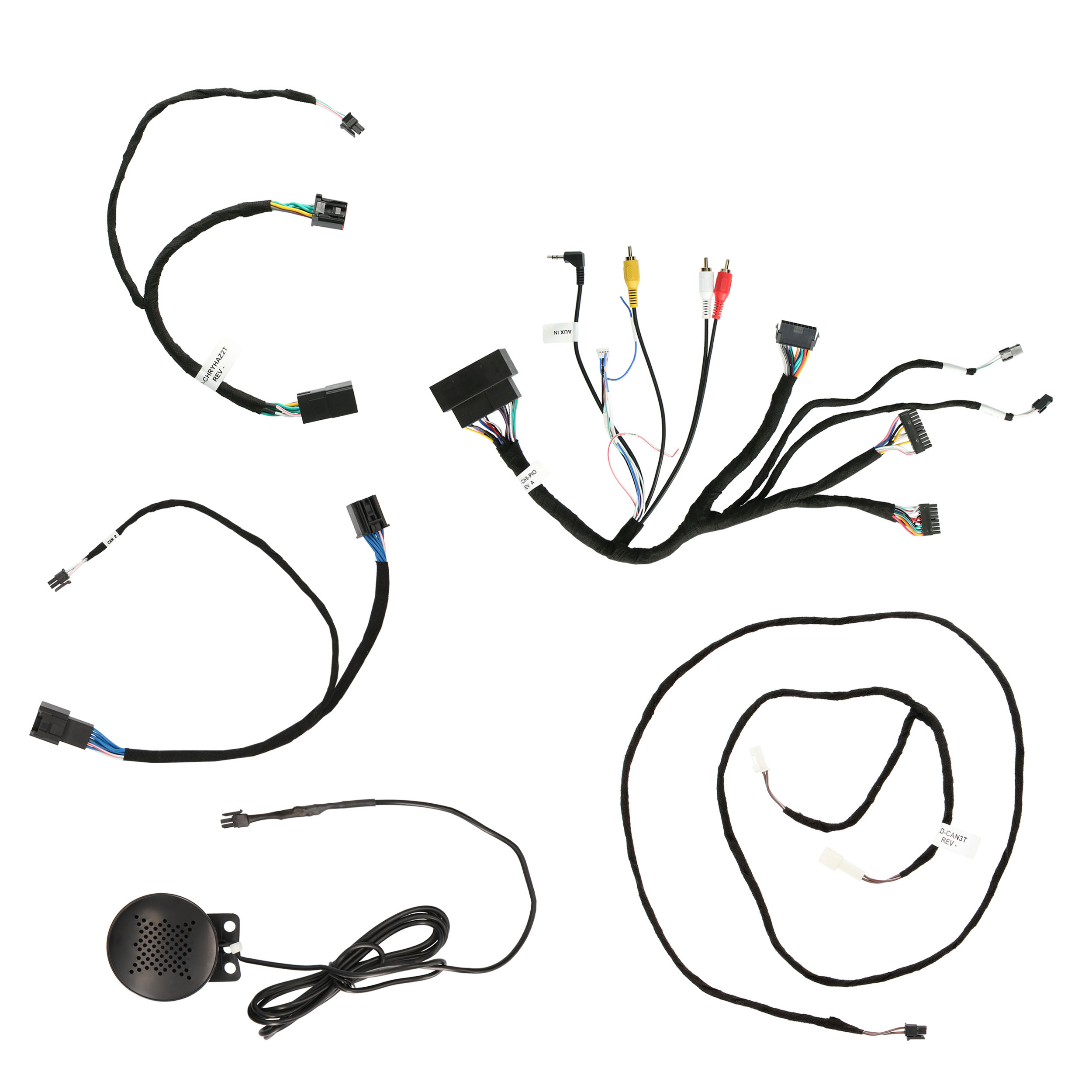

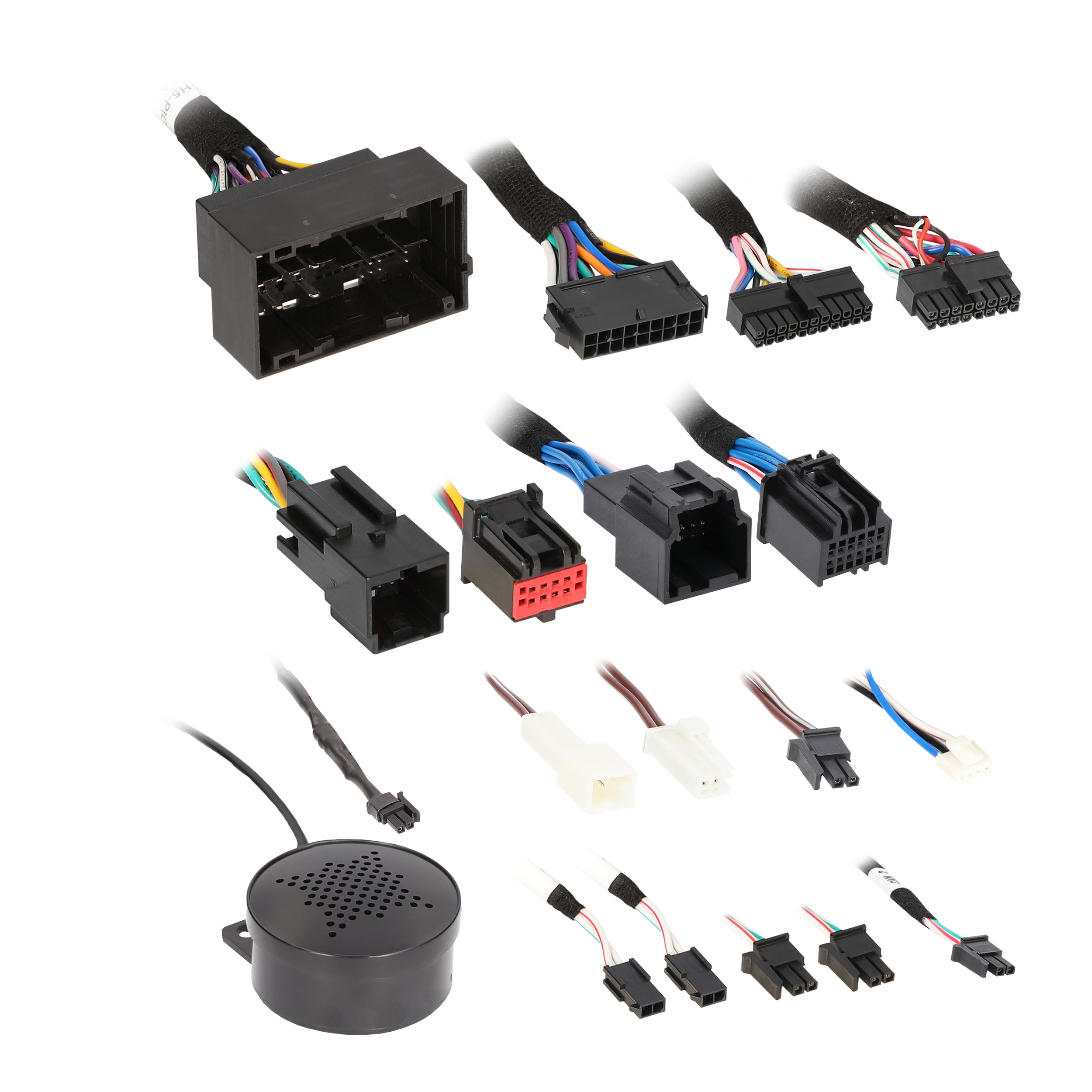

Includes:

• Vehicle-specific harness
• Vehicle-specific T-harness
• CAN T-harness
• External speaker
• Step-by-step instructions

Refer to our Vehicle Fit Guide for up-to-date vehicle-specific applications.

Radio-specific accessory harnesses are available for purchase to pair with this harness for a complete plug-n-play installation.
