Data Interface with SWC - Ford 2015-2023

This vehicle-specific interface from Axxess is designed for factory radio replacement, providing a complete solution to retain features that are typically lost during installation. Patented auto-detect technology automatically identifies the vehicle type, radio connection, and preset controls while enabling retention and dual-assignment of steering wheel controls. The interface provides connections for multimedia radios, including NAV outputs, accessory power, and a 12-volt illumination output, while preserving R.A.P., balance, and fade. Compatible with all major radio brands and suitable for both amplified and non-amplified systems, it can also be manually programmed for most vehicles and retains settings even after battery disconnection or interface removal.

Features:

• Designed for amplified and non-amplified systems
• Provides accessory power (12-volt 10-amp)
• Retains R.A.P. (Retained Accessory Power)
• Provides NAV outputs (parking brake, reverse, and speed sense)
• Built-in features like SWC & Auto-Detect
• Auto-detect feature - automatically detects the vehicle type, radio connection, and preset controls
• Ability to dual-assign steering wheel control buttons
• Works with major radio brands
• Can be manually programmed for most vehicles
• Retains settings, even after battery disconnection
• Provides 12-volt illumination output
• Micro “B” USB updatable
• 1-year limited warranty

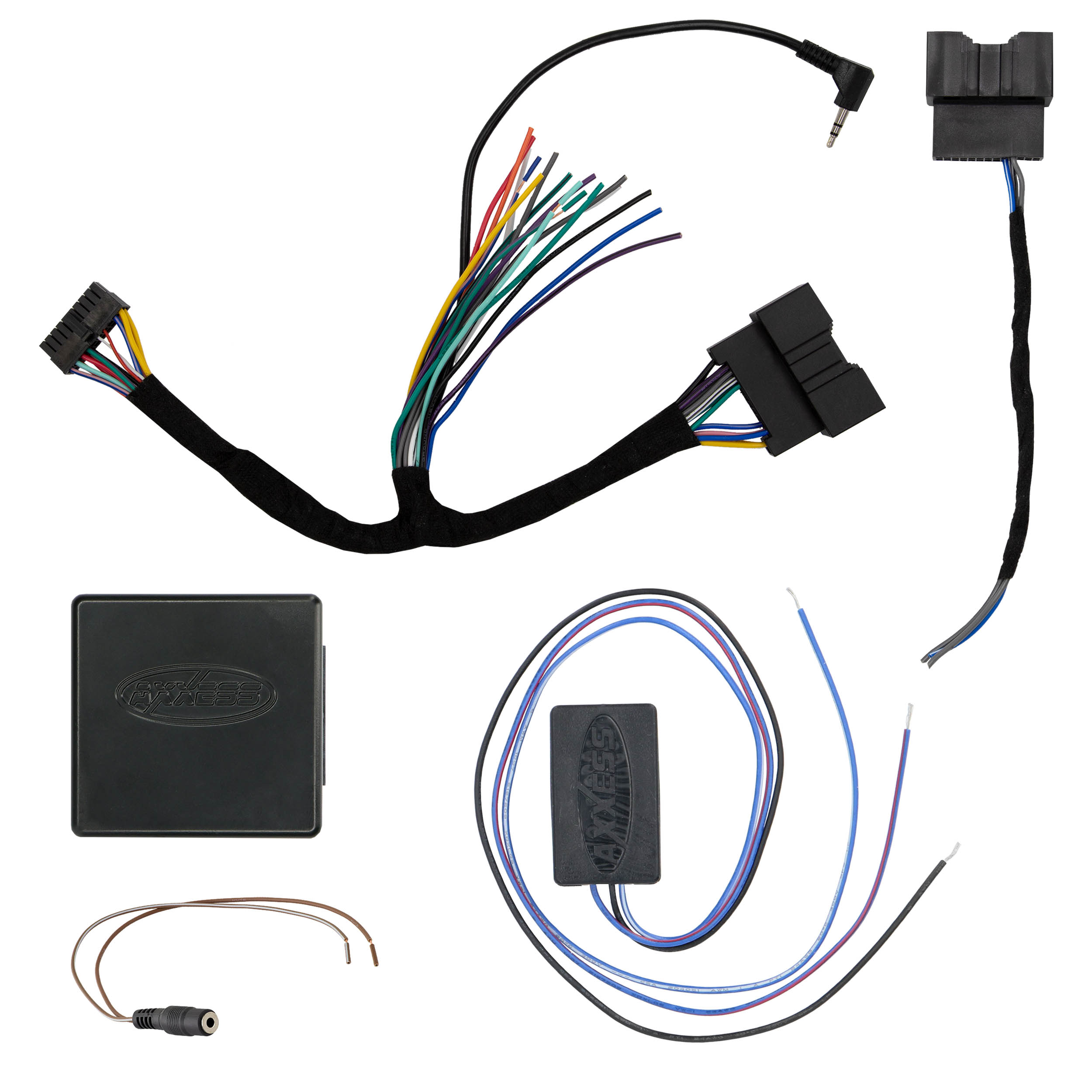

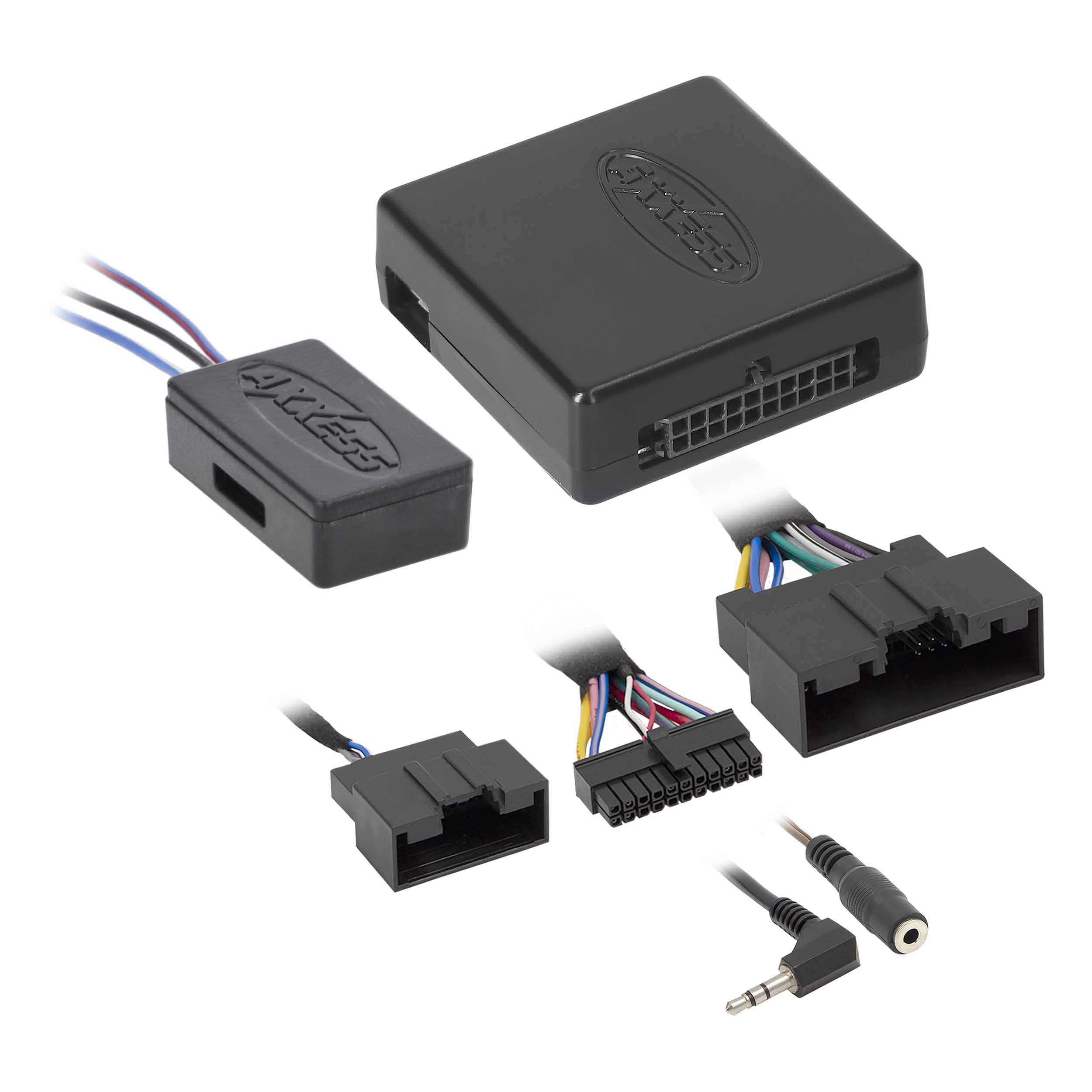

Includes:

• Interface
• Harness
• 3.5mm adapter
• Amplifier step-down

Refer to our Vehicle Fit Guide for up-to-date vehicle-specific applications

U.S. Patent 8,527,147
