Data Interface with SWC - Mazda 2007-2016

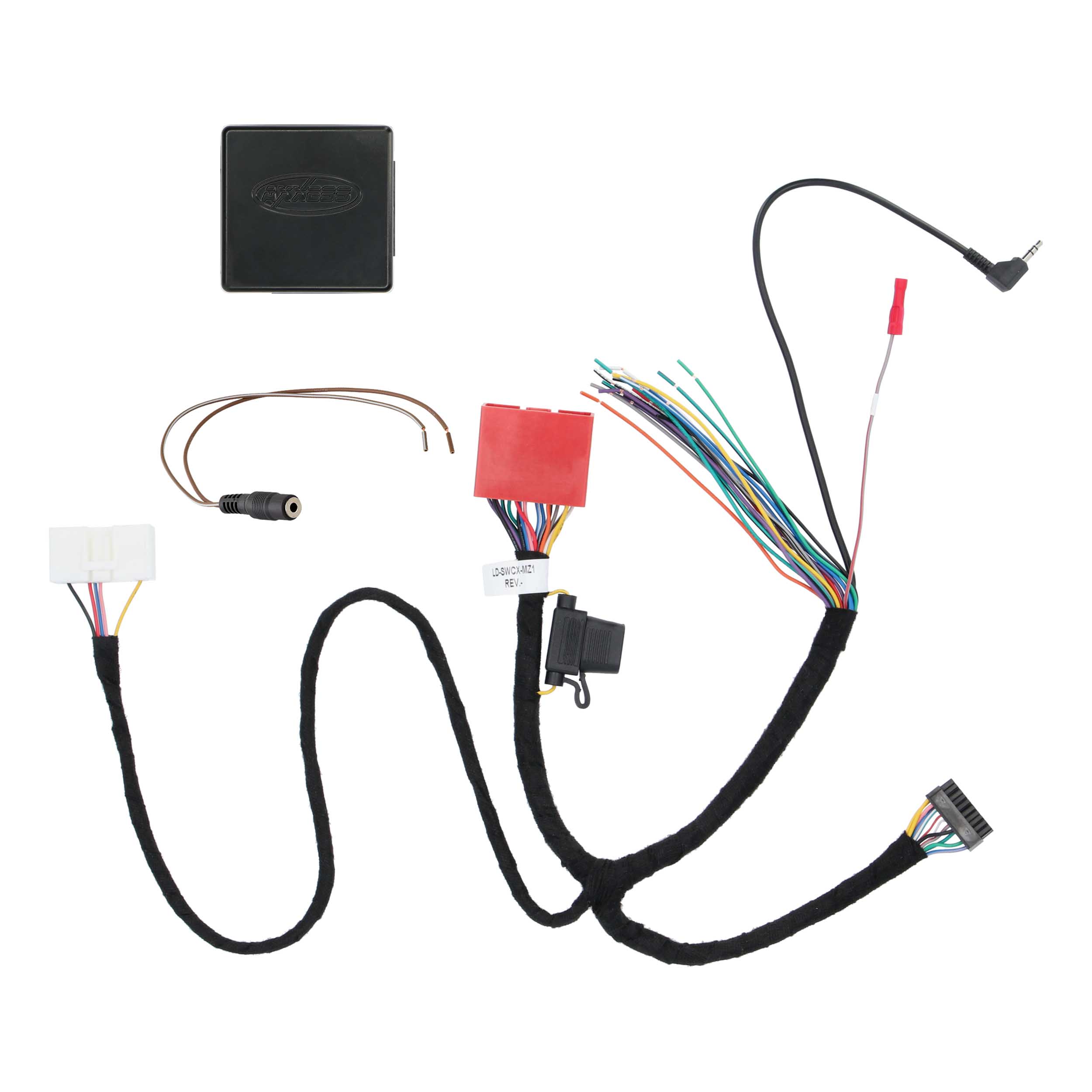

This vehicle-specific interface from Axxess is designed for factory radio replacement, providing a complete solution to retain features that are typically lost during installation. Patented auto-detect technology automatically identifies the vehicle type, radio connection, and preset controls while enabling retention and dual-assignment of steering wheel controls. The interface provides connections for multimedia radios, including NAV outputs, accessory power, and a 12-volt illumination output, while preserving R.A.P., balance, and fade. Compatible with all major radio brands and suitable for both amplified and non-amplified systems, it can also be manually programmed for most vehicles and retains settings even after battery disconnection or interface removal.

 Features:

• Designed for amplified and non-amplified systems
• Provides accessory power (12-volt 10-amp)
• Retains R.A.P. (Retained Accessory Power)
• Provides NAV outputs (parking brake, reverse, and speed sense)
• Built-in features like SWC & Auto-Detect
• Retains and controls personalization settings via Bluetooth® wireless technology when used with the free AX-CUSTOM-BT app for smartphones and tablets
• Auto-detect feature - automatically detects the vehicle type, radio connection, and preset controls
• Ability to dual assign steering wheel control buttons
• Works with major radio brands
• Can be manually programmed for most vehicles
• Retains settings, even after battery disconnection
• Retains balance & fade (excludes amplified models)
• Retains the ability to set the clock via a service harness
• Retains the factory backup camera if equipped
• Micro “B” USB updatable

• 1-year limited warranty

Refer to our Vehicle Fit Guide for up-to-date vehicle-specific applications

U.S. Patent 8,527,147

The Bluetooth® word, mark and logos are registered trademarks owned by Bluetooth SIG, Inc. and any use of such marks by Metra Electronics is under license. Other trademarks and trade names are those of their respective owners.
