Audio Kit - Ford F-150 2018-2024 (B&O amplified)

Metra has collaborated with VIBE Audio to create this state-of-the-art plug-n-play audio system, engineered specifically for B&O-amplified 2018-2024 Ford F-150 SuperCrew trucks. This complete, all-in-one premium audio kit includes every component required to install a fully integrated aftermarket sound system, eliminating the need to source parts individually.

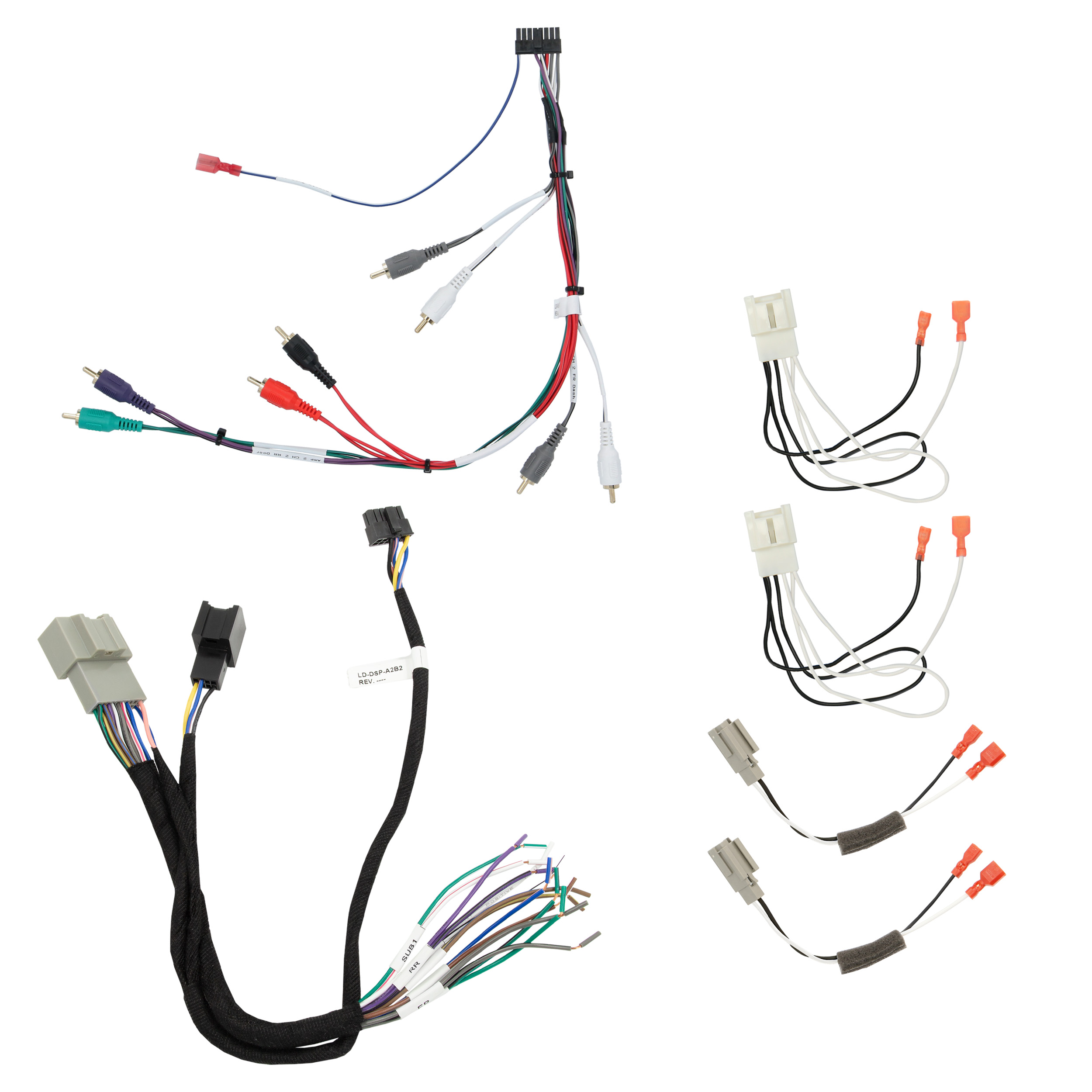

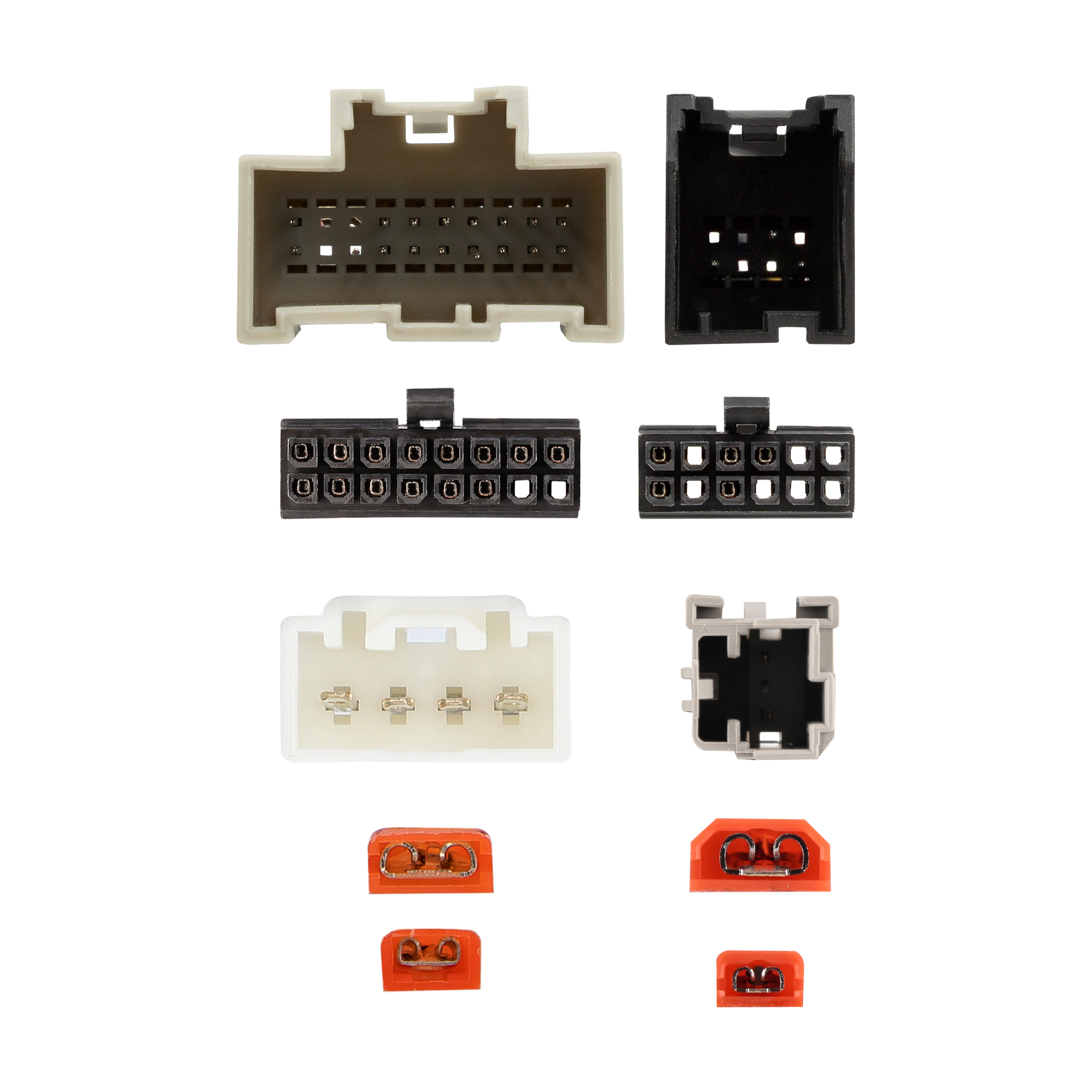

The kit features matched amplifiers, a total of six speakers for the front and rear of the vehicle, and a 10" subwoofer in a ported enclosure, along with Metra’s vehicle-specific installation solutions designed to simplify the upgrade process. Integration components such as the plug-n-play T-harness, speaker adapters, amplifier brackets, and mounting solutions ensure seamless compatibility and straightforward installation.

Each component in this kit has been engineered and tuned to work together as a unified system, delivering crystal-clear highs, rich midrange, and deep, controlled bass tailored to the truck's interior. Because the system is designed as a complete package, all included components are required for proper performance and are not intended to be sold or installed separately.

Complete All-In-One Kit

The complete premium audio system includes the following part numbers, which together provide all components required for installation:

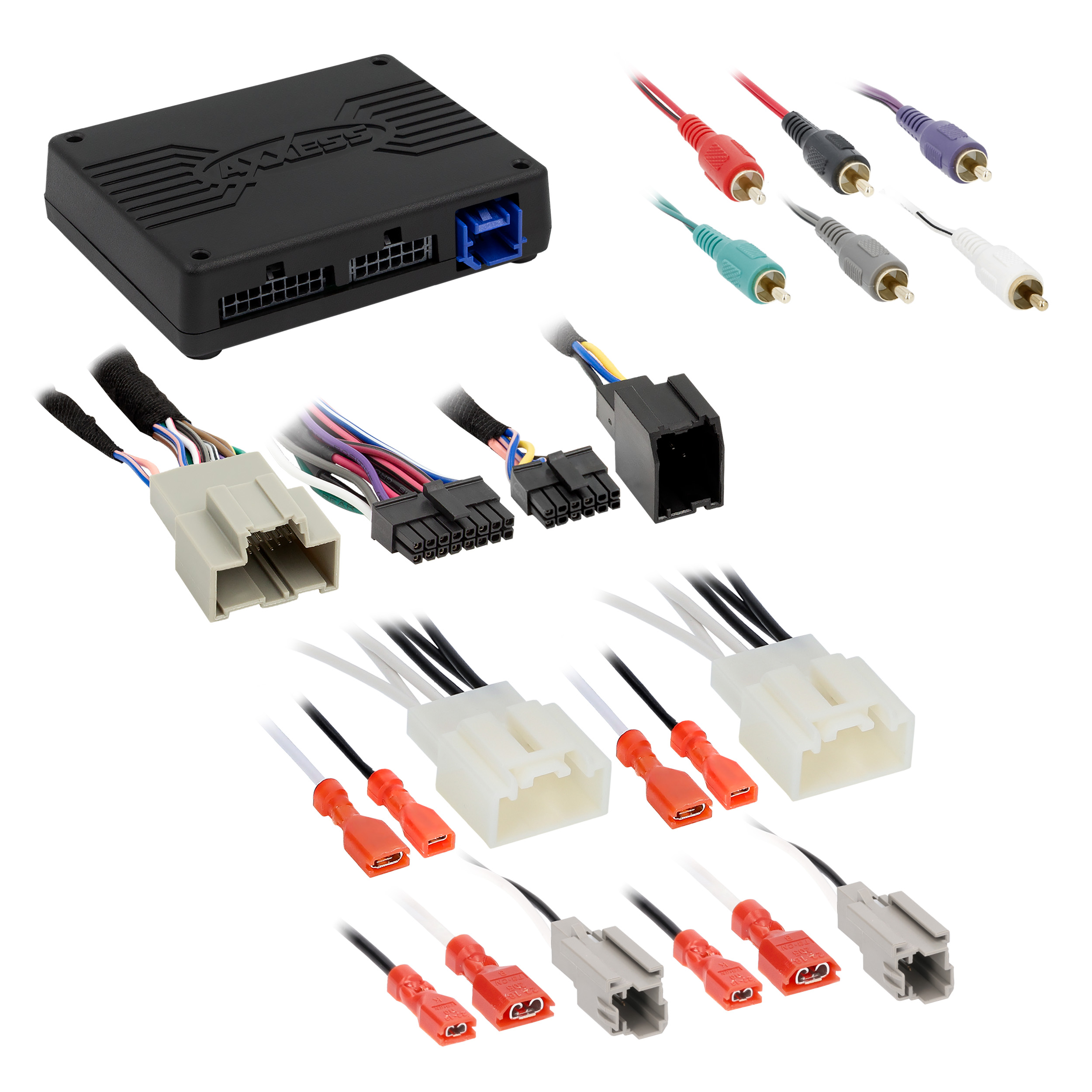

• BLK-FD-PPKT-2A: Vehicle-specific installation and integration components
• FD-F150-10: 10" subwoofer enclosure

Features:

• Complete all-in-one vehicle-specific audio kit
• Components engineered to function as a single integrated system
• Designed for B&O amplified models
• Simplified plug-n-play installation
• Balanced, vehicle-tuned sound performance
• 1-year warranty

Estimated installation time is 6 to 8 hours with 1 experienced technician.

Check out our detailed instructions for this install here: Instructions

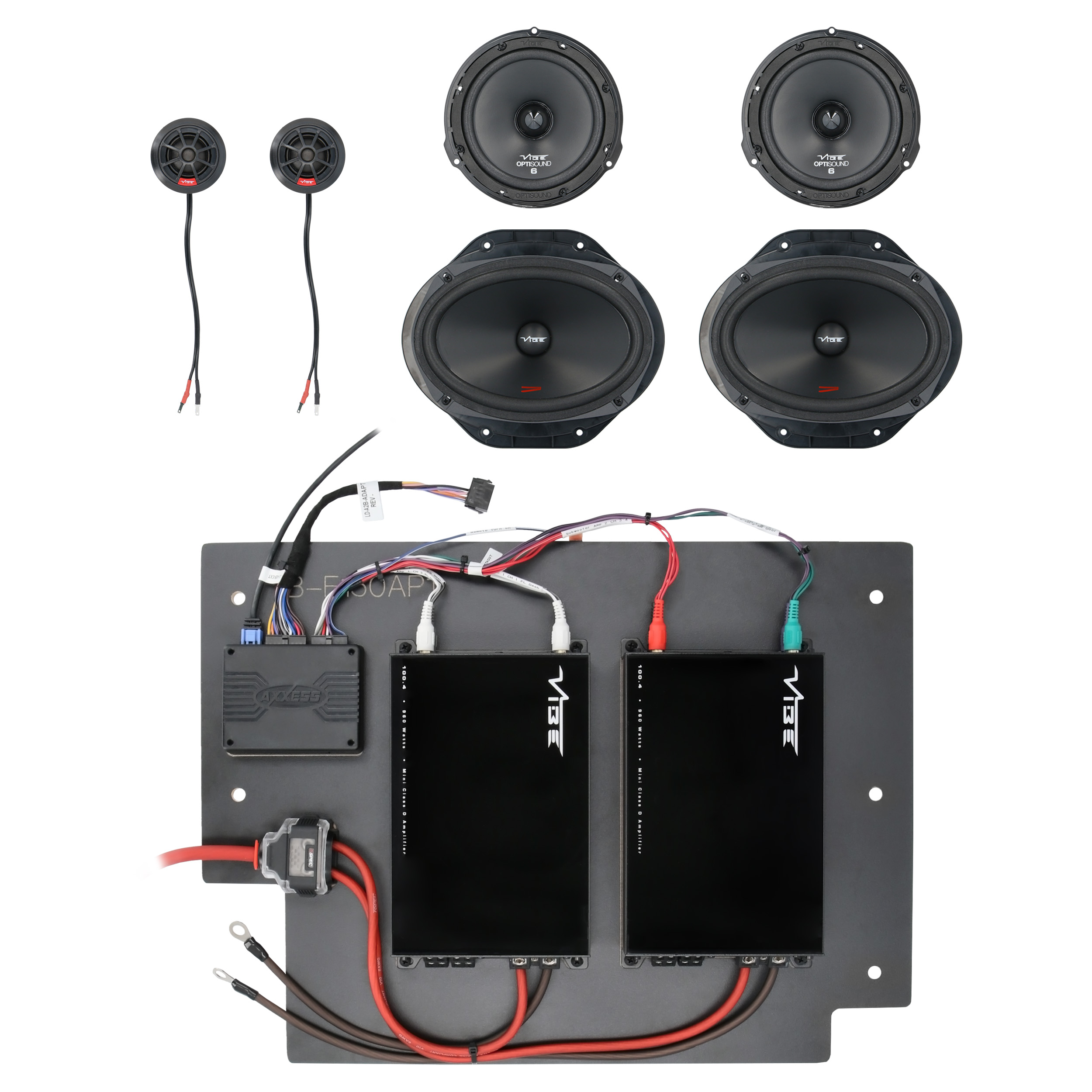

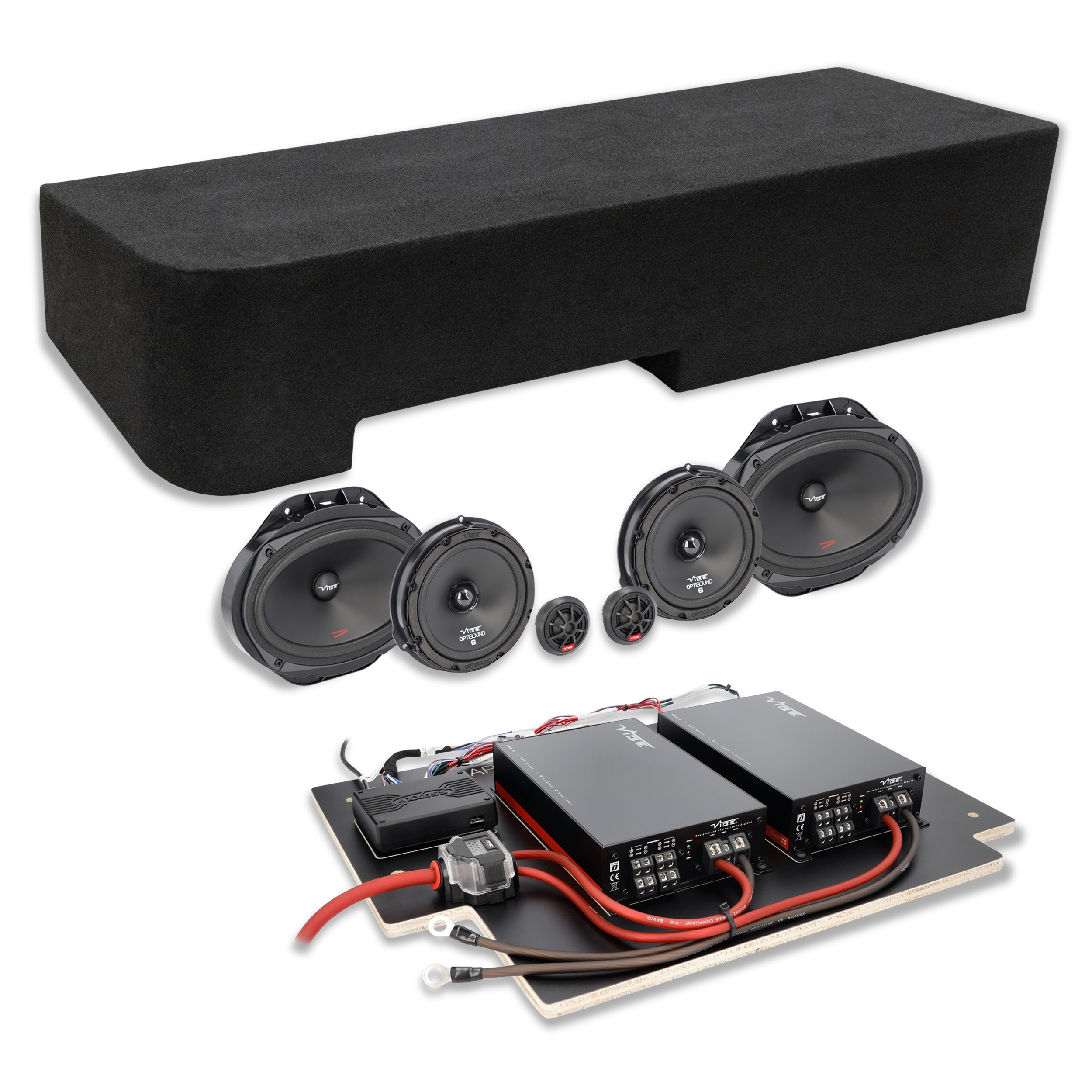

Plug-n-play audio system includes:

• Pair 400-watt 4-channel 100x4 amplifiers
• Pair 1” front dash tweeters

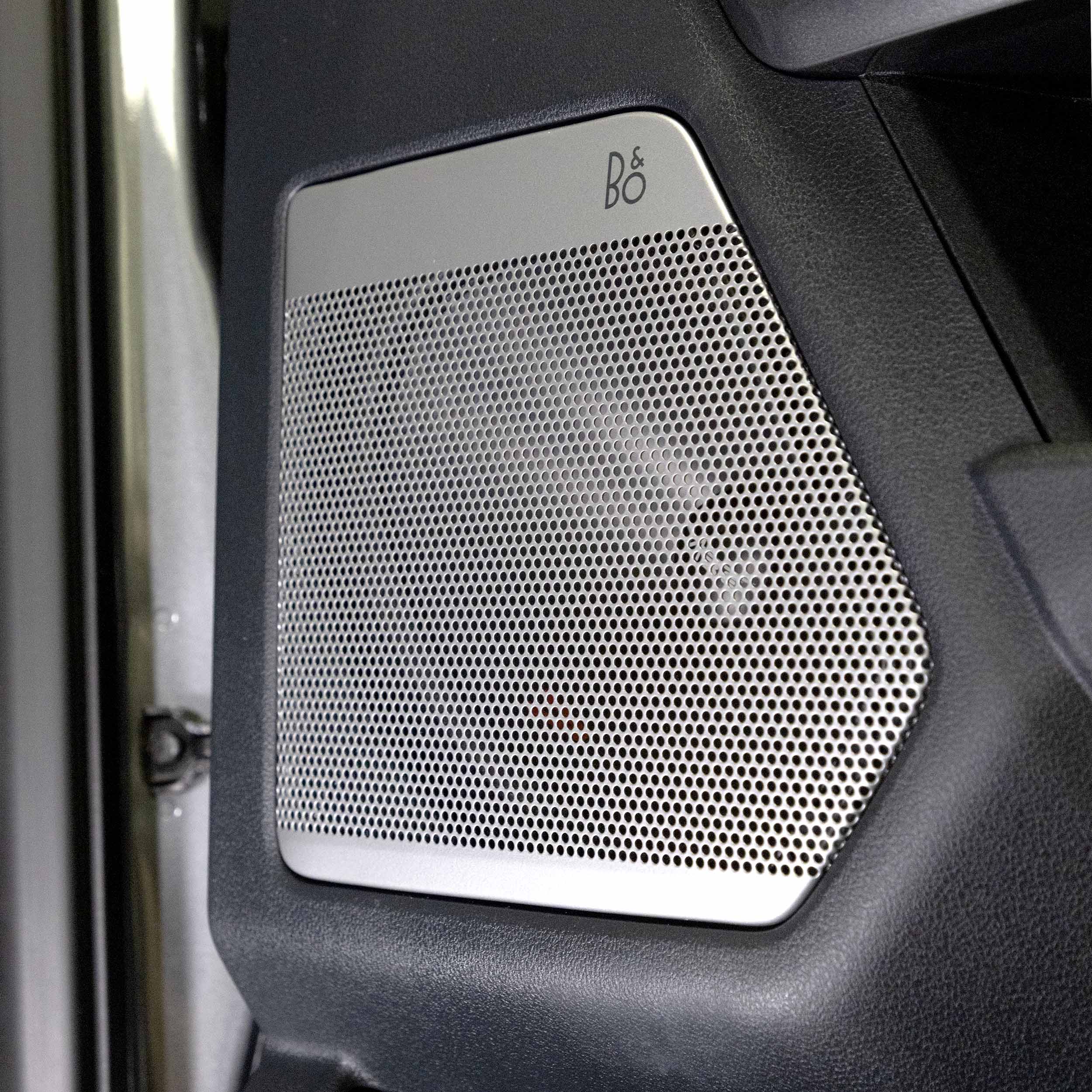

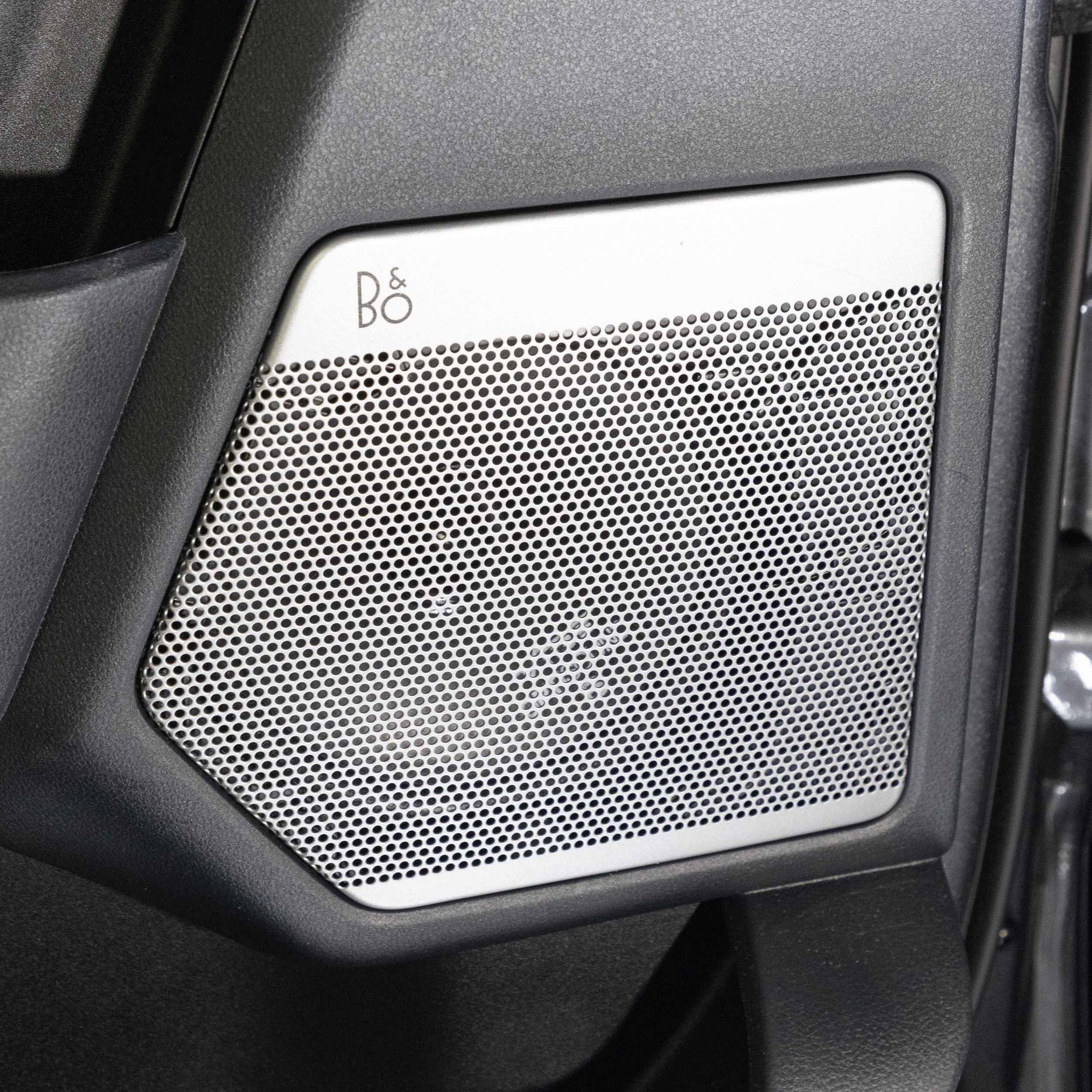

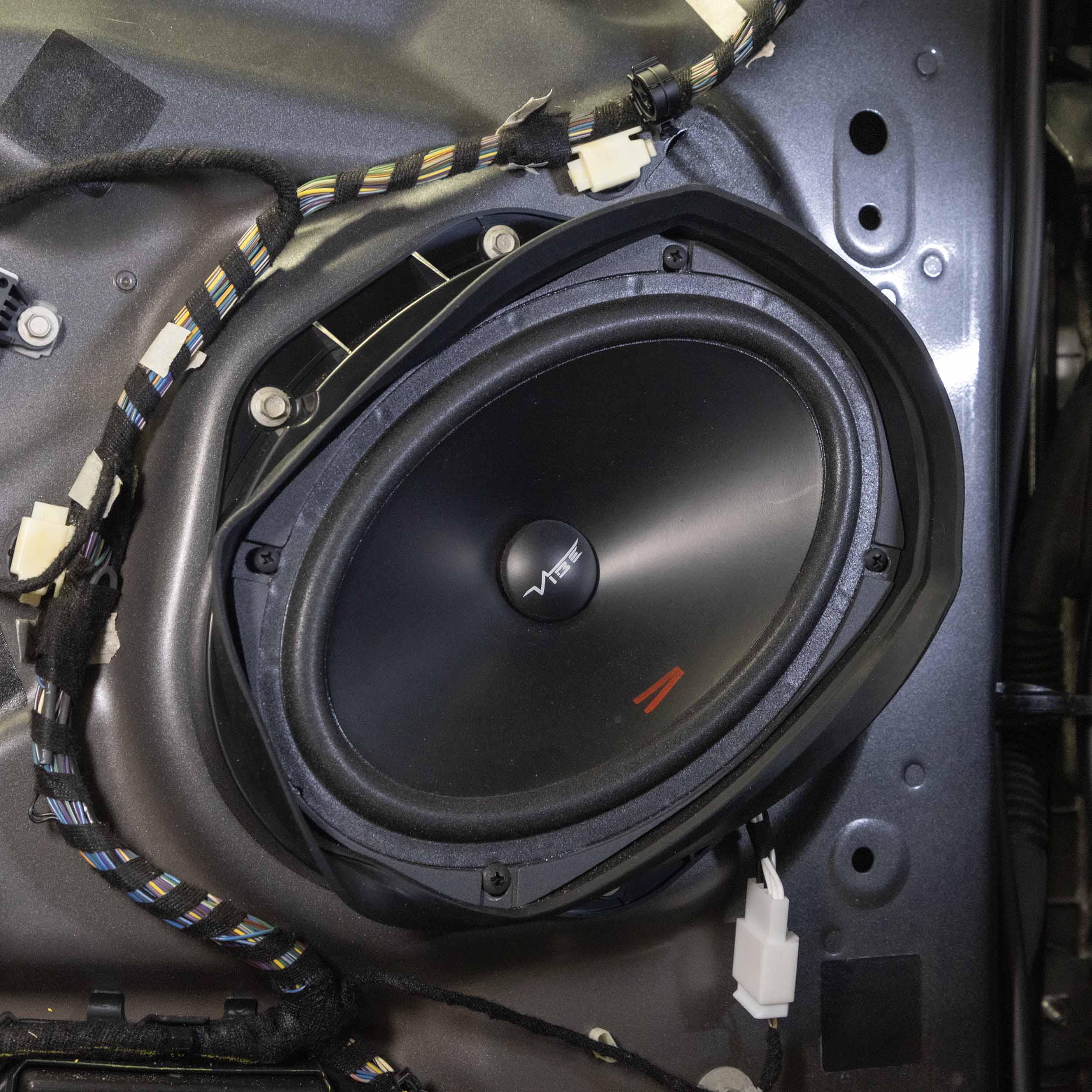

• Pair 6" x 9” front door speakers
• Pair 6.5” rear door speakers
• 10” subwoofer with down-firing ported sub enclosure

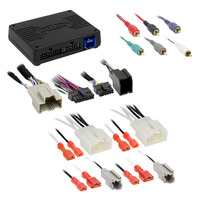

• Pre-tuned Axxess DSP
• Vehicle-specific amp mounting rack
• Detailed step-by-step instructions

PB100.4M-V0 Amplifiers

• Max power: 960W
• Power output @ 2 ohms: 120W x 4
• Power output @ 4 ohms: 100W x 4
• Power output @ 4 ohms bridged: 240W x 2
• System delivers up to 1920W maximum power
• Dimensions: 1.9” H x 9.1” W x 5.3” D (47mm x 230mm x 134mm)
• Class D

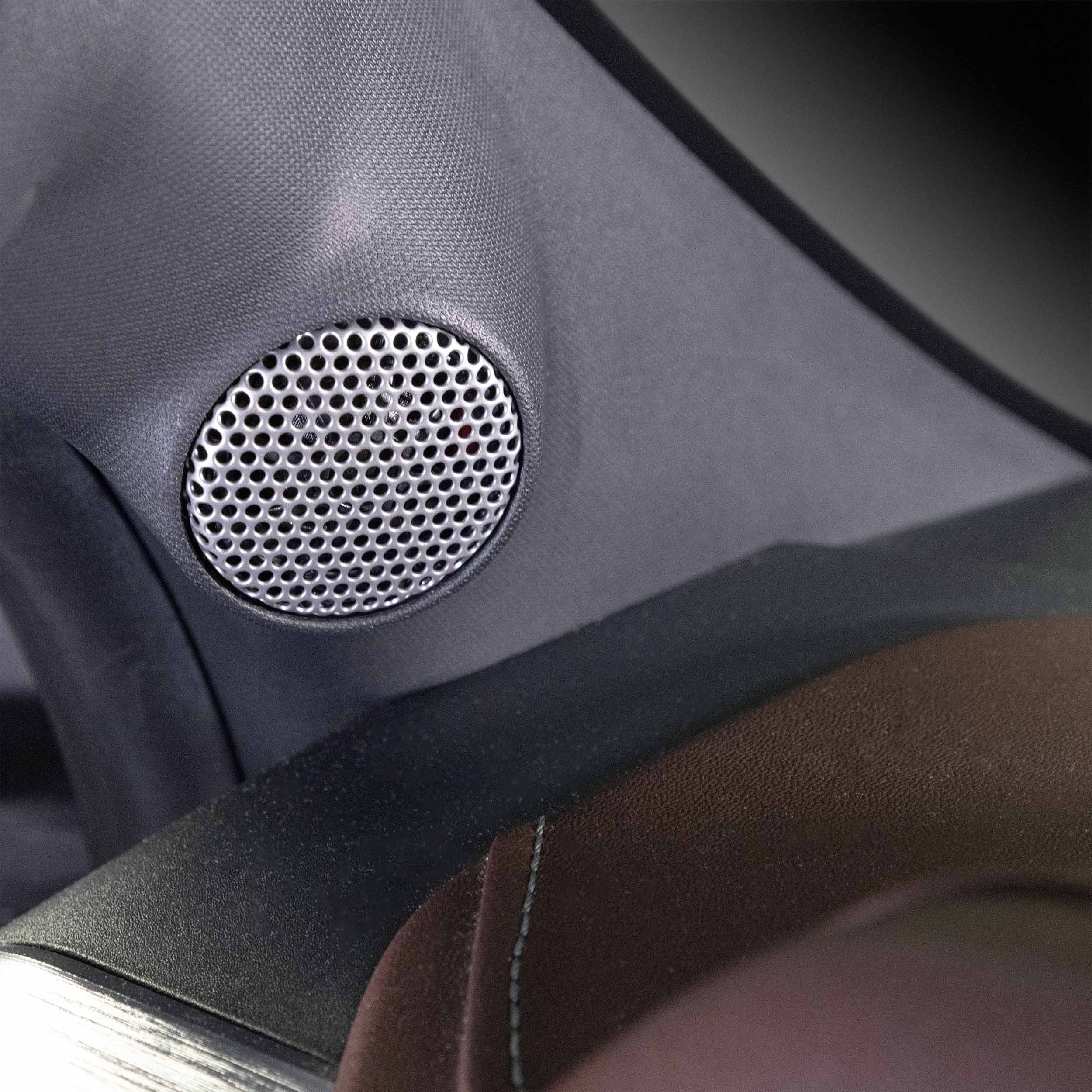

 SLICK-V4 1" Front Dash Tweeters

• 1” speaker size
• Peak: 150W RMS, 50W
• Sensitivity: 94dB
• Frequency response: 1.5kHz - 25kHz
• Impedance: 4 ohms
• Metra 72-5603 speaker harness

CVEN69MW-V4 6” x 9” Front Door Speakers

• 6” x 9” speaker size
• Peak: 260W RMS, 130W
• Sensitivity: 91dB
• Frequency response: 40Hz - 20kHz
• Impedance: 4 ohms
• Metra 82-5606 door speaker adapter plates
• Metra 72-5602 door speaker harnesses
• IBSBF69: 2-piece 6" x 9" speaker baffle kit

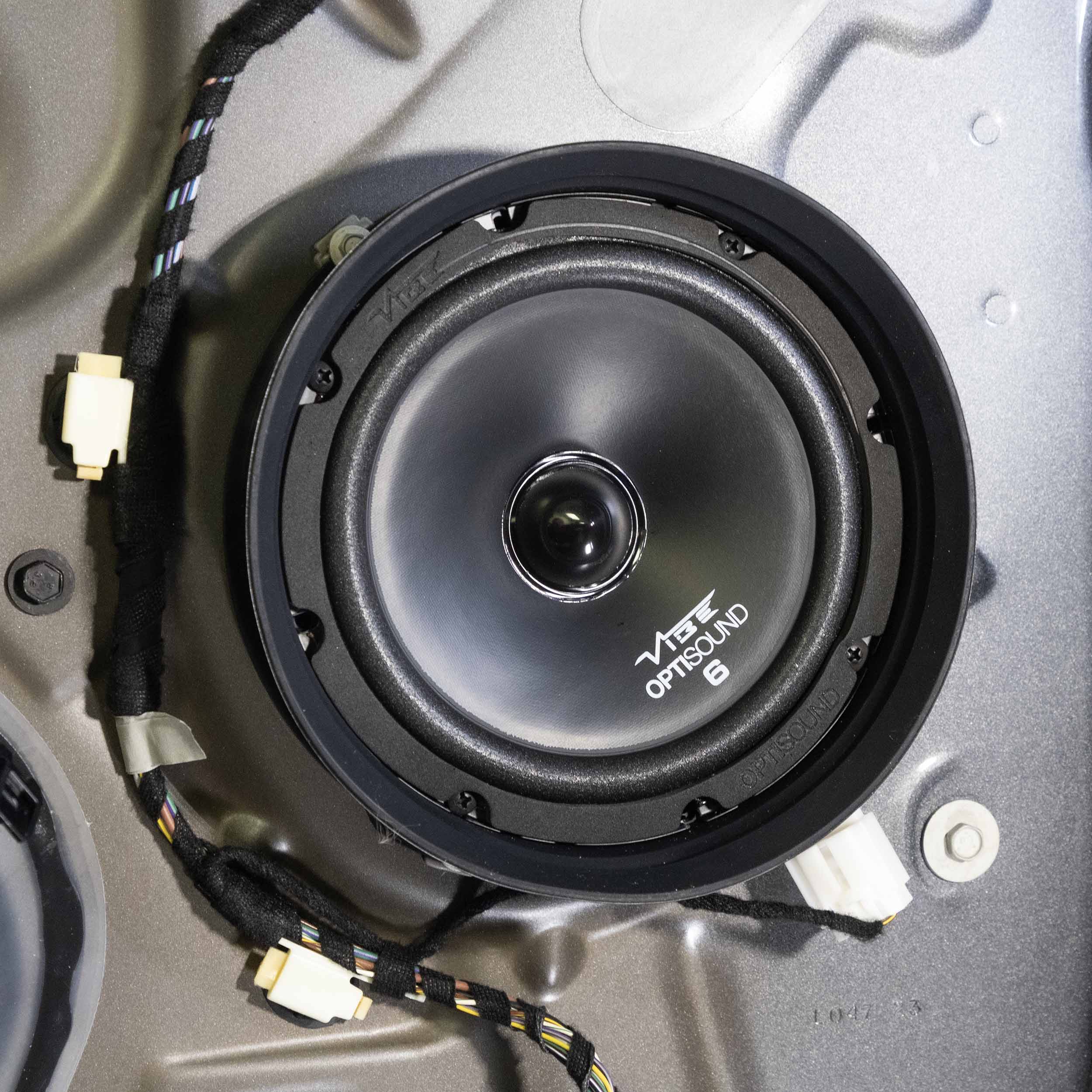

OPTI6-V4 6.5” Rear Door Speakers

• 6.5” speaker size
• Peak: 270W RMS, 90W
• Sensitivity: 94dB
• Frequency response: 55Hz - 20kHz
• Impedance: 4 ohms
• Metra 82-5605 door speaker adapter plates
• Metra 72-5602 door speaker harnesses
• IBSBF65: 2-piece 6.5" speaker baffle kit

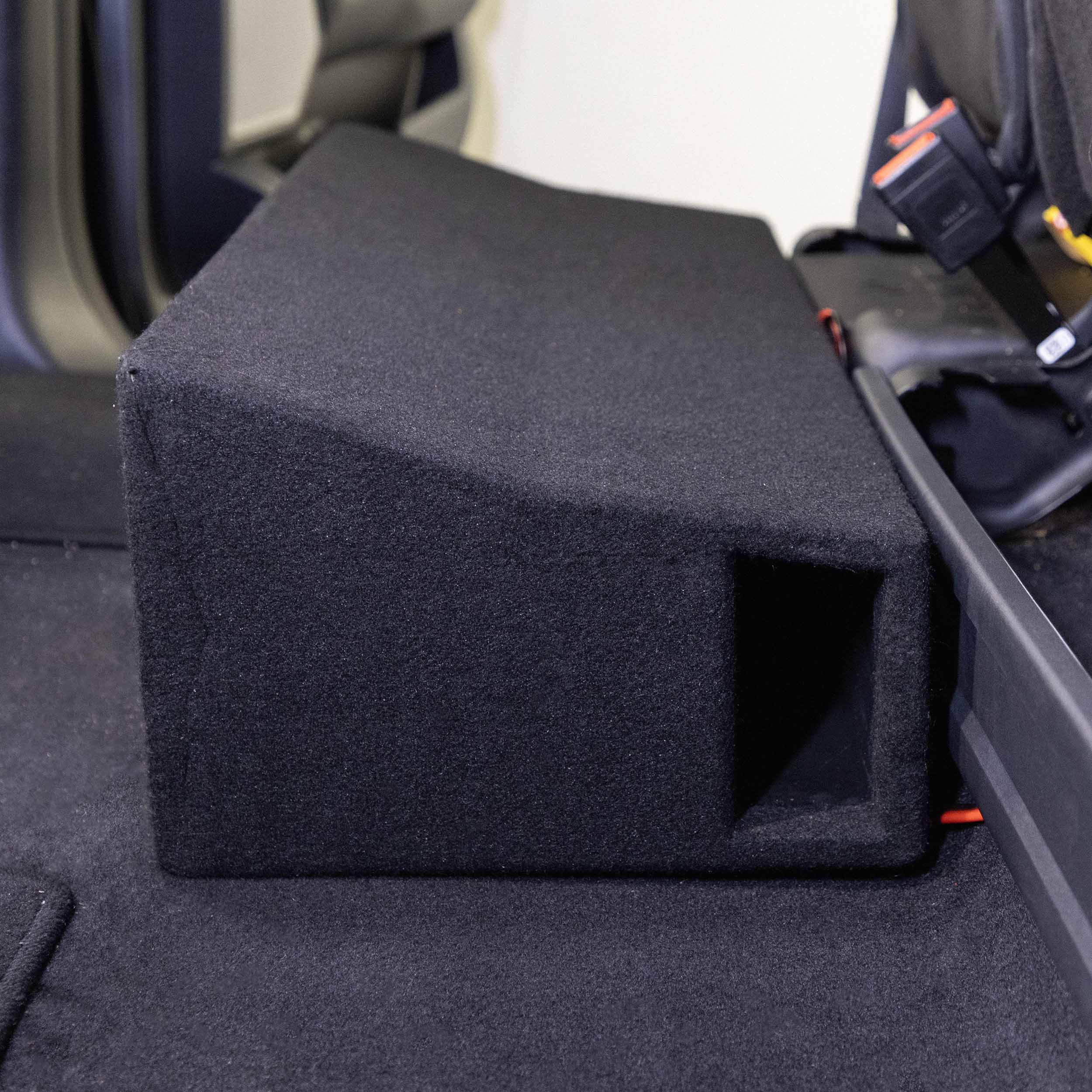

FD-150-10 10" Subwoofer & Ported Enclosure

• 10” speaker size
• Peak: 900W RMS, 300W
• Sensitivity: 85dB
• Frequency response: 30Hz - 1kHz
• Impedance: dual 2 ohms

Metra Amplifier Installation Kit

• 18.5’ 4GA OFC power wire
• 21’ 8GA OFC ground wire
• 12' 12GA OFC speaker wire
• T-Spec VMANL water-tight fuse holder with 100A MANL fuse
• Distribution block
• Mounting hardware

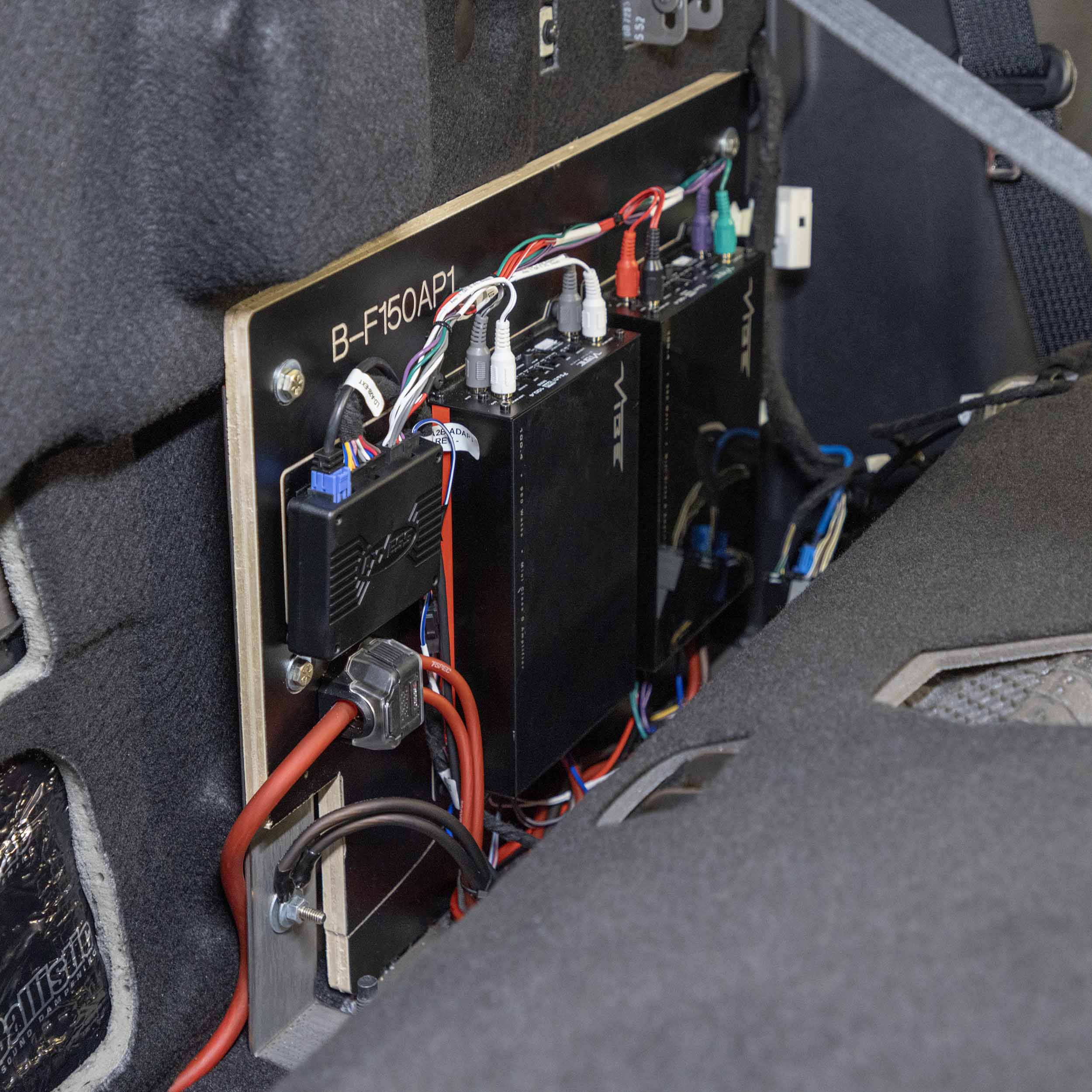

Metra Vehicle-specific Amp Mounting Rack

• Vehicle-specific design
• CNC machine-cut with pre-drilled holes
• Designed to mount to OE bolt locations for easy installation behind the rear seat

Refer to our Vehicle Fit Guide for up-to-date vehicle-specific applications.
