Metra has collaborated with VIBE Audio to create this state-of-the-art plug-n-play audio system, engineered specifically for the B&O amplified 2021-2024 Ford Bronco. This complete, all-in-one premium audio kit includes every component required to install a fully integrated aftermarket sound system, eliminating the need to source parts individually.
The kit features matched amplifiers, a total of six speakers for the front and rear of the vehicle, and a 12" subwoofer in a sealed enclosure, along with Metra’s vehicle-specific installation solutions designed to simplify the upgrade process. Integration components such as the plug-n-play T-harness, speaker adapters, amplifier brackets, and mounting solutions ensure seamless compatibility and straightforward installation.
Each component in this kit has been engineered and tuned to work together as a unified system, delivering crystal-clear highs, rich midrange, and deep, controlled bass tailored to the Bronco's interior. Because the system is designed as a complete package, all included components are required for proper performance and are not intended to be sold or installed separately.
Complete All-In-One Kit
The complete premium audio system includes the following part numbers, which together provide all components required for installation:
- BLK-FD-PPKT-3A: Vehicle-specific installation and integration components
- BLK-FD-PPKT-4B: Bronco-specific installation and integration components
- BAMIT12-V4: 12" subwoofer enclosure
Features:
- Complete all-in-one vehicle-specific audio kit
- Components engineered to function as a single integrated system
- Designed for B&O amplified models
- Simplified plug-n-play installation
- Balanced, vehicle-tuned sound performance
- 1-year warranty
Estimated installation time is 6 to 8 hours with 1 experienced technician.
Check out our detailed instructions for this install here: Instructions

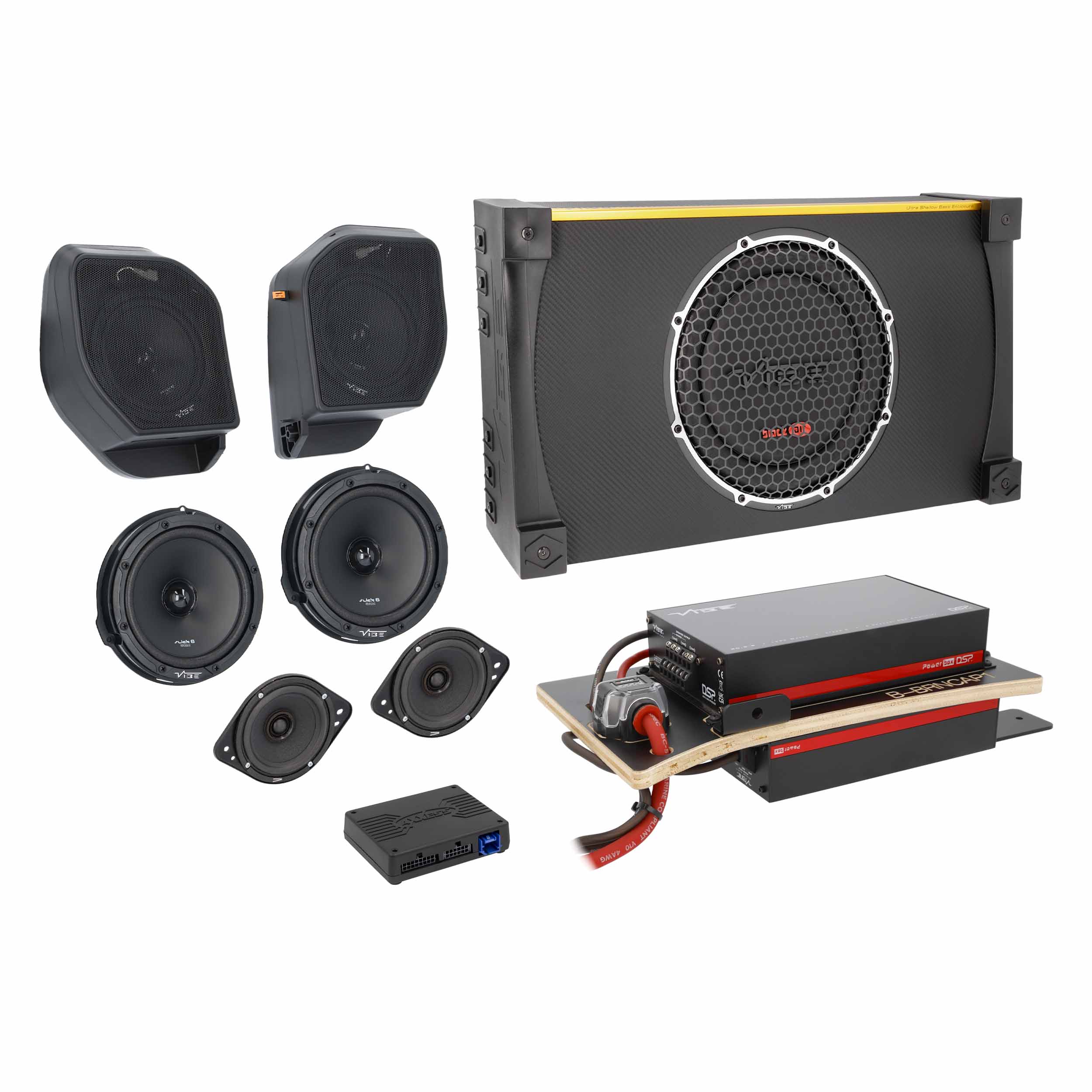

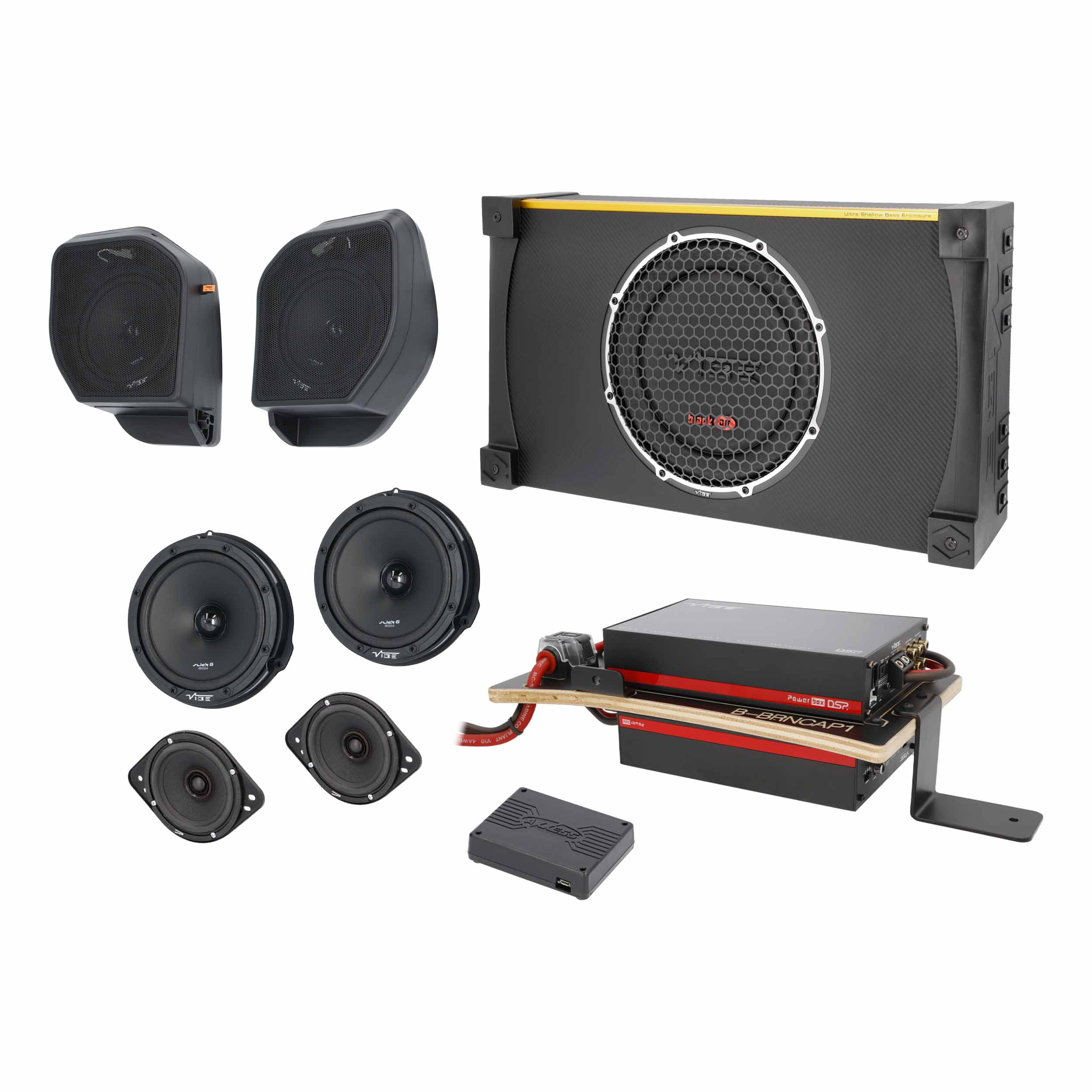

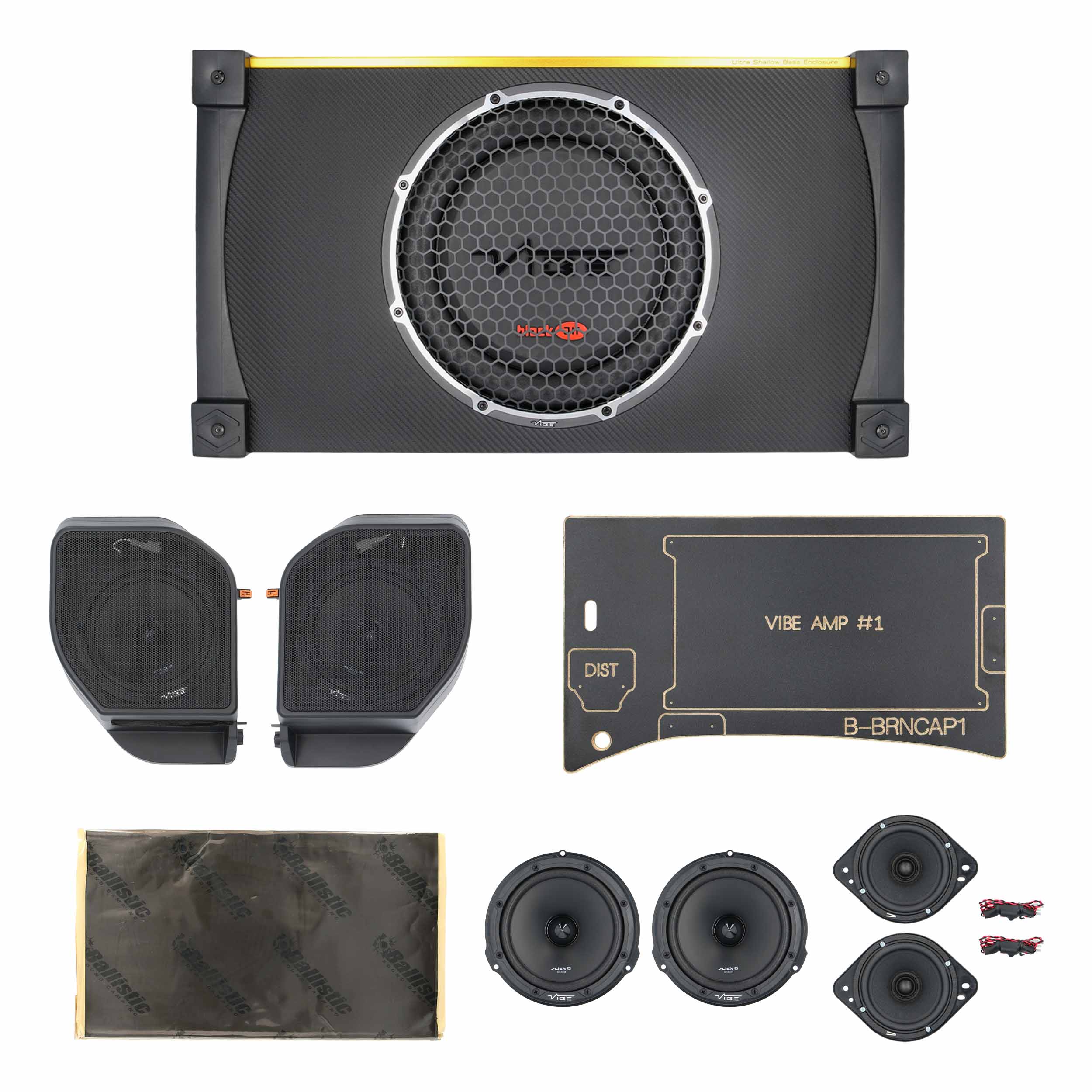

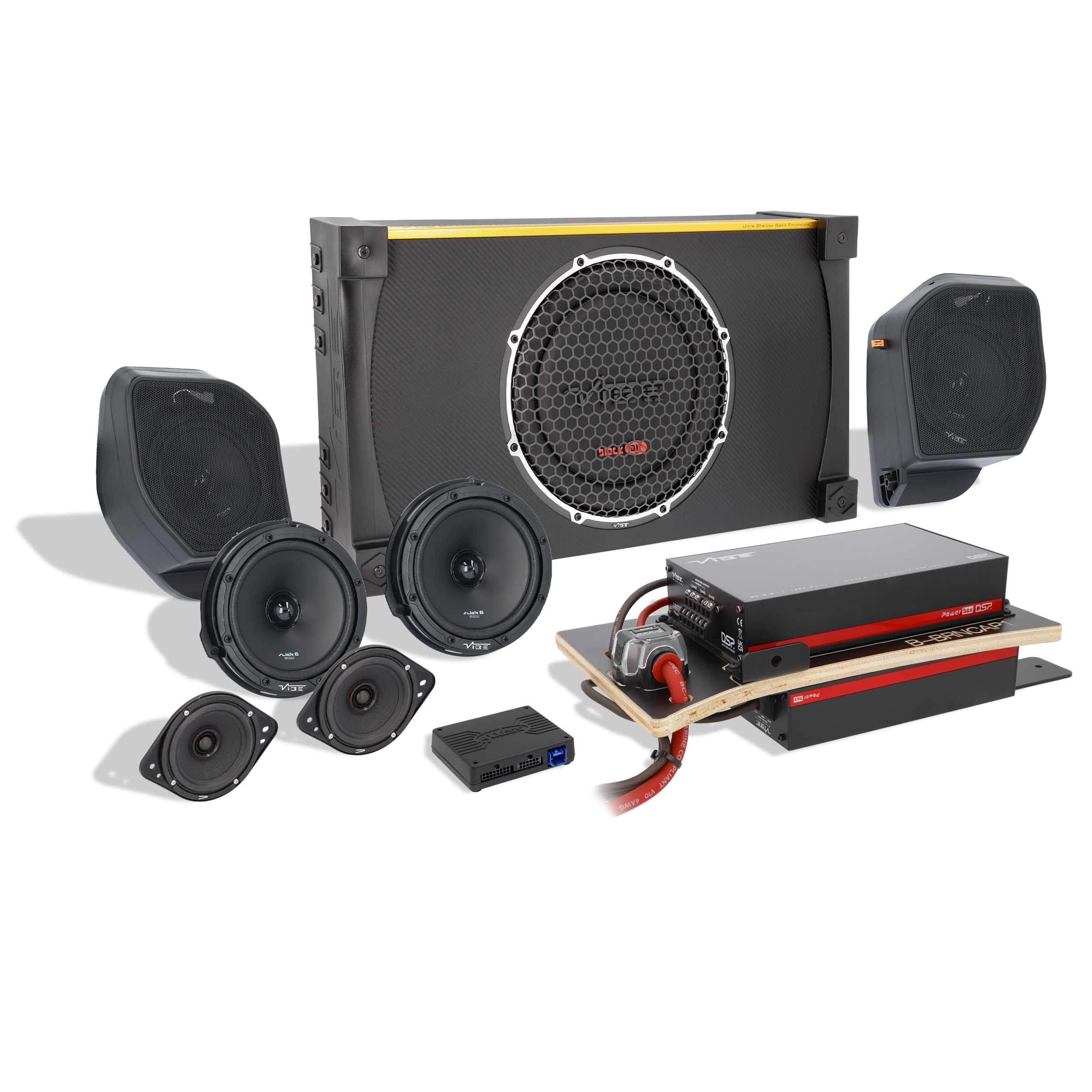

Plug-n-play audio system includes:
- 650-watt mono-block amplifier
- 6-channel DSP & amplifier combo
- Pair 4” concentric dash speakers
- Pair 6.5" front kick panel speakers
- Pair 6.5” rear speakers
- 12” subwoofer with sealed enclosure
- DSP amp with downloadable vehicle-specific tuning
- Vehicle-specific amplifier installation kit
- Vehicle-specific amp mounting rack
- Detailed step-by-step instructions

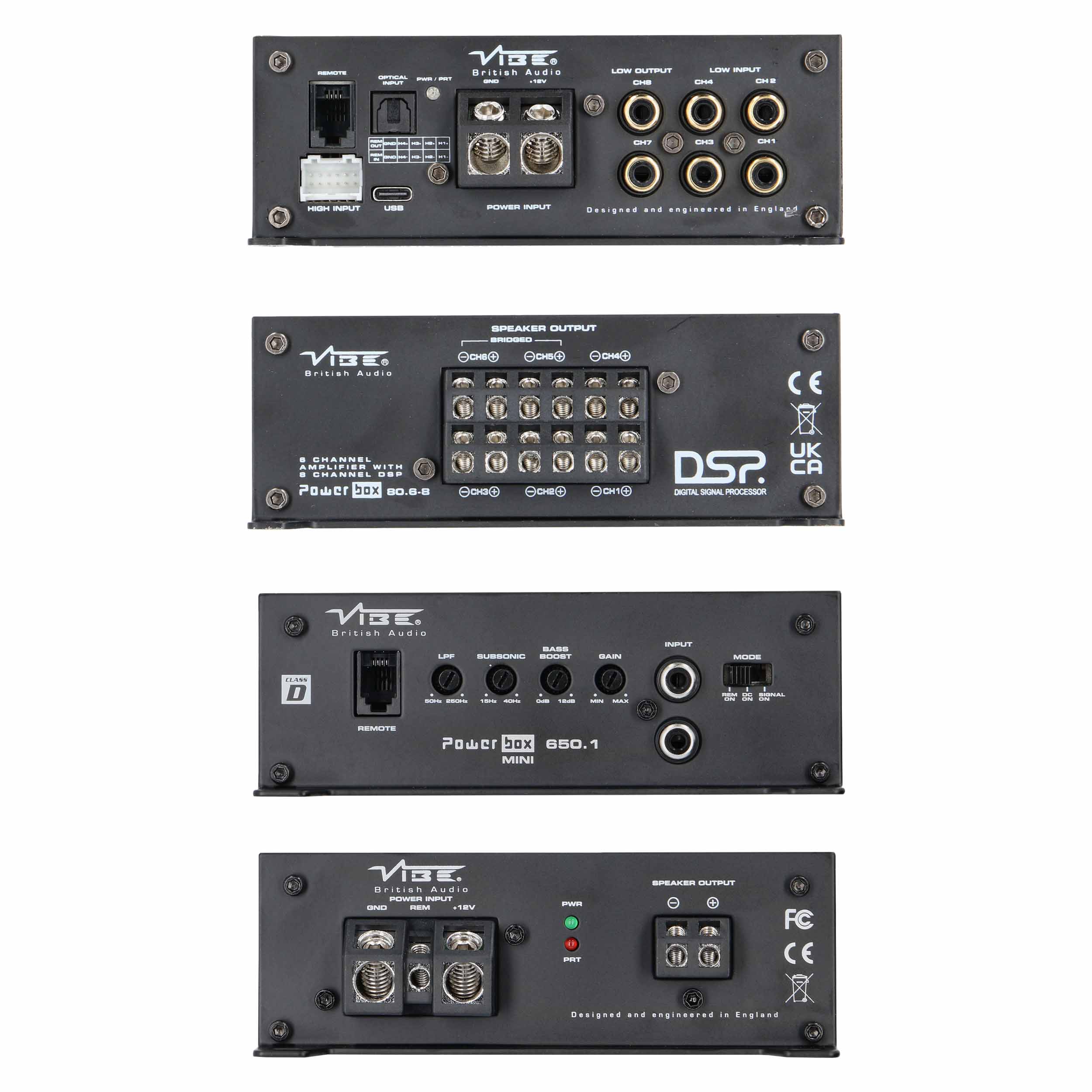

PB80.6-8DSP-V3 DSP and Amplifier Combo
- 6-channel
- Max Power: 1200W
- RMS @ 4 ohms Stereo: 6x80W
- Frequency Response: 20Hz – 20kHz
- Dimensions: 1.5” H x 8.6” W x 5.1” D (40mm x 220mm x 131mm)
- Mini Class D
- Pre-tuned EQ curve loaded on the DSP via computer-based software for maximum performance
PB650.1D-V4 Amplifier
- Max Power: 1200W
- Power Output @ 4 ohms: 325W
- Power Output @ 2 ohms: 475W
- Power Output @ 1 ohm: 650W
- Dimensions: 1.85” H x 9.05” W x 5.27" D (47mm x 230mm x 134mm)
- Class D
CVEN4CN-V5 4" Concentric Dash Speakers
- 4” speaker size
- Power Handling: 120W Peak / 60W RMS
- Sensitivity: 88dB
- Frequency Response: 110Hz – 20kHz
- Impedance: 3.2 Ohms
- Metra 82-5609 speaker adapters
- Metra 72-5603 speaker harnesses
SLICK6SQM-V5 6.5” Front Kick Panel Speakers
- 6.5” speaker size
- Power Handling: 270W Peak / 90W RMS
- Sensitivity: 94dB
- Frequency Response: 55Hz – 20kHz
- Impedance: 4 ohms
- Metra 82-5605 speaker adapters
- Metra 72-5602 speaker harnesses
SLICK6SQM-V5 6.5" Rear Speakers
- 6.5” speaker size
- Power Handling: 270W Peak / 90W RMS
- Sensitivity: 94dB
- Frequency Response: 55Hz – 20kHz
- Impedance: 4 ohms
- Metra FD-BROPOD1 rear speaker pods

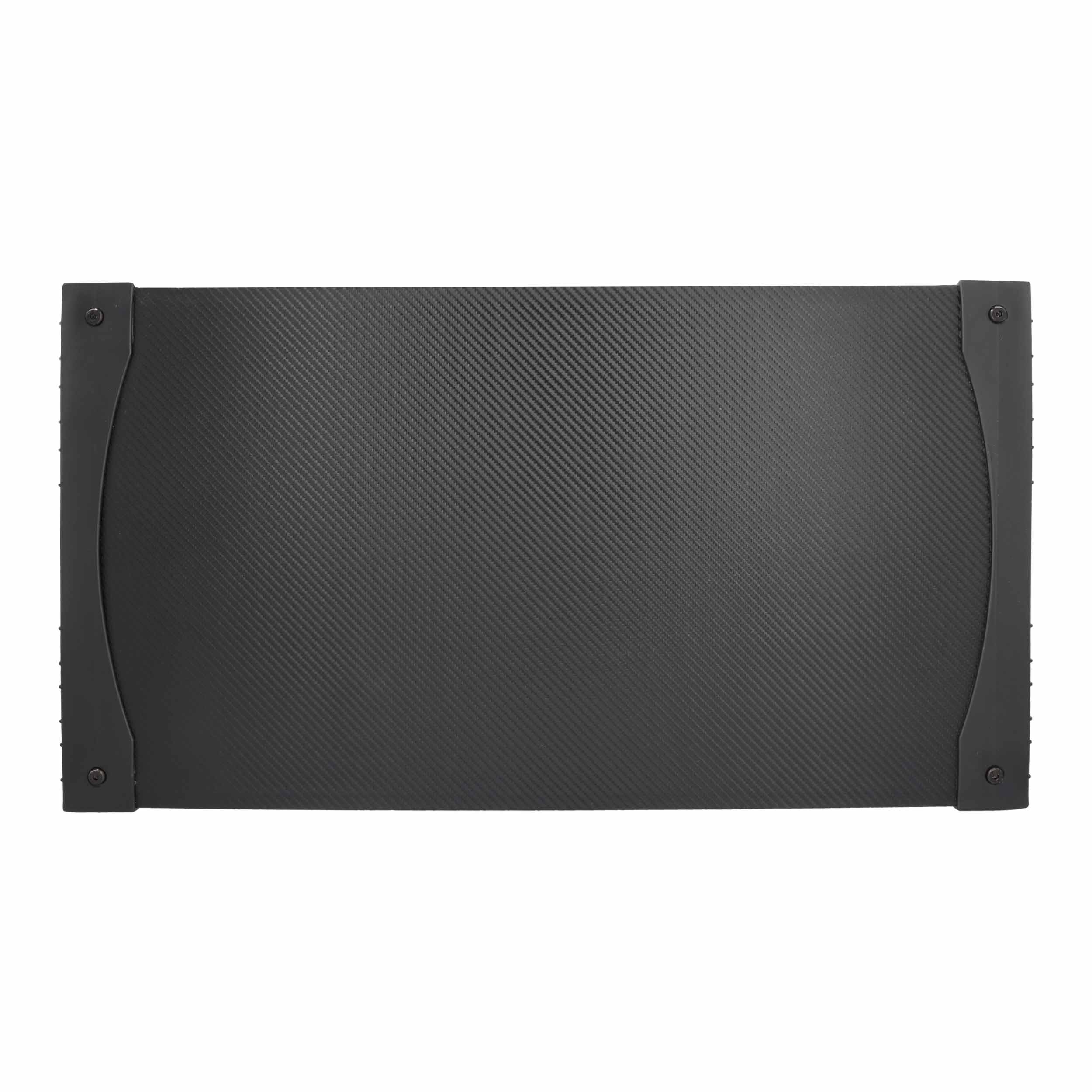

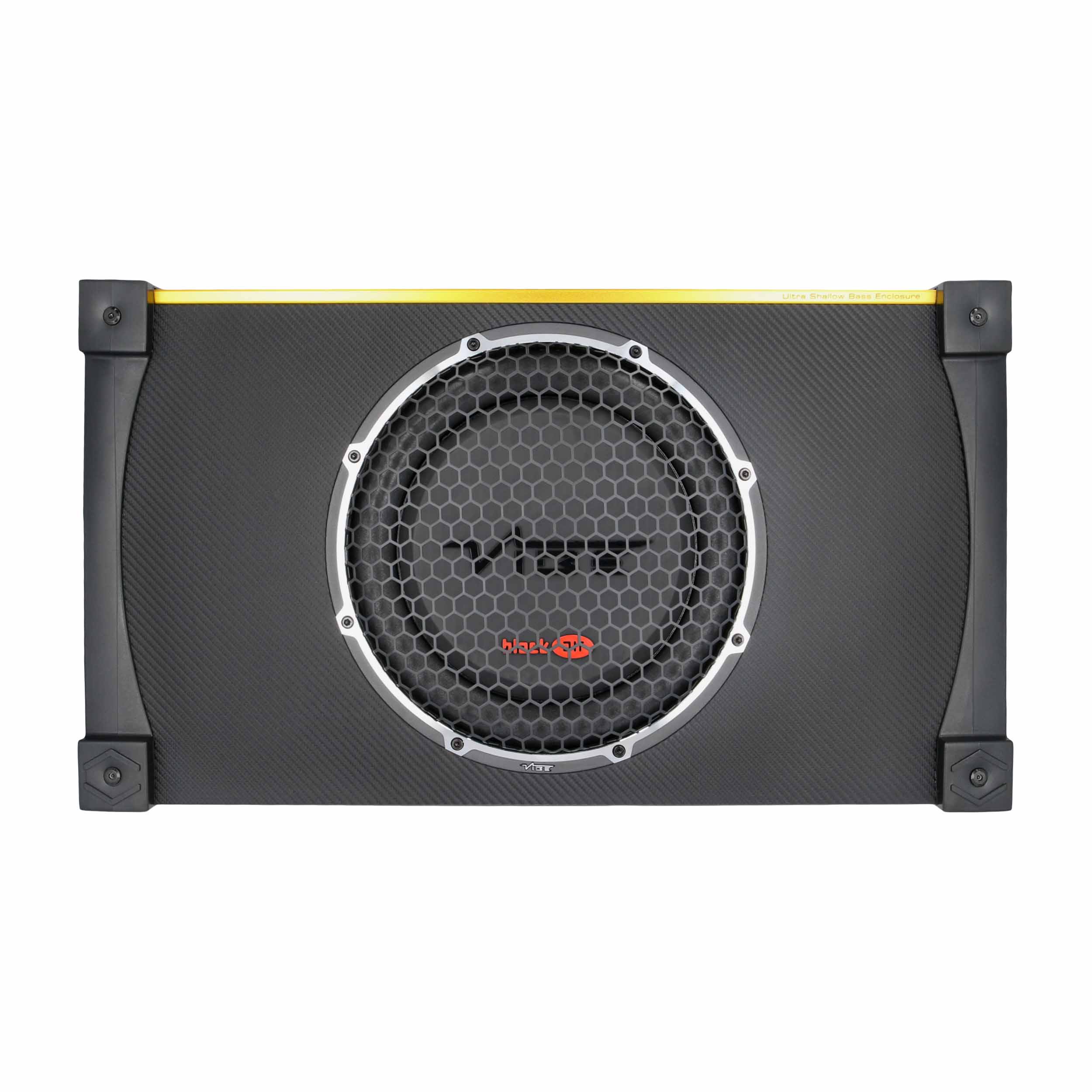

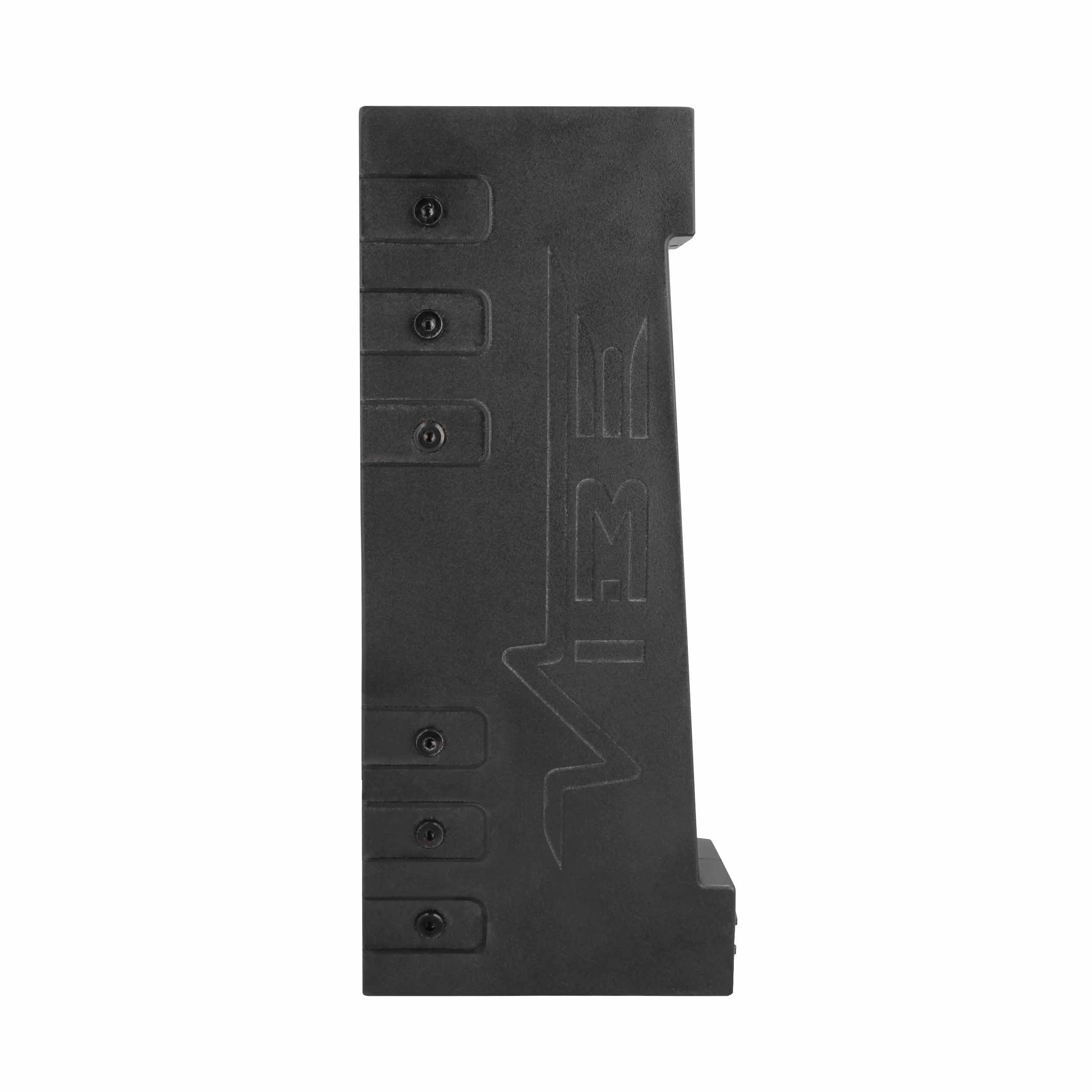

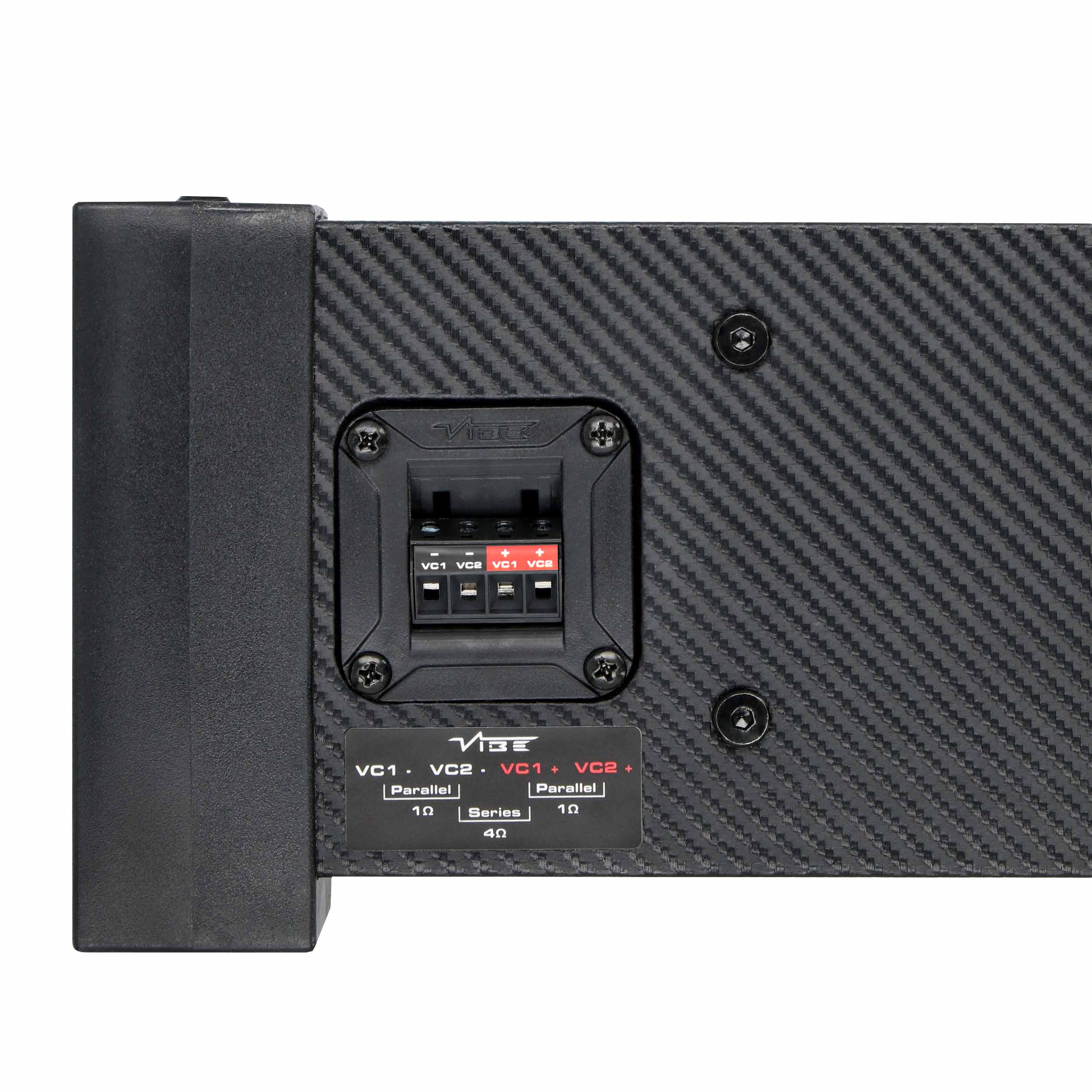

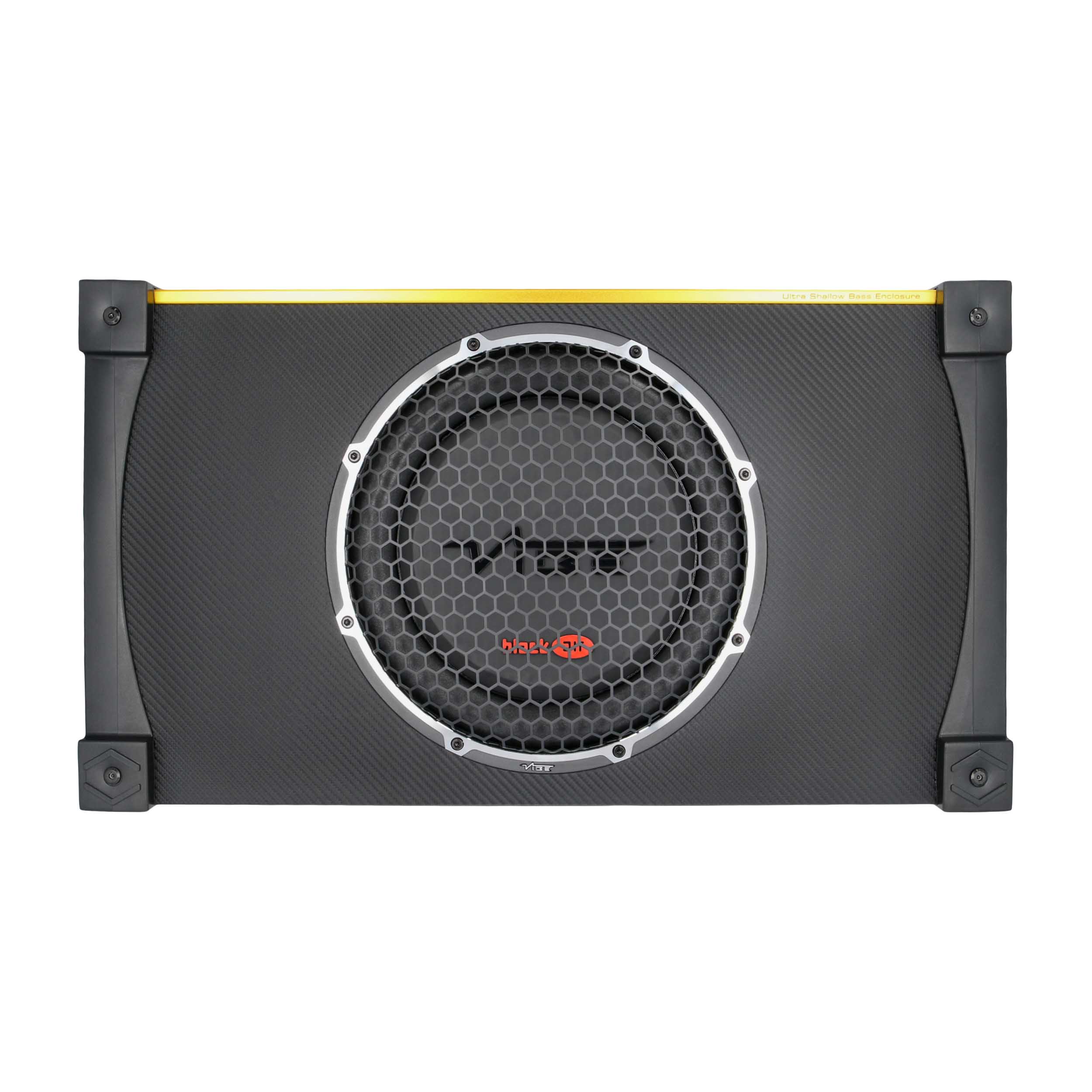

BAMIT12-V4 12" Subwoofer & Tailgate-Mounted Sealed Enclosure
- 12” speaker size
- Power Handling: 900W Peak / 300W RMS
- Sensitivity: 85dB
- Frequency Response: 30Hz - 1kHz
- Impedance: Dual 2 ohms
- Mounting brackets

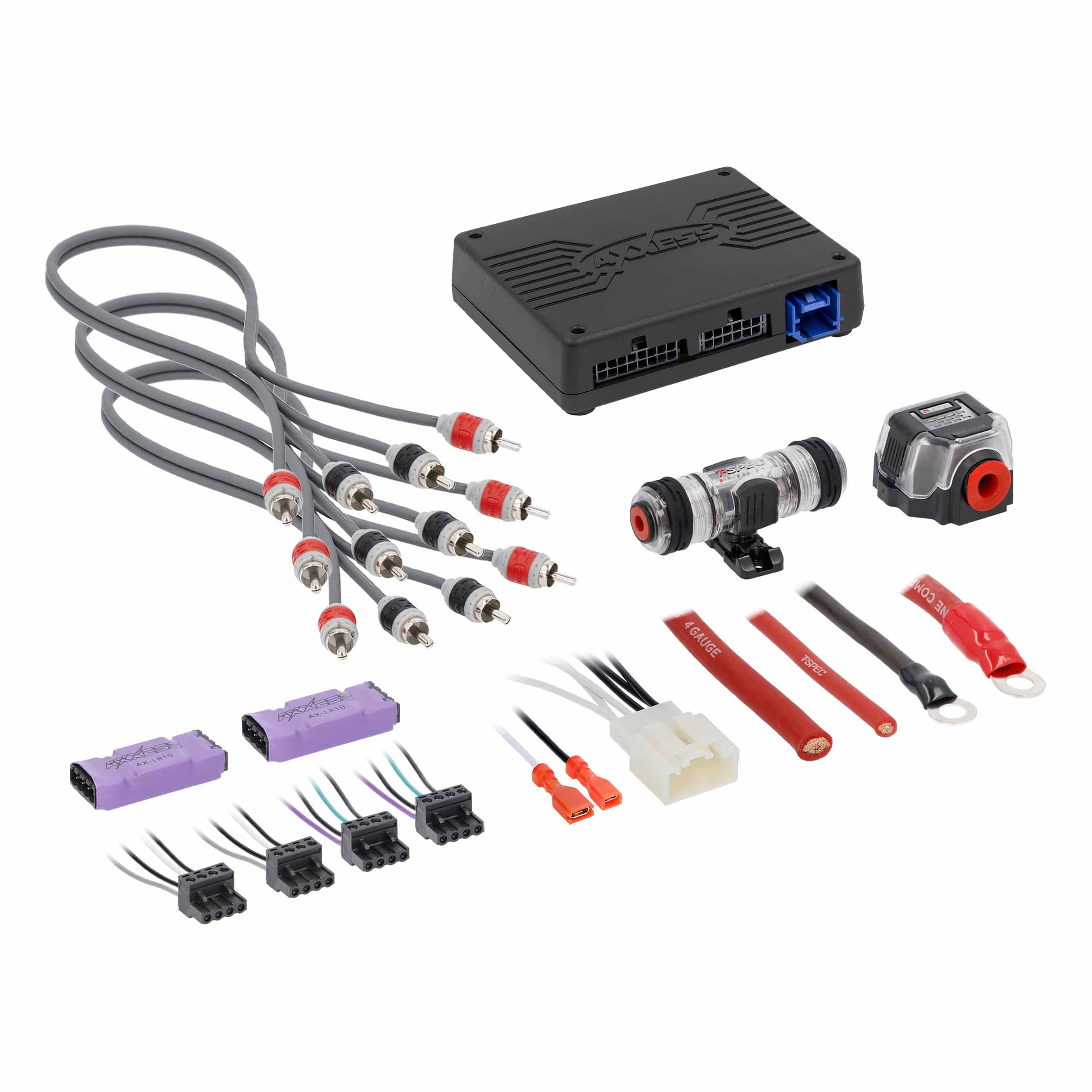

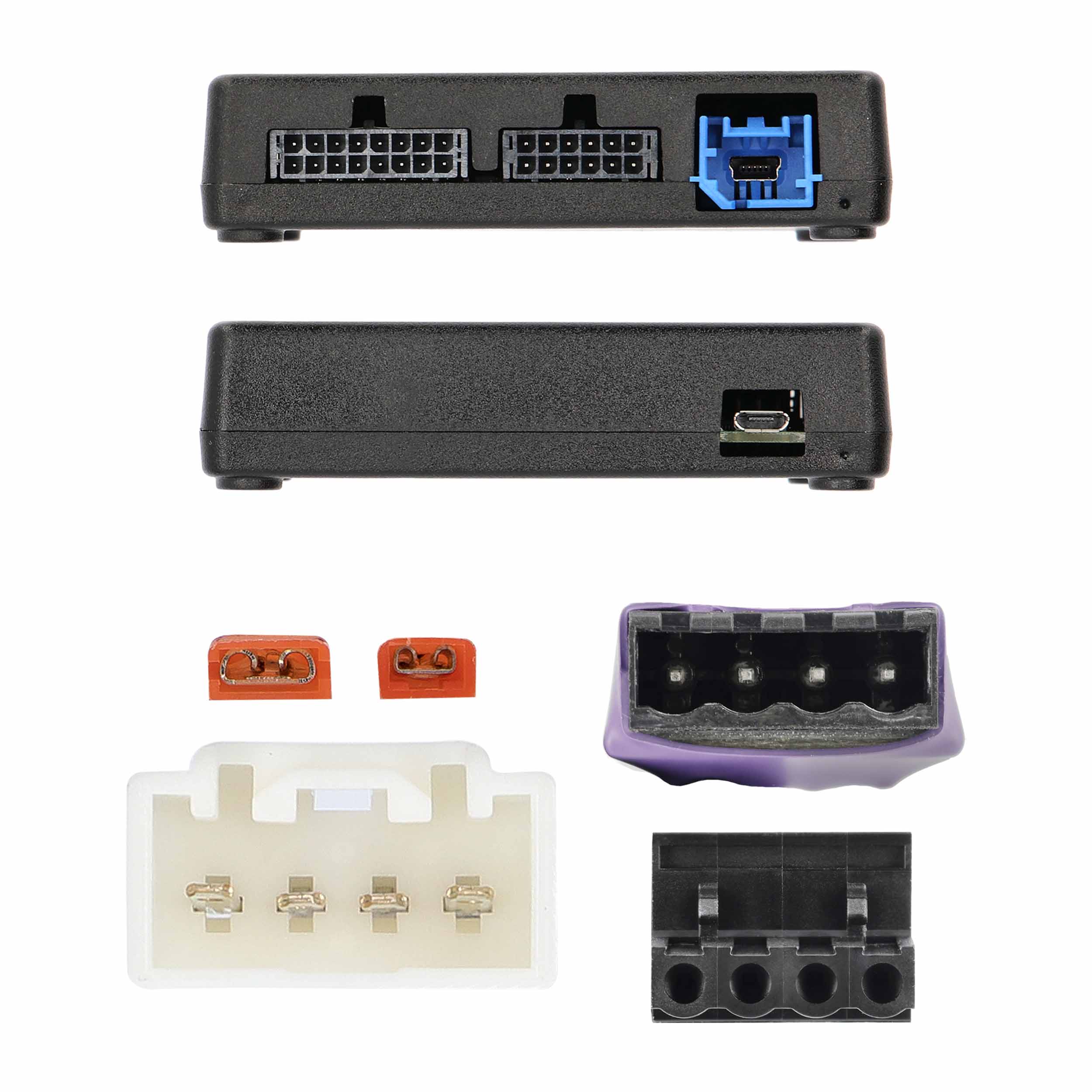

Axxess A2B Interface
- Installs at the factory amp
- Retains OE chimes and voice prompts, if equipped

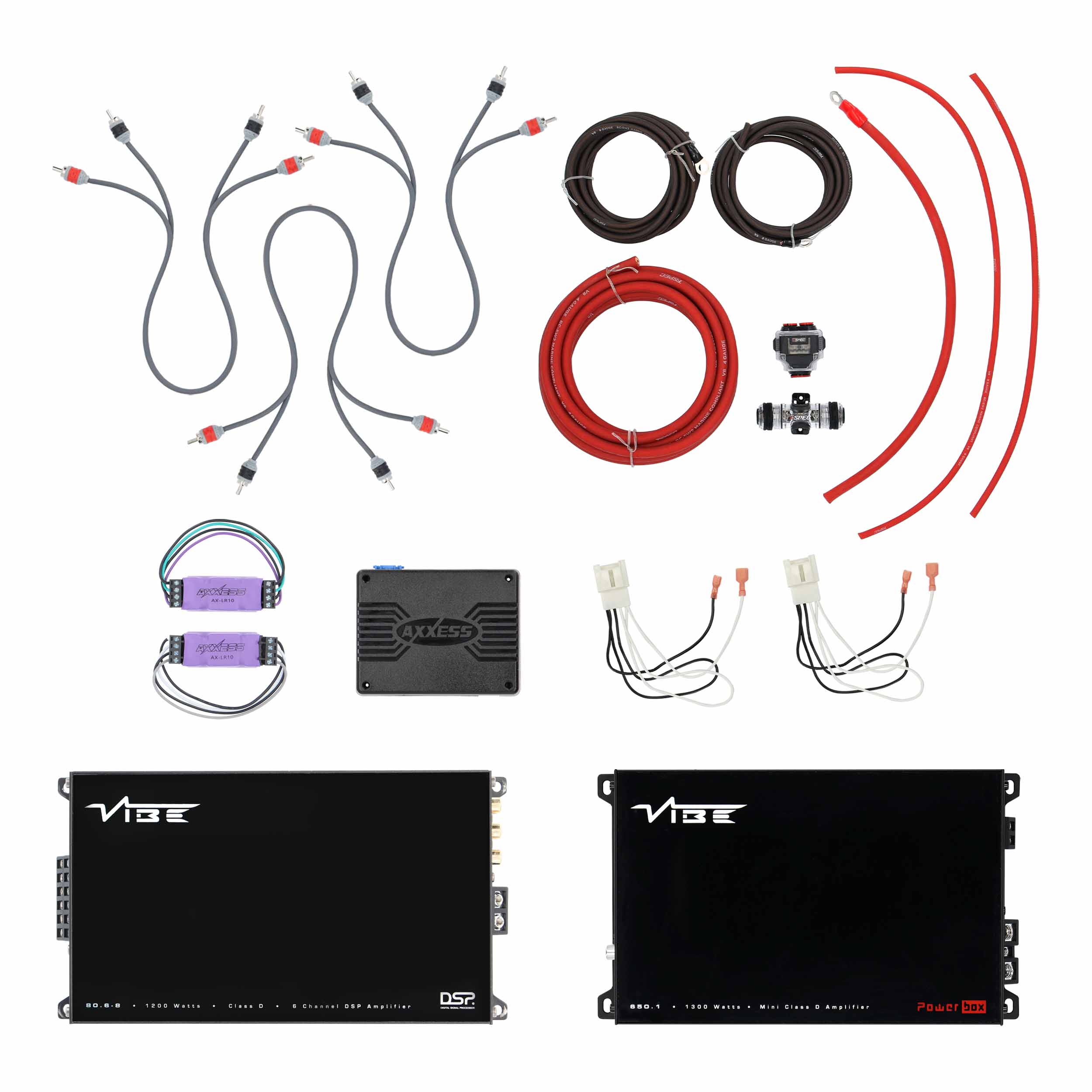

Metra Amplifier Installation Kit
- 9.5’ 4GA OFC power wire
- 8’ 8GA OFC ground wire
- 12' 12GA OFC speaker wire
- T-Spec VMANL water-tight fuse holder with 100A MANL fuse
- Distribution block
- Mounting hardware
Metra Vehicle-specific Amp Mounting Rack
- Vehicle-specific design
- CNC machine-cut with pre-drilled holes
- Designed to mount to OE bolt locations for easy installation behind the rear seat
Refer to our Vehicle Fit Guide for up-to-date vehicle-specific applications.
