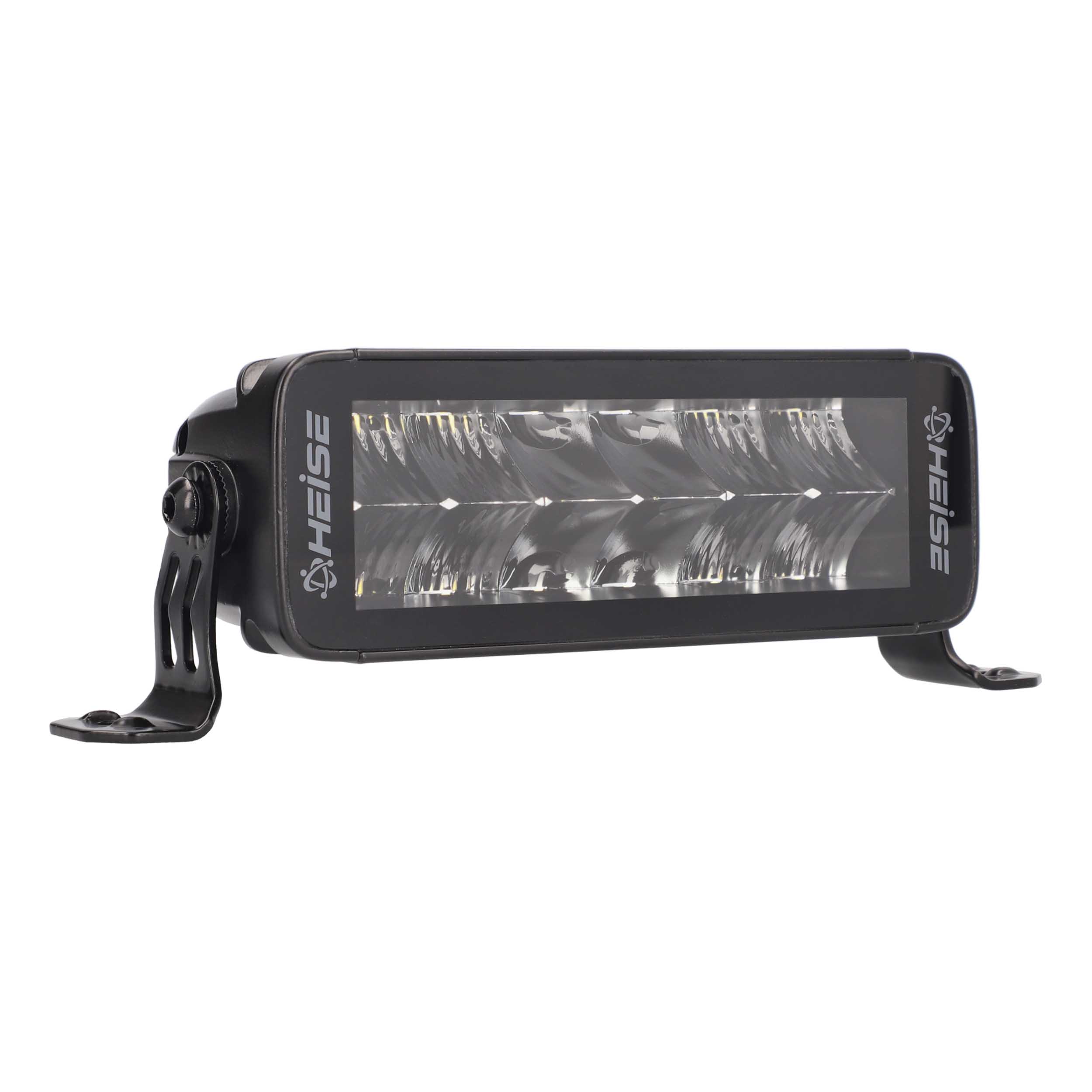

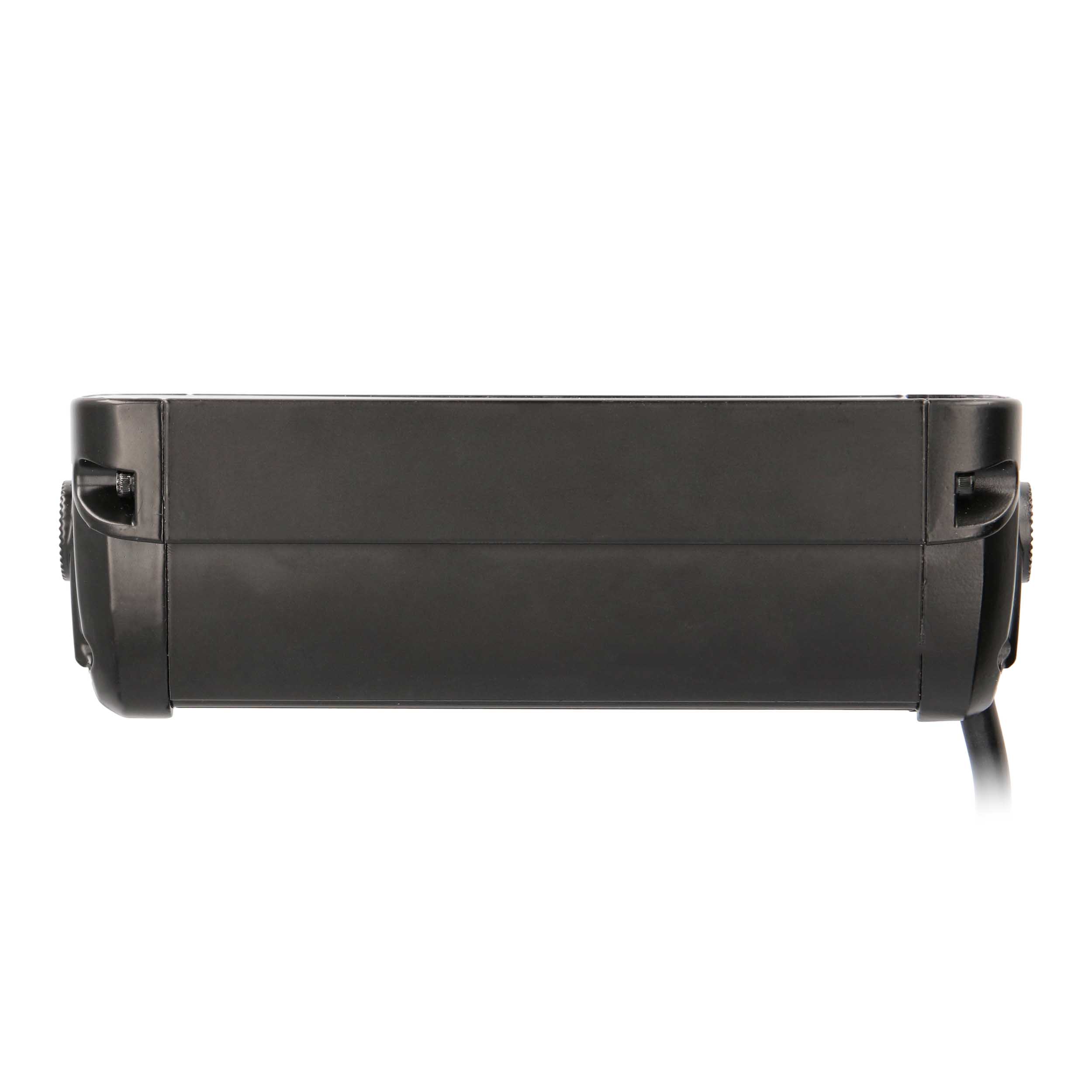

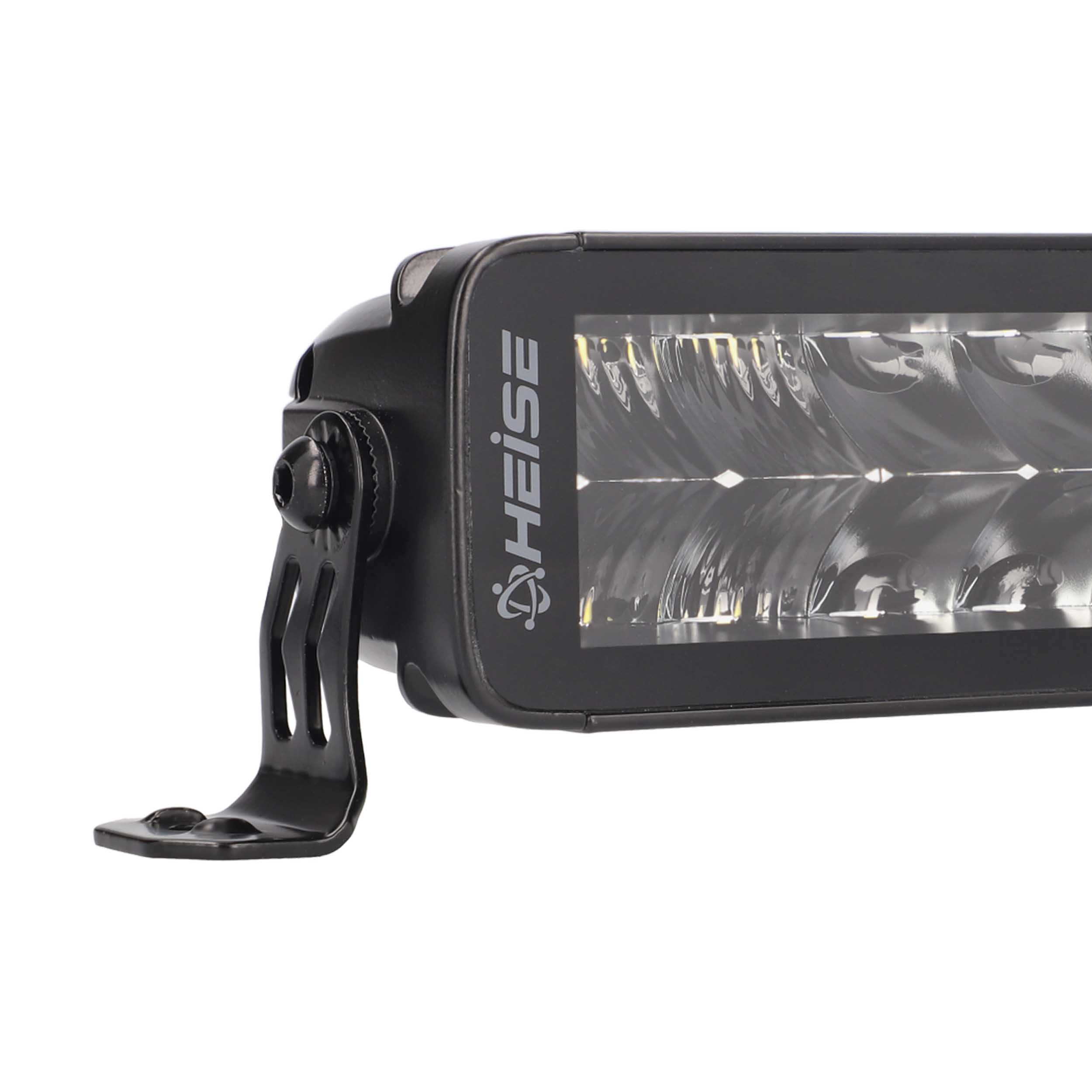

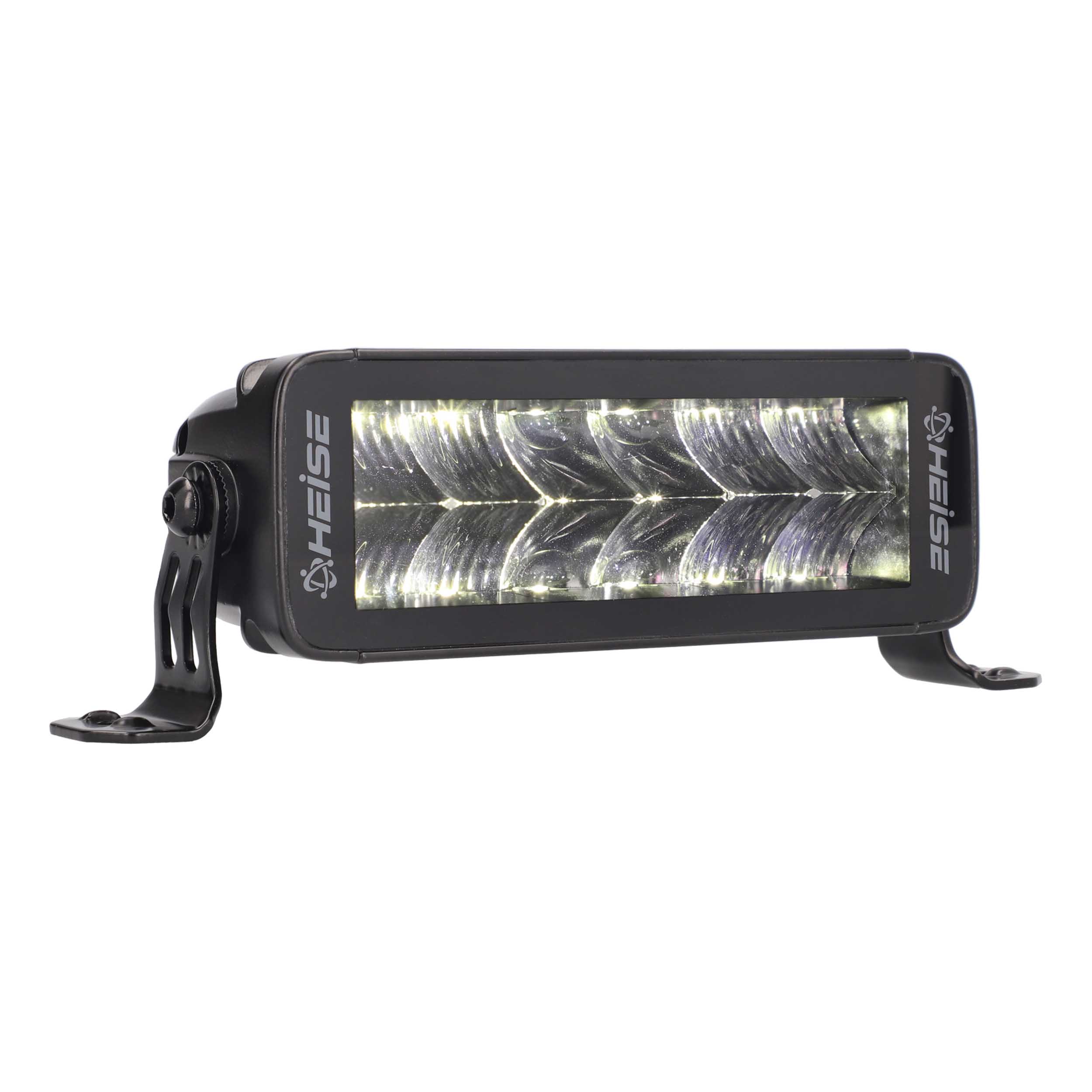

8" Blackout Dual Row Lightbar

SKU: HE-BD8
MSRP $232.99
WARNING

This product can expose you to Chromium (hexavalent compounds), which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov .

Show full chemical list
Butyl benzyl phthalate (BBP)d, Cadmium, Chromium (hexavalent compounds), Di (2-ethylhexyl)phthalate (DEHP), Di-n-butyl phthalate (DBP), Diisononyl phthalate (DINP), Mercury and mercury compounds, Vinyl chloride
Product Documents

More Product Info

A new and improved design makes the latest generation of Heise Blackout Series LED lights a versatile lighting solution for different vehicles and uses. Function meets style with refined frames and cleaner lines for a sleek yet minimalistic look. The upgraded optics have changed from a direct to an indirect placement allowing more control of the location and pattern of the beam. This allows the lights to be tailored to the vehicle, its entire lighting system, and for the driver’s lighting coverage needs.

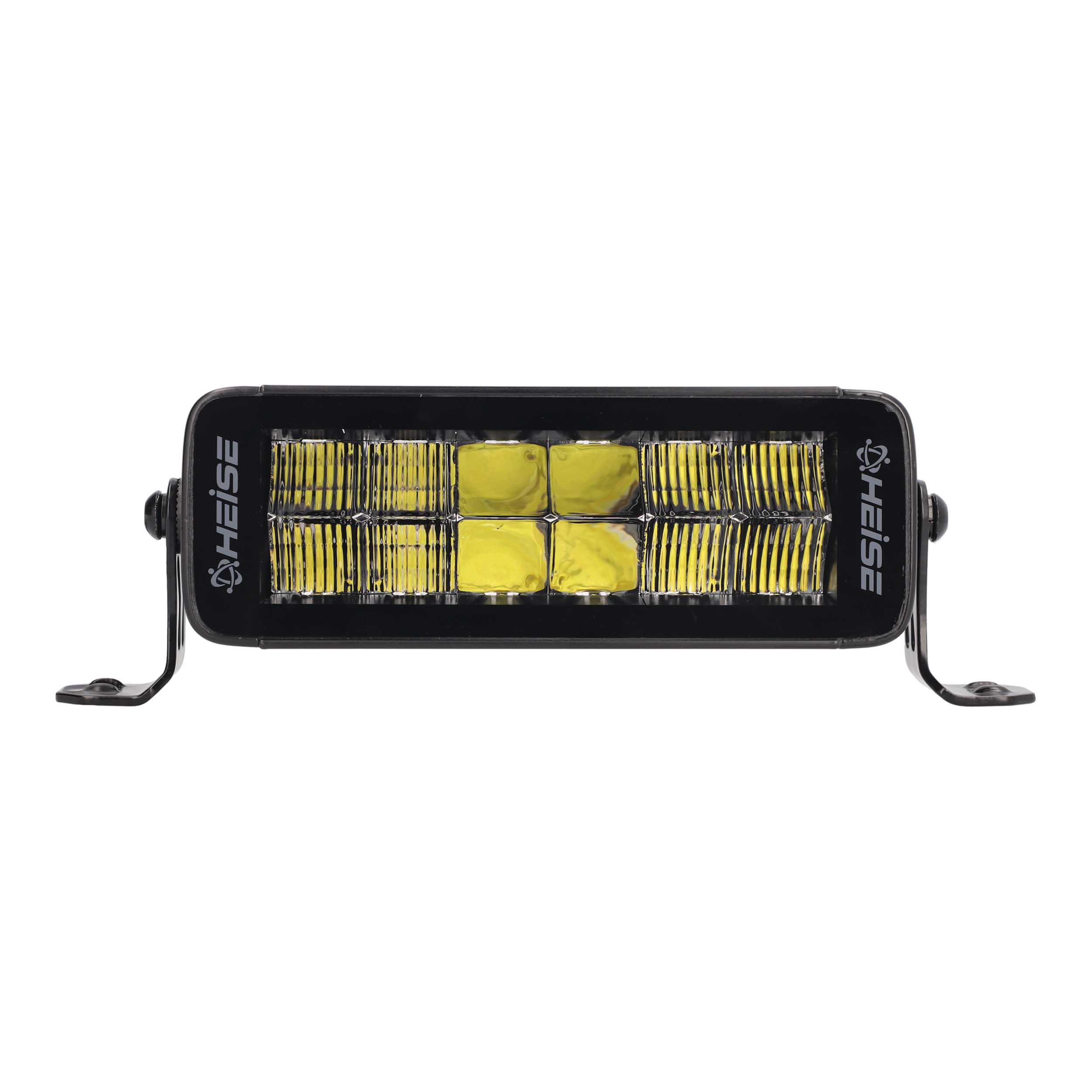

The hybrid 90° flood and 8° spot beam pattern combination delivers the best of both worlds with intense spotlights in the center flanked by widebeam lights on each side. Heise’s protective vent port allows for internal moisture to escape and prevents any external moisture from entering the lightbar housing.

Features:
  • Input Voltage: 10-30V Dc
  • Color Temperature: 5700K
  • Beam Pattern: Combo 90o Flood / 8o Spot
  • Housing Material: Die-Cast Aluminum
  • Color: Black
  • Membrane: Protective Vent Port
  • Lens Material: Polycarbonate
  • Mounting Bolt Drill: 0.25”
  • Electronics: Integrated-Epoxy Encapsulated
  • Hardware: Stainless 316
  • Operating Temperature: -40oF To +140oF
  • Protection: Reverse Polarity

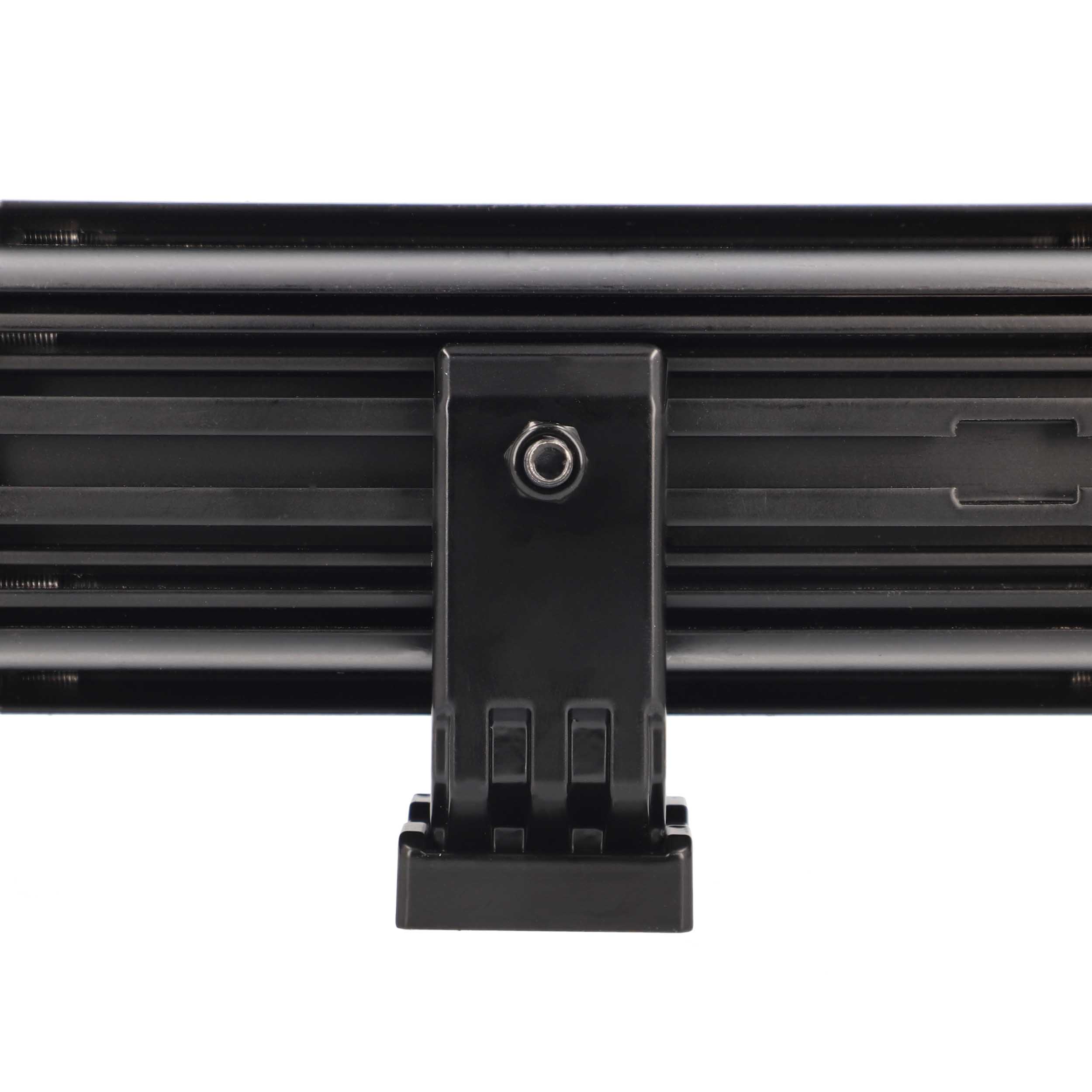

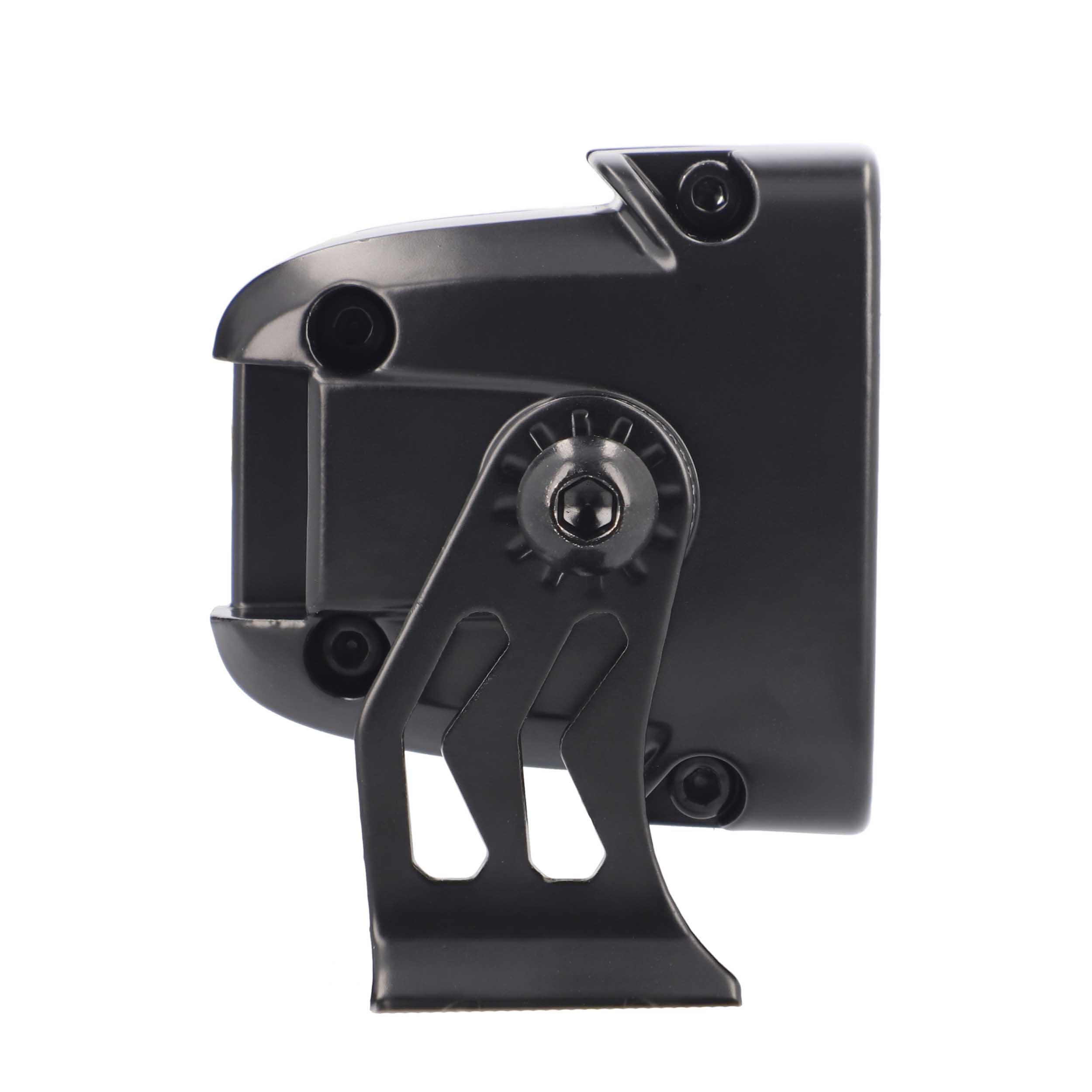

  • Mounting: Side & Rear
  • Limited Lifetime Warranty
Specs:
  • Length: 8”
  • Wattage: 60W
  • Raw Lumens: 5,040lm
  • Lux at 10m: 1083
  • Current Consumption @13.8V: 2.1A
  • IP Rating: IP67
