Single Row Driving Light – 6 LED
Single Row Driving Light – 6 LED
Single Row Driving Light – 6 LED

Single Row Driving Light – 6 LED

Heise Universe Lighting SystemsLED Driving LightsOff-Road Driving Lights
SKU: HE-DL1
WARNING

This product can expose you to Di (2-ethylhexyl)phthalate (DEHP), which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov .

Show full chemical list
Butyl benzyl phthalate (BBP)d, Cadmium, Di (2-ethylhexyl)phthalate (DEHP), Di-n-butyl phthalate (DBP), Formaldehyde (gas), Naphthalene
Product Documents

More Product Info

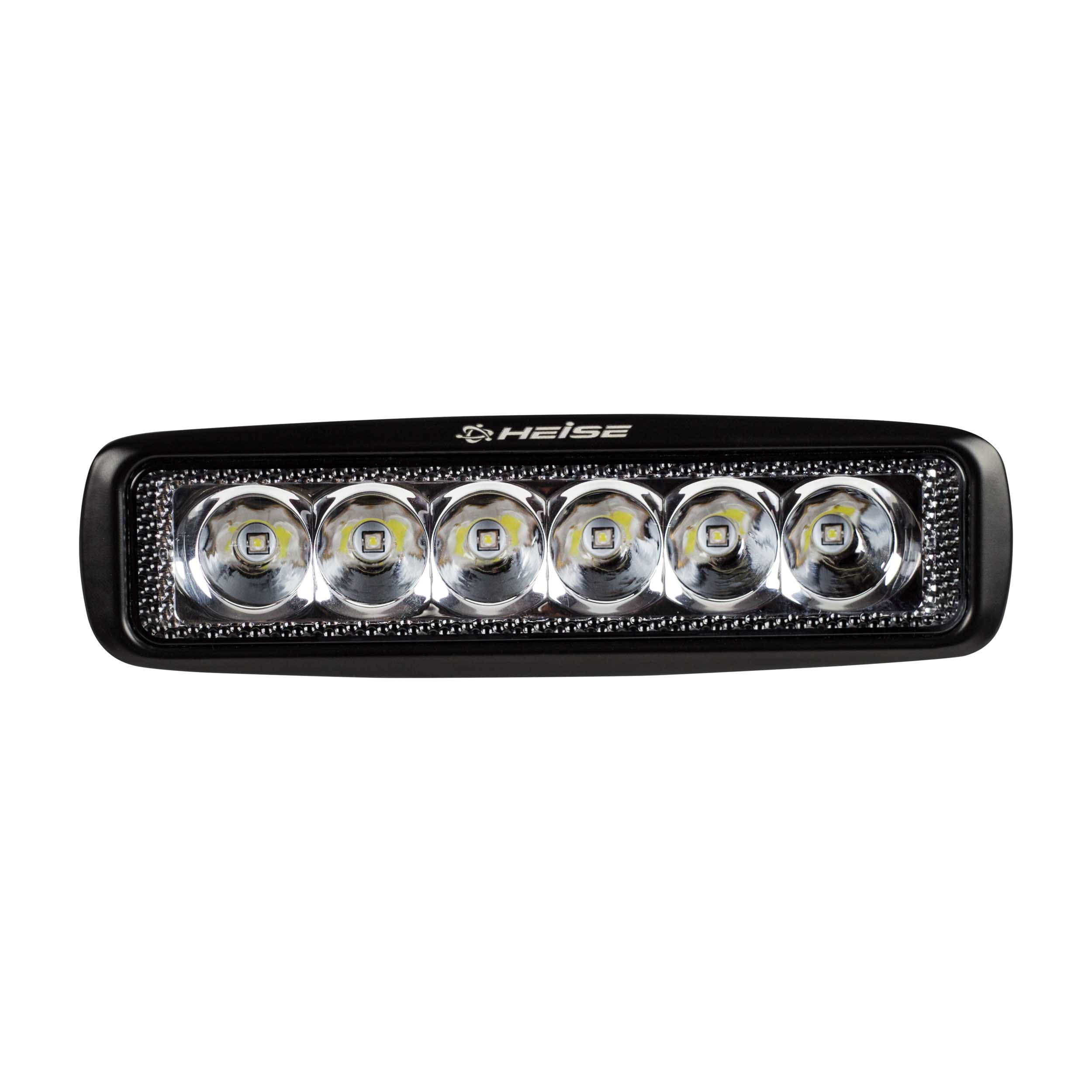

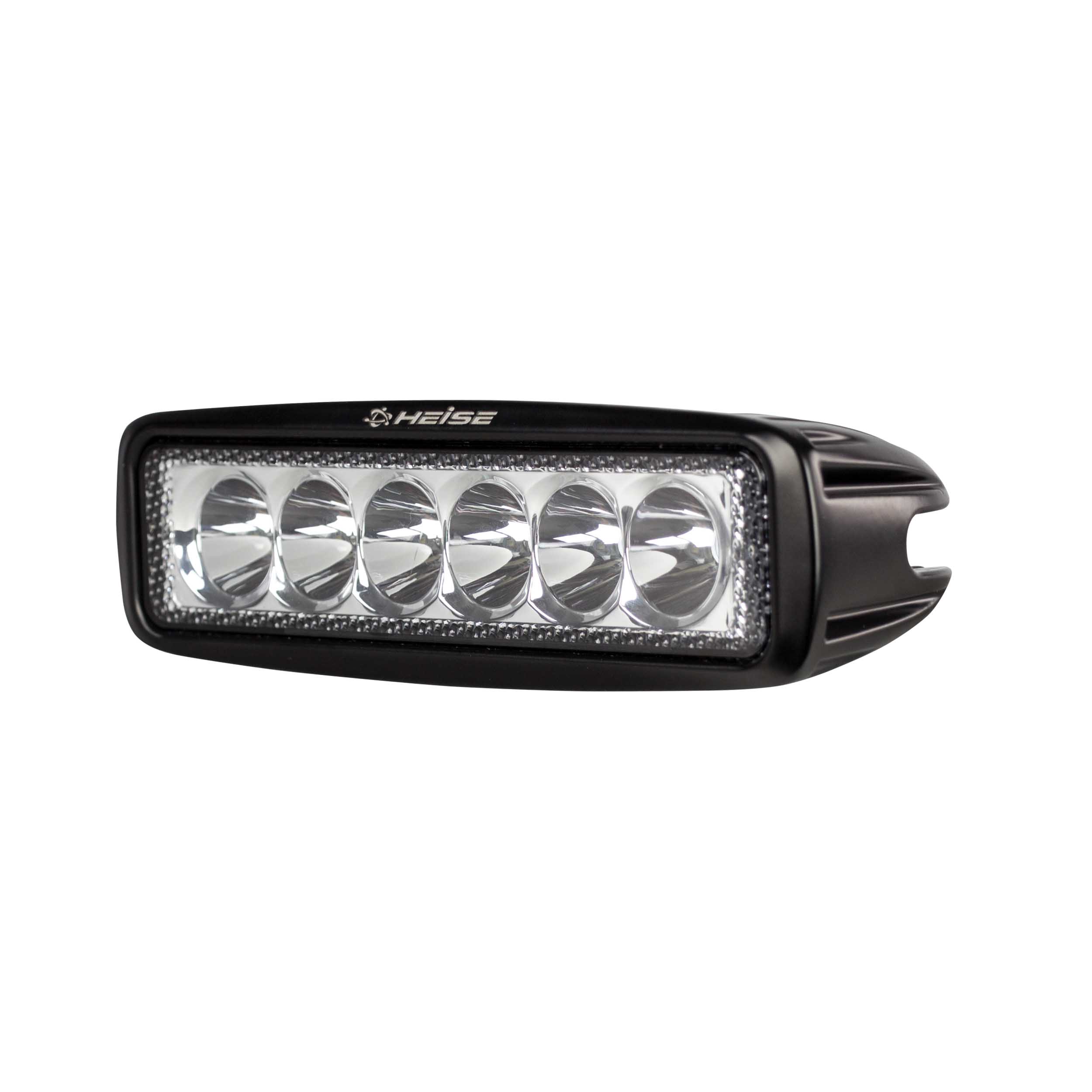

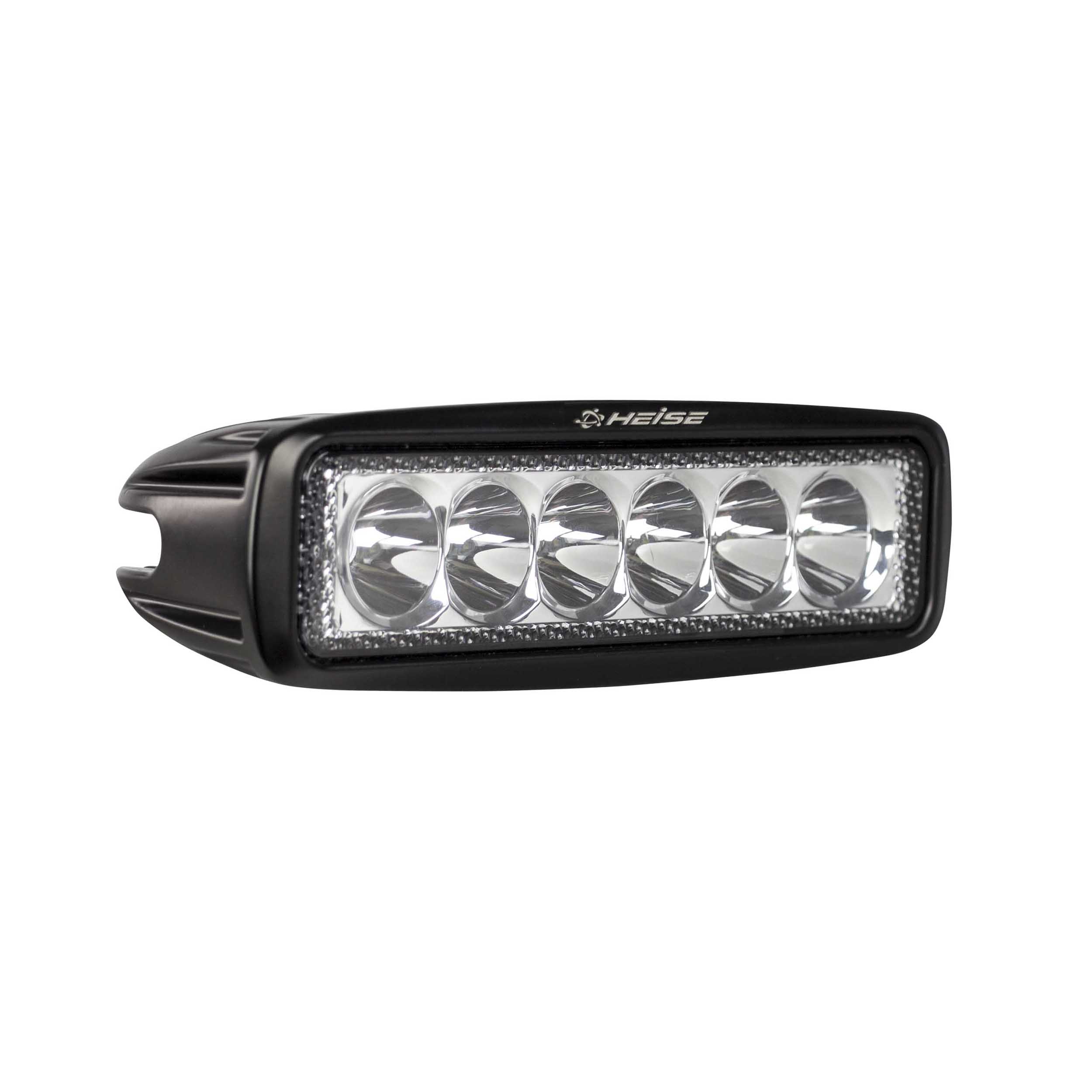

The HE-DL1 delivers focused, high-intensity lighting in a compact single-row design. Featuring six 3-watt LEDs, this light produces 1,440 raw lumens with a 25° spot beam for long-distance visibility—ideal for off-road and work applications.
Built with a die-cast aluminum housing, polycarbonate lens, and stainless steel hardware, the HE-DL1 is engineered for durability in harsh environments. An IP67 rating, epoxy-encapsulated electronics, and reverse polarity protection ensure reliable performance in all conditions.
Features:
  • 6 x 3W LEDs
  • 1,440 raw lumens
  • 6000K color temperature
  • 25° spot beam pattern
  • IP67 rated (dustproof & waterproof)
  • Reverse polarity protection
  • Limited lifetime warranty
Specifications:
  • Input Voltage: 10–30V DC
  • Wattage: 18W
  • Lux @ 10m: 260 lx
  • Current Consumption: 0.9A @ 13.8V
  • Housing: Die-cast aluminum (black)
  • Lens: Polycarbonate
  • Mounting Bracket: Black powder-coated steel
  • Hardware: Stainless steel (316)
  • Operating Temp: -40°C to +60°C
  • Dimensions: 6.25" W x 1.75" H
  • Mounting Bolt Drill: 0.25"
