- Advanced thermal management- short circuit and open circuit protection and many other innovative features
- Intense spotlights in the center flanked by widebeam driving lights on each side give you everything in one light bar
- Heavy duty rubber foot mounts help reduce vibration for LED light bars anywhere
Specs
- Input Voltage: 10-30V DC
- Power Consumption: 72W (24-3W LEDs)
- Lumen Flux: 5760lm
- Color Temperature: 6000K
- Beam Pattern: combo – flood (90°)/spot (8°)
Construction
- Housing Material: die-cast aluminum housing
- Housing Color: black
- Lens Material: PC
- Mounting Bracket: die-cast aluminum

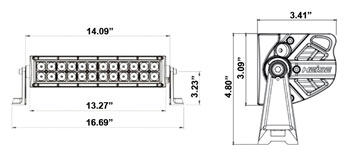

- Hole Dimensions:
- Brackets turned inward – 13.50"
- Brackets turned outward – 14.75"
- Mounting Bolt Drill— .25"
- Electronics: integrated-epoxy encapsulated
- Hardware: stainless 316
Operation
Operating Temperature: -40°C to +60°C
IP Rating: IP67
Protections: reverse polarity
Vehicle compatibility information is not currently listed. This may be a universal part or details are being updated.
Have questions about fitment? Contact our tech support.
