Specs
- Input Voltage: 10-30V DC
- Wattage: 72W (24-3W OSRAM LEDs)
- Raw Lumens: 6480
- Color Temperature: 6000K
- Beam Pattern: combo/flood (90 degree) / spot (8 degree)
Construction
- Housing Material: powder-coated aluminum
- Housing Color: black
- Membrane: Gore™
- Lens Material: PC
- Mounting Bracket: die-cast aluminum
- Mounting: side and bottom

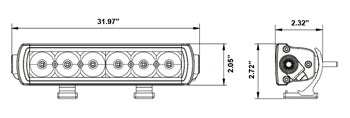

- Hole Dimensions:
- Brackets turned inward – 31.5"
- Brackets turned outward – 33.25"
- Mounting bolt drill – .25"
- Electronics: integrated-epoxy encapsulated
- Hardware: stainless 316
Operation
- Operating Temperature: -40degC to +60degC
- Current Consumption: 4 amps at 13.8 volts
- IP Rating: IP67
- Protections: reverse polarity
