Specs
- Input Voltage: 10-30V DC
- Wattage: 18W (6-3W OSRAM LEDs)
- Raw Lumens: 1620
- Color Temperature: 6000K
- Beam Pattern: 90 degree flood
Construction
- Housing Material: powder-coated aluminum
- Housing Color: black
- Membrane: Gore™
- Lens Material: PC

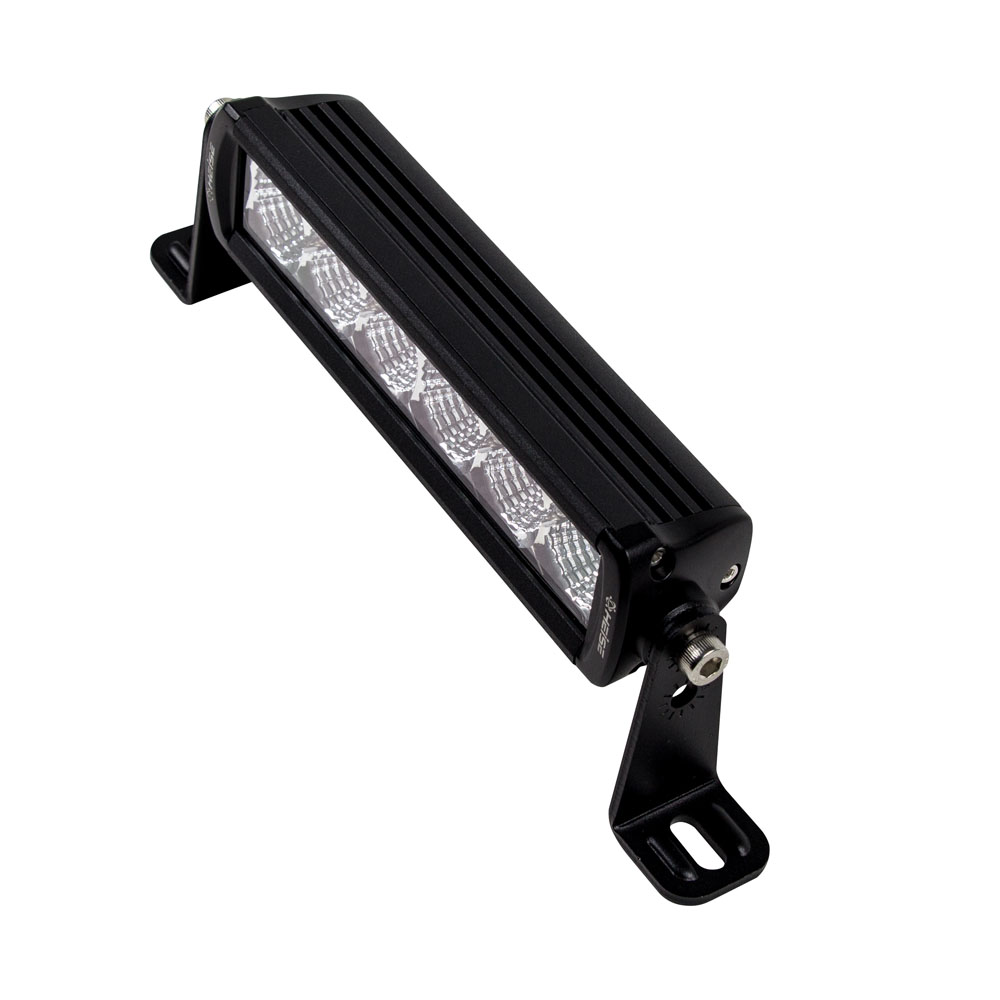

- Mounting Bracket: side and bottom mounting
- Mounting: side and bottom

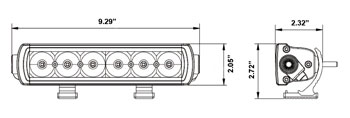

- Hole Dimensions: Brackets turned outward – 11"
- Mounting Bolt Drill – .25"
- Electronics: integrated-epoxy encapsulated
- Hardware: stainless 316
Operation
- Operating Temperature: -40degC to +60degC
- Current Consumption: .9 amps at 13.8 volts
- IP Rating: IP67
Protections: Reverse Polarity
