Proscenium® Modular Infotainment & Control Platform | 6.92"

Upgrade your dashboard with Hi-Res Audio certified playback, modern smartphone connectivity, and a clear, detailed touchscreen display. The Proscenium® PR-7 Modular Infotainment & Control Platform is a universal radio featuring a 6.92" IPS capacitive touchscreen with 1280 x 720 resolution. The PR-7 supports Apple CarPlay® and Android Auto™ via wired or wireless connections, plus hands-free calling via Bluetooth® wireless technology. An HDMI® input supports 1080p video from external sources using the IBR118 adapter, sold separately.

Tune your system with independent 15-band parametric equalization for each audio channel, adjustable crossovers, time alignment, and 5V RCA preamp outputs. Five camera inputs expand visibility, while six programmable ground-trigger outputs let you control accessories via external relays. The PR-7 also supports on-screen control of compatible Heise RGB Chasing LED systems and is designed for flush-mount installation using a vehicle-specific Metra 95-series or 99-series dash kit.

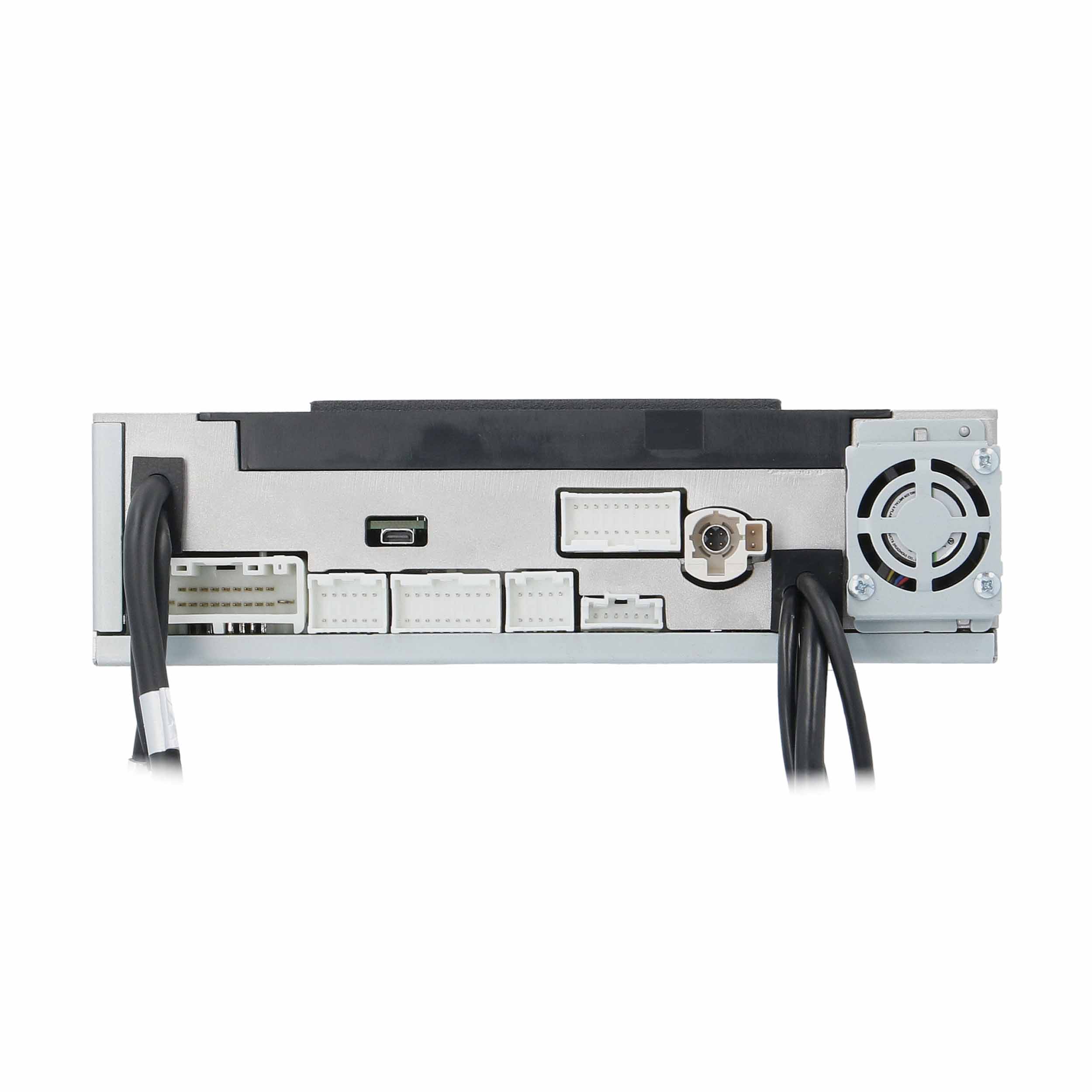

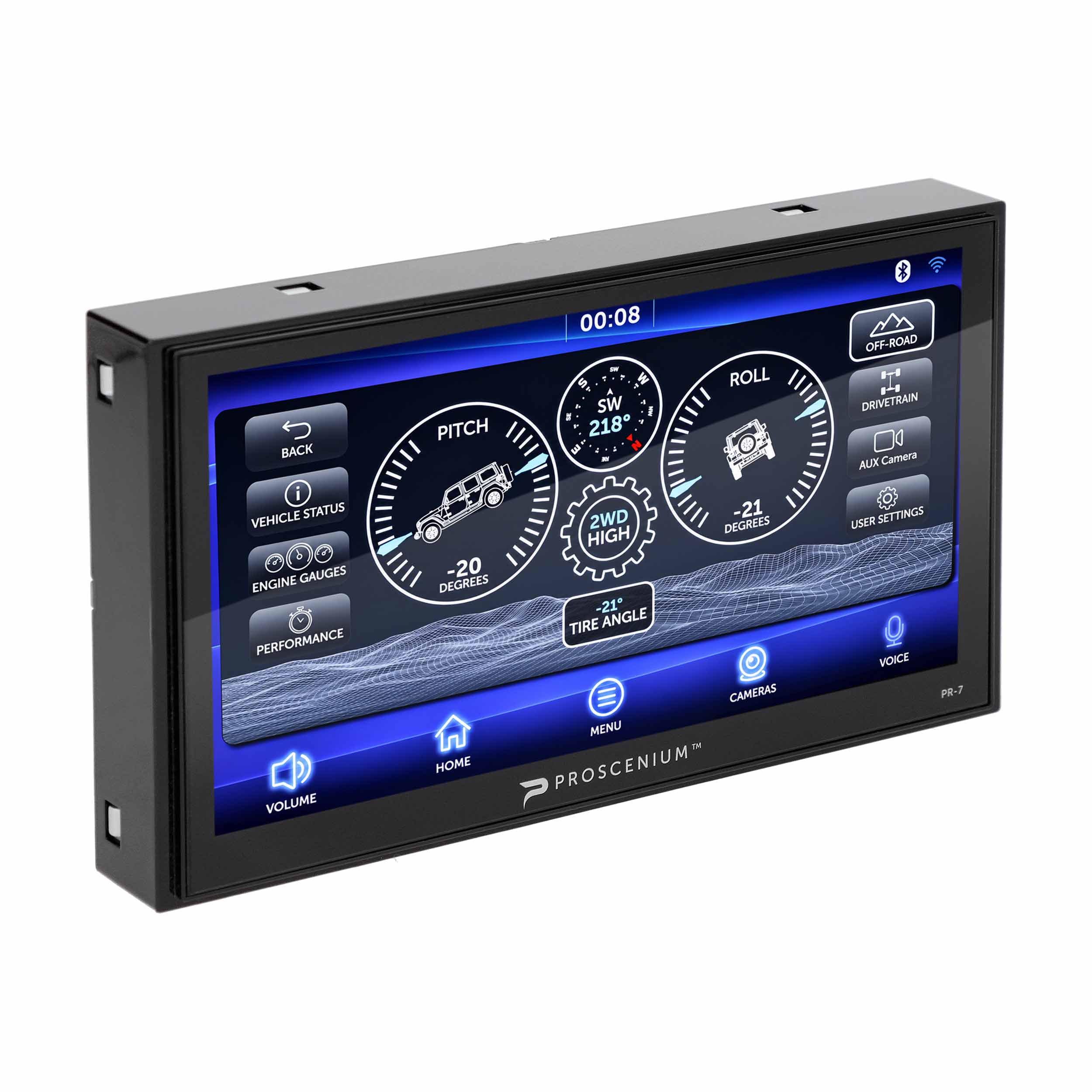

Engineered and designed in the USA, the PR-7 features a patented modular chassis design with a separate display connected through a single LVDS cable. Touchscreen access to supported factory controls and vehicle data is available when you purchase and install a compatible Proscenium® vehicle-specific kit, such as PR-JP1, PR-FD1, or PR-FD2, with the radio. Depending on the vehicle and kit, these features may include climate controls, tire pressure, gauges, lighting settings, and vehicle personalization menus. Feature availability varies by application.

Features:

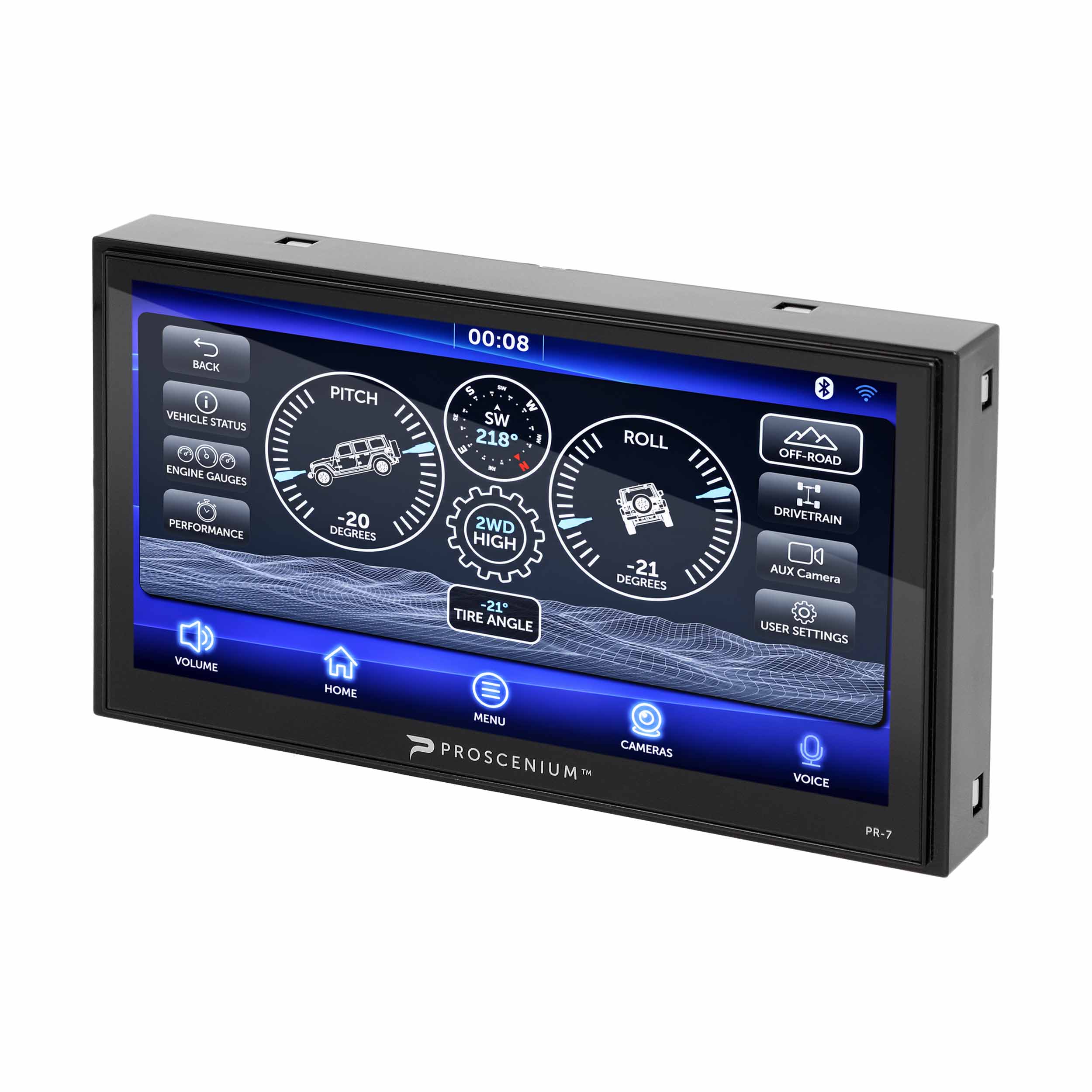

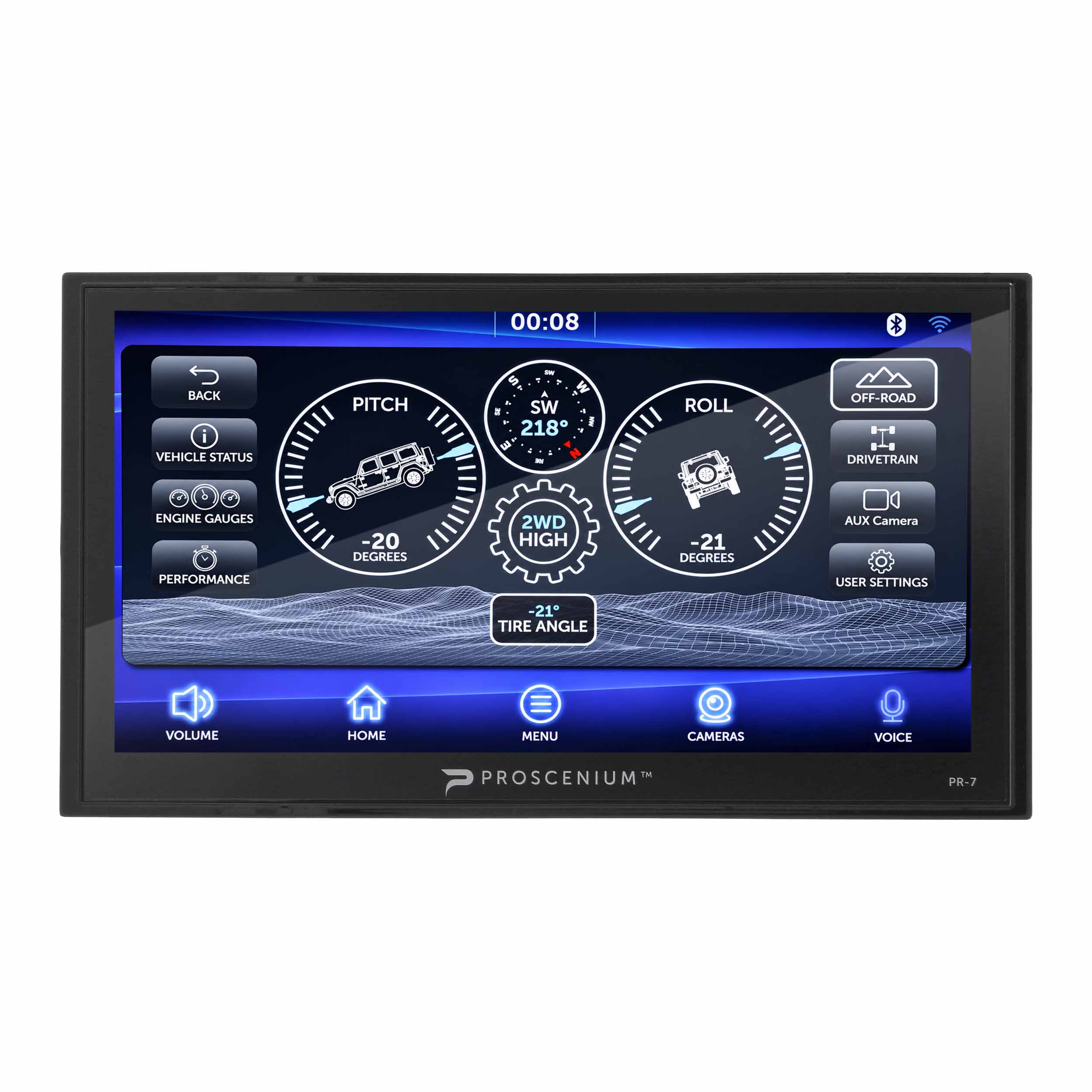

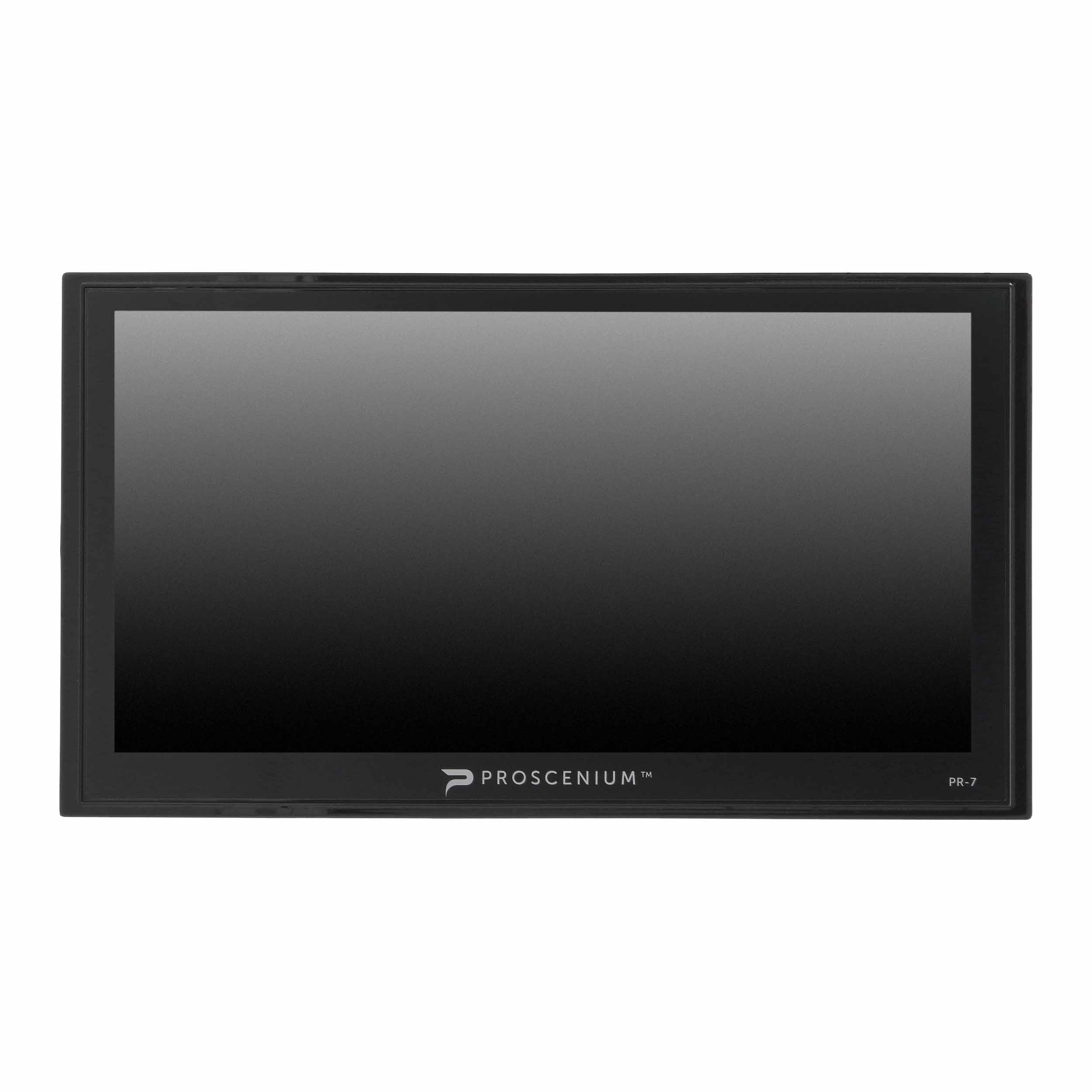

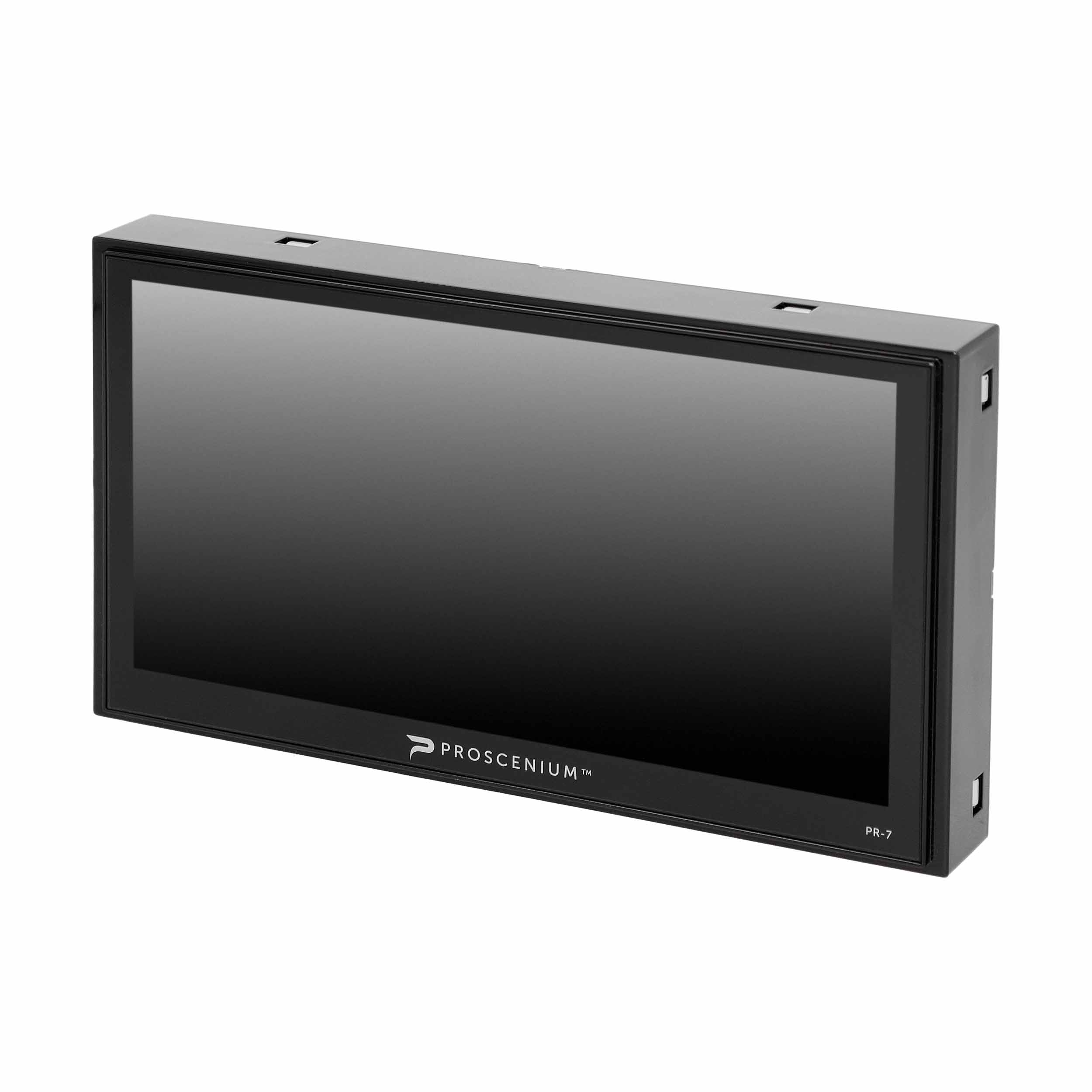

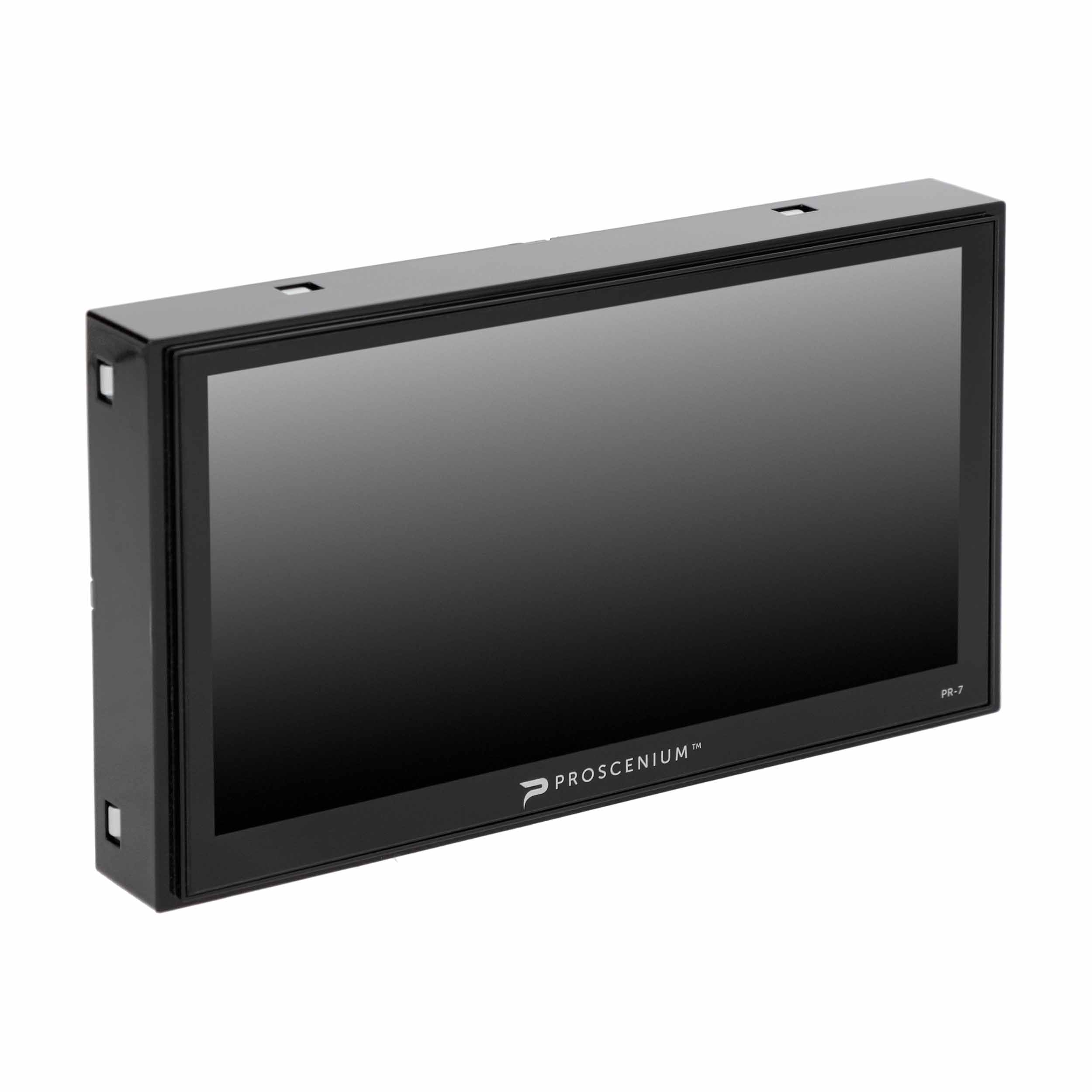

• 6.92" IPS capacitive touchscreen with 1280 × 720 resolution

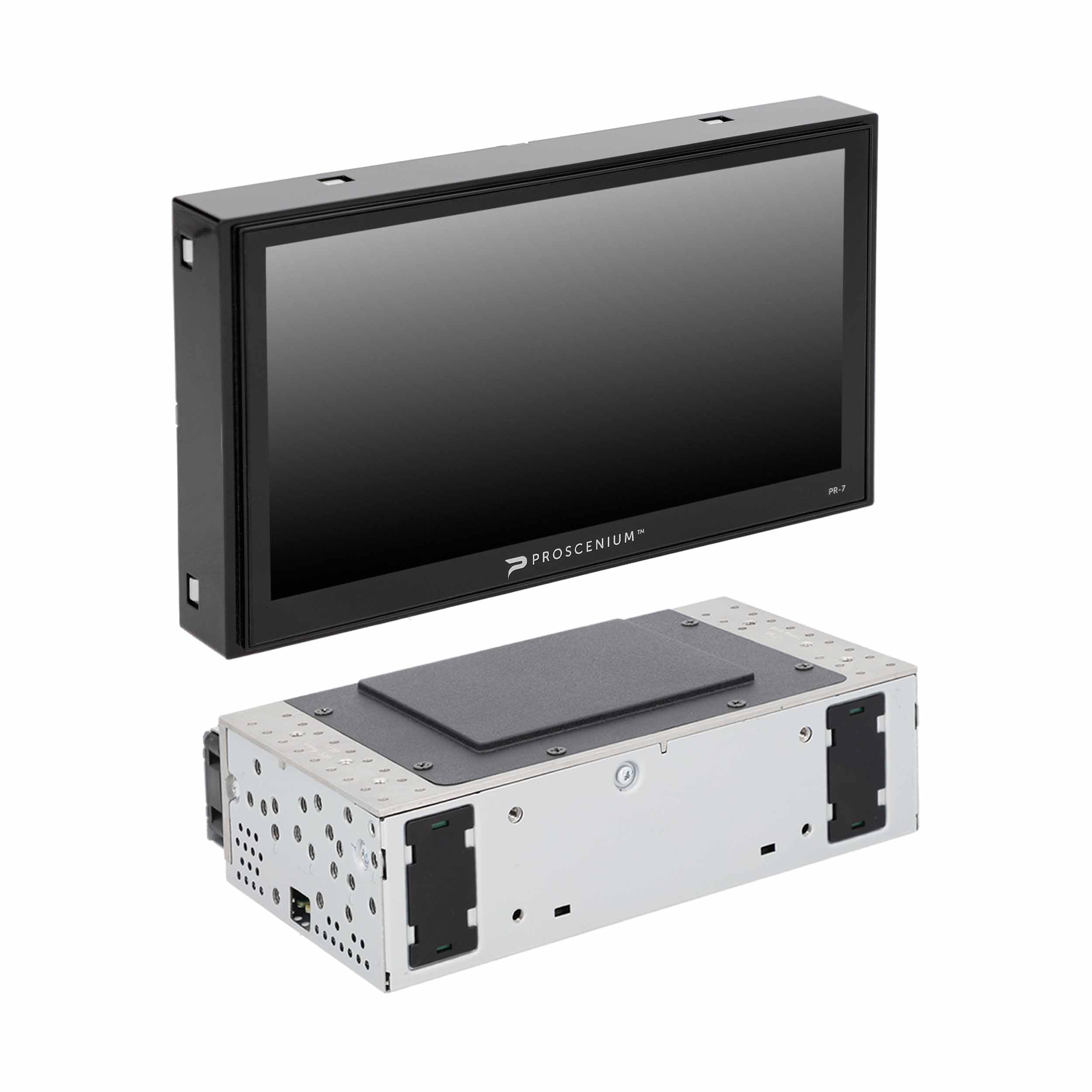

• Patented modular chassis design with separate display and single LVDS connection
• Works with Apple CarPlay® through a wired or wireless connection
• Works with Android Auto™ through a wired or wireless connection
• Hands-free calling via Bluetooth® wireless technology
• Bluetooth® 5.0 with dual-device connectivity for calls and music
• AM/FM tuner
• Hi-Res Audio certified; supports MP3, FLAC, WAV, AAC, and APE files
• 5V RCA preamp outputs for front left, front right, rear left, rear right, and subwoofer channels
• Independent 15-band parametric EQ for each audio channel
• Adjustable front, rear, and subwoofer crossovers, time alignment, and built-in pink noise
• Dual-zone audio capability
• Dual USB-A 2.0 ports with FAT16/32 support
• Stereo RCA auxiliary audio and composite video inputs
• HDMI® input supporting 1080p video; IBR118 adapter sold separately
• SiriusXM-Ready®; requires SXV300 Connect Vehicle Tuner, sold separately
• Five camera inputs with dedicated trigger connections, label settings, and priority settings
• Adjustable rear-camera parking guidelines and up to 10-second turn-off delay for front, left, right, and auxiliary cameras
• Six programmable 500mA negative ground-trigger outputs for external accessory relays
• Momentary, latched, pulsed, timed, and voltage-based accessory trigger settings
• Customizable home screen with widgets and touchscreen dock controls
• Touchscreen access to supported factory controls and vehicle data requires a compatible Proscenium® vehicle-specific kit, purchased separately and installed with the radio; availability varies by application
• On-screen Heise RGB Chasing LED control; compatible Heise controller sold separately
• Firmware updates via USB

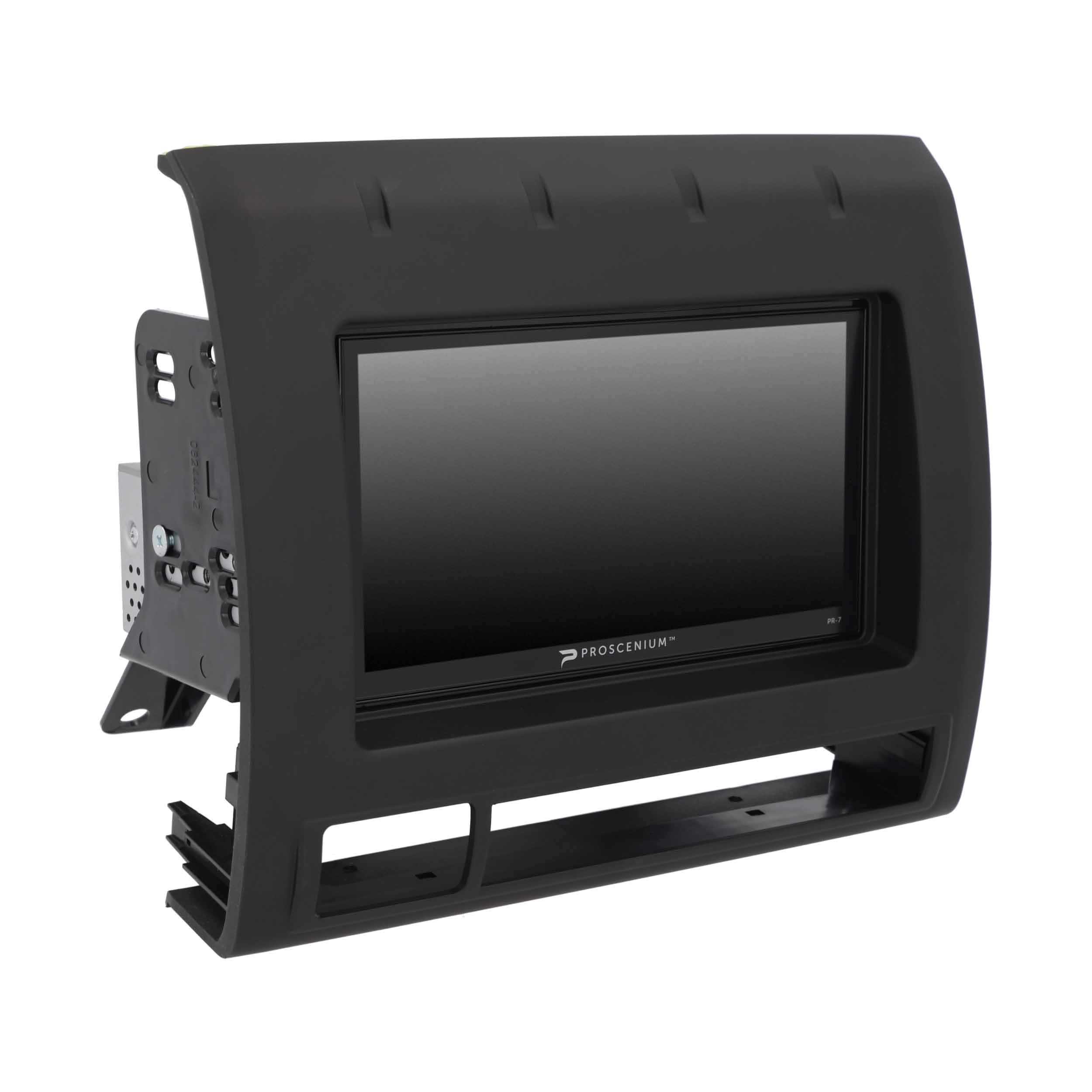

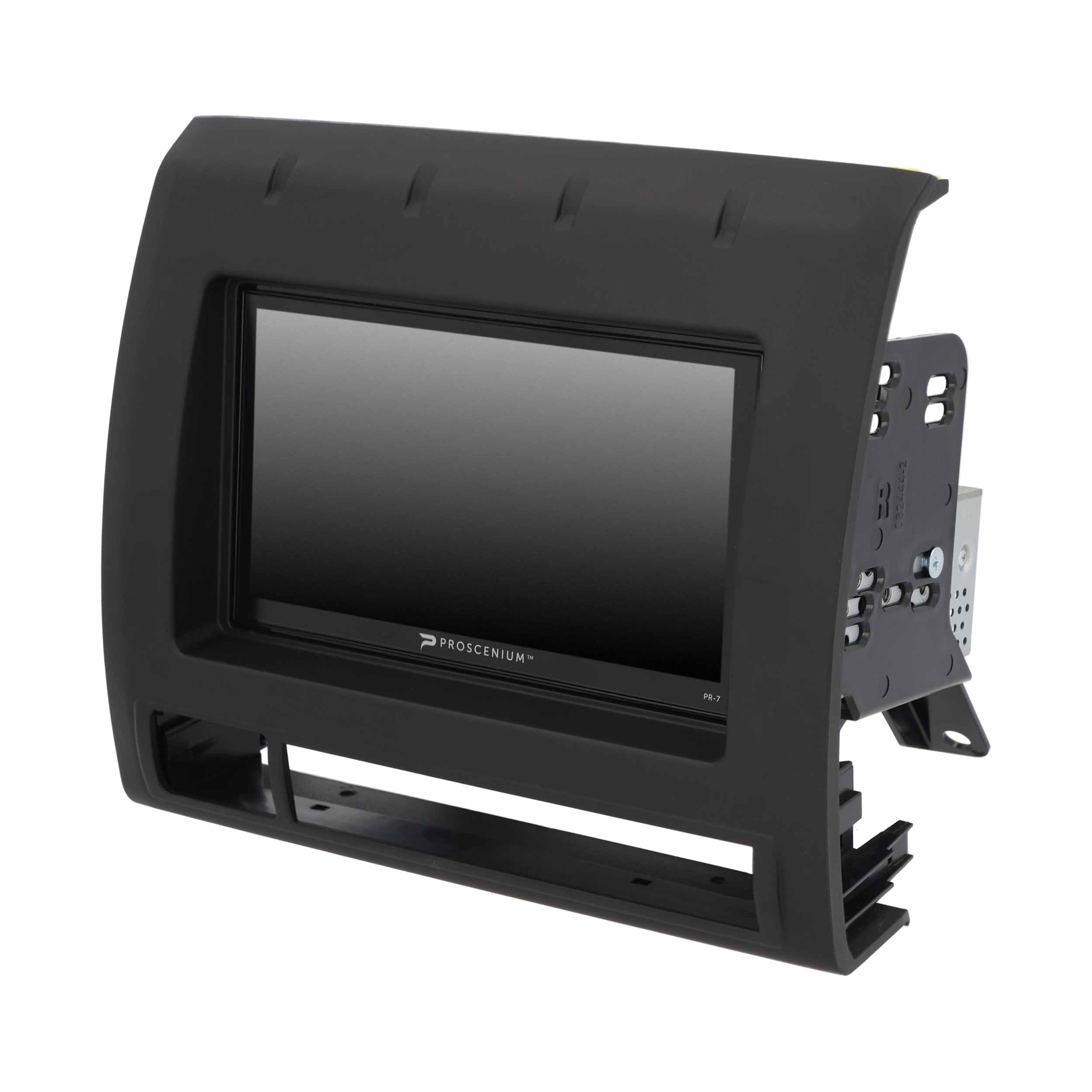

• Designed for use with a vehicle-specific Metra 95-series or 99-series dash kit
• 1-year standard warranty when purchased from an authorized reseller
• 3-year extended warranty when purchased and installed by an authorized dealer partner

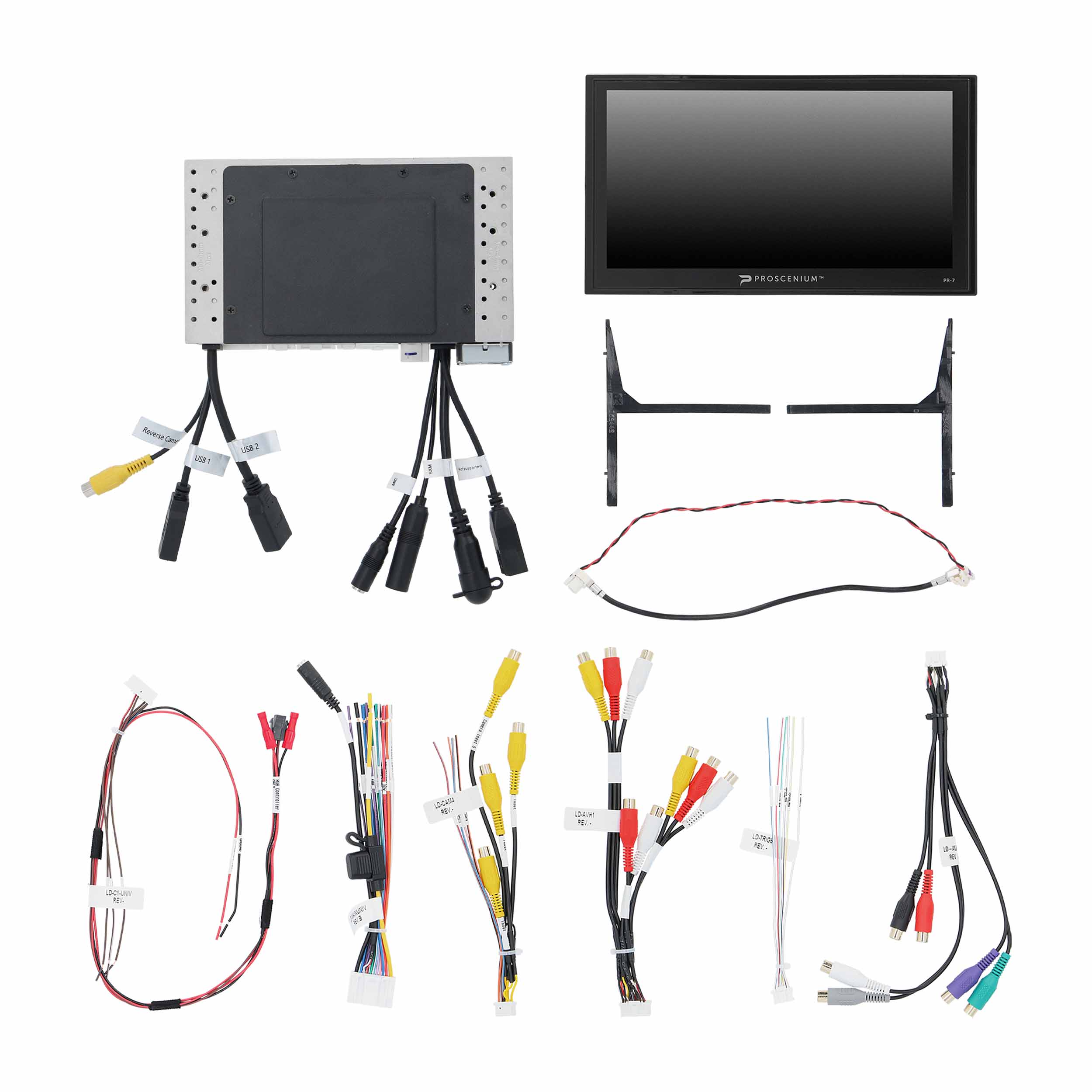

What's Included:

• 6.92" screen and radio chassis
• Main power harness
• RCA audio harness
• A/V harness
• Camera harness
• Switch trigger harness
• Mounting bracket and hardware

Complete Your Install: The PR-7 is built as a universal radio. Install it with a vehicle-specific Metra 95-series or 99-series dash kit and a compatible harness or basic interface, as required by the application. Unlock supported vehicle-specific controls and information by purchasing and installing a compatible Proscenium® kit designed for your vehicle.

Application: Universal; dash kit and vehicle integration requirements vary by application.

Refer to our Vehicle Fit Guide for up-to-date vehicle-specific applications.

Compatible iPhone required for Apple CarPlay. Compatible Android phone and compatible active data plan required for Android Auto. Some features may not be available in all countries and may vary by vehicle and/or device manufacturer. Internet connection may be required. Use features when safe to do so.
