Sound Damping Material - Speaker Kit

Ballistic’s damping material is a light-weight, elastomeric, butyl and aluminum constrianed-layer vibrational damper. The mat easily conforms to sheet metal and other hard substrates.

• Quiets vibrations and rattles
• Boost’s SPL
• Easy peel and stick installation
• New Jet Black Finish with Silver Logo
• 2.2mm Thickness, (w/release paper)
• 0.72 mass per ft²

• Thickness:

Butyl: 2.0mm

Aluminum: 0.1mm

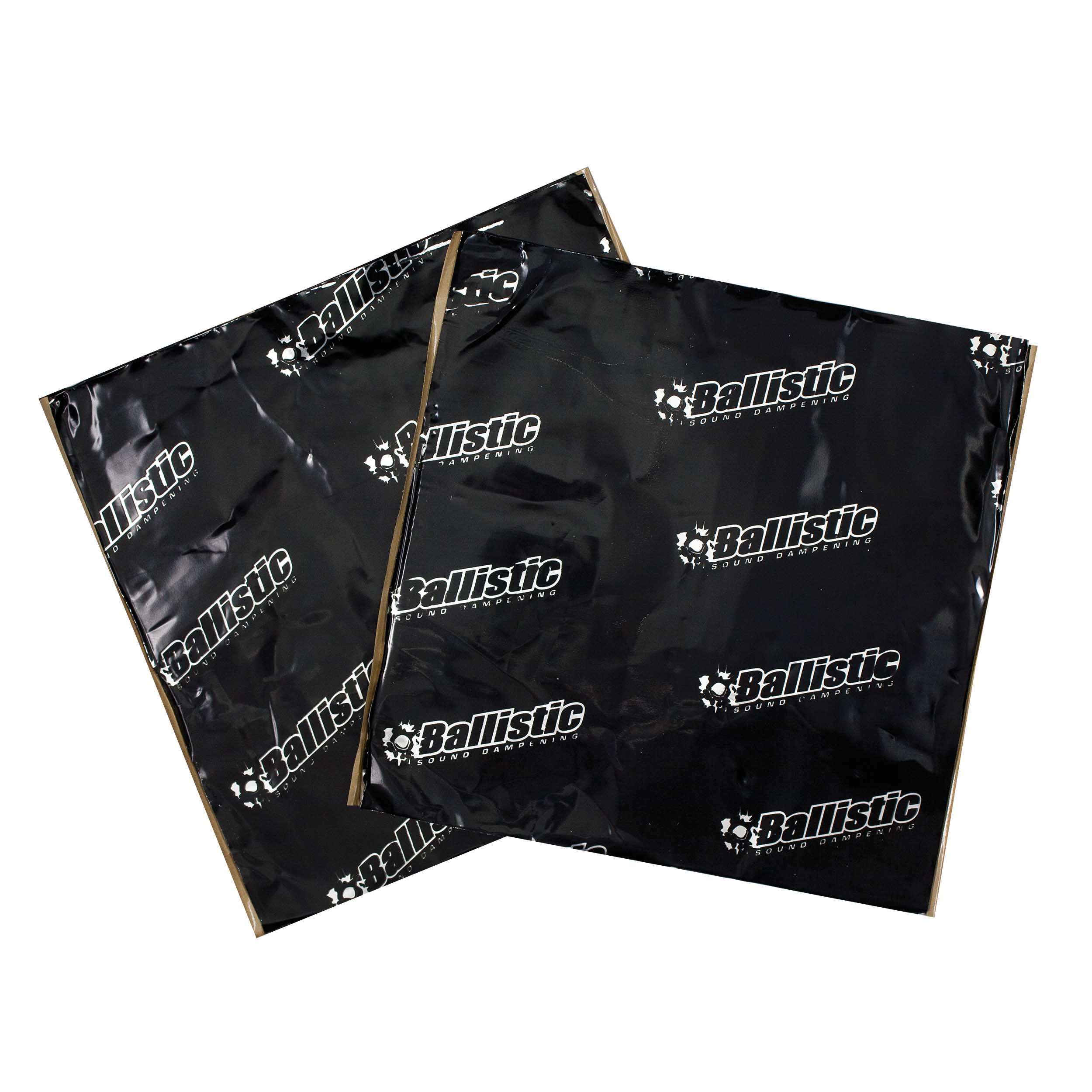

• 2 pieces: 10" x 10" material (254mm x 254mm)
• Resistant to mineral oils and water
• Temperature Range:

Optimal Range: 14°F to 140°F (-10°C to 60°C)

Extreme Range: -65°F to 300°F (-54°C to 149°C)

• 0.69² Ft (0.03M²) Each
• 1.38² Ft (0.13M²) Total

• Box dimensions: 10.37" x 11" x 5"
• Master carton: 40 per carton (22.83" x 11.61" x 12.2")
