IR Accessory Camera With Multi-Mounts

iBEAM Vehicle Safety SystemsCamerasMulti-mount Cameras
SKU: TE-2MPIR
WARNING

This product can expose you to Chromium (hexavalent compounds), which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov .

Show full chemical list
Butyl benzyl phthalate (BBP)d, Cadmium, Chromium (hexavalent compounds), Di-n-butyl phthalate (DBP), Mercury and mercury compounds
Product Documents

More Product Info

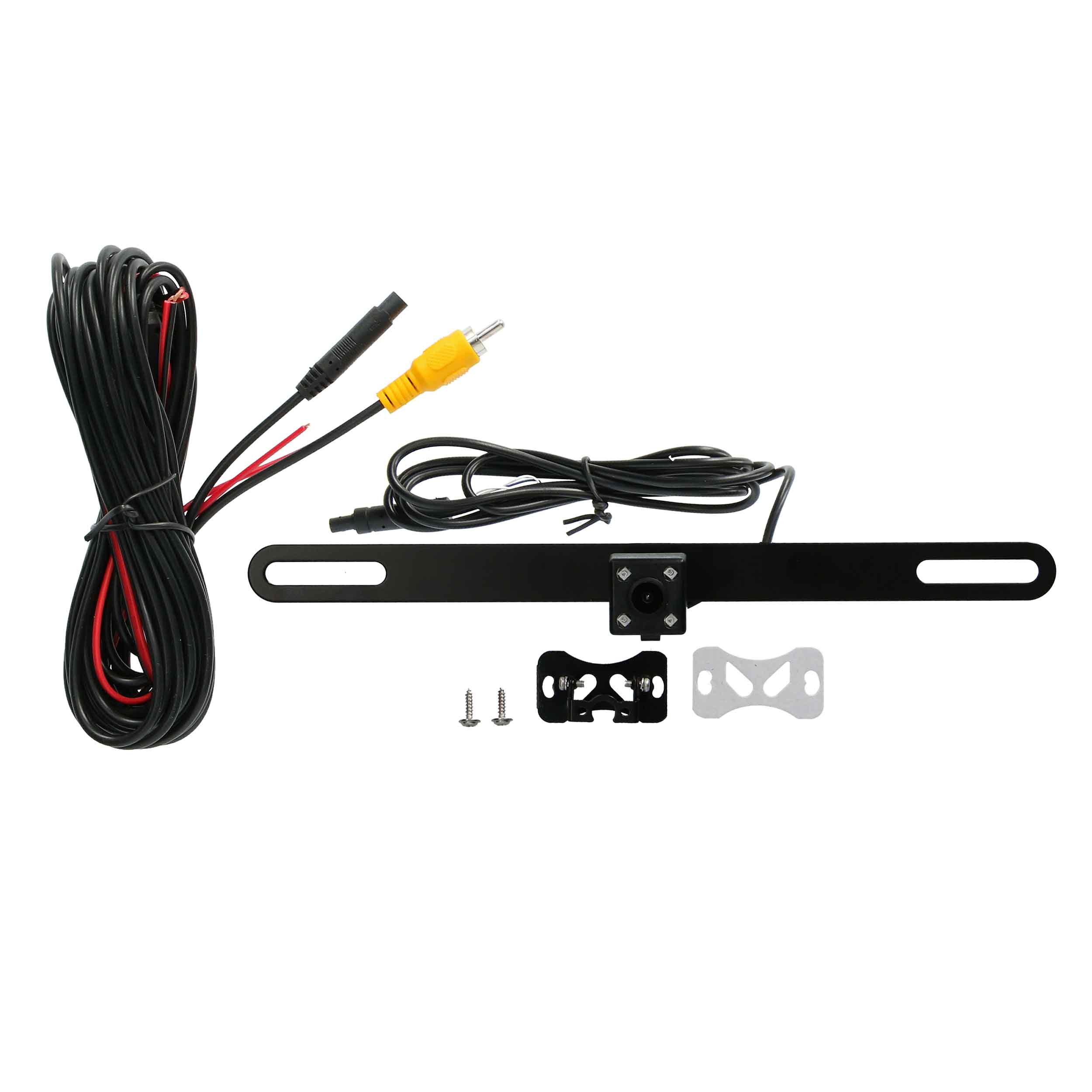

Enjoy an unobstructed view while driving with a rear camera that stays active while the vehicle is on, not just when it is in reverse*. This universal camera is ideal for monitoring cargo, the trailer hitch, or reducing blind spots at the rear of the vehicle while driving. iBEAM’s TE-2MPIR camera features active parking lines that are shown the entire time the camera is on. For easy installation, a license plate mount and surface mount are included, along with a 27-foot extension harness. This camera has a resolution of 640 TV lines (CVBS) or 1280 TV lines (AHD), a 1/3” CMOS sensor, and a 140-degree viewing angle (CVBS) or 142-degree viewing angle (AHD). It features an improved power circuit, is rated IP67 for water resistance, and has a durable metal housing.
*When used with a compatible monitor. Recommended for use with iBEAM’s TE-43VS, TE-50VS, and TE-7VS.
Features:
  • Multiple mounts included - behind plate mount and surface mount
  • Improved power circuit
  • Can be viewed while driving, with a compatible monitor
  • Ability to trigger IRs separately from the camera's power
  • IR LEDs for night vision - triggered only when in reverse
  • Selectable parking lines
  • Water-resistant to protect from the elements
  • 3-year warranty
Specs:
  • Image sensor: 1/3 inch CMOS image sensor
  • TV system CVBS: 640TV lines AHD: 1280TV lines
  • Effect pixels: 1280(H) x 720(V)
  • Pixel size 3.75 μmx 3.75 μm
  • Min illumination: 0.1 lux
  • Video out: 1MP, 720P@60fps
  • Sensitivity: 12448mV/lux·s
  • Power supply: 9-16VDC
  • Lens: 6G+1IRF
  • Diagonal viewing angle: AHD 142°; CVBS 140°
  • Current consumption: ≤120mAH
  • Operating temperature: -20 to +70° C
  • Storage temperature: -30 to +85° C
  • IP rating: IP67
Wire Lengths:
  • Extension cable: 8.2M / 27'
  • Camera cable: 1.5M / 5'
