LED Accessory Camera With Multi-Mounts & Active Parking Line

See an unobstructed view while driving with a rear camera that can stay active while the vehicle is on, not just when it is in reverse*. This universal camera is ideal for keeping an eye on cargo, a trailer hitch, or reducing blind spots in the back of the vehicle while driving. iBEAM’s TE-2MPLTC camera features active parking lines (shown while the camera is active) and a separate trigger for the LEDs that can be activated when the vehicle is in reverse. LEDs deliver 0.1 LUX minimum illumination for better visibility in the dark. For easy installation, a license plate mount and surface mount are included, along with a 27ft. extension harness. This camera has a resolution of 640 TV lines (CVBS) or 1280 TV lines (AHD) with a 1/3" CMOS image sensor and a 150° viewing angle (CVBS) or 152° viewing angle (AHD). It features an improved power circuit, is rated IP67 for water resistance, and has a durable metal housing.

*When used with a compatible monitor. Recommended for use with iBEAM’s TE-43VS, TE-50VS and TE-7VS.

Features:

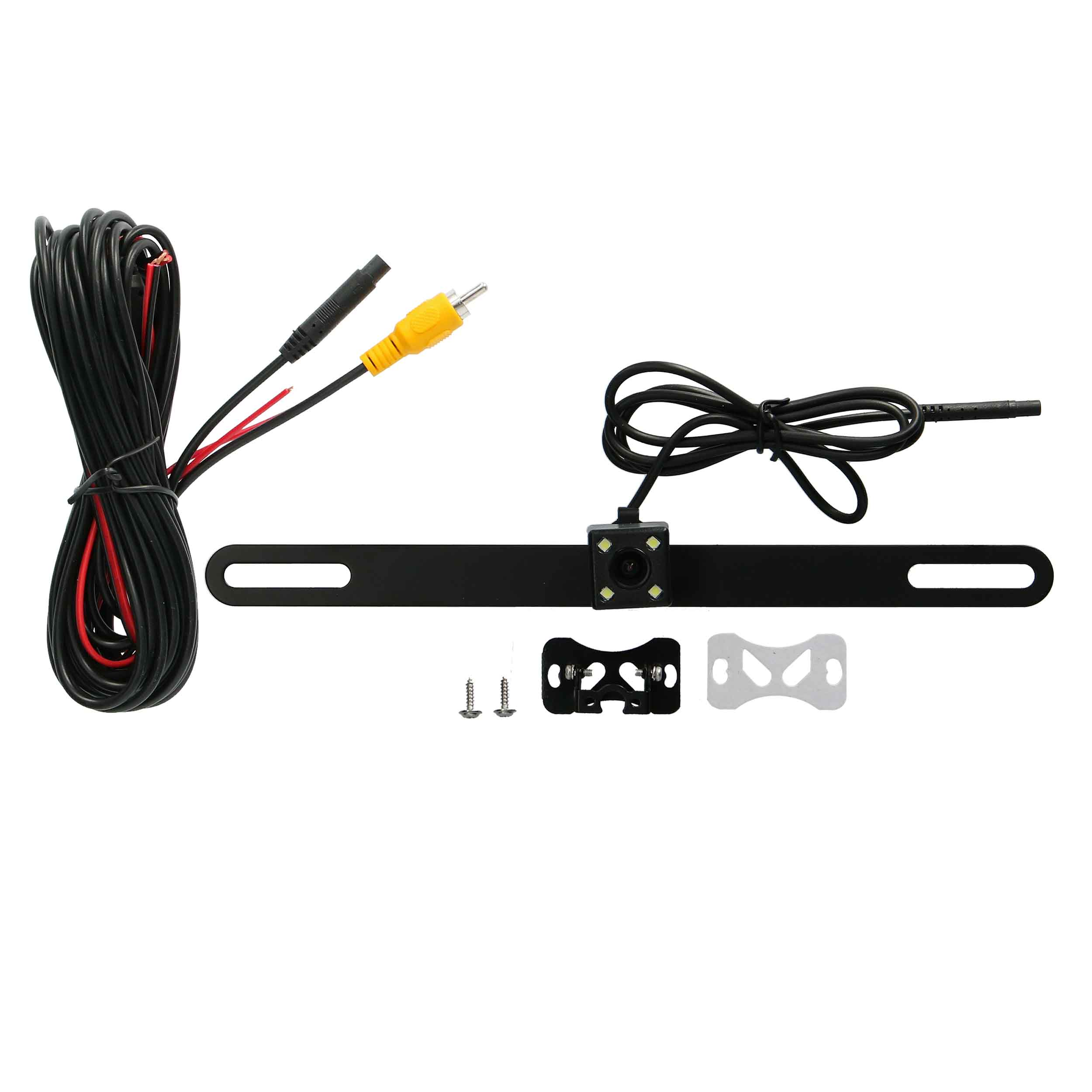

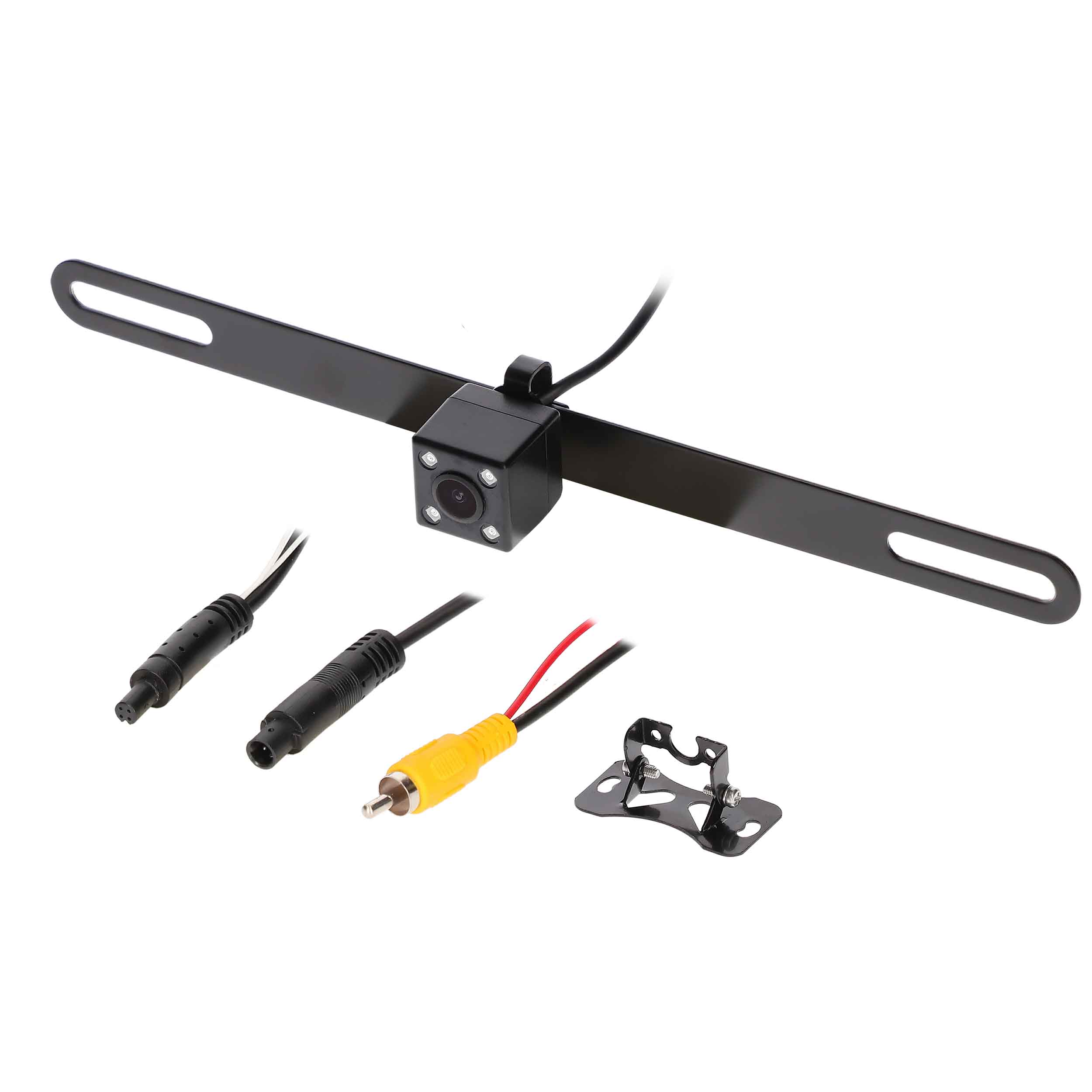

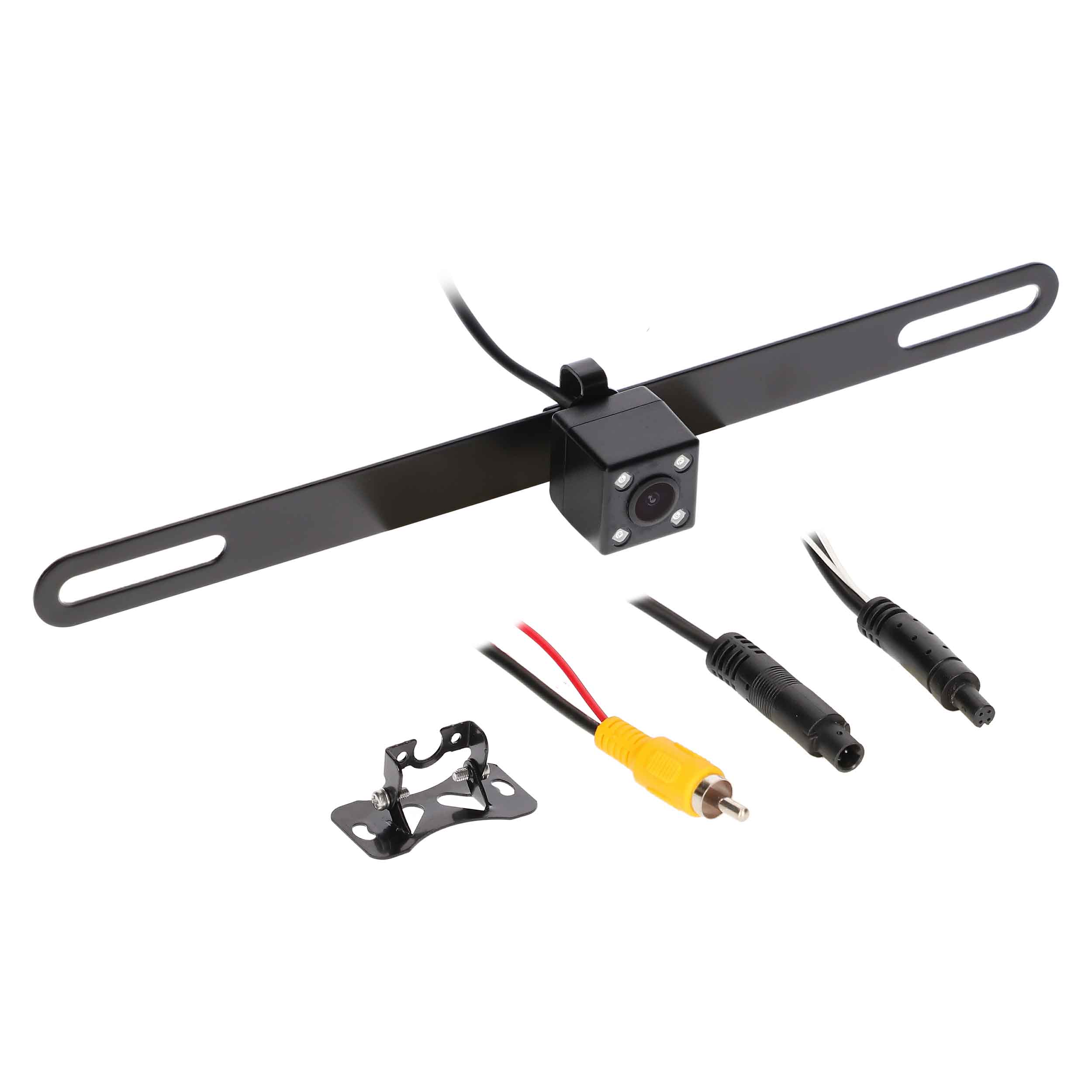

• Multiple mounts included - behind plate mount and surface mount
• Improved power circuit
• Can be viewed while driving, with a compatible monitor
• Ability to trigger LEDs separately from the camera's power
• LEDs for night vision - triggered only when in reverse
• Active parking lines
• Water-resistant to protect from the elements
• Mounting: rear
• 3-year warranty

Specs:

• Image sensor: 1/3 inch CMOS image sensor
• TV system: CVBS: 640TV lines AHD: 1280TV lines
• Effect pixels: 1280(H) x 720(V)
• Pixel size: 3.75 μmx 3.75 μm
• Min illumination: 0.1 lux
• Video out: 1MP, 720P@60fps
• Sensitivity: 12448mV/lux·s
• Power supply: 9-16VDC
• Lens spec.: 6G+1IRF
• Diagonal viewing angle: AHD 152°; CVBS 150°
• Current consumption: ≤120mAH
• Operating temperature: -20 to +70° C
• Storage temperature: -30 to +85° C
• IP rating: IP67

Wire Lengths:

• Extension cable: 8.2M / 27'
• Camera cable: 1.5M / 5'

Visit MetraOnline.com for more detailed information about the product and download the latest Vehicle Application Guide to find other vehicle specific products.
