Metra has collaborated with VIBE Audio to create this state-of-the-art plug-n-play audio system, tailored to fit and perfectly enhance the amplified 2015-2017 and the non-amplified 2015-2024 Ford F-150 SuperCrew. Everything needed to install a premium aftermarket audio system is conveniently included in one package: premium amplifiers, a total of six assorted speakers for the front and rear of the vehicle, and a 10" subwoofer in a ported enclosure, paired with an assortment of Metra products that make installation easy. This assortment of Metra products includes vehicle-specific plug-n-play integration harnessing, speaker adapters, amp brackets, and more. Engineered for seamless integration and exceptional sound performance, this kit is designed to enhance your audio experience with crystal-clear highs, robust mids, and deep bass. This comprehensive kit ensures every component works harmoniously to deliver unparalleled sound quality and ease of installation.
Estimated installation time is 6 to 8 hours with 1 experienced technician
Check out our detailed instructions for this install here: Installation Instructions
Features:
- All-in-one premium vehicle-specific audio kit
- Designed for amplified (2015-2017) and non-amplified (2015-2024) vehicles
- 1-year warranty

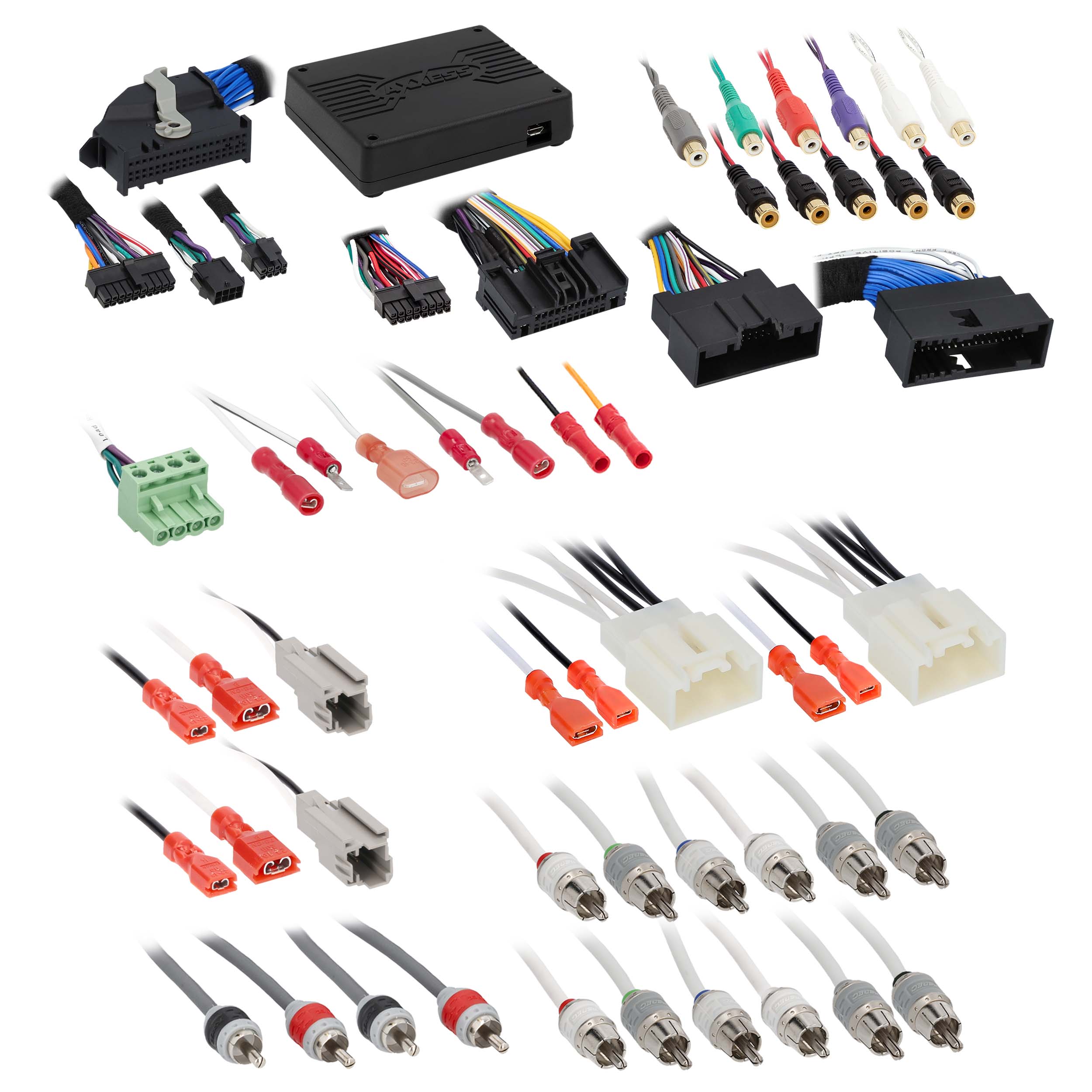

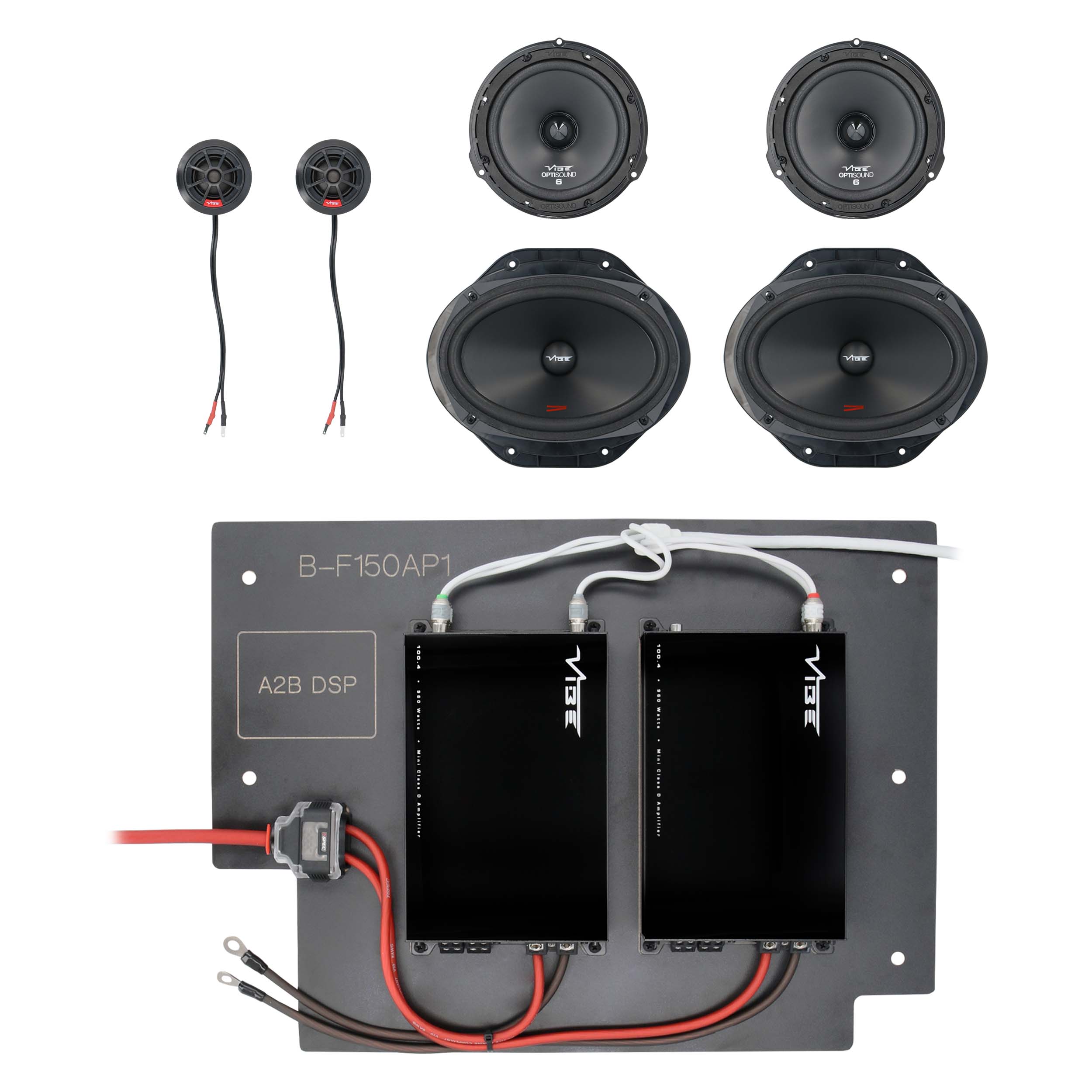

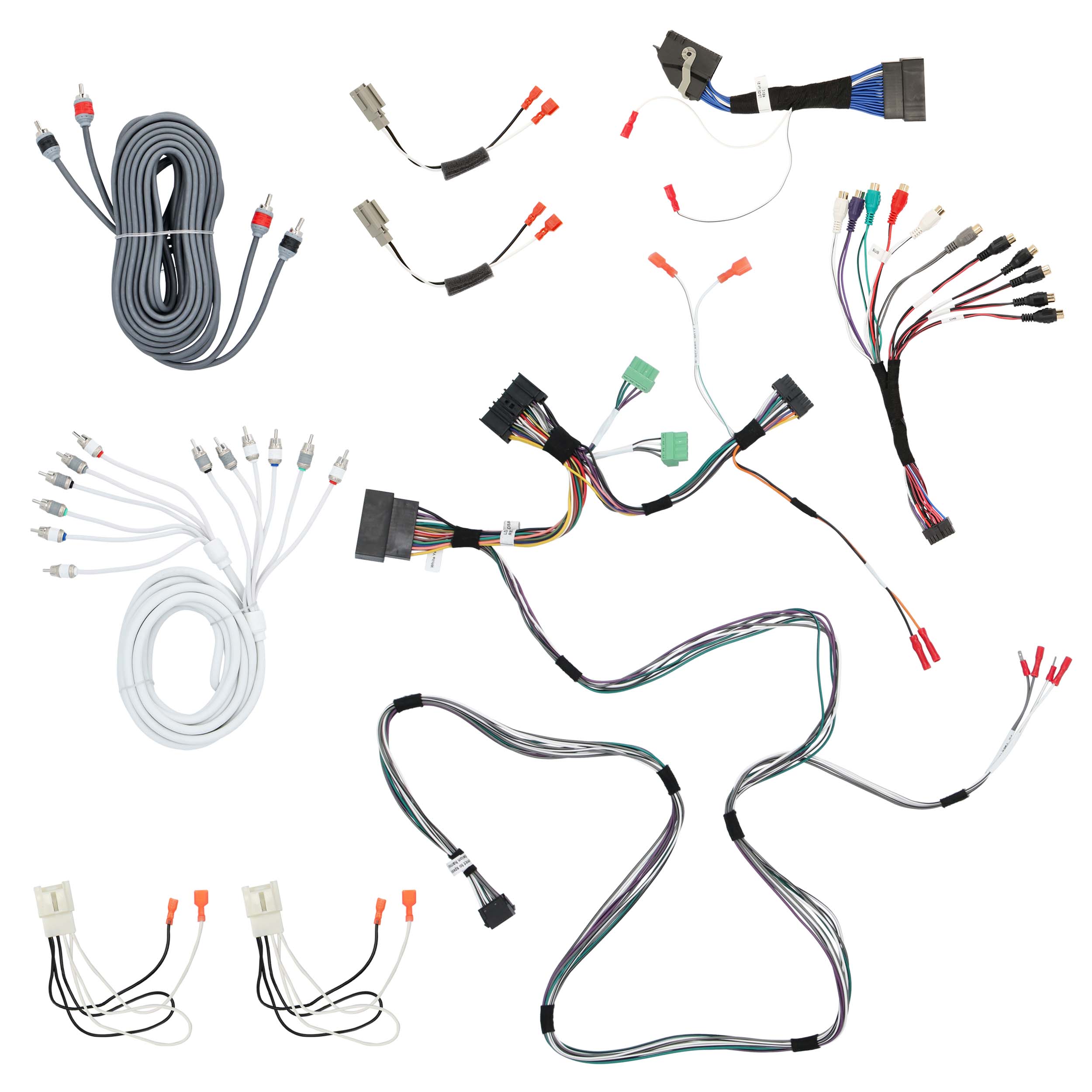

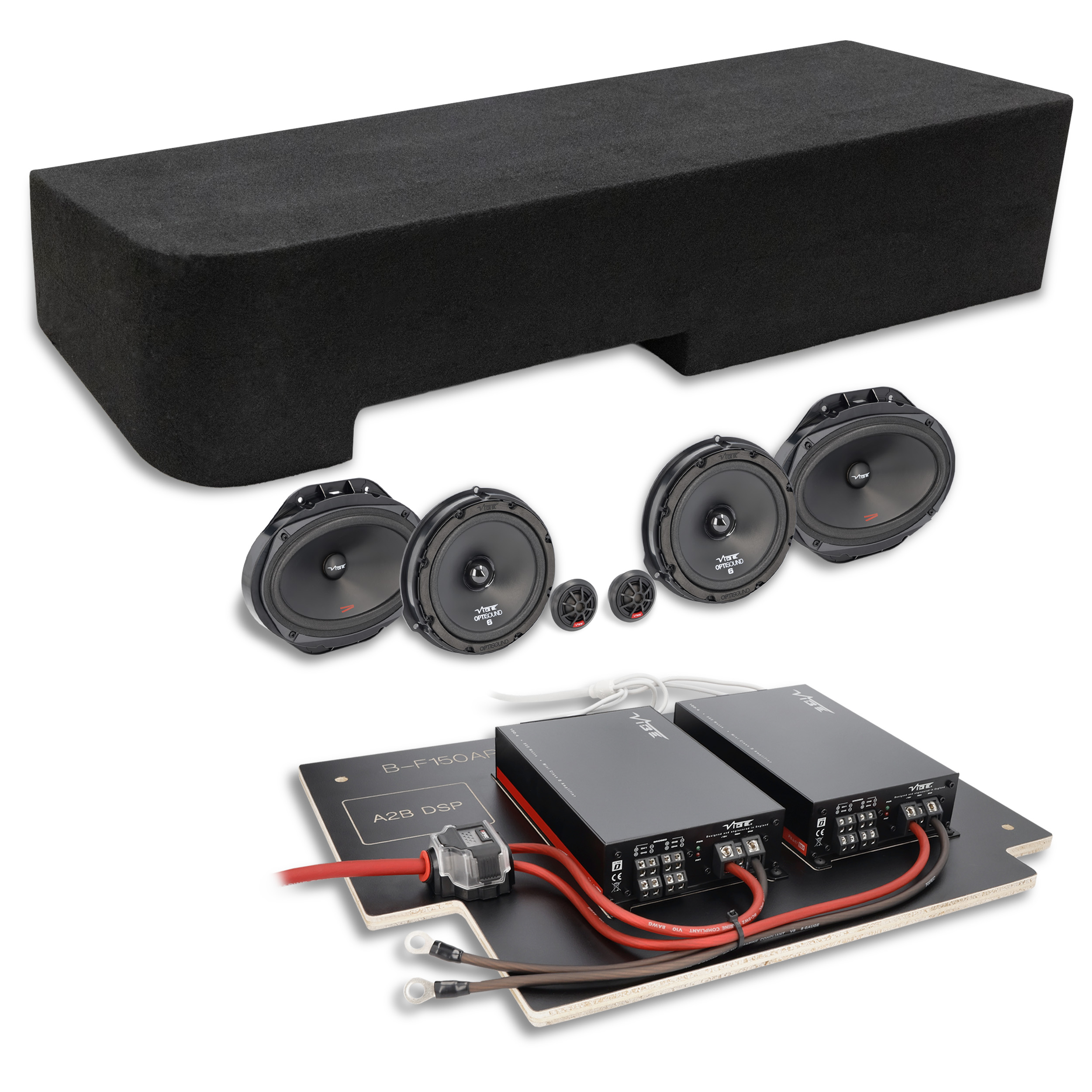

Plug-n-play audio system includes:
- Pair 400-watt 4-channel 100x4 amplifiers
- Pair 1” front dash tweeters
- Pair 6" x 9” front door speakers
- Pair 6.5” rear door speakers
- 10” subwoofer with down-firing ported sub enclosure
- Axxess DSP with downloadable vehicle-specific tuning
- T-Spec RCA cables (6-Ch & 2-Ch)
- Vehicle-specific amp mounting rack
- Detailed step-by-step instructions
PB100.4M-V0 Amplifiers
- Max power: 960W
- Power output @ 2 ohms: 120W x 4
- Power output @ 4 ohms: 100W x 4
- Power output @ 4 ohms bridged: 240W x 2
- System delivers up to 1920W maximum power
- Dimensions: 1.9” H x 9.1” W x 5.3” D (47mm x 230mm x 134mm)
- Class D
SLICK-V4 1" Front Dash Tweeters
- 1” speaker size
- Peak: 150W RMS, 50W
- Sensitivity: 94dB
- Frequency response: 1.5kHz - 25kHz
- Impedance: 4 ohms
- Metra tweeter dash harness (non-amplified)
- Metra 72-5603 speaker harness (amplified)
CVEN69MW-V4 6” x 9” Front Door Speakers
- 6” x 9” speaker size
- Peak: 260W RMS, 130W
- Sensitivity: 91dB
- Frequency response: 40Hz - 20kHz
- Impedance: 4 ohms
- Metra 82-5606 door speaker adapter plates
- Metra 72-5602 door speaker harnesses
- IBSBF69: 2-piece 6" x 9" speaker baffle kit
OPTI6-V4 6.5” Rear Door Speakers
- 6.5” speaker size
- Peak: 270W RMS, 90W
- Sensitivity: 94dB
- Frequency response: 55Hz - 20KkHz
- Impedance: 4 ohms
- Metra 82-5605 door speaker adapter plates
- Metra 72-5602 door speaker harnesses
- IBSBF65: 2-piece 6.5" speaker baffle kit
FD-150-10 10" Subwoofer & Ported Enclosure
- 10” speaker size
- Peak: 900W RMS, 300W
- Sensitivity: 85dB
- Frequency response: 30Hz - 1KkHz
- Impedance: dual 2 ohms
Metra Amplifier Installation Kit
- 18.5’ 4GA OFC power wire
- 21’ 8GA OFC ground wire
- 12' 12GA OFC speaker wire
- T-Spec VMANL water-tight fuse holder with 100A MANL fuse
- Distribution block
- Mounting hardware
Metra Vehicle-specific Amp Mounting Rack
- Vehicle-specific design
- CNC machine-cut with pre-drilled holes
- Designed to mount to OE bolt locations for easy installation behind the rear seat
Refer to our Vehicle Fit Guide for up-to-date vehicle-specific applications.
