Audio Kit - Toyota Tacoma Double Cab 2016-2023 (non-amplified)

Metra has collaborated with VIBE Audio to create this state-of-the-art plug-n-play audio system engineered specifically for non-amplified 2016-2023 Toyota Tacoma Double Cab pickup trucks. This complete, all-in-one premium audio kit includes every component required to install a fully integrated aftermarket sound system, eliminating the need to source parts individually.

The kit features matched amplifiers, a total of six speakers for the front and rear of the vehicle, and a 10" subwoofer in a ported enclosure, along with Metra’s vehicle-specific installation solutions designed to simplify the upgrade process. Integration components such as the plug-n-play T-harness, speaker adapters, amplifier brackets, and mounting solutions ensure seamless compatibility and straightforward installation.

Each component in this kit has been engineered and tuned to work together as a unified system, delivering crystal-clear highs, rich midrange, and deep, controlled bass tailored to the truck's interior. Because the system is designed as a complete package, all included components are required for proper performance and are not intended to be sold or installed separately.

Complete All-In-One Kit

Features:

Estimated installation time is 3 to 4 hours with 1 experienced technician

Check out our detailed instructions for this install here: Instructions

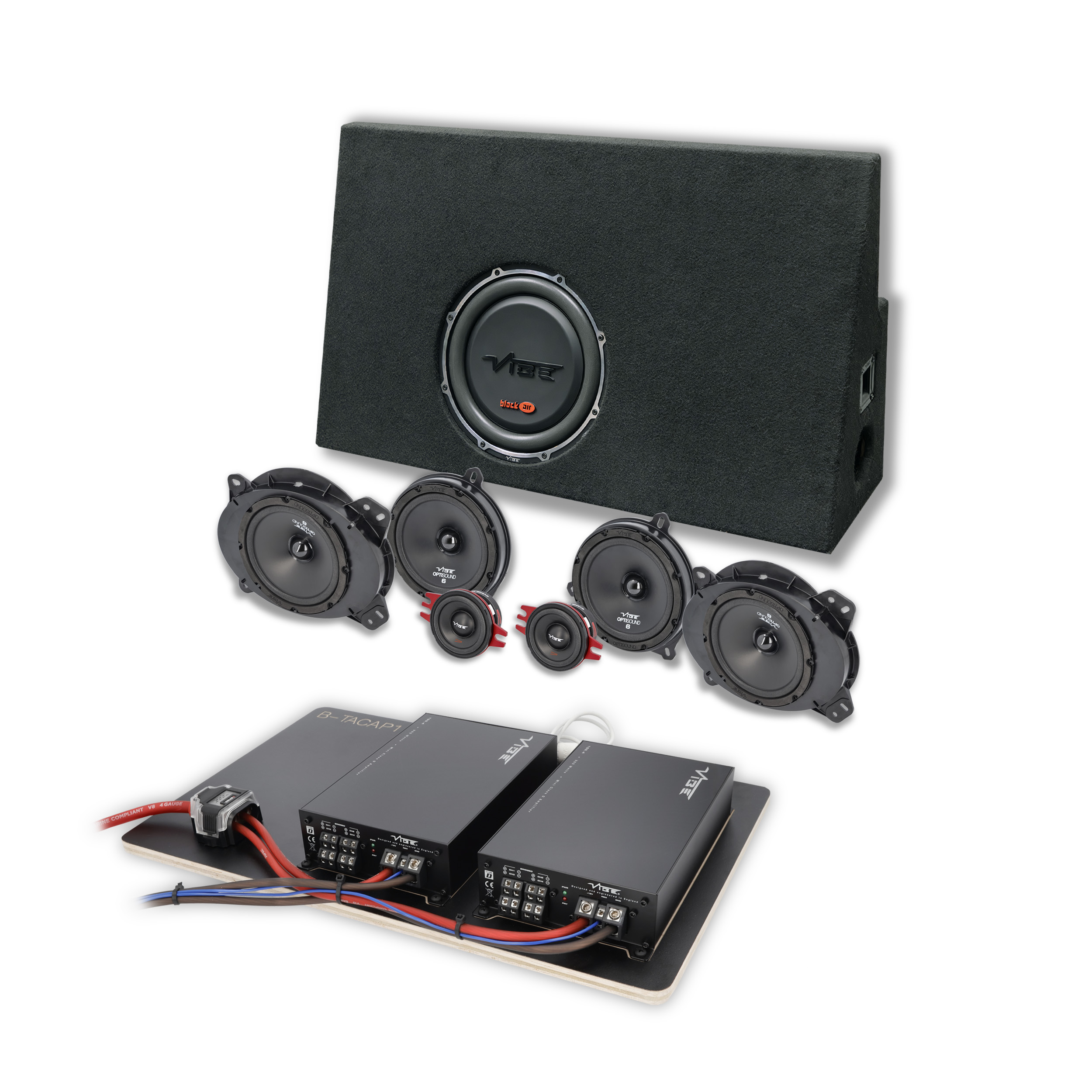

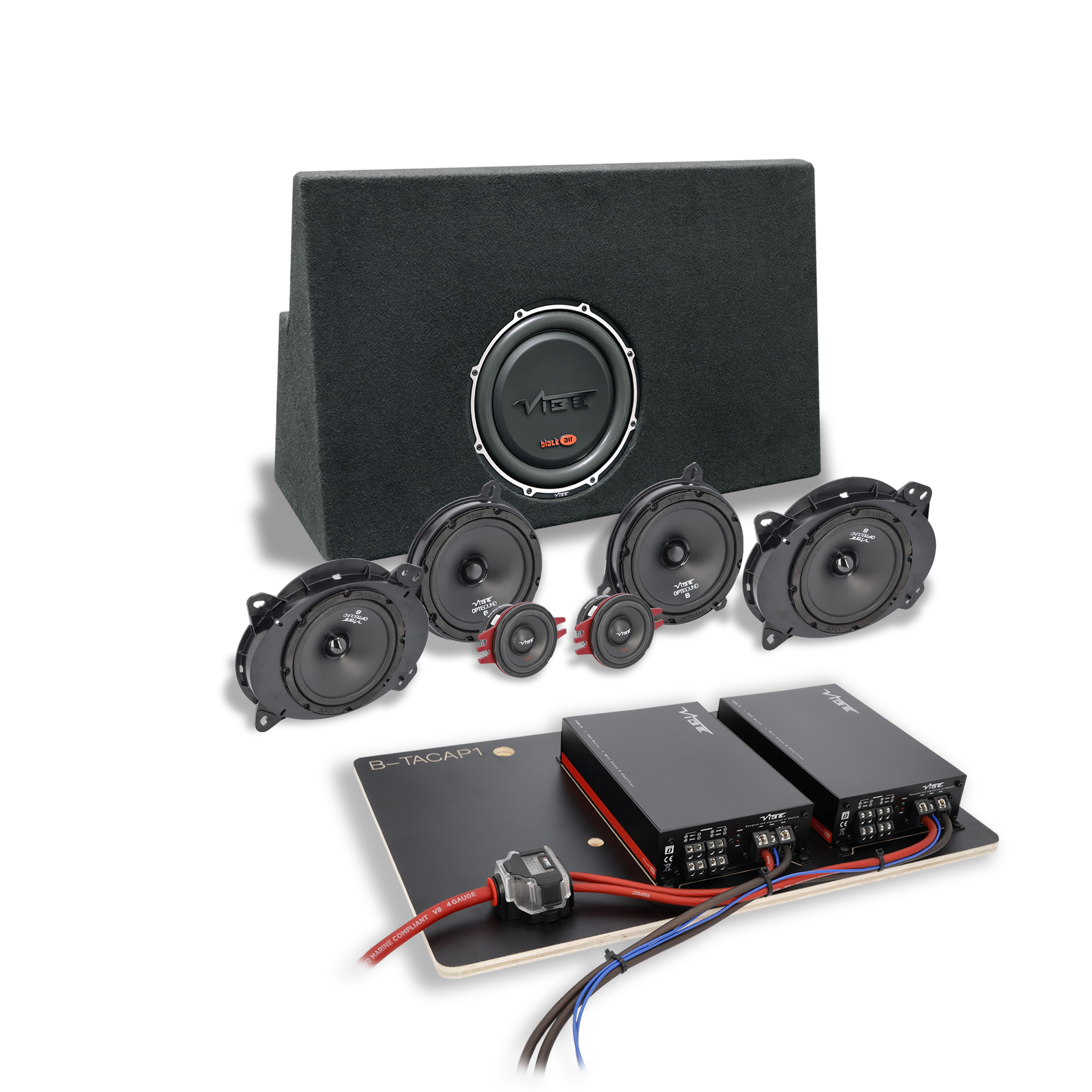

Plug-n-play audio system includes:

• Pair 400-watt 4 channel 100 x 4 amplifiers
• Pair 2.7” dash speakers
• Pair 6.5” front door speakers
• Pair 6.5” rear door speakers
• 10” subwoofer with a ported enclosure
• DSP interface with downloadable vehicle-specific tuning
• Vehicle-specific amplifier installation harnesses
• Vehicle-specific amp mounting rack
• Detailed step-by-step instructions

PB100.4M-V0 Amplifiers

• Max power: 960W
• Power output @ 2 ohms: 120W x 4
• Power output @ 4 ohms: 100W x 4
• Power output @ 4 ohms bridged: 240W x 2
• System delivers up to 1920 watts of maximum power
• Dimensions: 1.9” H x 9.1” W x 5.3” D (47mm x 230mm x 134mm)
• Class D

CVEN2.7M-V4 2.7” Dash Speakers

• 2.7” speaker size
• Peak: 160W RMS, 80W
• Sensitivity: 87dB
• Frequency response: 300Hz – 20kHz
• Impedance: 4 ohms
• Metra 72-8110 dash tweeter harnesses (for non-amplified)

SLICKSQ6 6.5” Front Door Speakers

• 6.5” speaker size
• Peak: 270W RMS, 90W
• Sensitivity: 94dB
• Frequency response: 55Hz – 20KkHz
• Impedance: 4 ohms
• Metra 82-8147 front door speaker adapter plates
• Metra 72-8104 front door speaker harnesses
• Metra IBFSR65 2-piece speaker baffle kit included for enhanced sound directionality and sealing
• Ballistic sound damping material (vehicle-specific pattern downloadable in instructions)

OPTI6-V4 6.5” Rear Door Speakers

• 6.5” speaker size
• Peak: 270W RMS, 90W
• Sensitivity: 94dB
• Frequency response: 55Hz – 20KkHz
• Impedance: 4 ohms
• Metra 82-8148 rear door speaker adapter plates
• Metra 72-8109 rear door speaker harnesses
• Metra IBFSR65 2-piece speaker baffle kit included for enhanced sound directionality and sealing
• Ballistic sound damping material (vehicle-specific pattern downloadable in instructions)

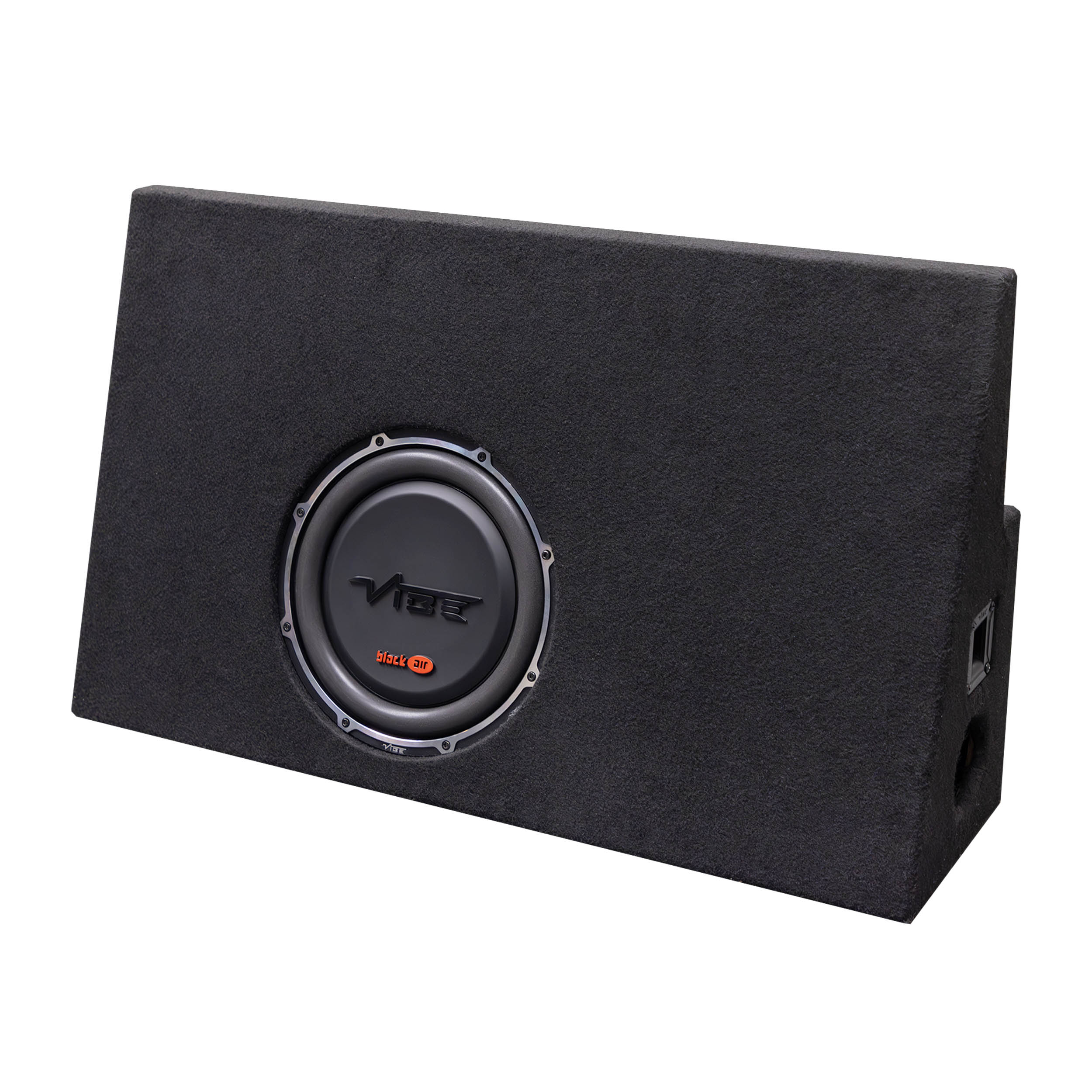

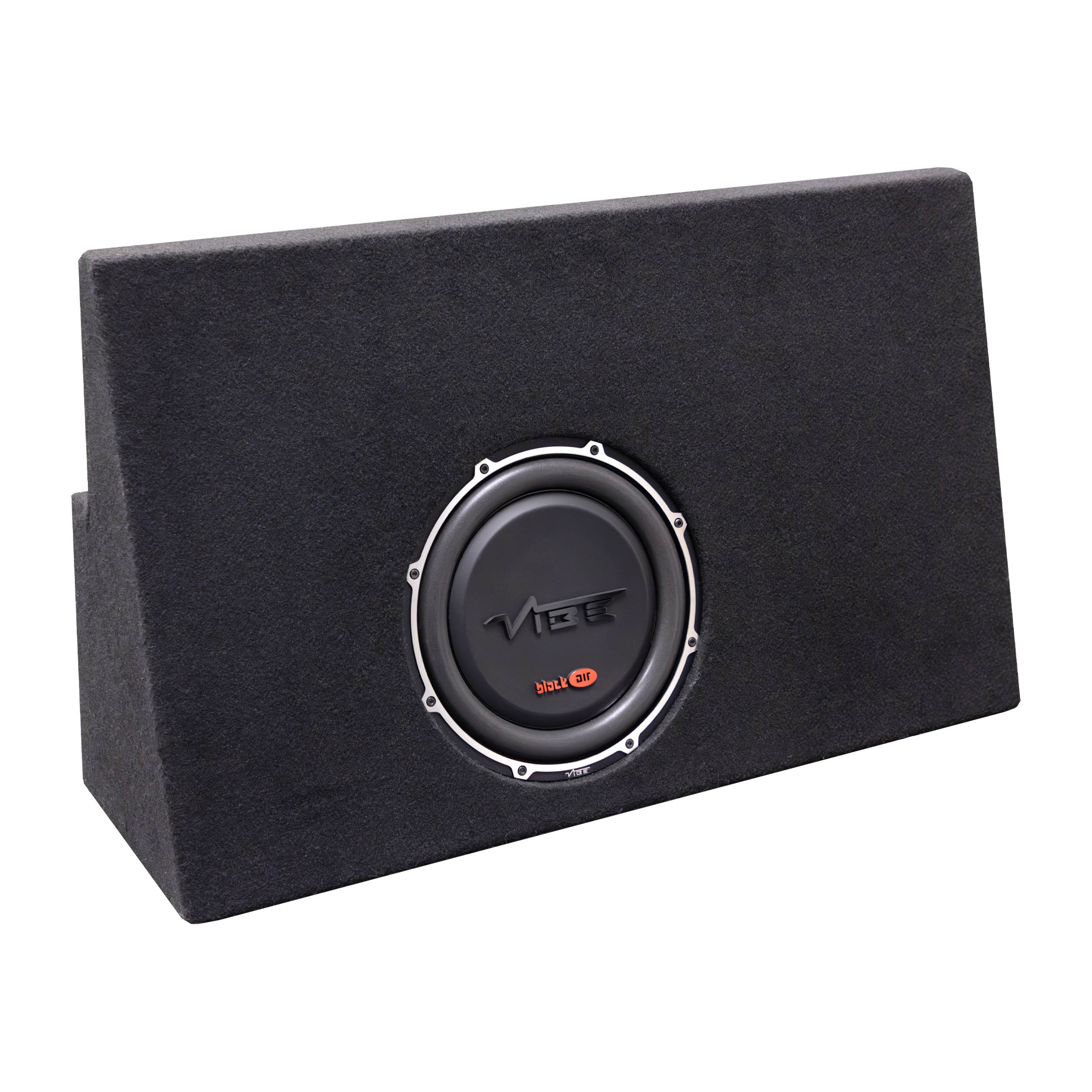

TY-TAC1-10” Subwoofer and Ported Enclosure

• Peak: 900W, RMS 300W
• Fits behind rear seat
• Sensitivity: 85dB
• Impedance: Dual 2 ohm

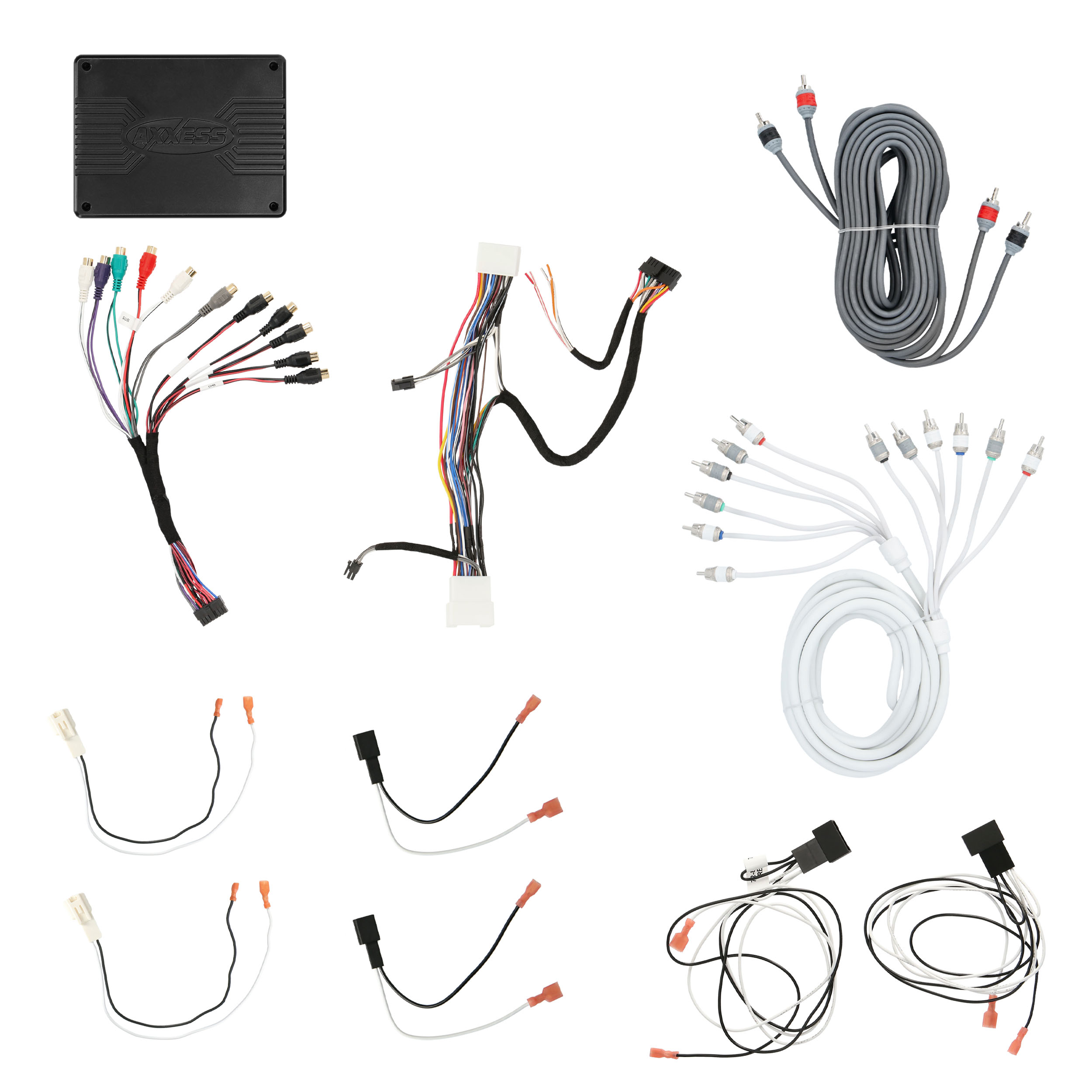

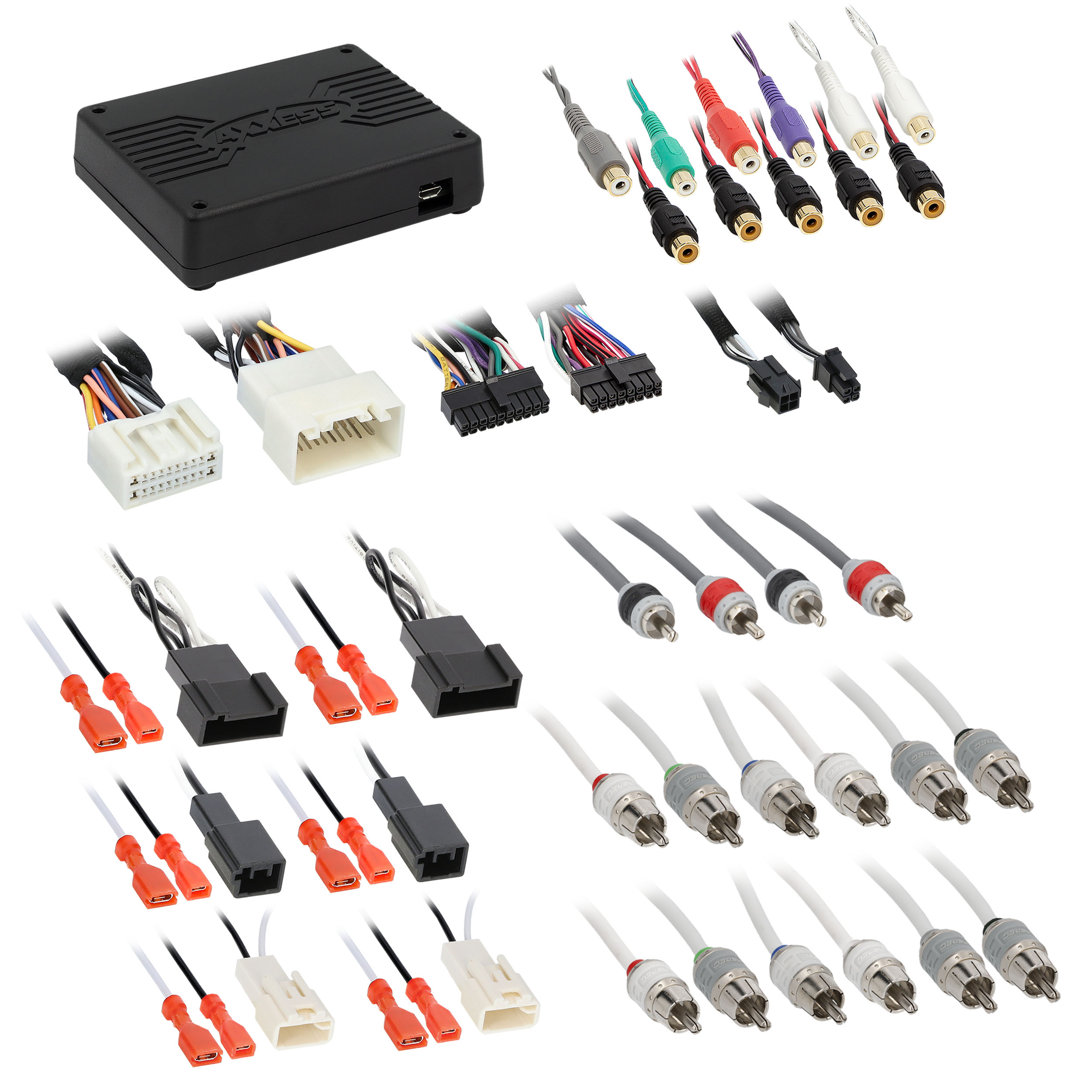

Metra Vehicle-Specific Amplifier Interface

• Axxess DSP Interface
• Plug-n-play integration harnessing
• Simple behind-the-radio installation

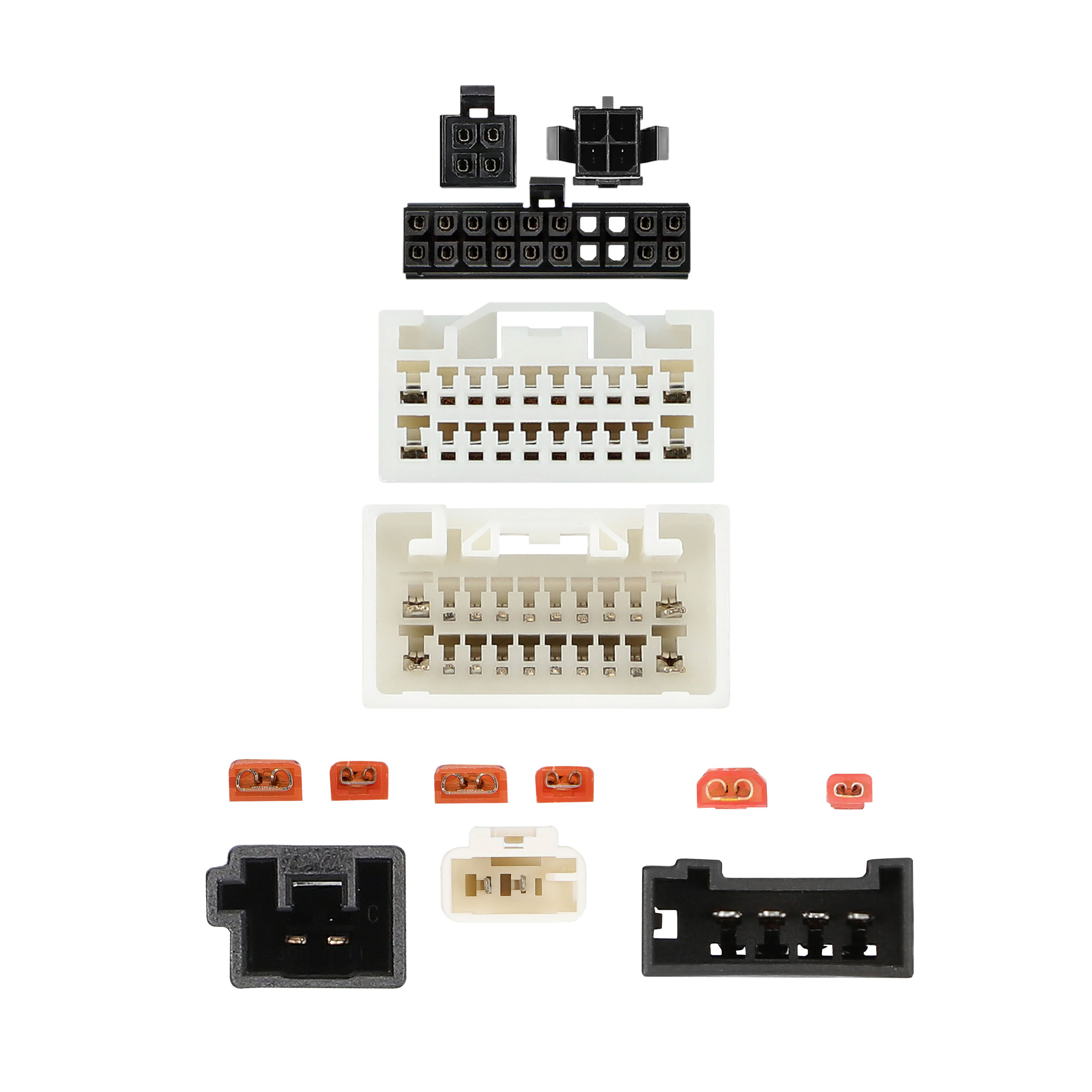

• T-Harness and OE connectors
• Retains factory chimes, including parking sensors with adjustable level
• Downloadable vehicle-specific tuning

Metra Amplifier Installation Kit

• 18.5’ 4GA OFC power wire
• 21’ 8GA OFC ground wire
• 12' 12GA OFC speaker wire
• T-Spec MANL water-tight fuse holder with 100A MANL fuse
• Distribution block
• Mounting hardware

Metra Vehicle-specific Amp Mounting Racks

• Vehicle-specific design
• Mounts using OEM Locations and bolts
• Behind-the-seat mounting rack specifically designed for amplifiers

Refer to our Vehicle Fit Guide for up-to-date vehicle-specific applications
