Proscenium® Modular Infotainment & Control Platform | 10.1"

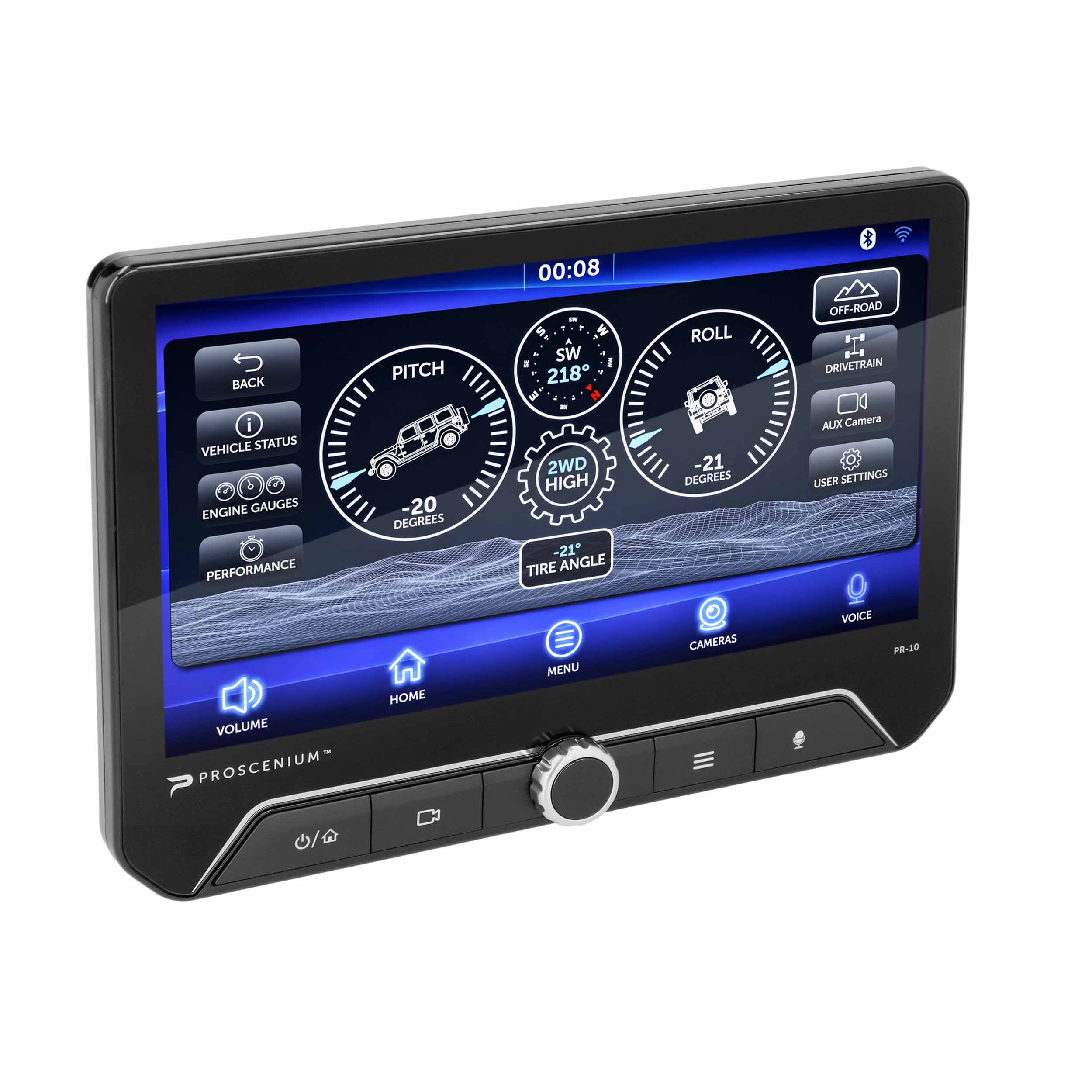

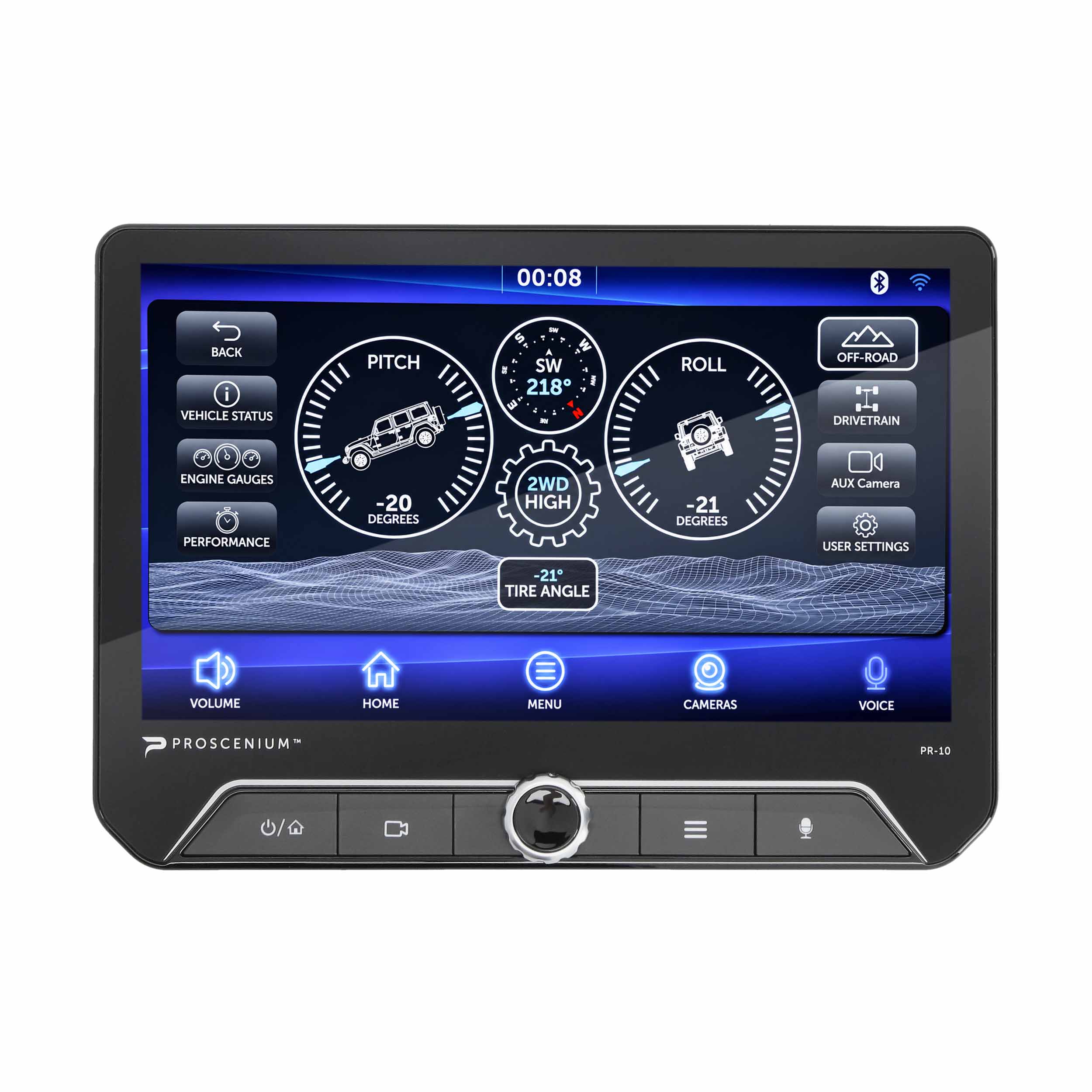

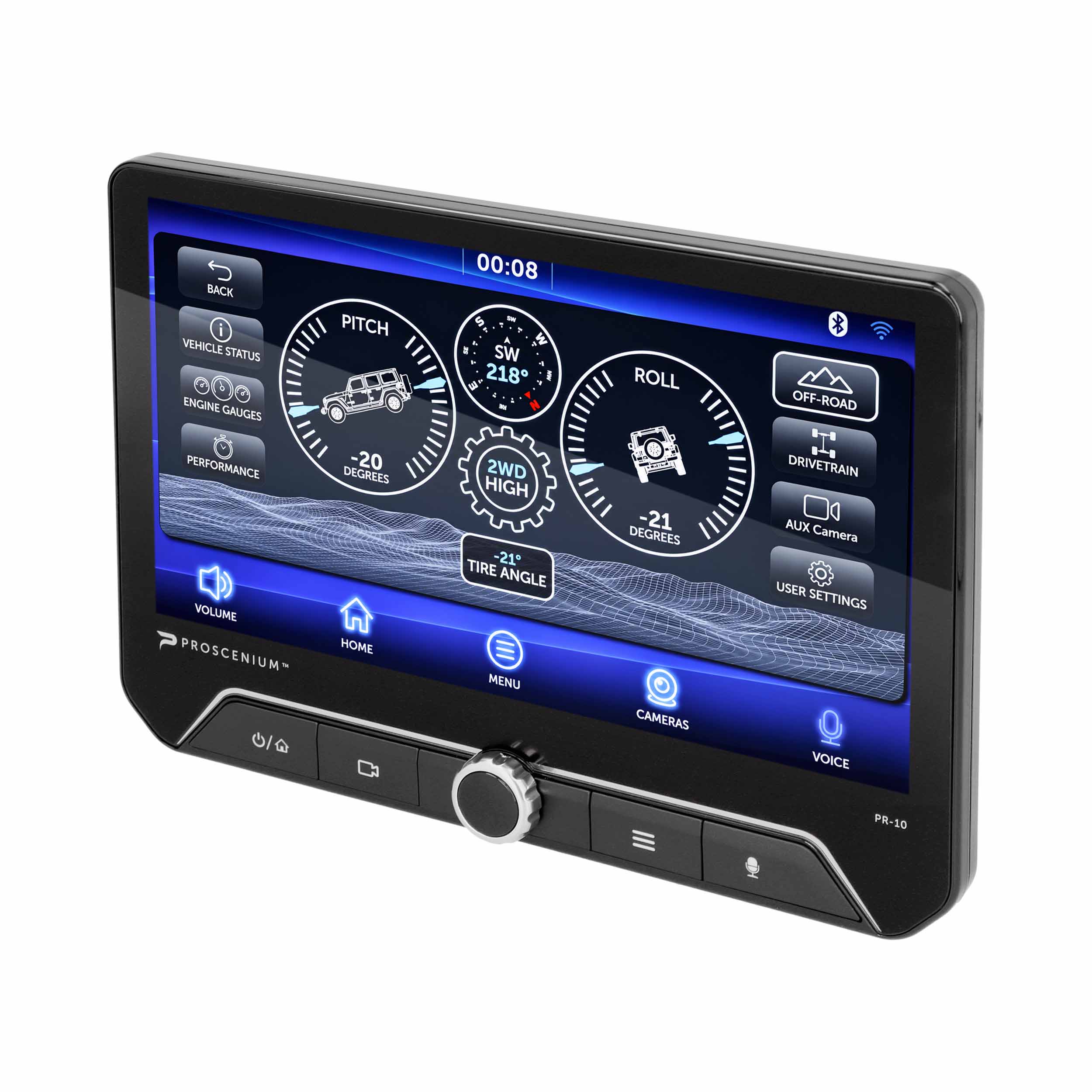

Upgrade your dashboard with Hi-Res Audio certified playback, modern smartphone connectivity, and a clear, detailed touchscreen display. The Proscenium^® PR-10 Modular Infotainment & Control Platform is a universal radio featuring a 10.1" IPS capacitive touchscreen with 1280 x 720 resolution and a bonded glass display.   The PR-10 supports Apple CarPlay^® and Android Auto^™ via a wired or wireless connection. Hands-free calling via Bluetooth^® wireless technology keeps communication convenient. An HDMI^® input supports 1080p video from external sources using the IBR118 adapter, sold separately.

Tune your system with independent 15-band parametric equalization for each audio channel, adjustable crossovers, time alignment, and 5V RCA preamp outputs. Five camera inputs expand visibility, while six programmable ground-trigger outputs let you control accessories via external relays. On-screen control of compatible Heise Chasing LEDs requires the HE-CHASE-PRO controller, sold separately.

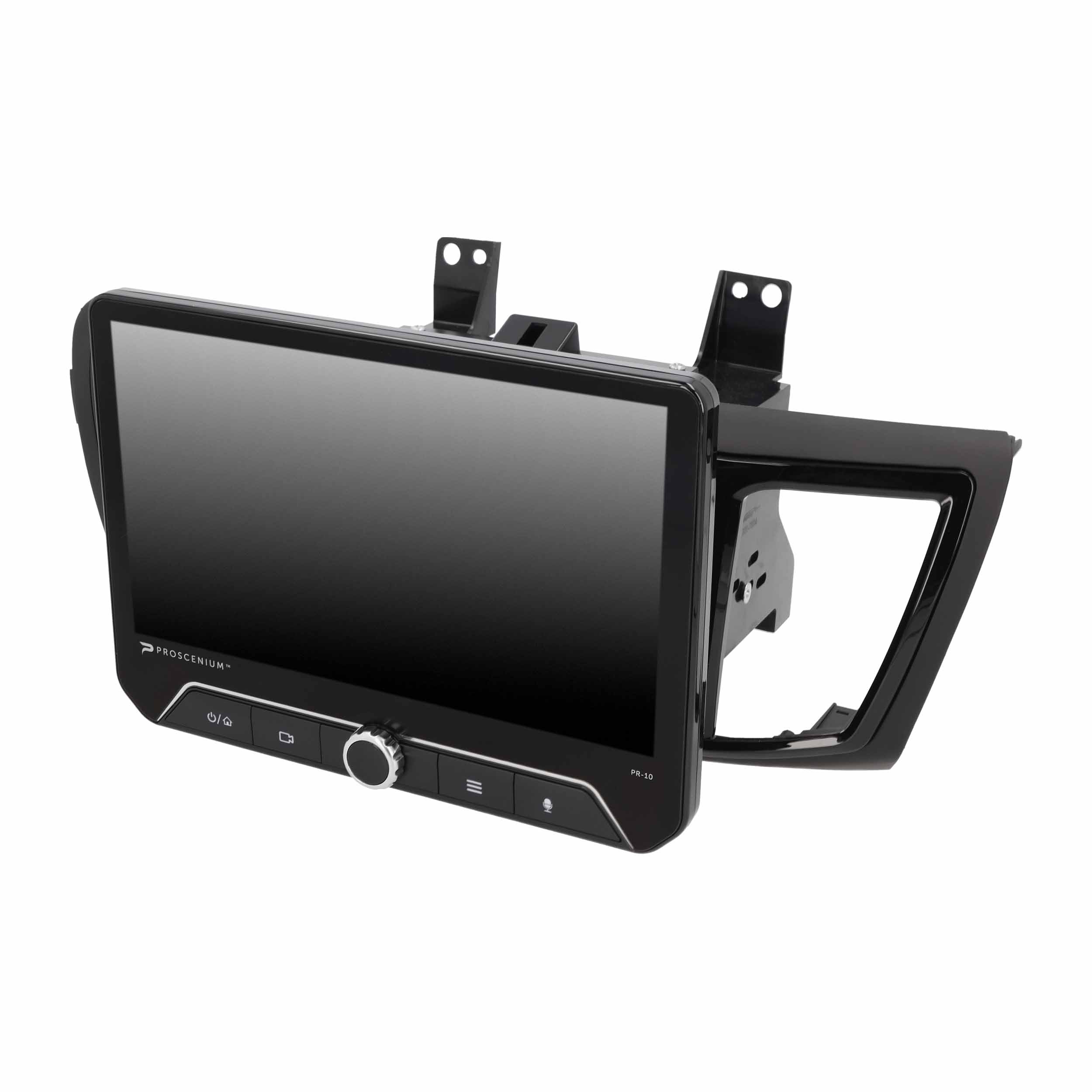

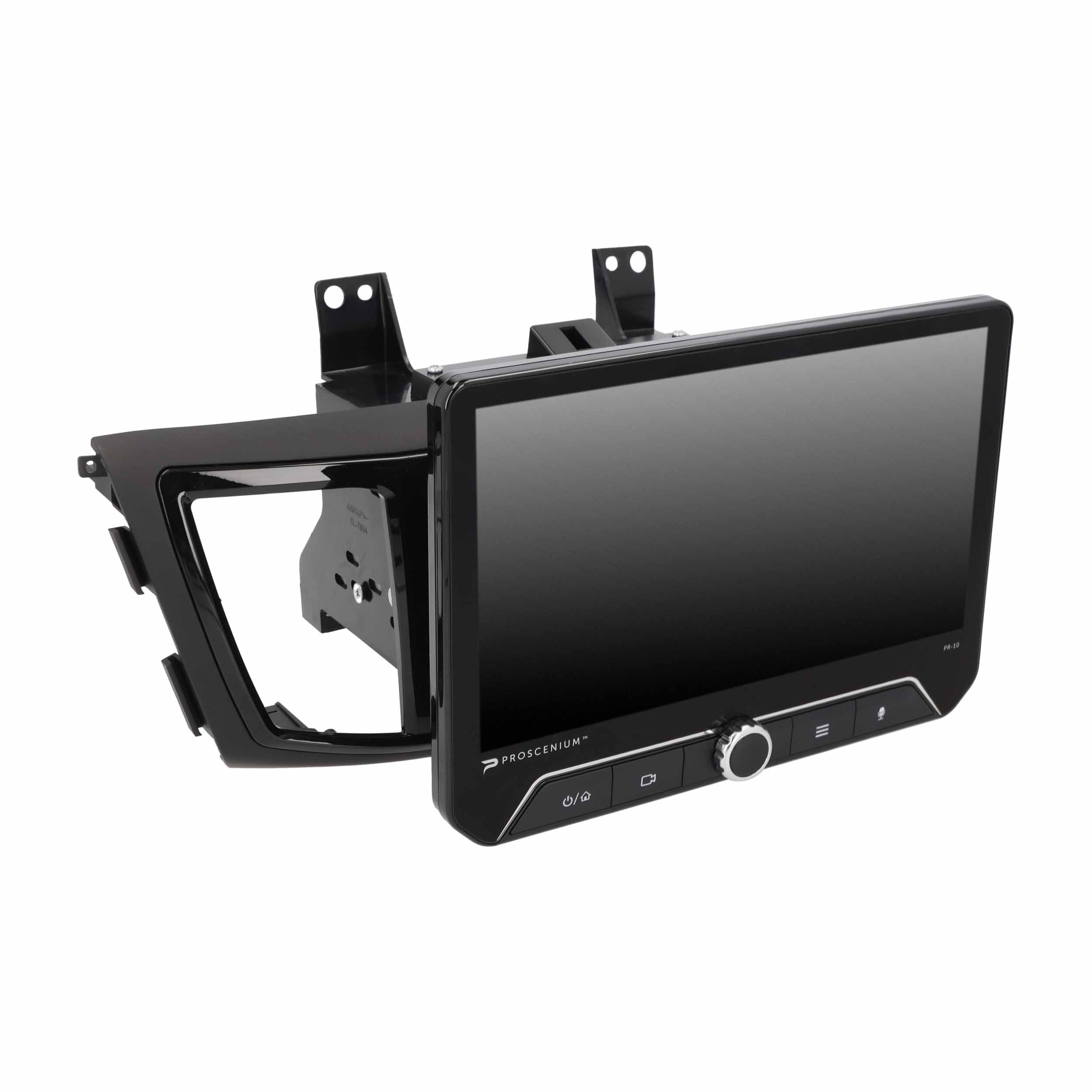

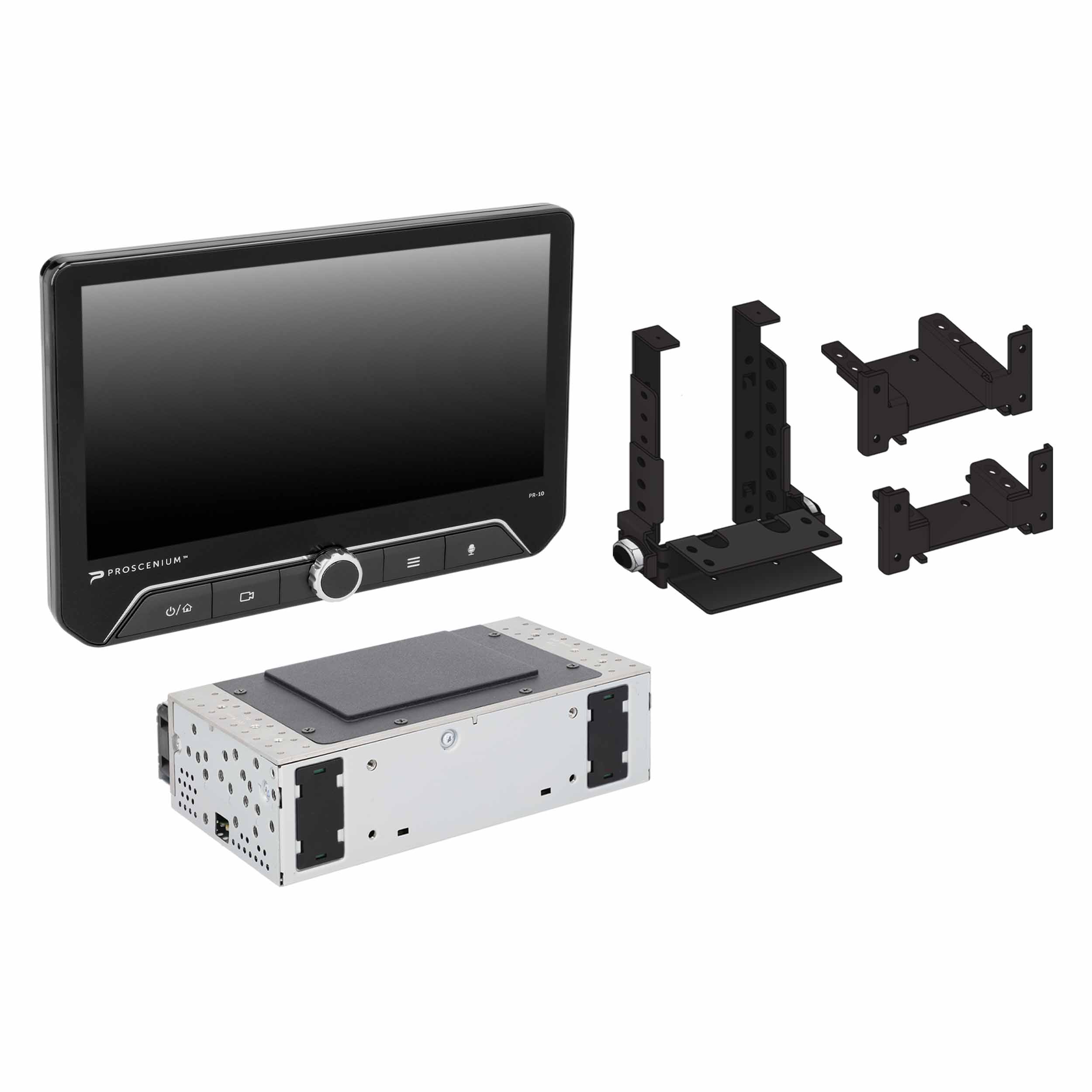

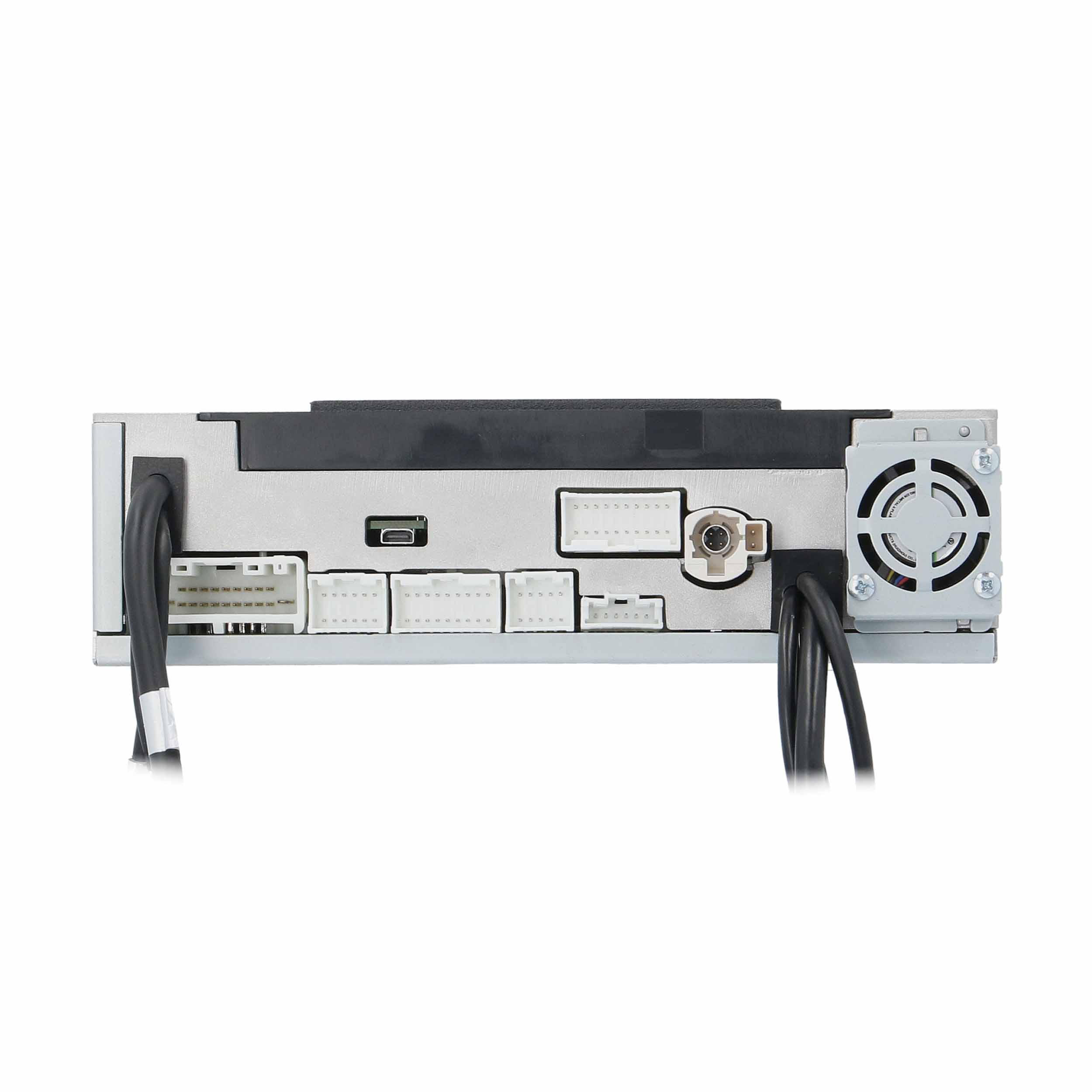

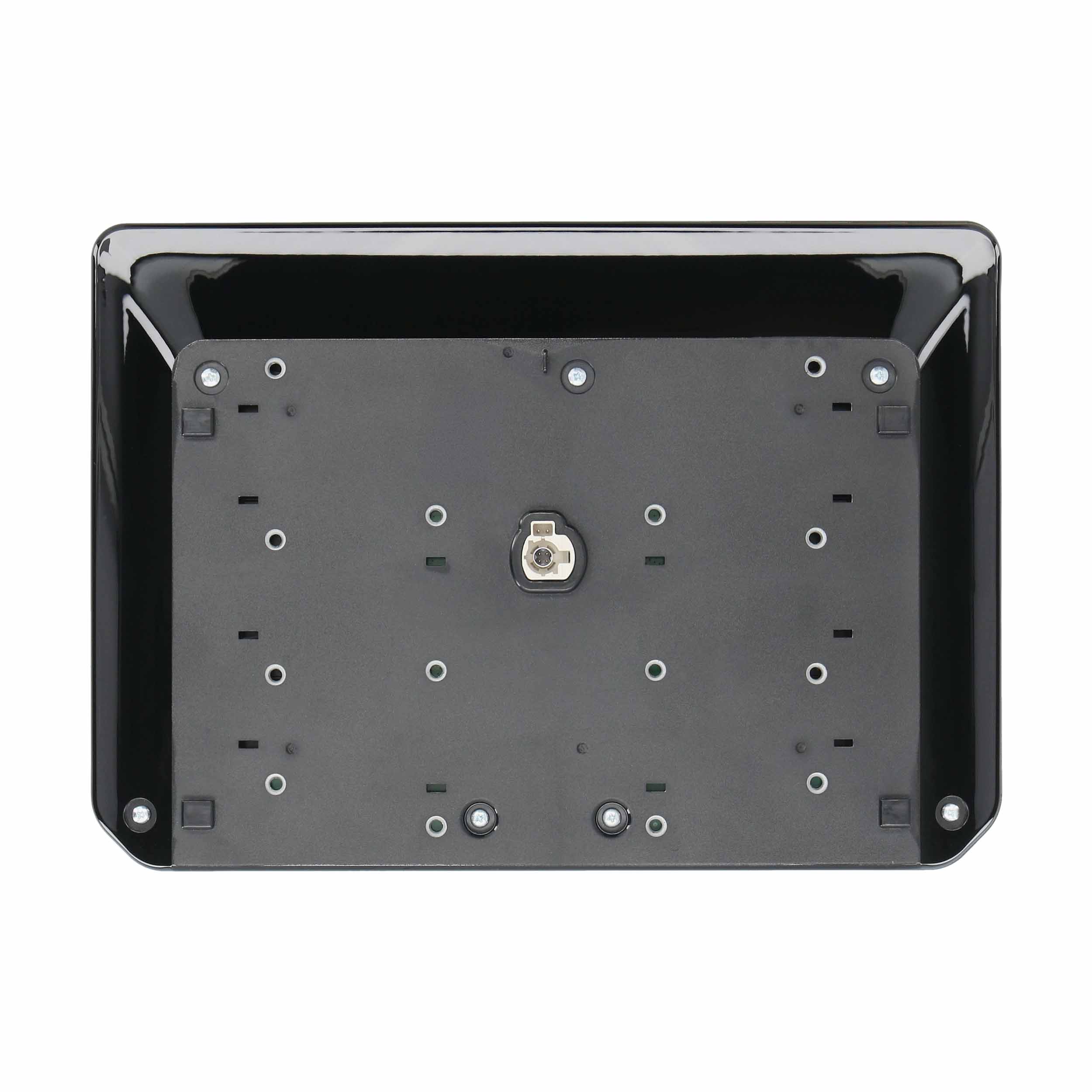

Engineered and designed in the USA, the PR-10 features a patented modular chassis design with a separate display connected through a single LVDS cable. Articulating brackets provide 40° forward and 10° backward tilt, 3" of vertical adjustment in ½" increments, and configurable mounting depth. The separate processing chassis gives installers additional flexibility behind the dash. Display positioning and adjustment depend on the dash kit and application.

Unlock supported factory controls and vehicle information on the touchscreen by pairing the radio with a compatible Proscenium^® vehicle-specific kit. Kits such as PR-JP1, PR-FD1, and PR-FD2 must be purchased separately and installed with the radio for these features to become available. Feature availability varies by vehicle and installed kit. The chassis-mounted interface connects supported factory systems to the radio while reducing the need for separate interface boxes and excess wiring. Depending on the vehicle and installed kit, available features may include climate controls, tire pressure, vehicle gauges, door status, lighting settings, and personalization menus.

Features:

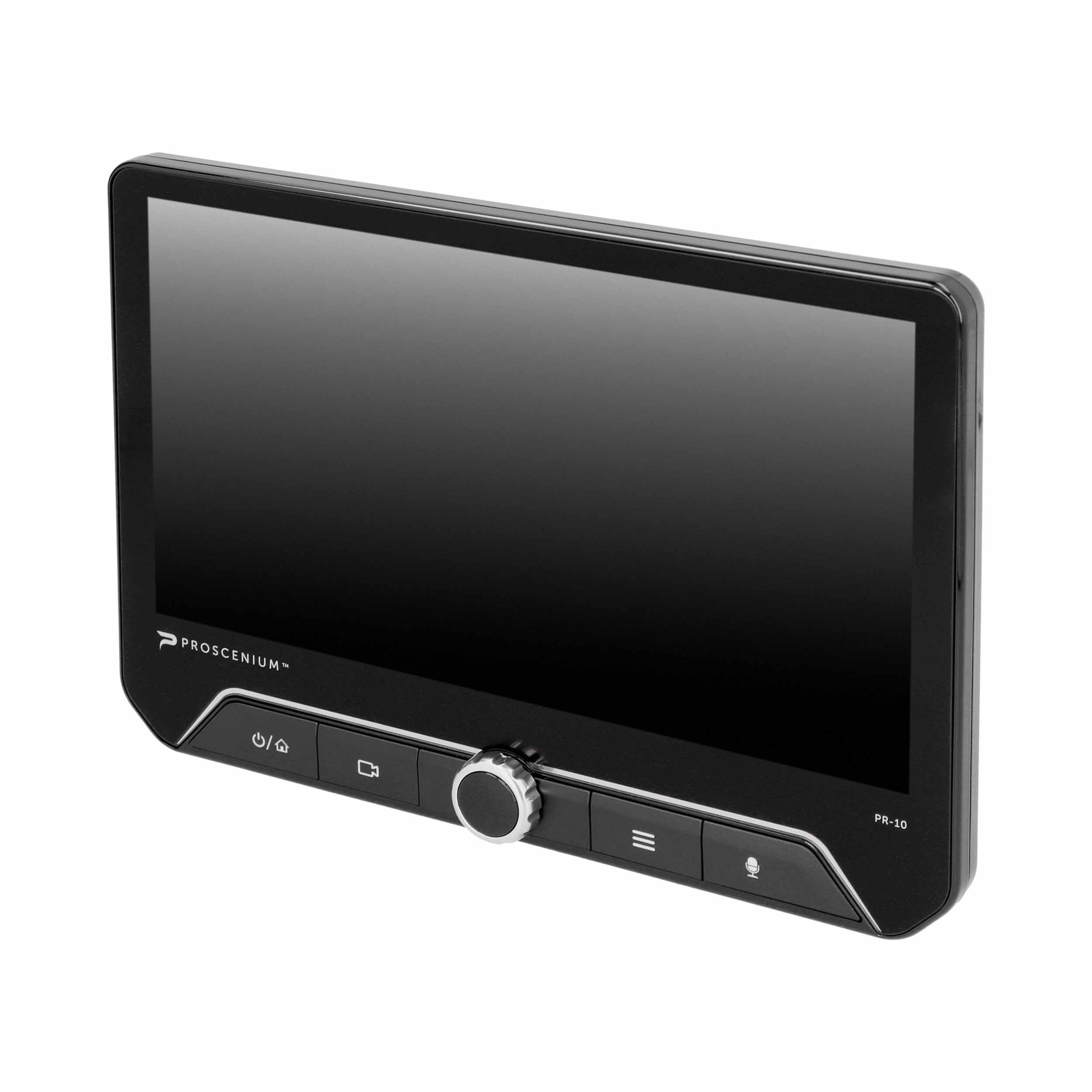

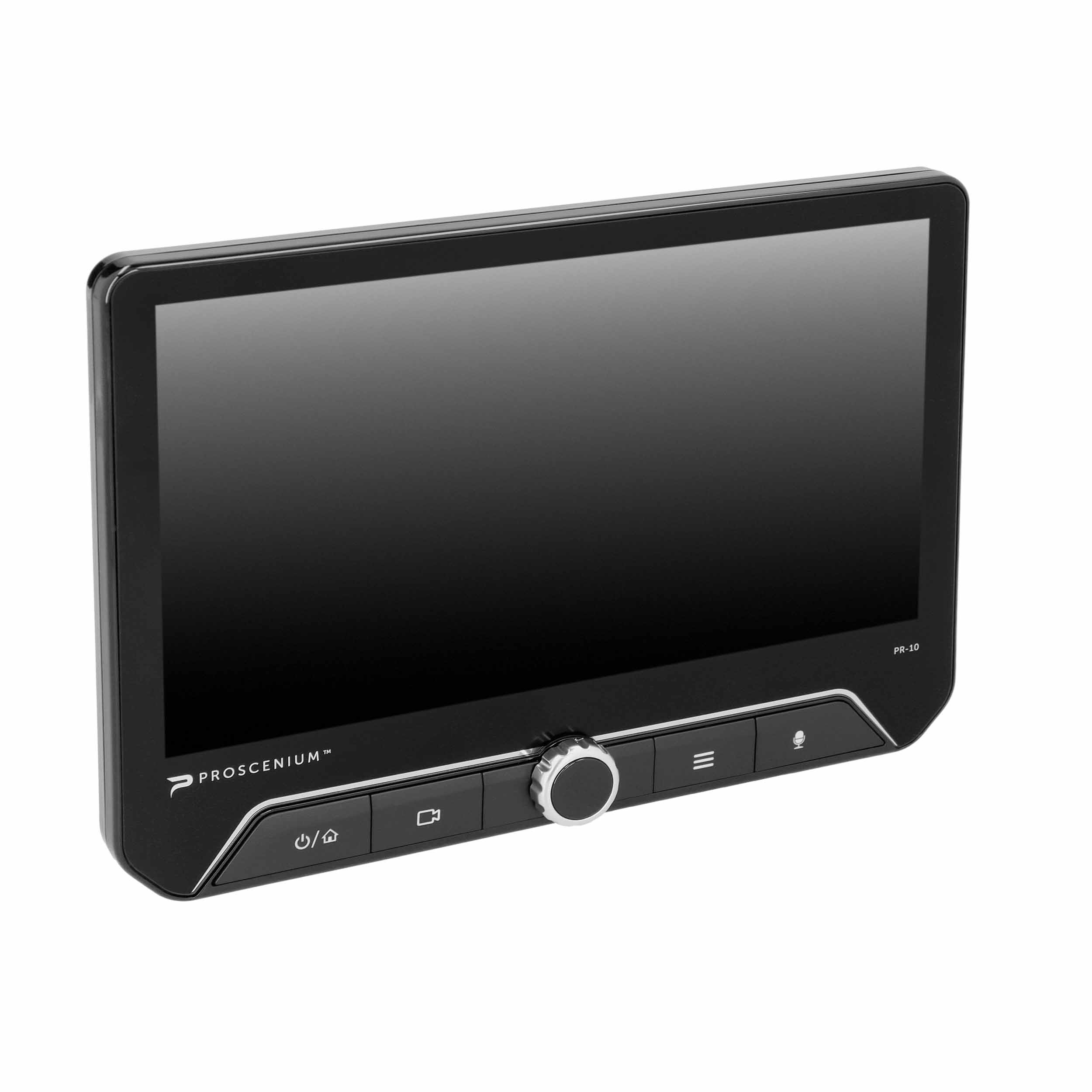

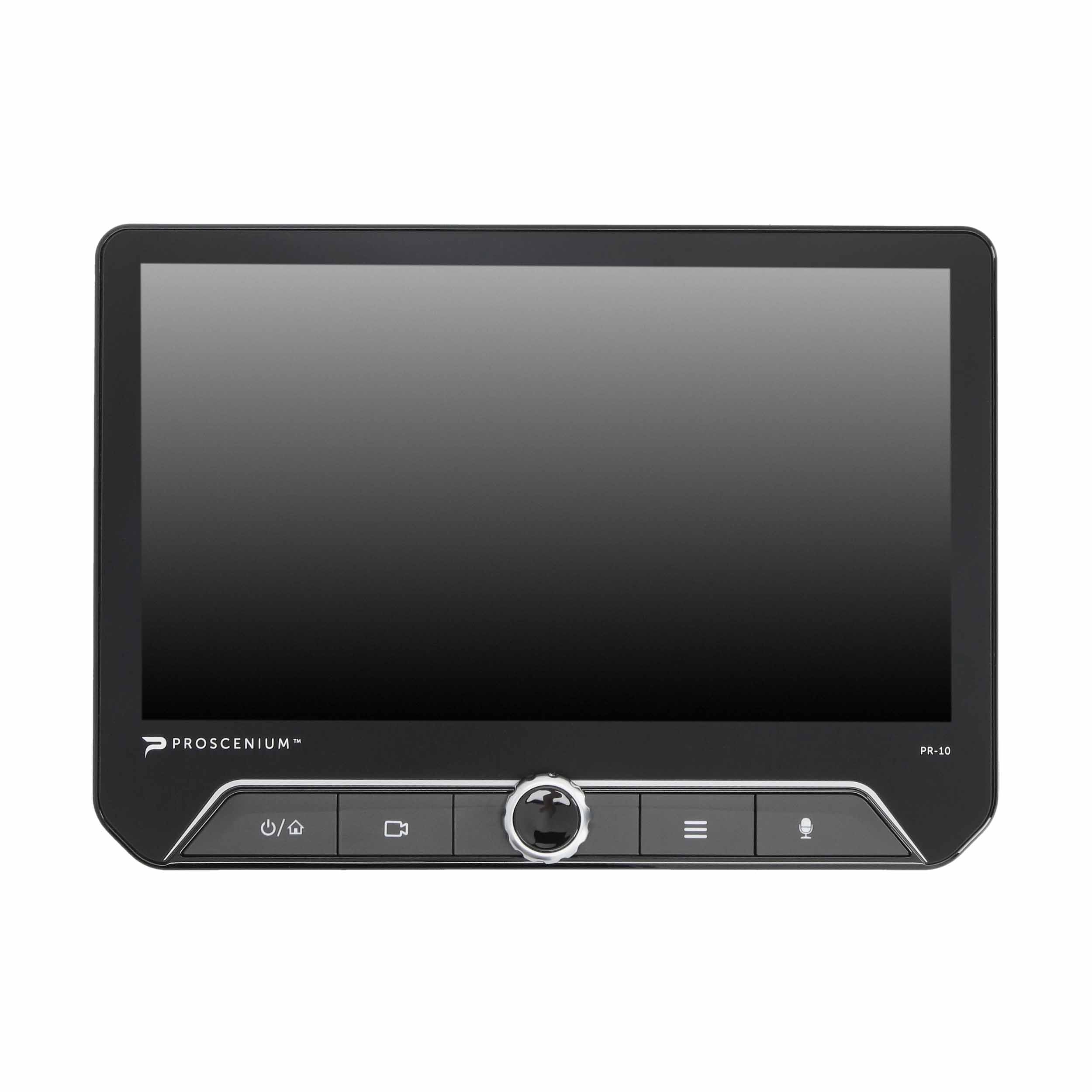

• 10.1" IPS capacitive touchscreen with 1280 × 720 resolution and bonded glass display
• Adjustable floating mount with 40° forward and 10° backward tilt
• 3" of vertical adjustment in ½" increments and configurable mounting depth
• Physical rotary volume knob and hard keys
• Patented modular chassis design with separate display and single LVDS connection
• Works with Apple CarPlay^® through a wired or wireless connection
• Works with Android Auto^™ through a wired or wireless connection
• Hands-free calling via Bluetooth® wireless technology
• Bluetooth^® 5.0 with dual-device connectivity for calls and music
• AM/FM tuner
• Hi-Res Audio certified playback; supports MP3, FLAC, WAV, AAC, and APE files
• 5V RCA preamp outputs for front left, front right, rear left, rear right, and subwoofer channels
• Independent 15-band parametric EQ for each audio channel
• Adjustable front, rear, and subwoofer crossovers and time alignment
• Dual-zone audio capability
• Dual USB-A 2.0 ports with FAT16/32 support
• Stereo RCA auxiliary audio and composite video inputs
• HDMI^® input supporting 1080p video; IBR118 adapter sold separately
• SiriusXM-Ready^®; requires SXV300 Connect Vehicle Tuner, sold separately
• Five camera inputs: rear, front, left, right, and auxiliary
• Dedicated camera trigger connections and adjustable rear-camera parking guidelines
• Up to 10-second turn-off delay for front, left, right, and auxiliary cameras
• Six programmable 500mA negative ground-trigger outputs for external accessory relays
• Momentary, latched, pulsed, timed, and voltage-based accessory trigger settings
• Customizable home screen with widgets
• Touchscreen access to supported factory controls and vehicle data requires a compatible Proscenium^® vehicle-specific kit, purchased separately and installed with the radio; availability varies by application
• On-screen Heise RGB Chasing LED control; Heise HE-CHASE-PRO controller is required and sold separately
• Firmware updates via USB
• Designed for use with a vehicle-specific Metra 95-series or 99-series dash kit
• 1-year standard warranty when purchased from an authorized reseller
• 3-year extended warranty when purchased and installed by an authorized dealer partner

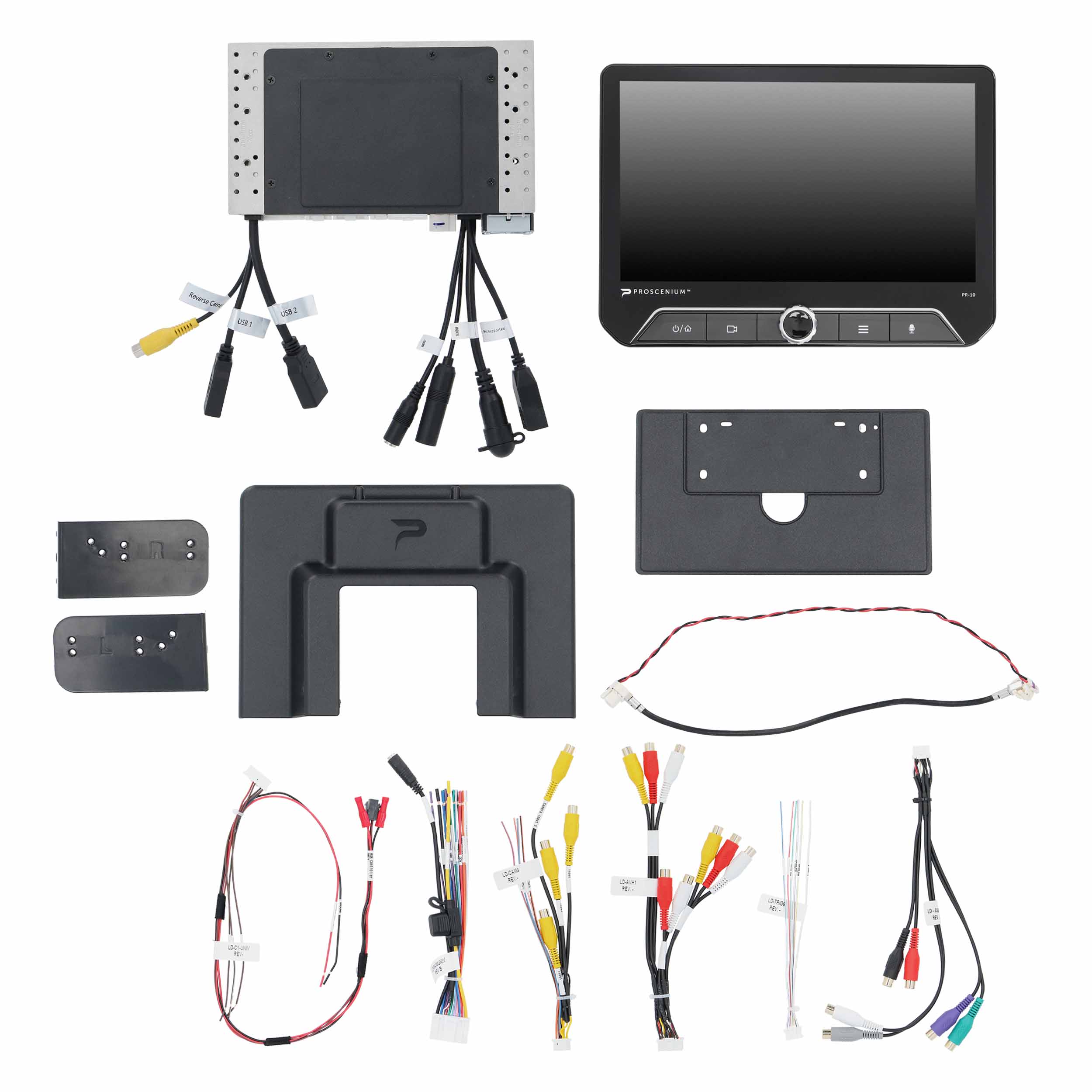

What's Included:

• 10.1" screen and radio chassis
• Main power harness
• RCA audio harness
• A/V harness
• Camera harness
• Switch trigger harness
• Mounting bracket and hardware

Complete Your Install: The PR-10 is built as a universal radio. Install it with a vehicle-specific Metra 95-series or 99-series dash kit and a compatible harness or basic interface, as required by the application. Unlock supported vehicle-specific controls and information by purchasing and installing a compatible Proscenium^® kit designed for your vehicle.

Application: Universal; dash kit, mounting, and vehicle integration requirements vary by application.

Refer to our Vehicle Fit Guide for up-to-date vehicle-specific applications.

Compatible iPhone required for Apple CarPlay. Compatible Android phone and compatible active data plan required for Android Auto. Some features may not be available in all countries and may vary by vehicle and/or device manufacturer. Internet connection may be required. Use features when safe to do so.

Apple CarPlay is a registered trademark of Apple Inc. Android Auto is a trademark of Google LLC. The Bluetooth^® word mark and logos are registered trademarks owned by Bluetooth SIG, Inc., and any use of such marks by Metra Electronics is under license. Other trademarks and trade names are those of their respective owners.
