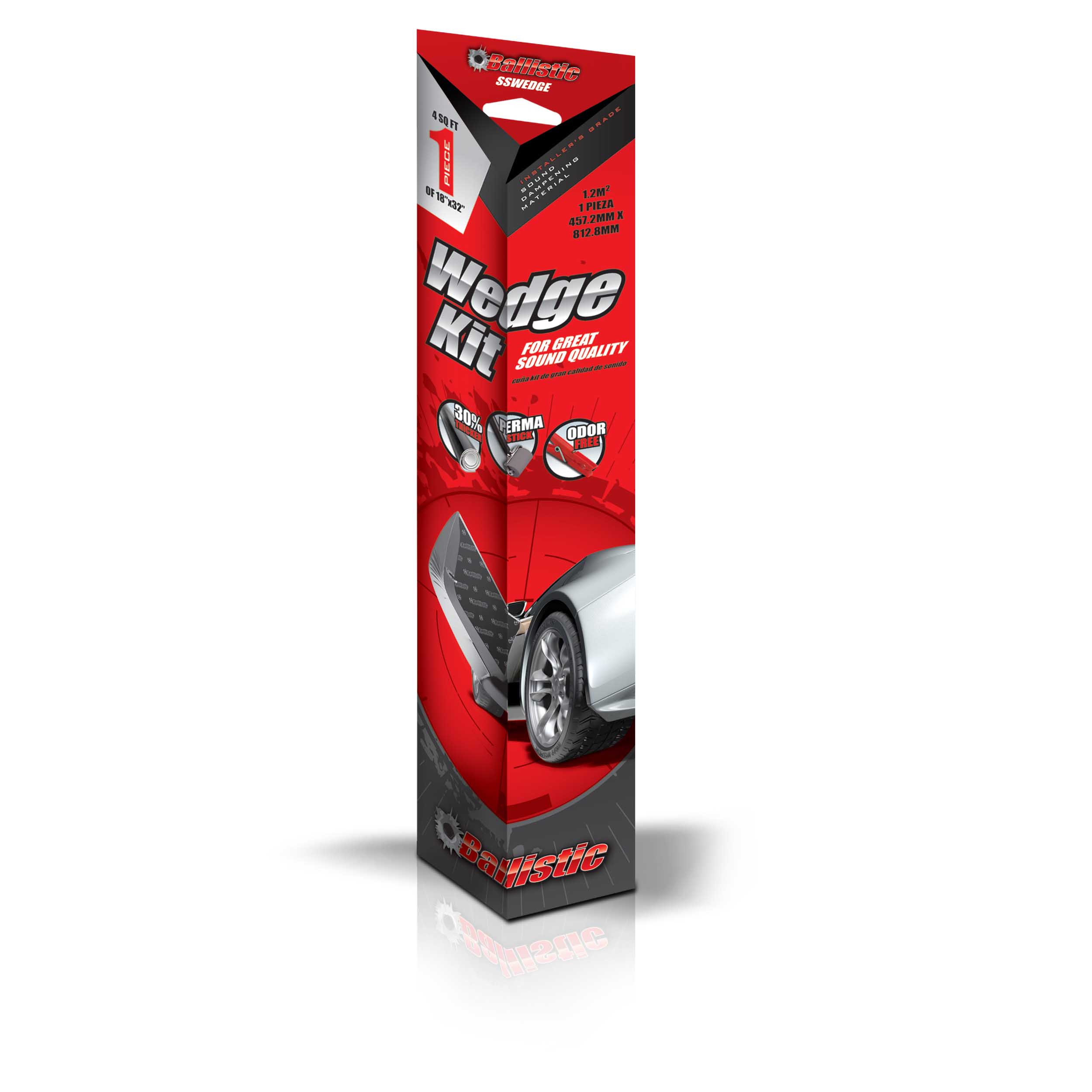

Sound Damping Wedge Kit - Ballistic Series

Ballistic Sound DampingBallistic Noise Dampening Products
SKU: SSWEDGE
WARNING

This product can expose you to Cadmium, which is known to the State of California to cause birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov .

Show full chemical list
Cadmium, Mercury and mercury compounds

More Product Info

Ballistic’s damping material is a lightweight, elastomeric, butyl and aluminum constrained-layer vibrational damper. The mat easily conforms to sheet metal and other hard substrates.

  • Quiets vibrations and rattles
  • Boost’s SPL
  • Easy peel and stick installation
  • New Jet Black Finish with Silver Logo
  • 2.2mm thickness, (w/release paper)
  • 0.72 mass per ft²
Specifications:
  • Thickness:
  • Butyl: 2.0mm
  • Aluminum: 0.1mm
  • 1 pieces 18" x 32" material (457.2mm x 812.8mm)
  • Resistant to mineral oils and water
  • Temperature Range:
  • Optimal Range: 14°F to 140°F (-10°C to 60°C)
  • Extreme Range: -65°F to 300°F (-54°C to 149°C)
COVERAGE
  • 4² Ft (0.37M²) Total
  • Box dimensions: 21.25" x 4.75" x 2.5"
  • Master carton: 4 Per Carton (22" x 5.9" x 5.9")
